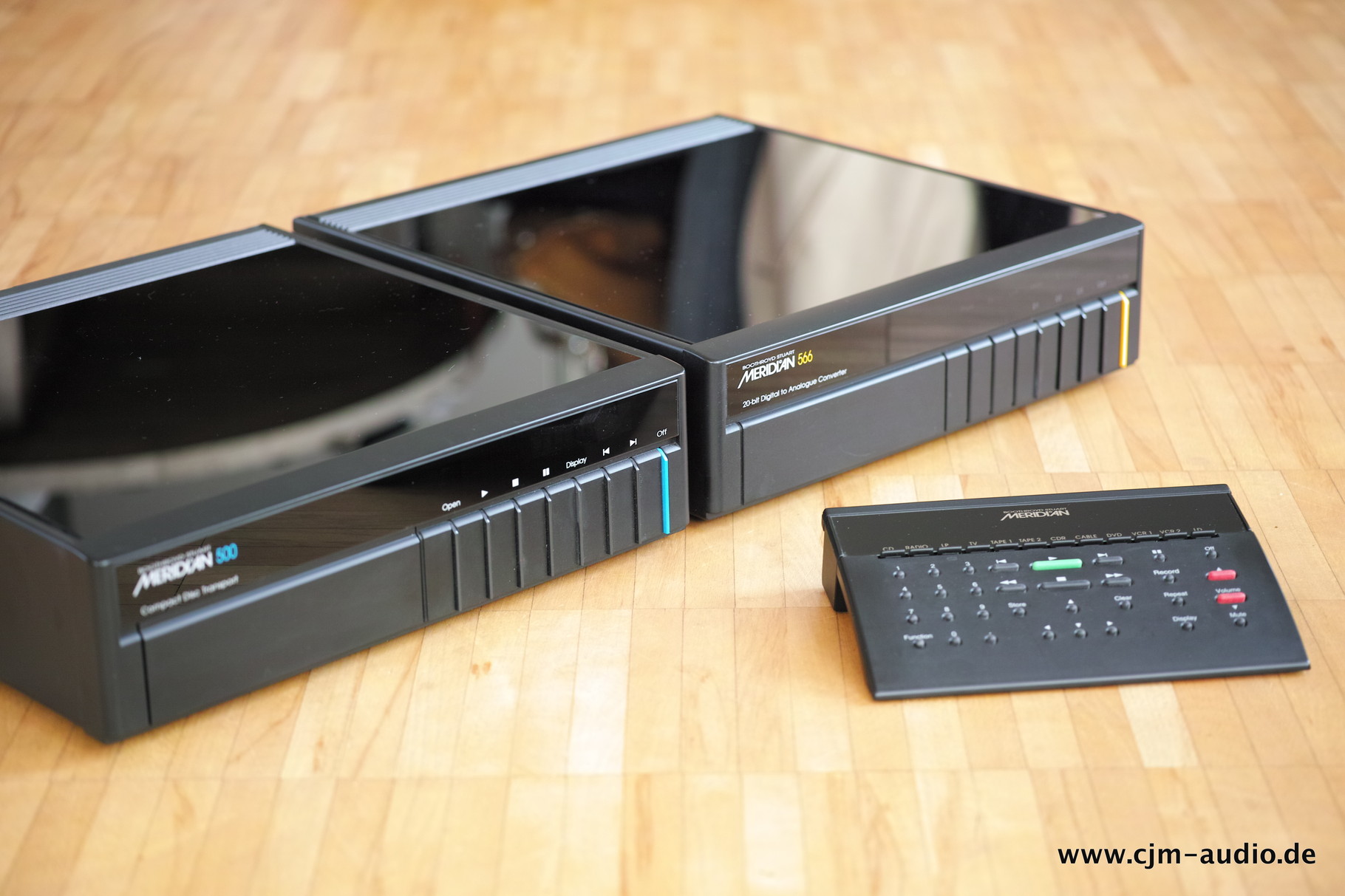

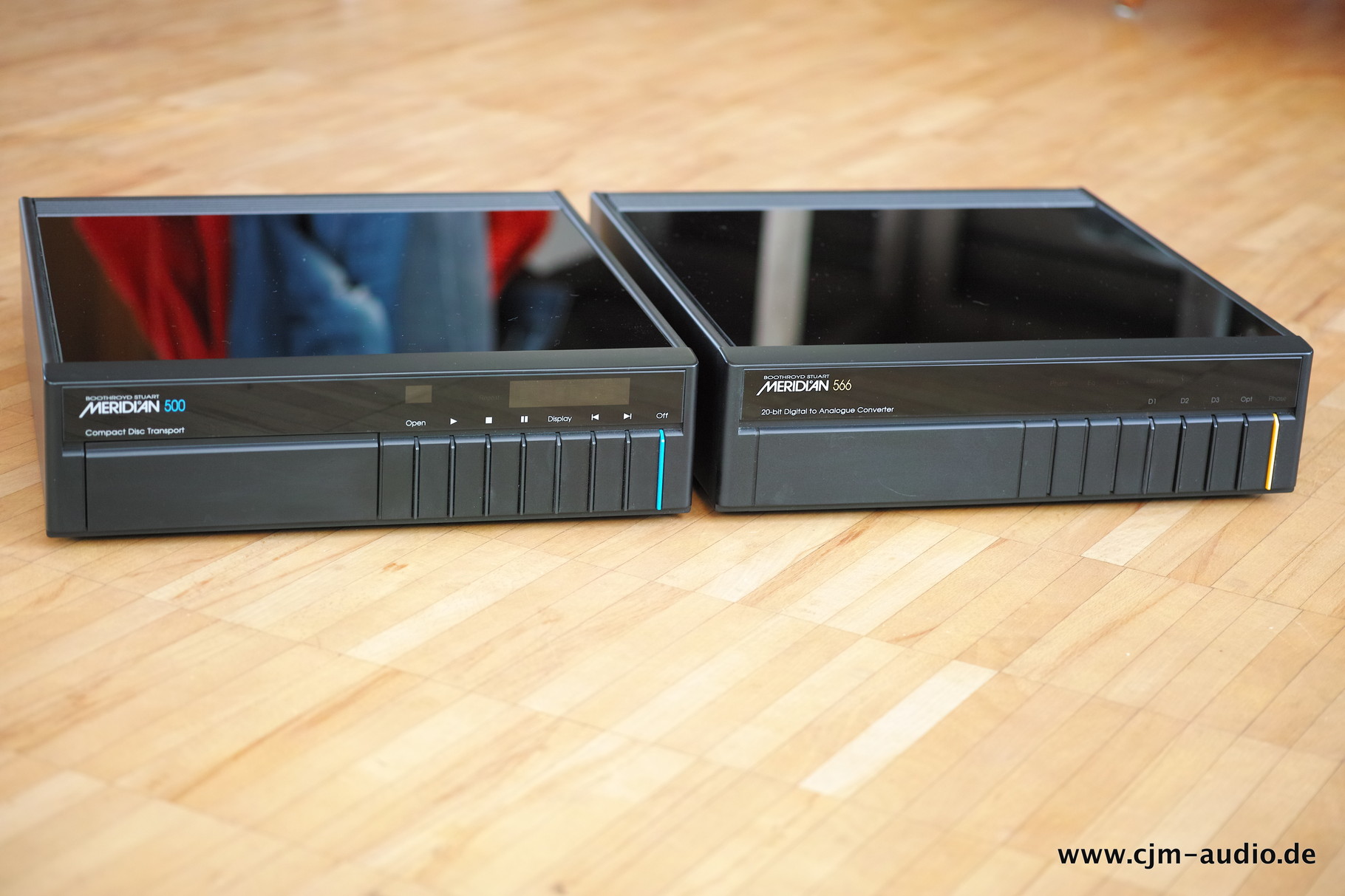

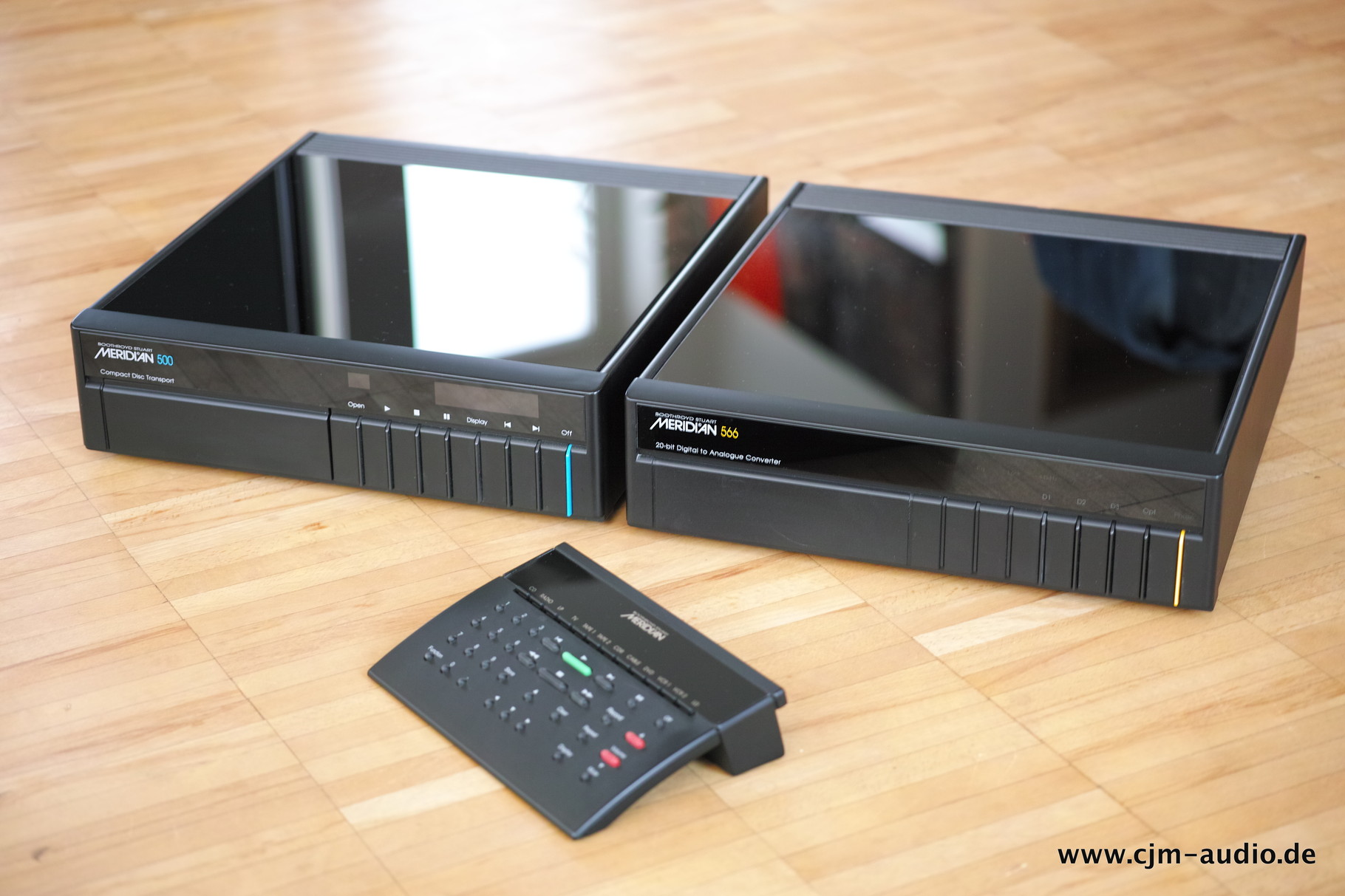

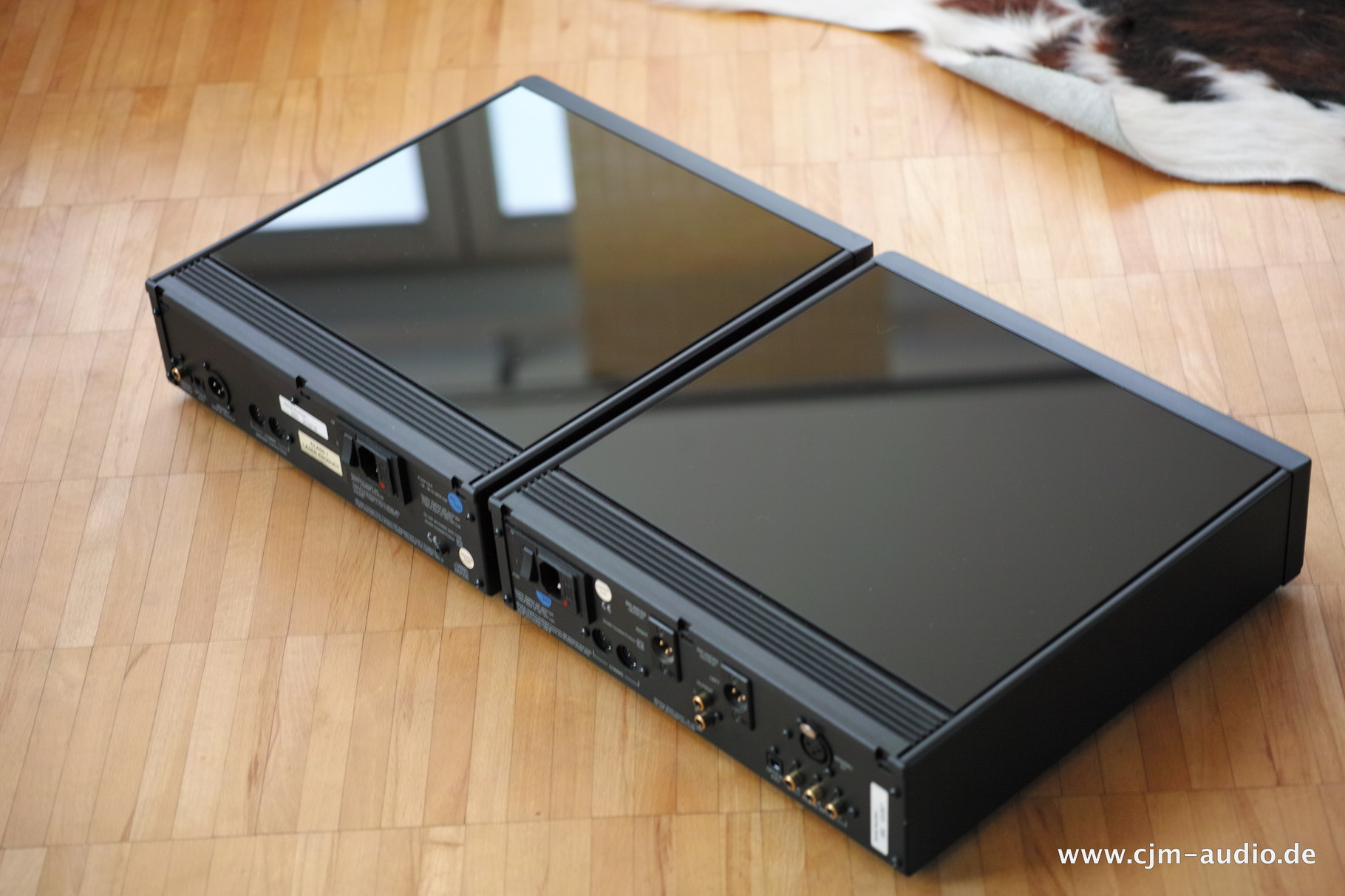

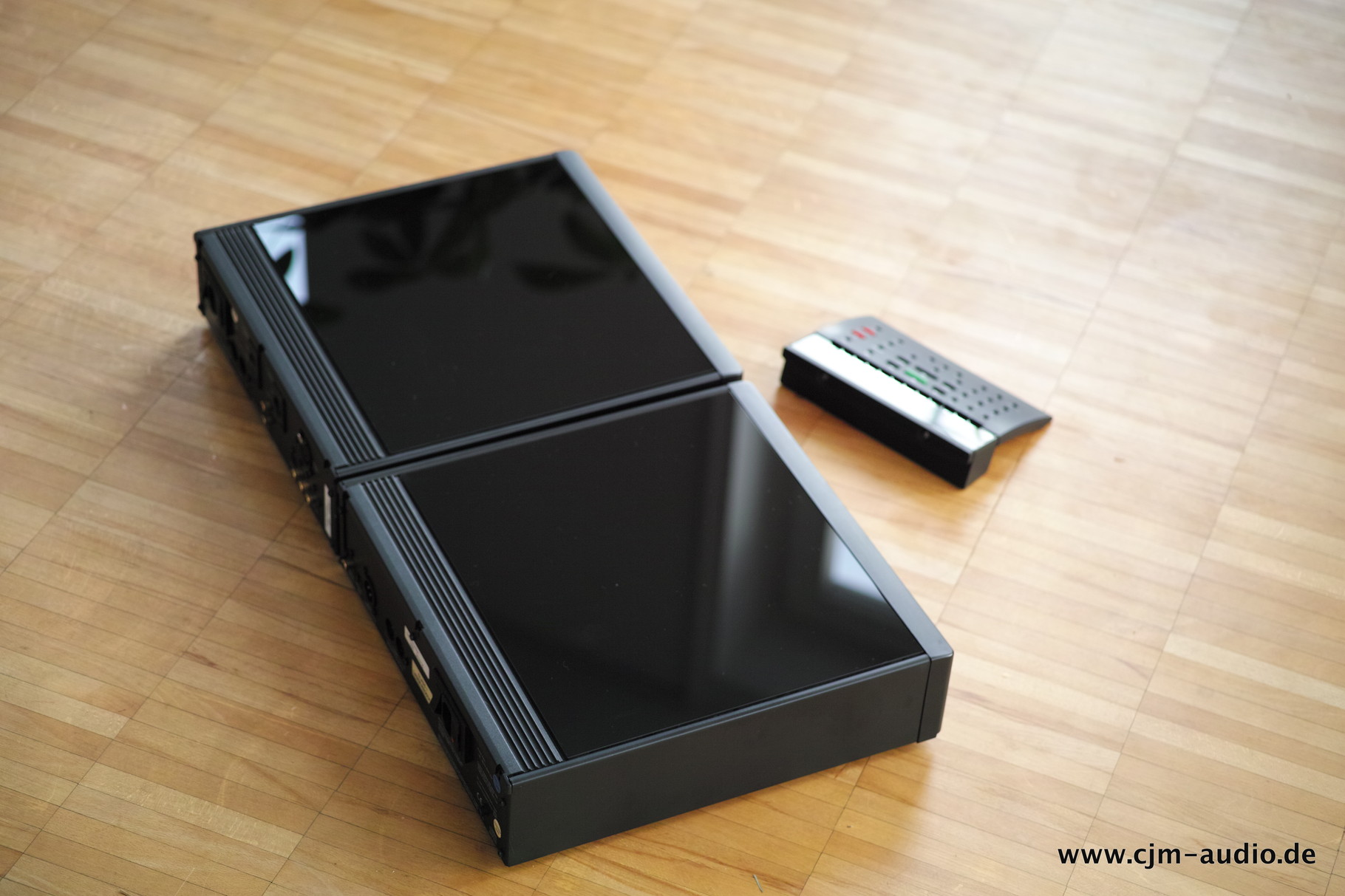

Meridian 500 + 566


Audiophile CD Laufwerk-Wandler-Kombi von Meridian. Beide Komponenten sind sehr schön erhalten und funktionieren einwandfrei.

0,00 €

  • leider ausverkauft

Technische Daten:

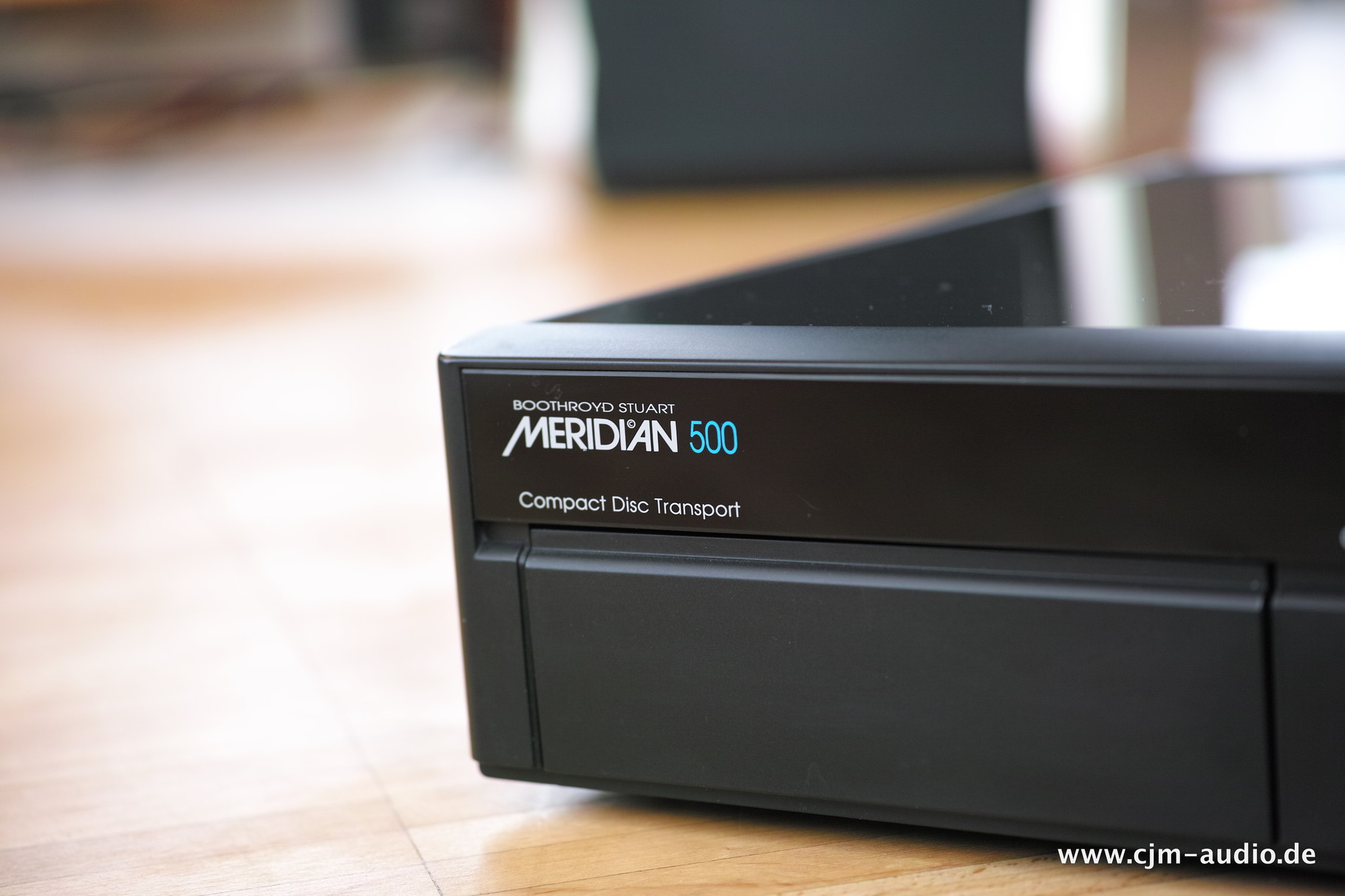

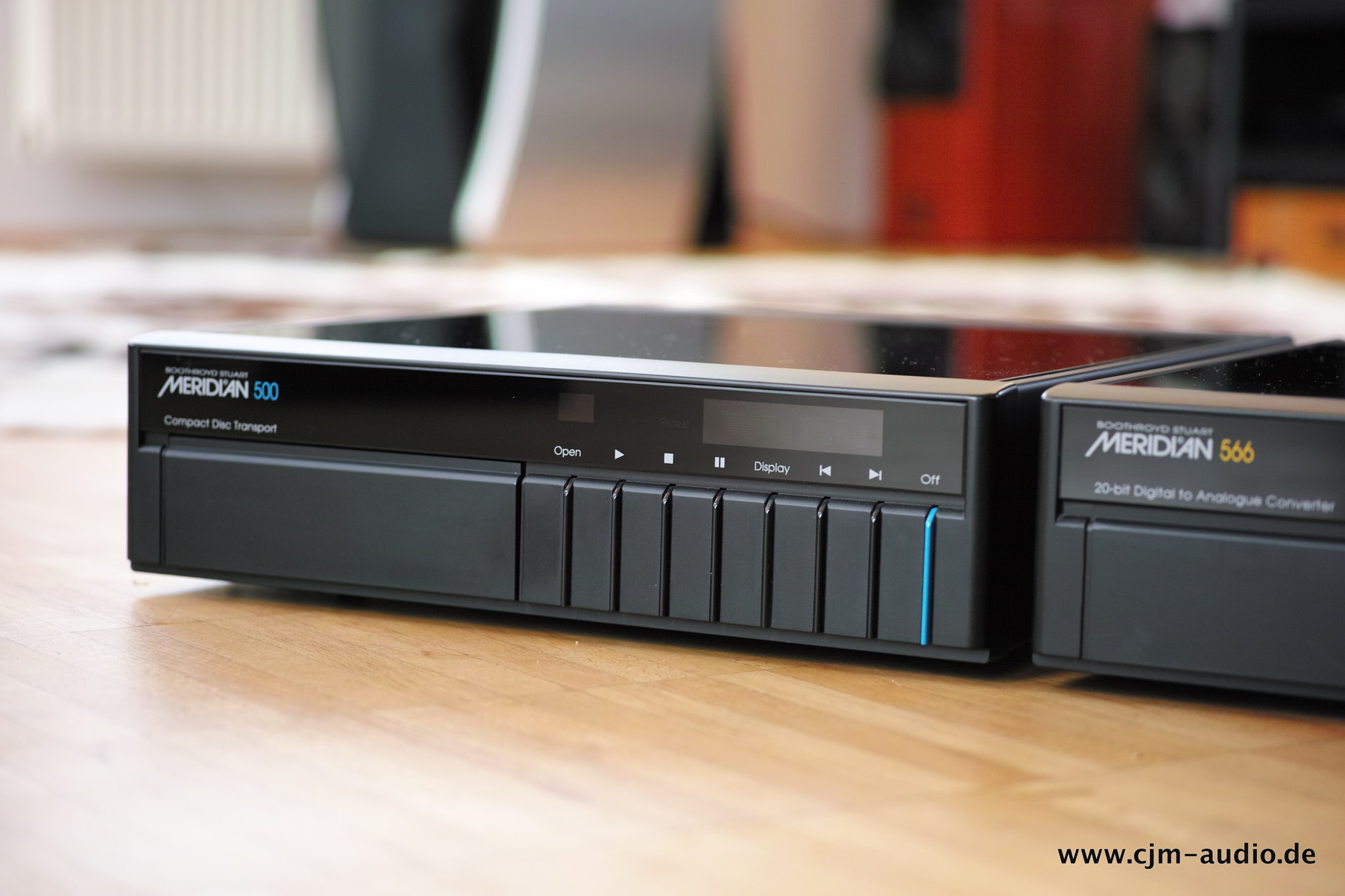

Meridian 500:

Clock accuracy +/- 20ppm.

Display Eight character display for track, time,

and index.

Finish Black textured enamel and glass.

Dimensions 88mm x 321mm x 332mm

(3.46" x 12.64" x 13.07").

Weight 6.4kg (14lbs).

Outputs Digital: co-axial, 500mV p-p.

Optical: EIAJ.

AES/EBU: XLR connector.

Communications Two 5 pin 240° DIN sockets.

Consumption 20VA

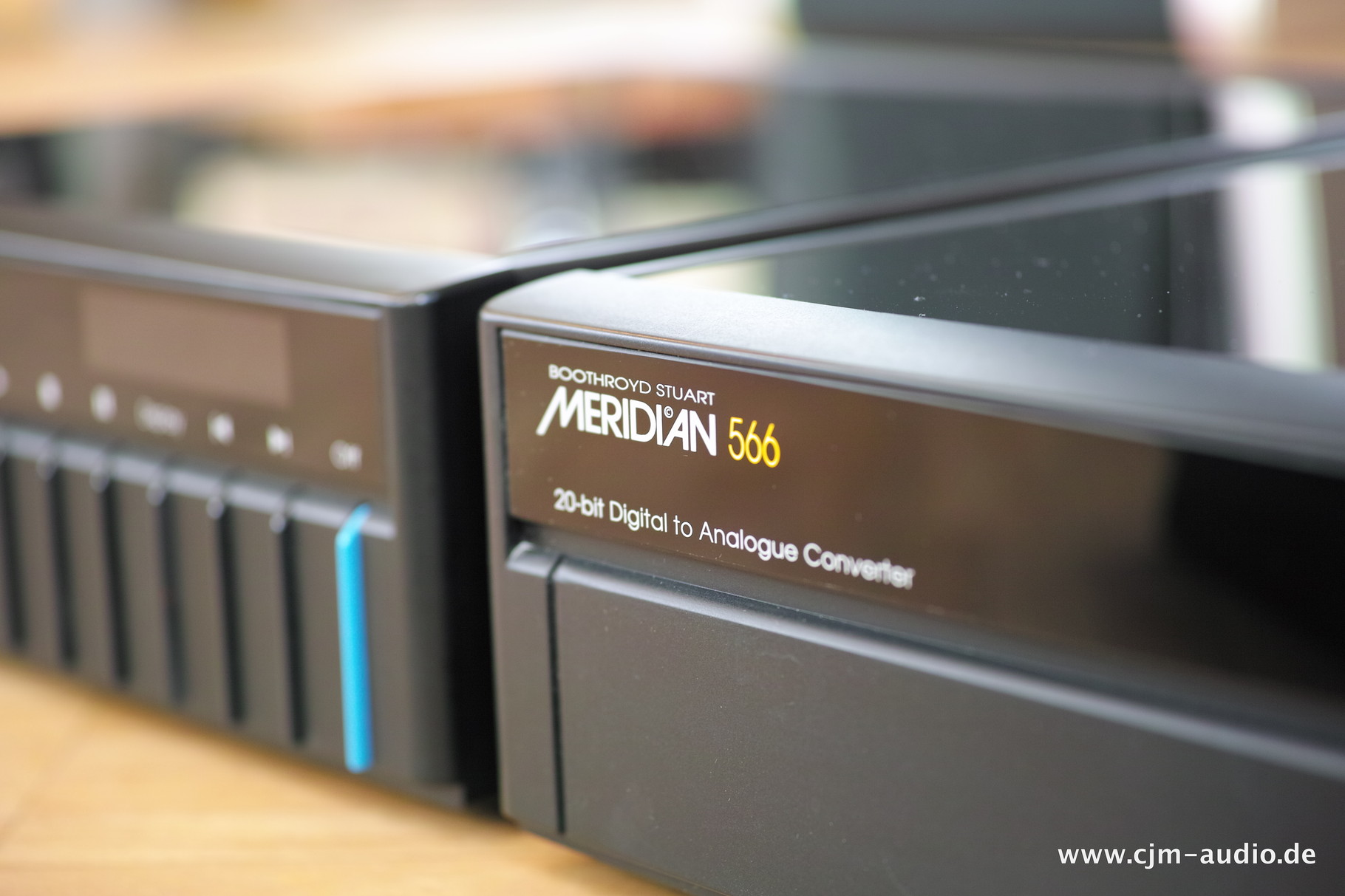

Meridian 566:


20-bit dynamic range

Linearity: better than –96dBFS

Jitter for 44.1kHz sampling, typically 1ps rms.

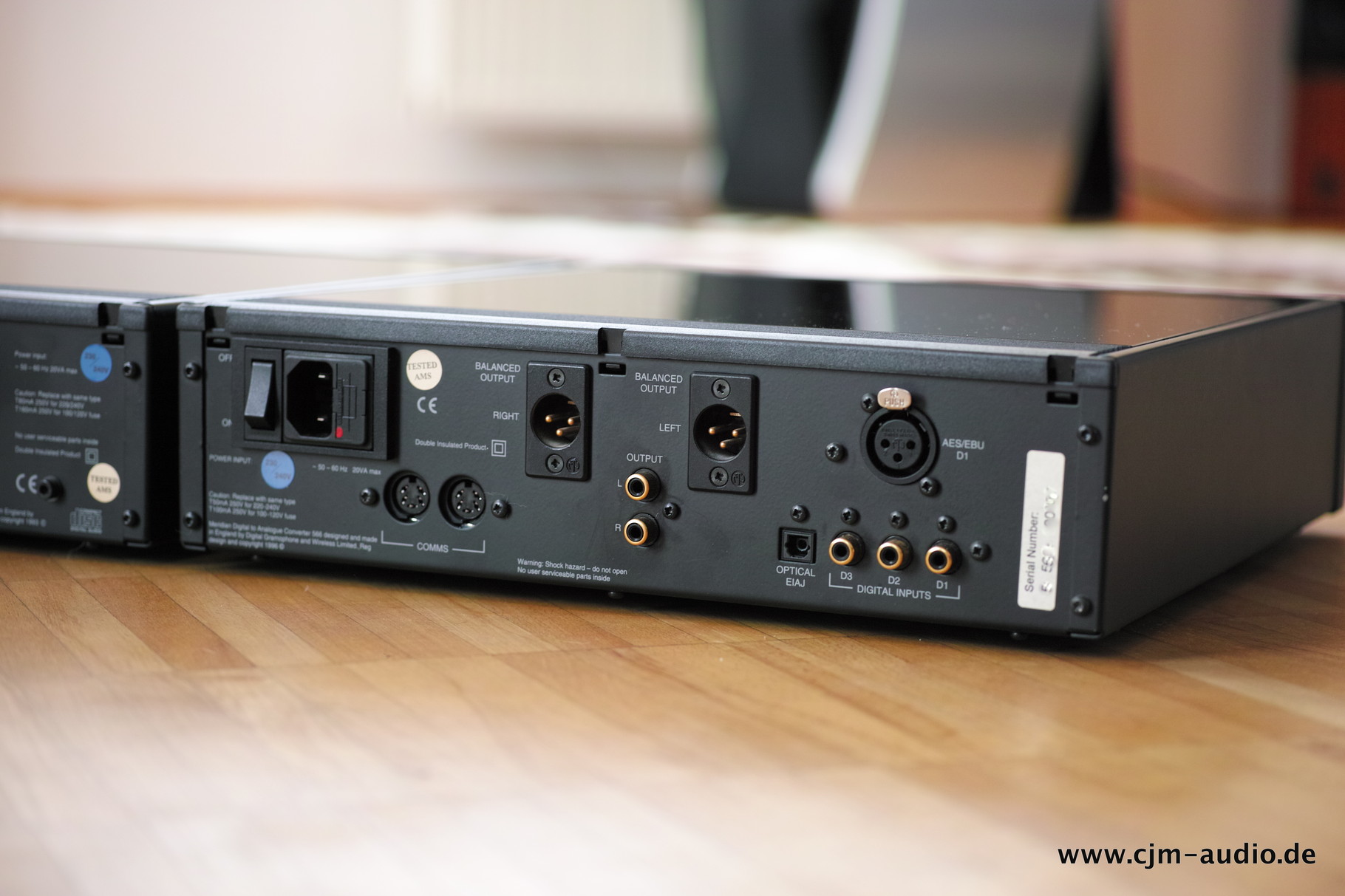

Inputs and outputs

3 phono digital inputs; 32kHz–48kHz

1 AES/EBU XLR digital input; 32kHz–48kHz (Parallel with D1)

1 Toslink optical input; 32kHz–48kHz

All digital inputs accept up to 20-bit precision

Audio outputs 4V nominal balanced (XLR) and 2Vunbalanced (phono)


Twin PLL; word-aligned for lowest jitter

Absolute Phase control

Precision Class A discrete audio amplification

Analogue de-emphasis network

High quality construction including use of partitioned 4-layer PCB, and precision capacitors.

On-board control microprocessor with non-volatile memory.

Full 500 Comms for system integration with Meridian components.

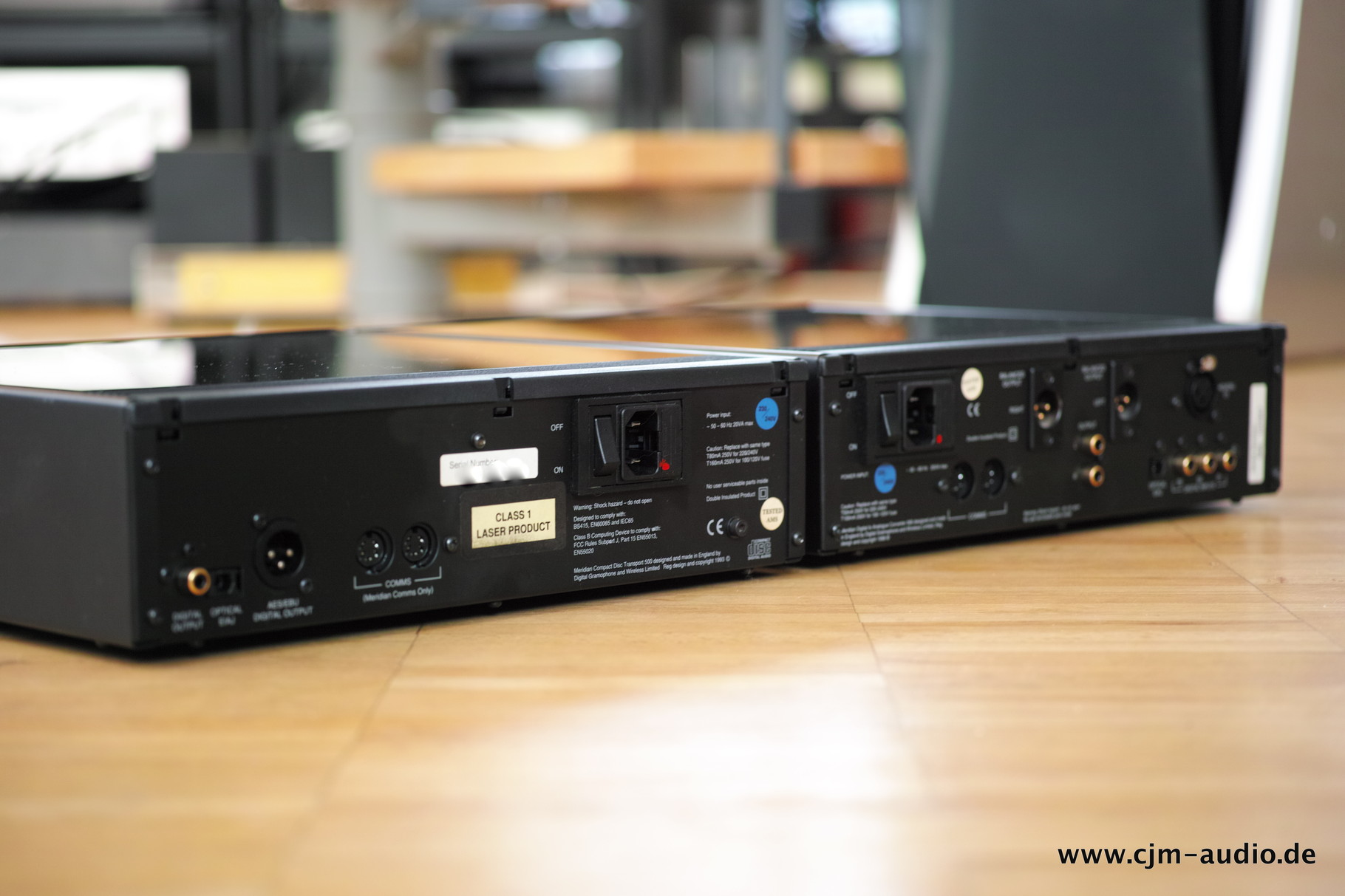

Rear-panel control for: Power On/Off

Front-panel controls and indicators for: Inputs (D1, D2, D3, Optical), Phase, Emphasis

Dimensions 88mm (3.46in) H, 321 (12.64) W, 332 (13.07) D - Weight 5kg (10lbs)
