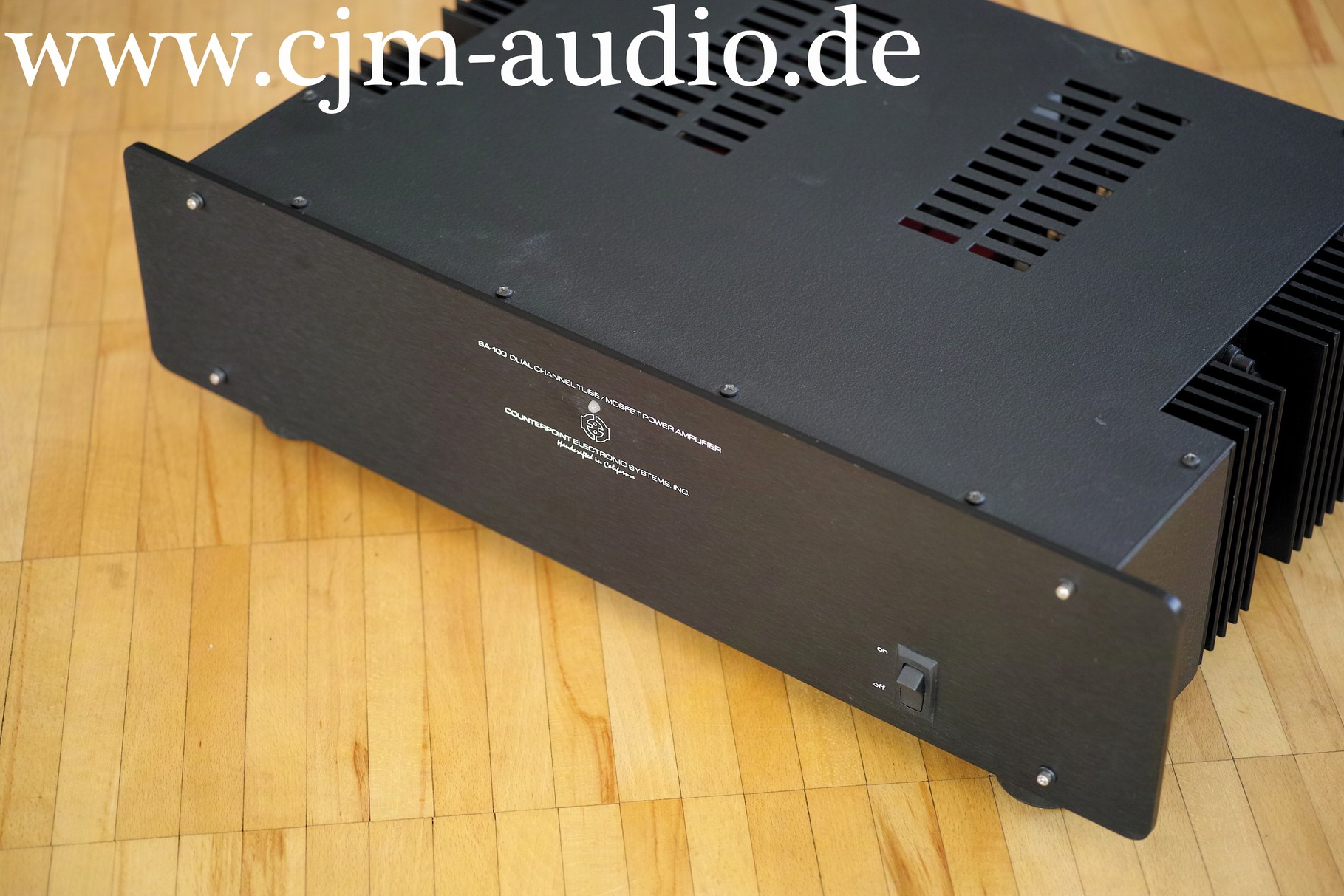

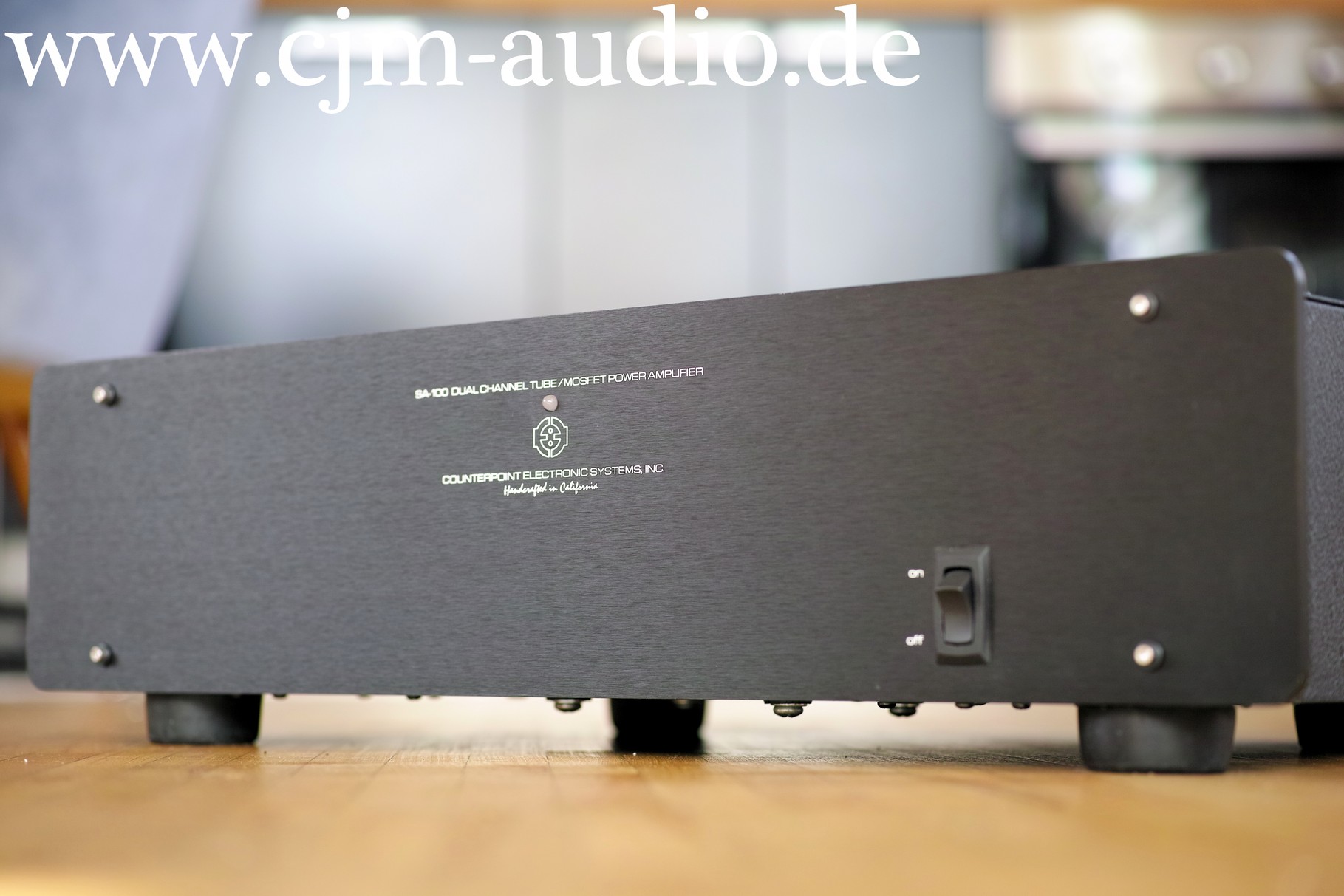

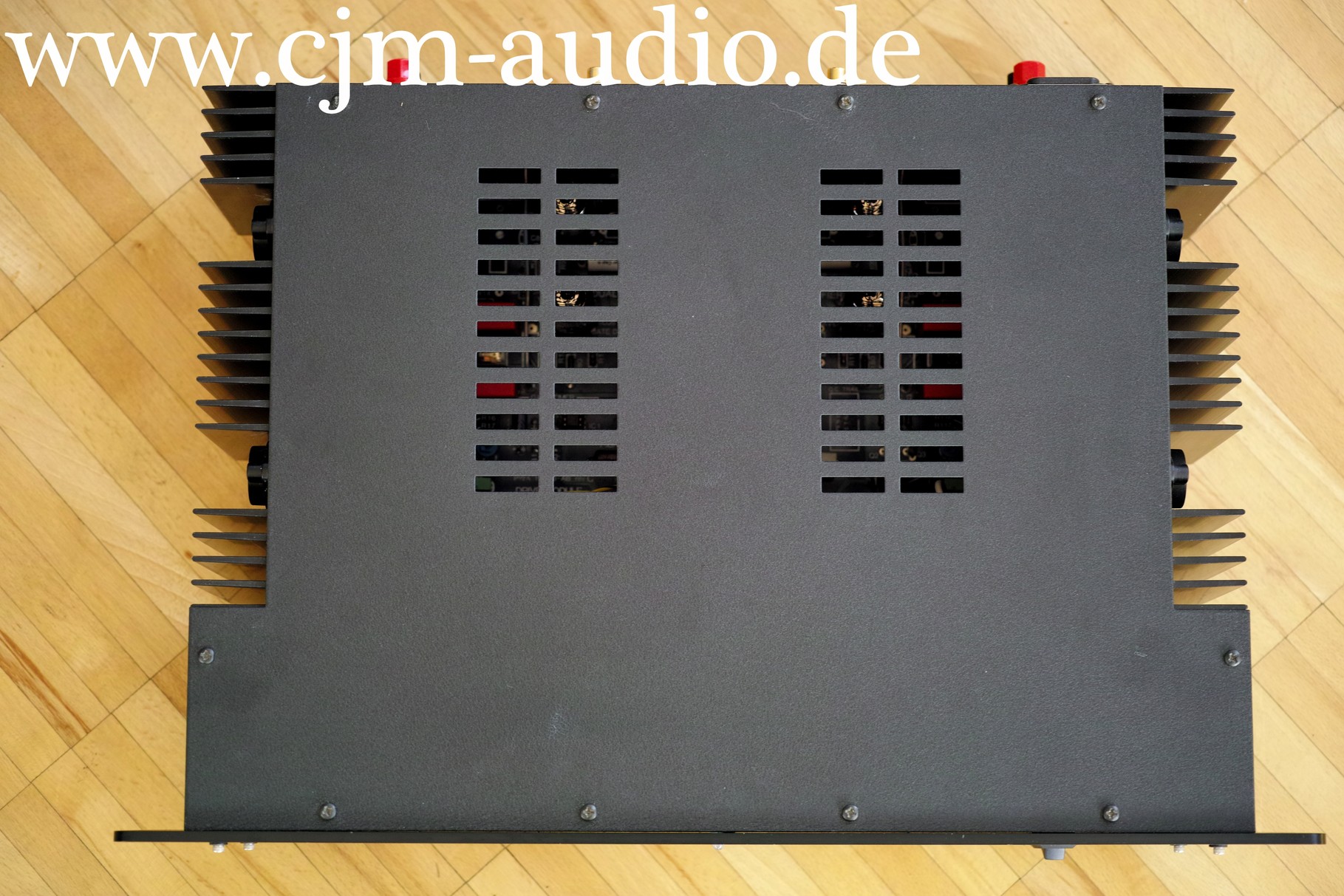

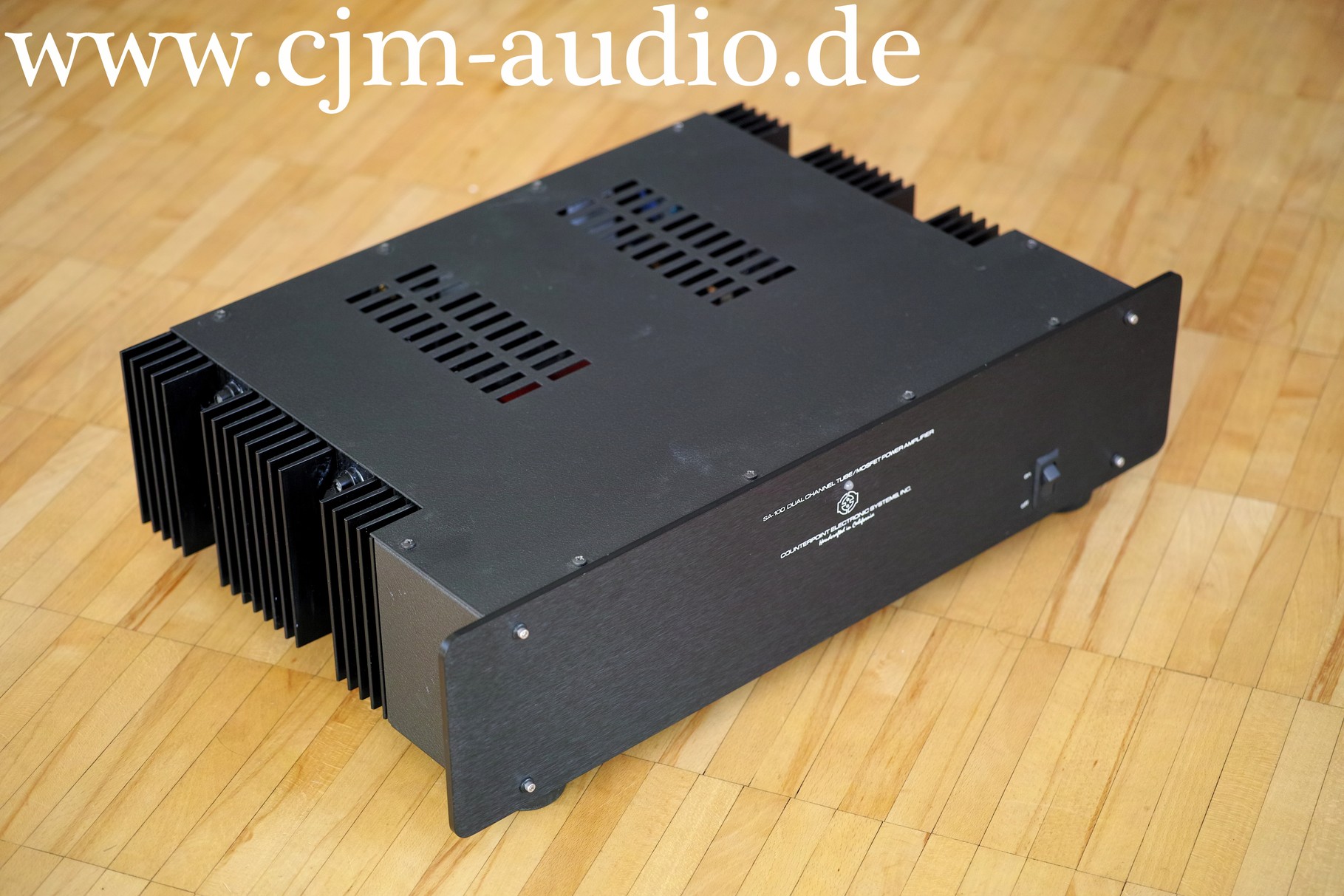

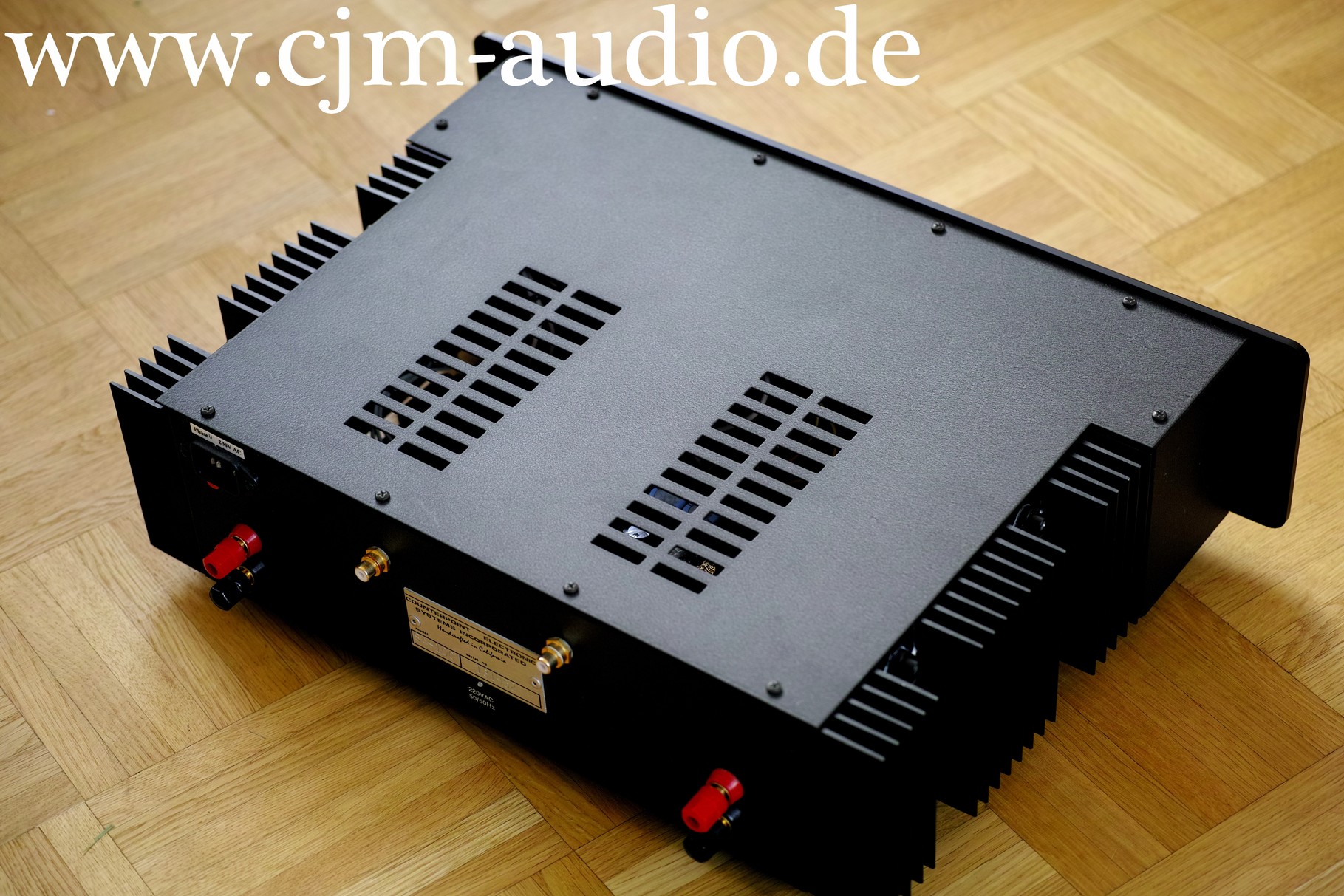

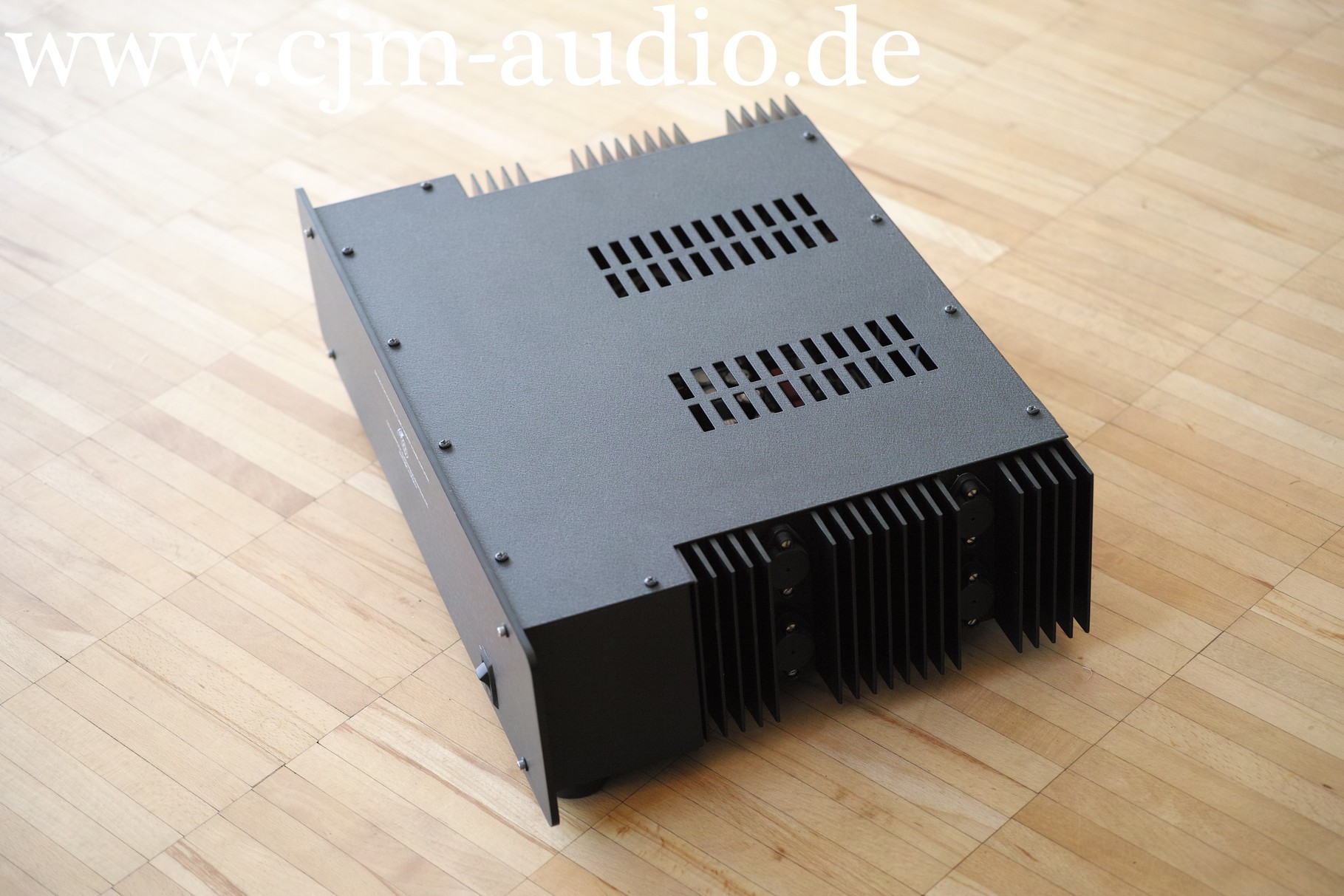

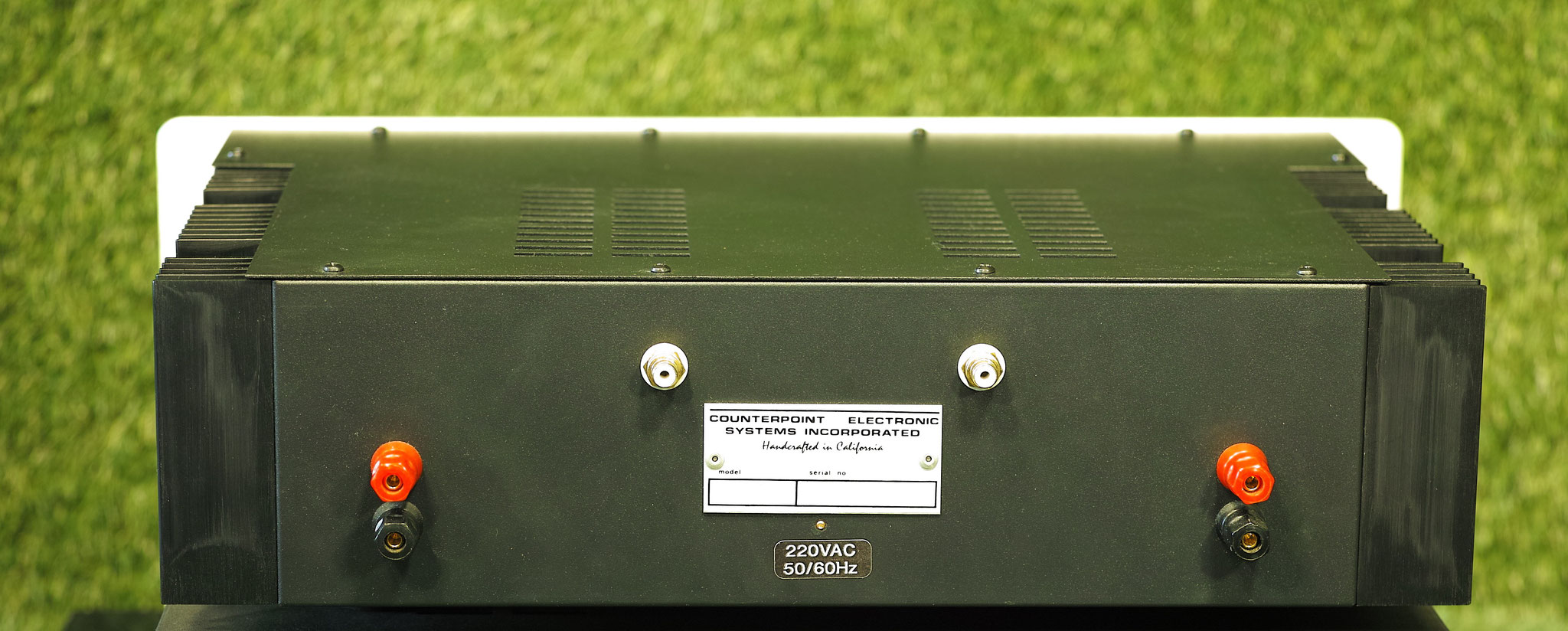

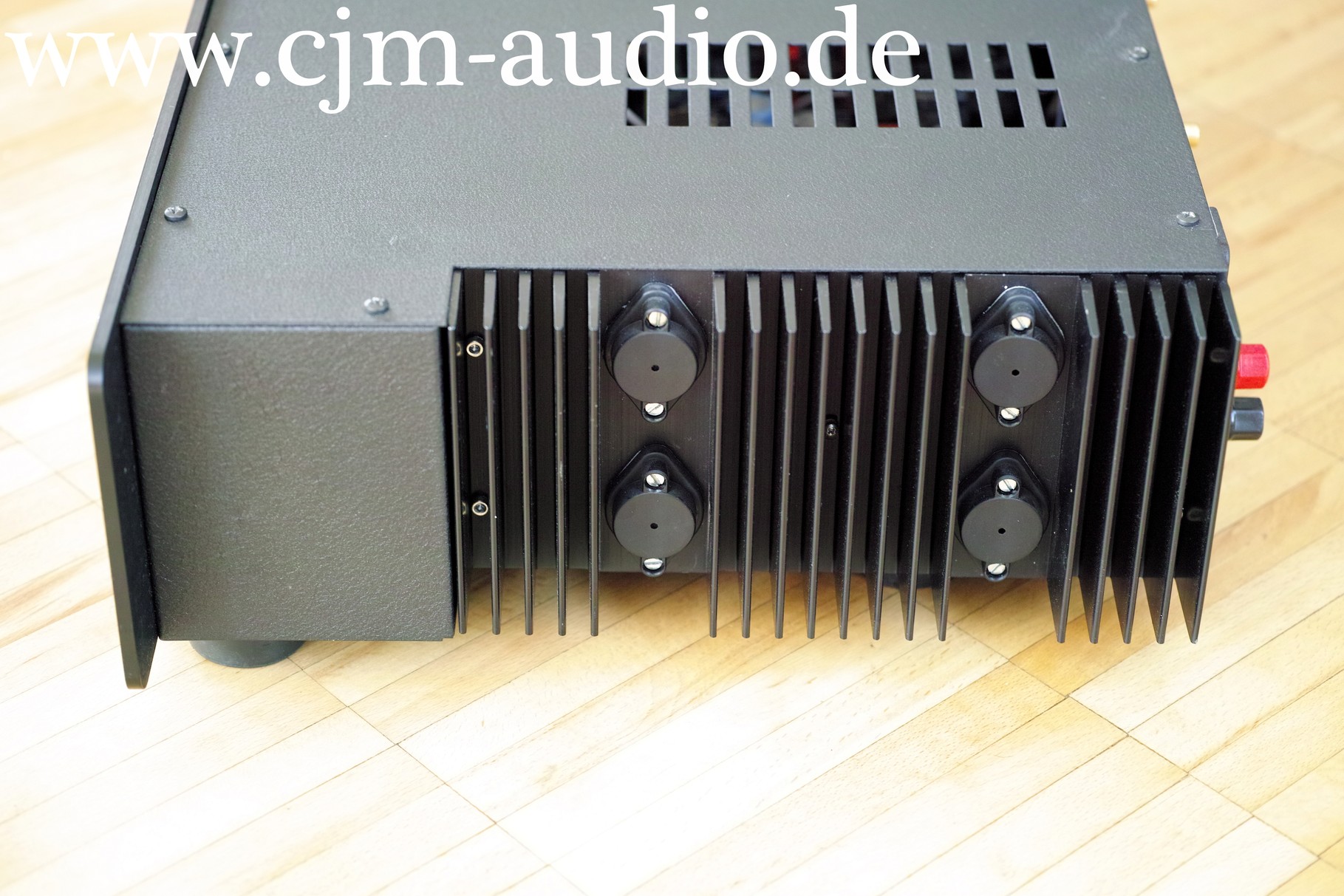

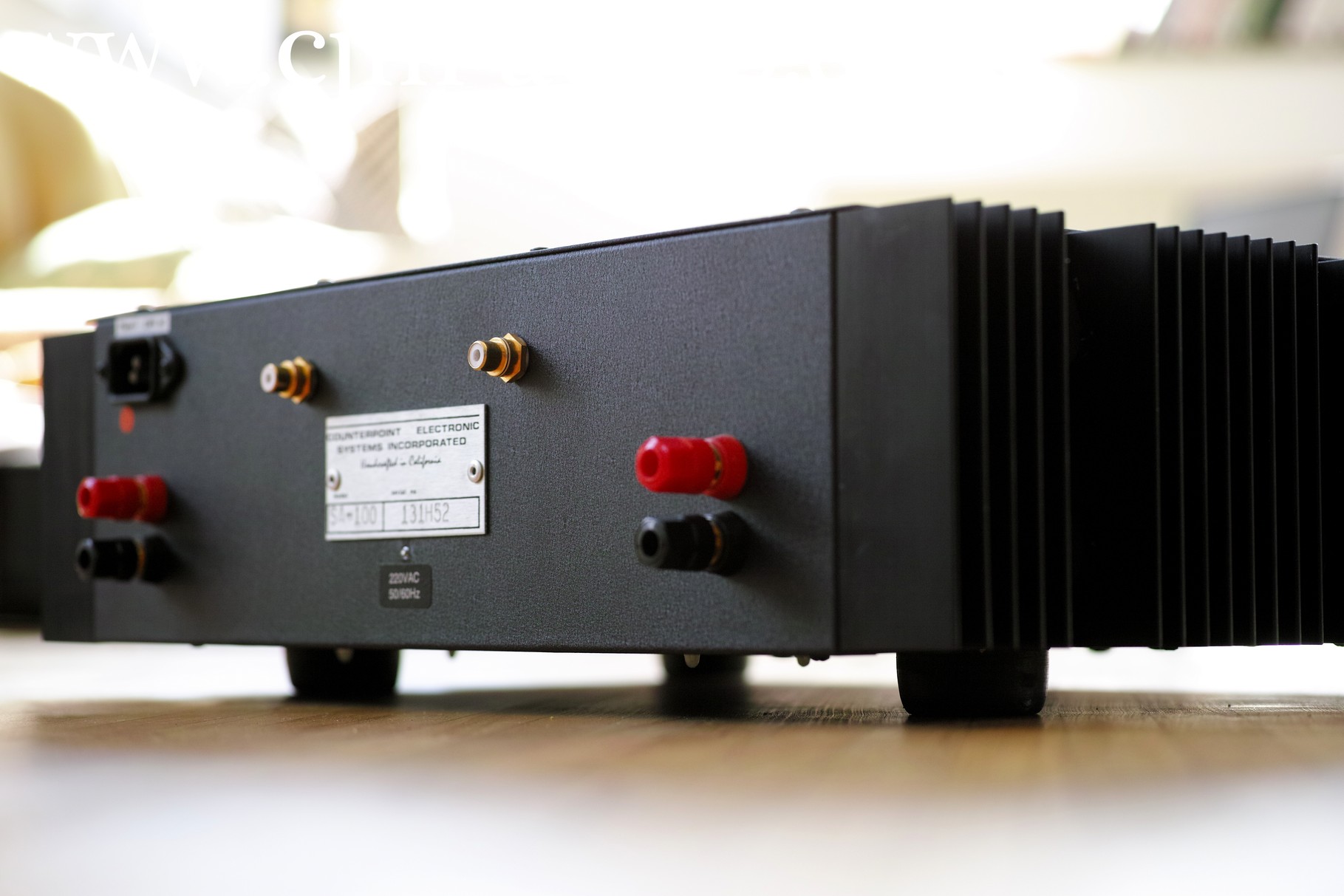

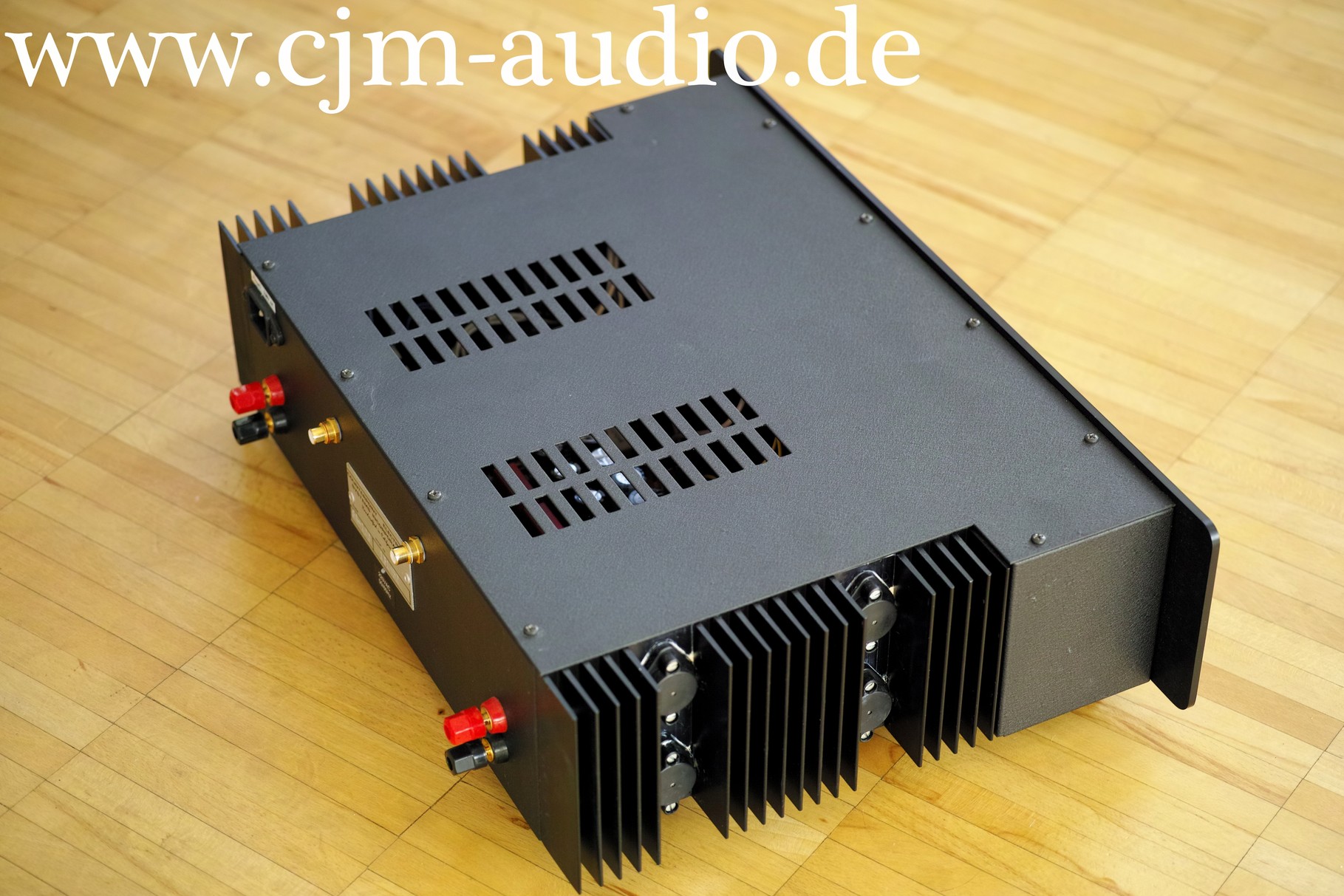

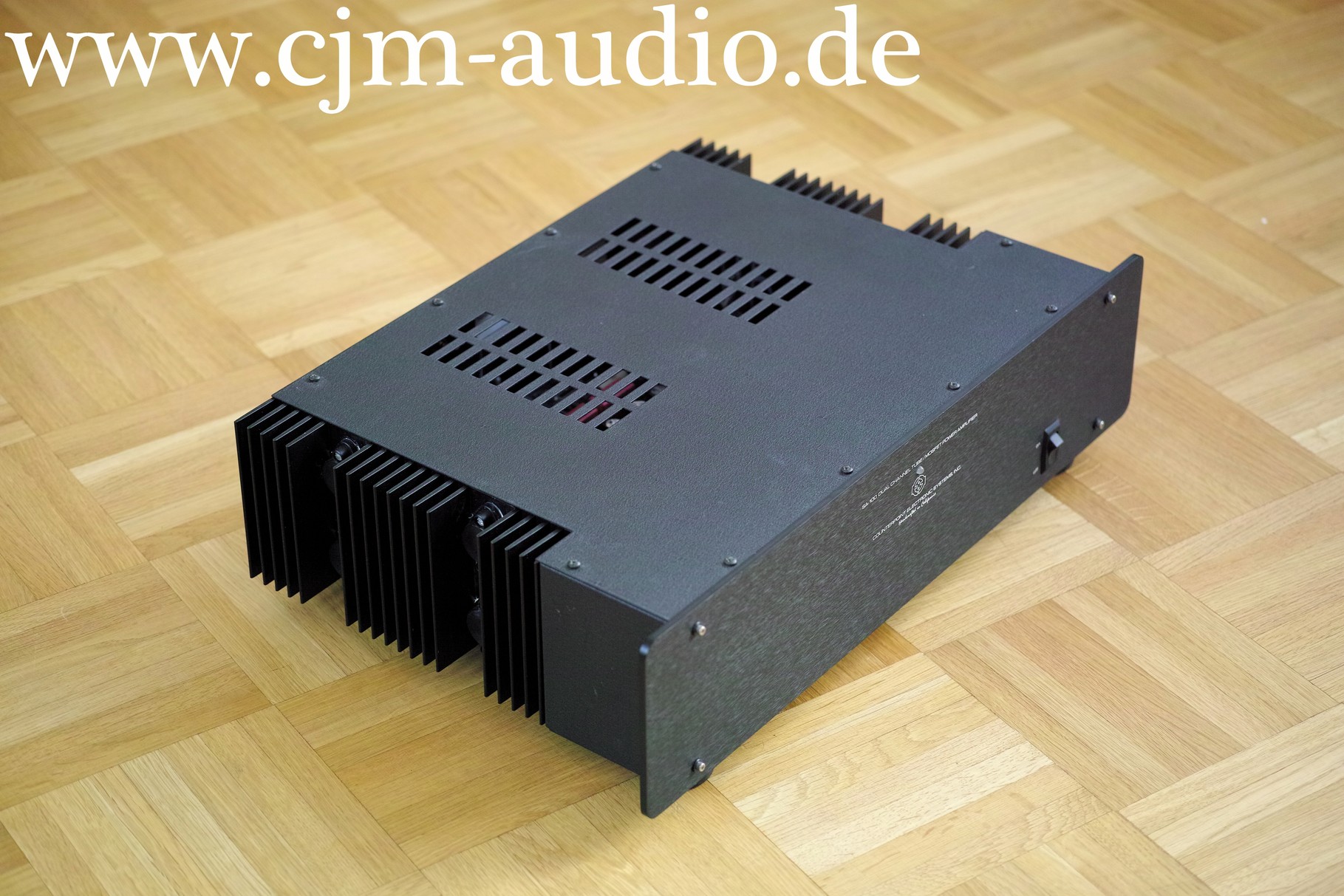

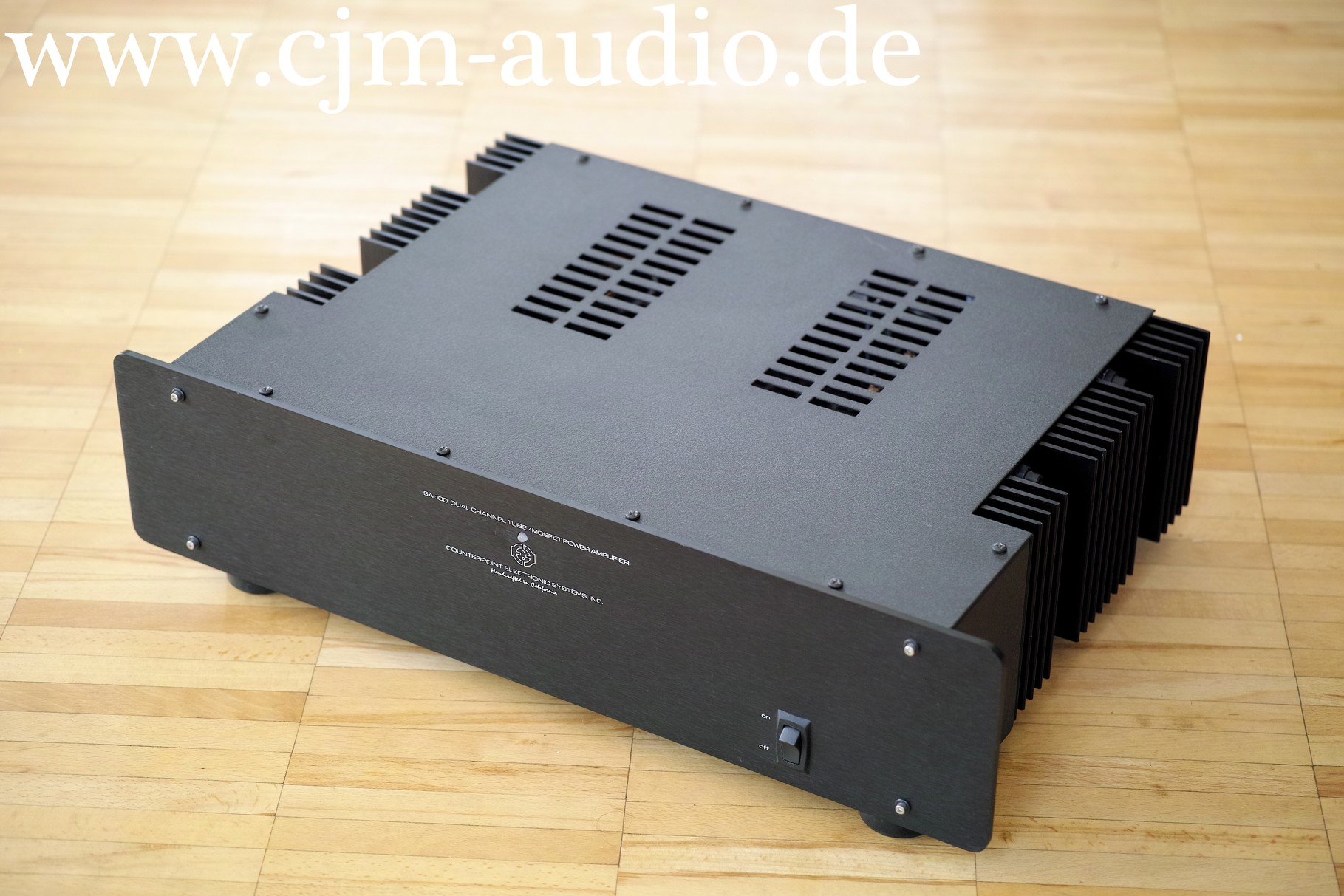

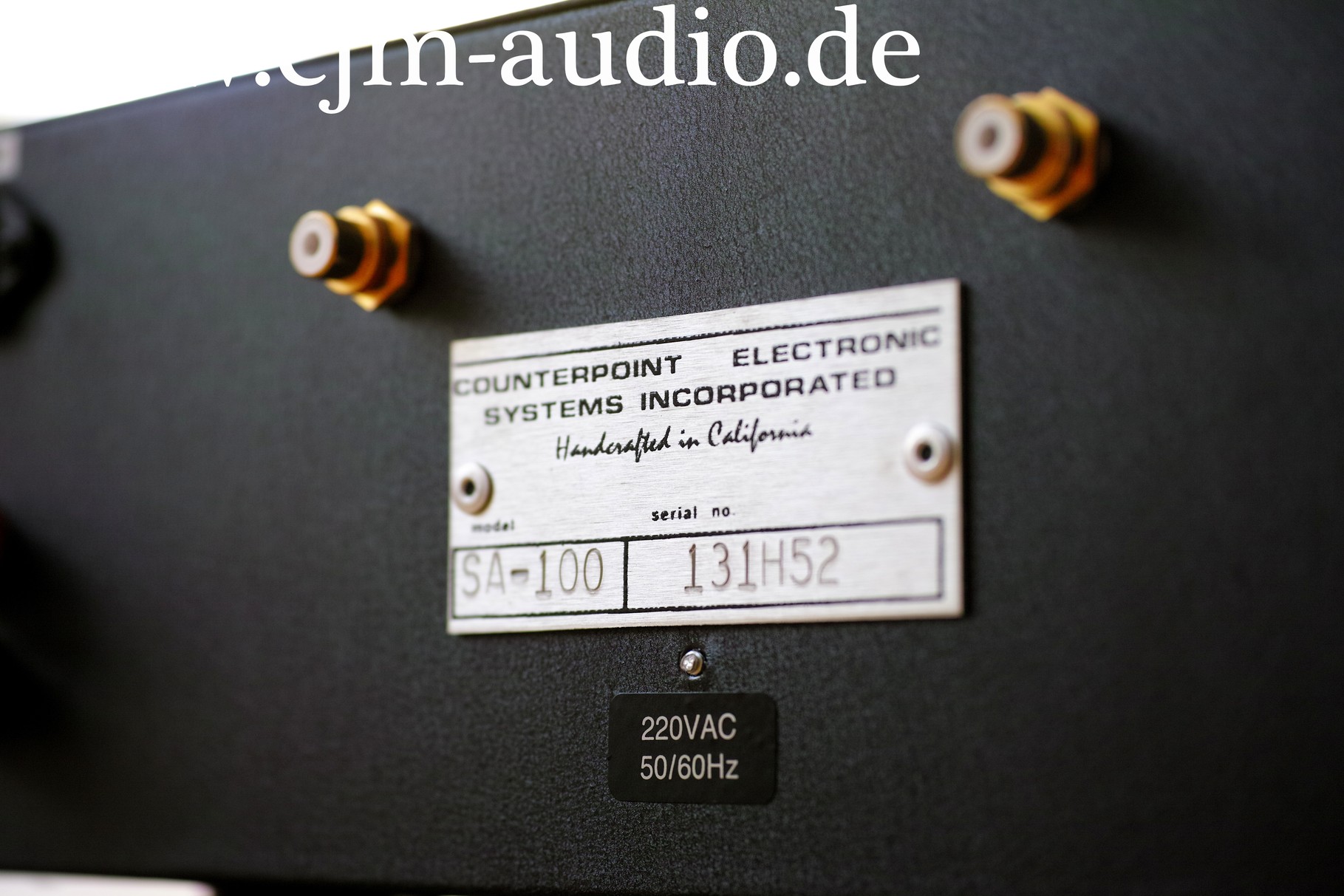

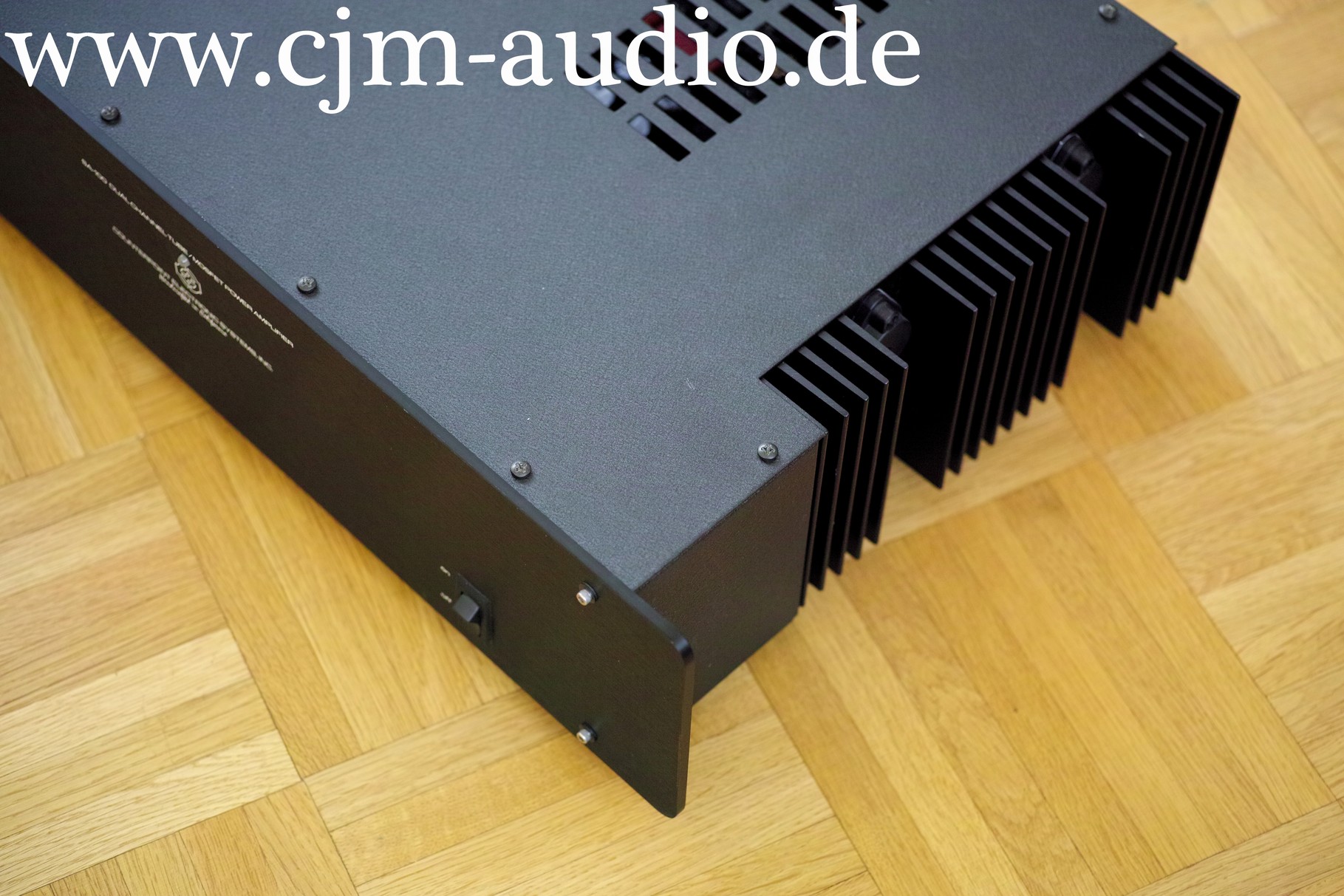

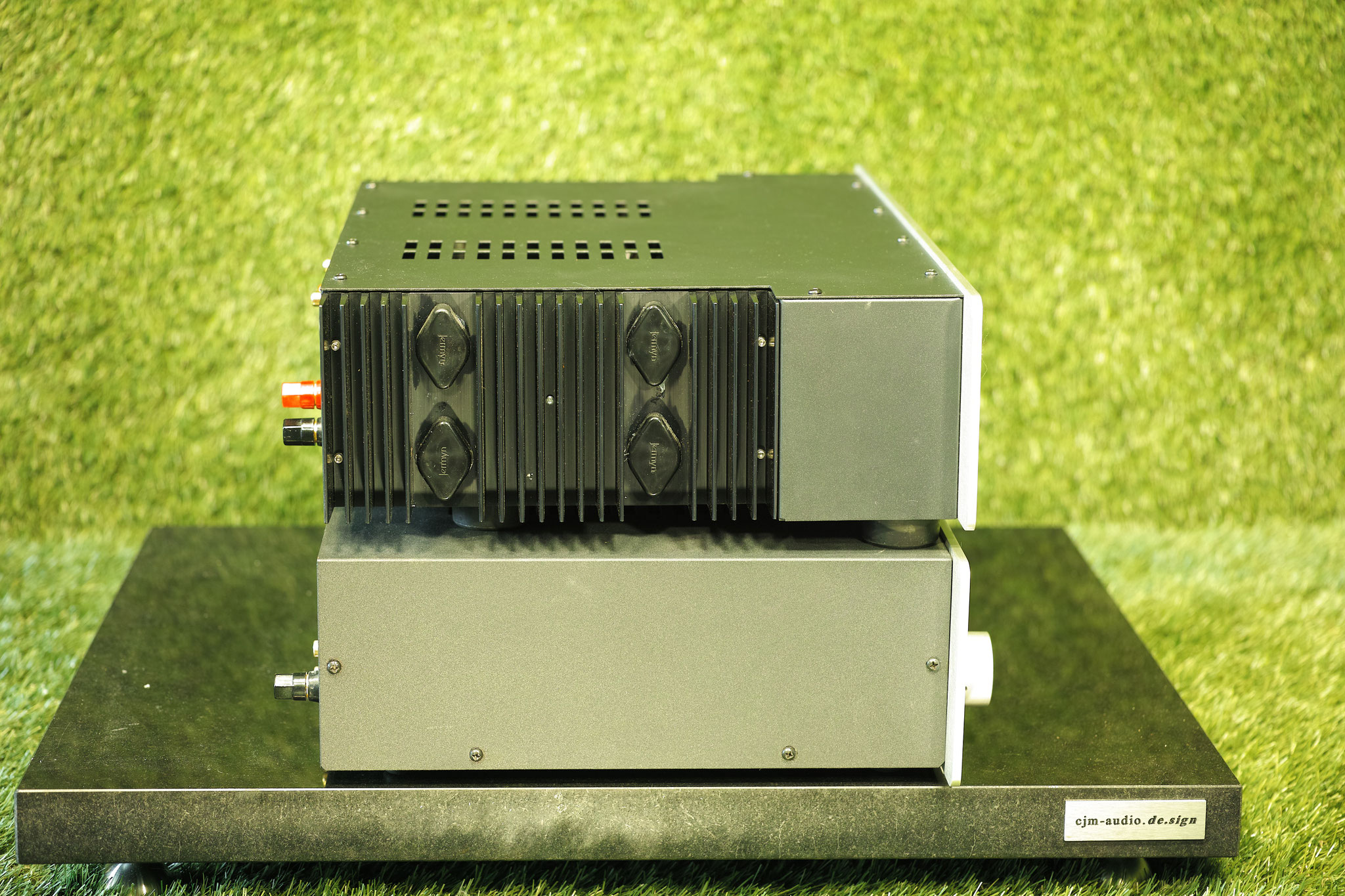

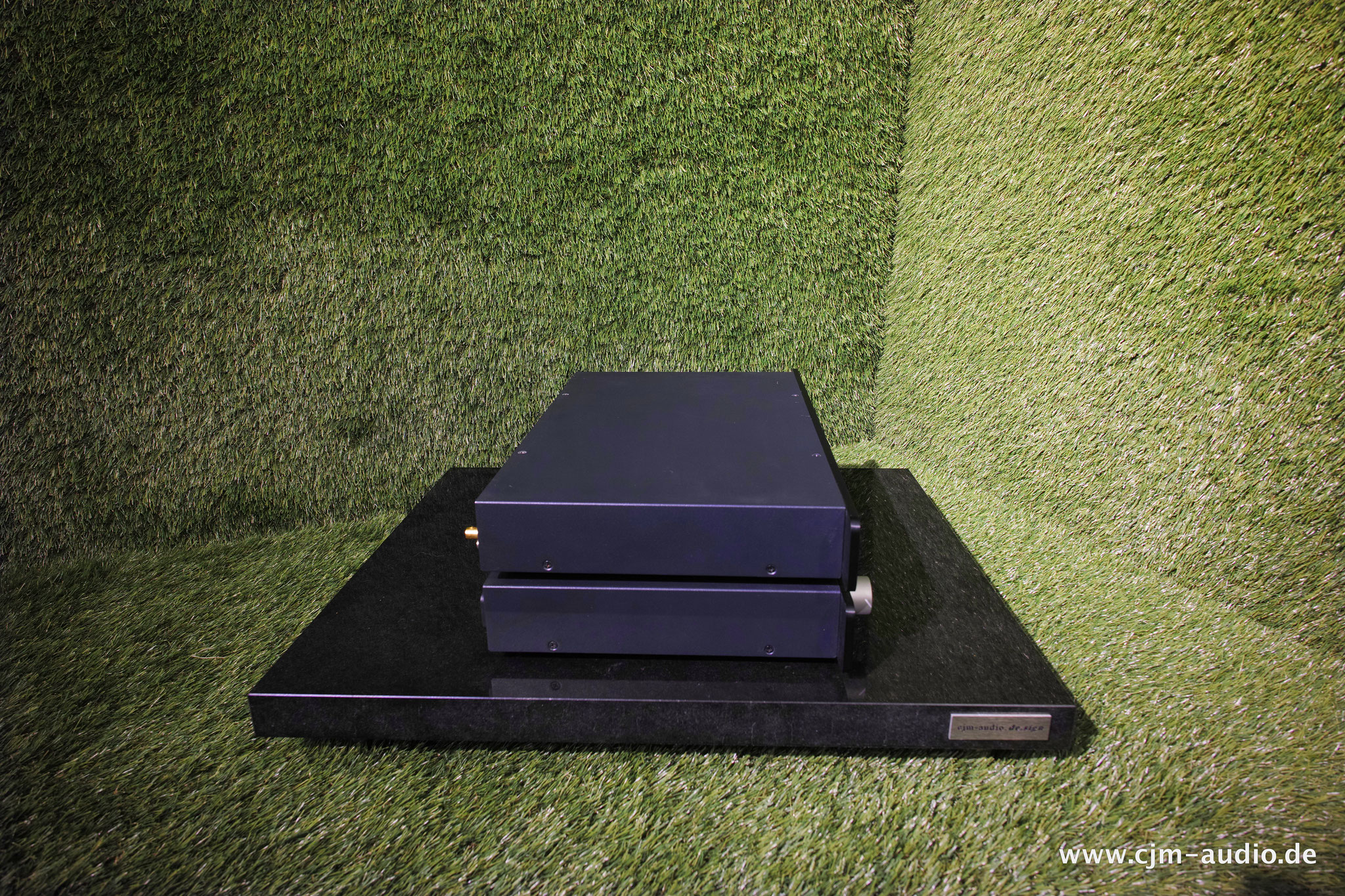

Counterpoint SA-100



Hochwertige Röhren-Hybrid Endstufe von Counterpoint.

Optisch sehr gepflegt, technisch überholt und in einwandfreiem Zustand.

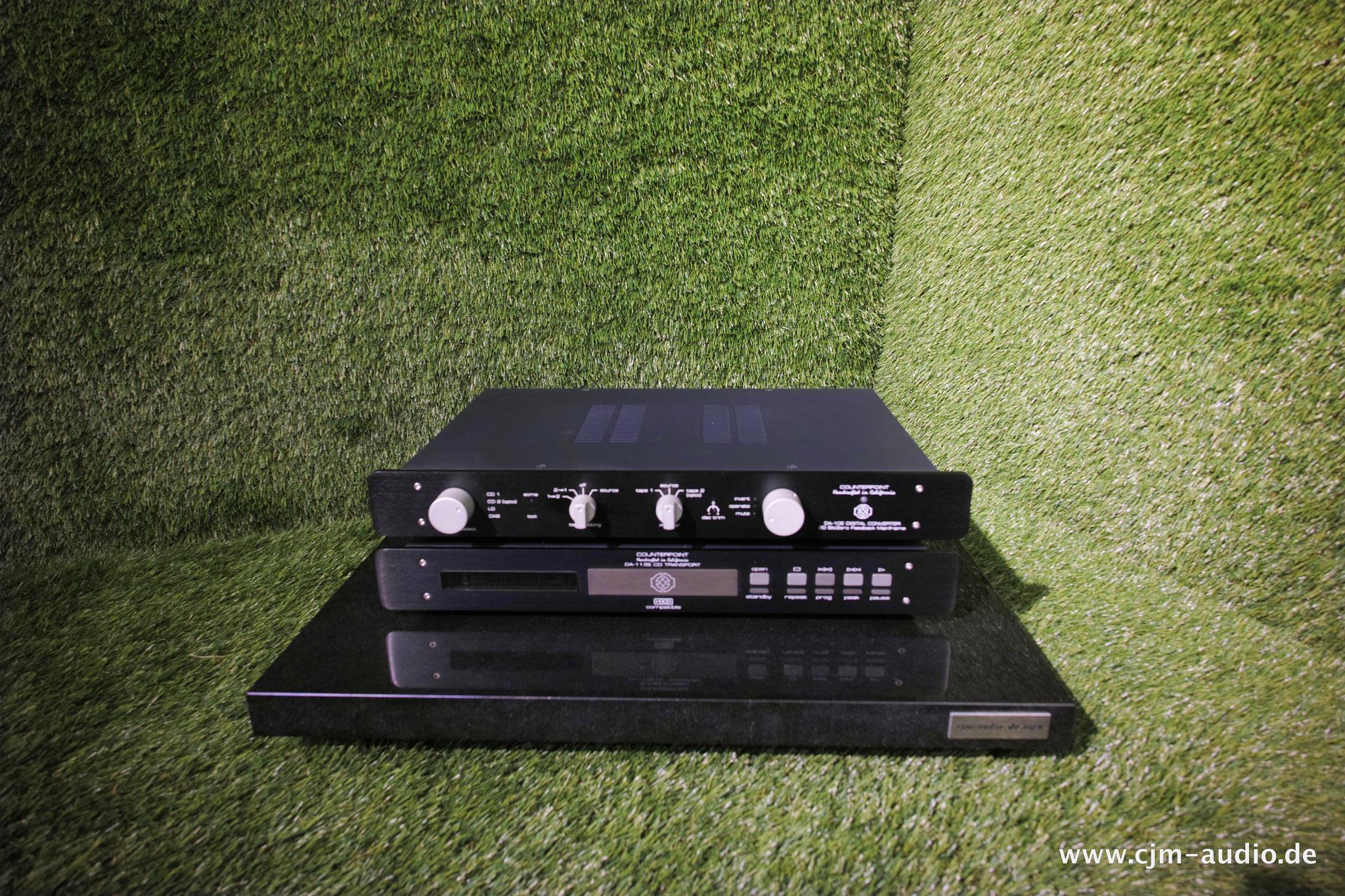

Die passende Vorstufe haben wir ebenfalls in Programm.







Description: Hybrid stereo power amplifier. Power output: 100Wpc into 8 ohms (20dBW), 170Wpc into 4 ohms (19.3dBW). Gain: 30dB. Frequency response: 5Hz–100kHz. S/N ratio (20Hz–80kHz, ref 85W): 92dB. Distortion (1kHz, 8 ohm load): 1% at 100W, 0.7% at 10W, 0.3% at 1W. Output impedance: 0.9 ohms. Maximum current available: 25A rms, measured 1kHz gated On for 20ms, Off for 480ms, into 0.1 ohms. Damping factor: 8.9, referenced to 8 ohms at 1kHz. Input impedance: 100k ohms, 100pF. Signal polarity: non-inverting.
Dimensions: 19" W by 4.46" H by 12.68" D. Weight: 28 lbs.

0,00 €

  • leider ausverkauft
