Allgemein

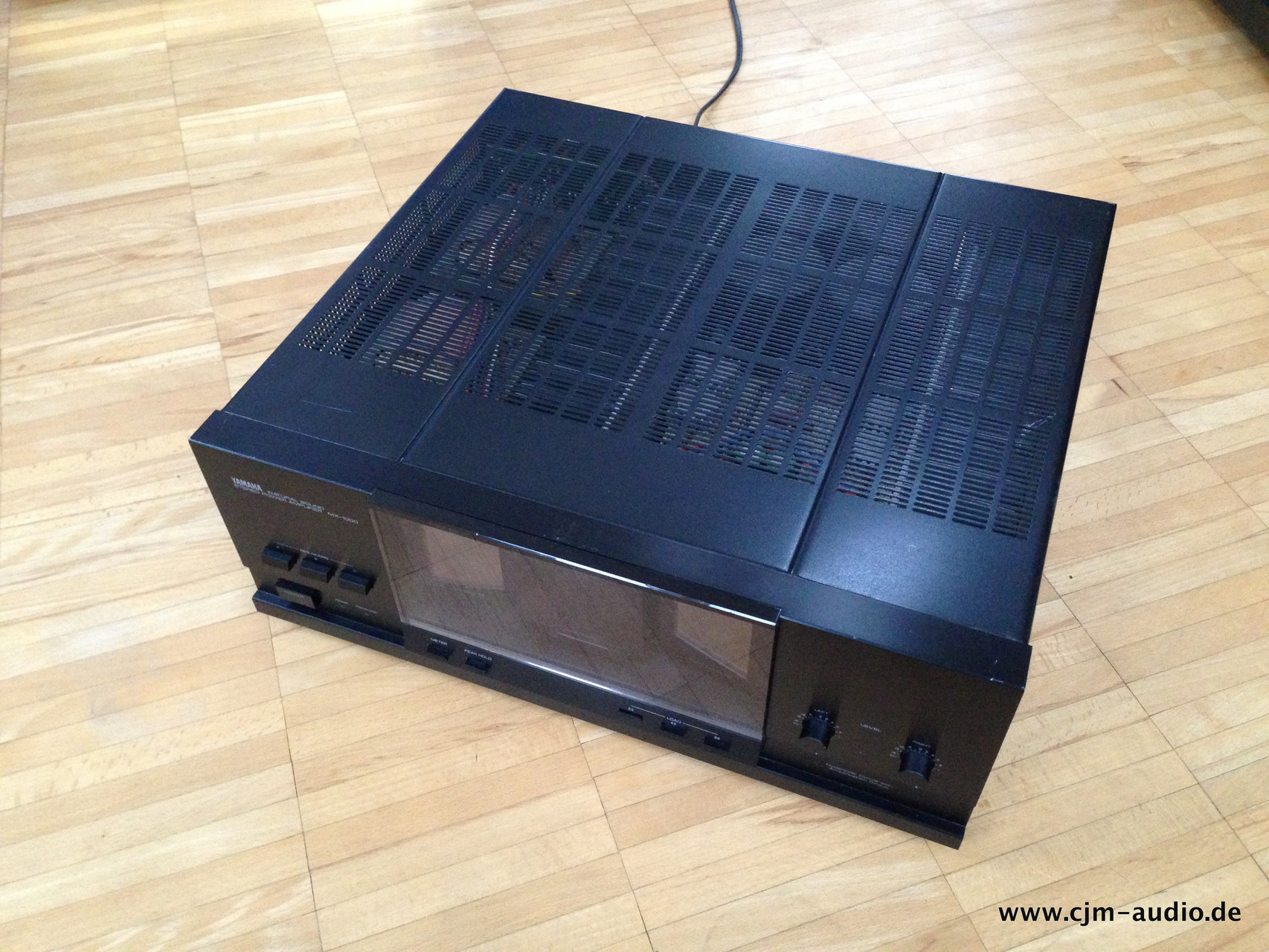

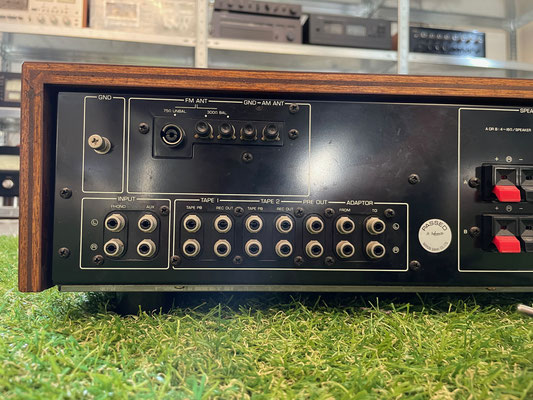

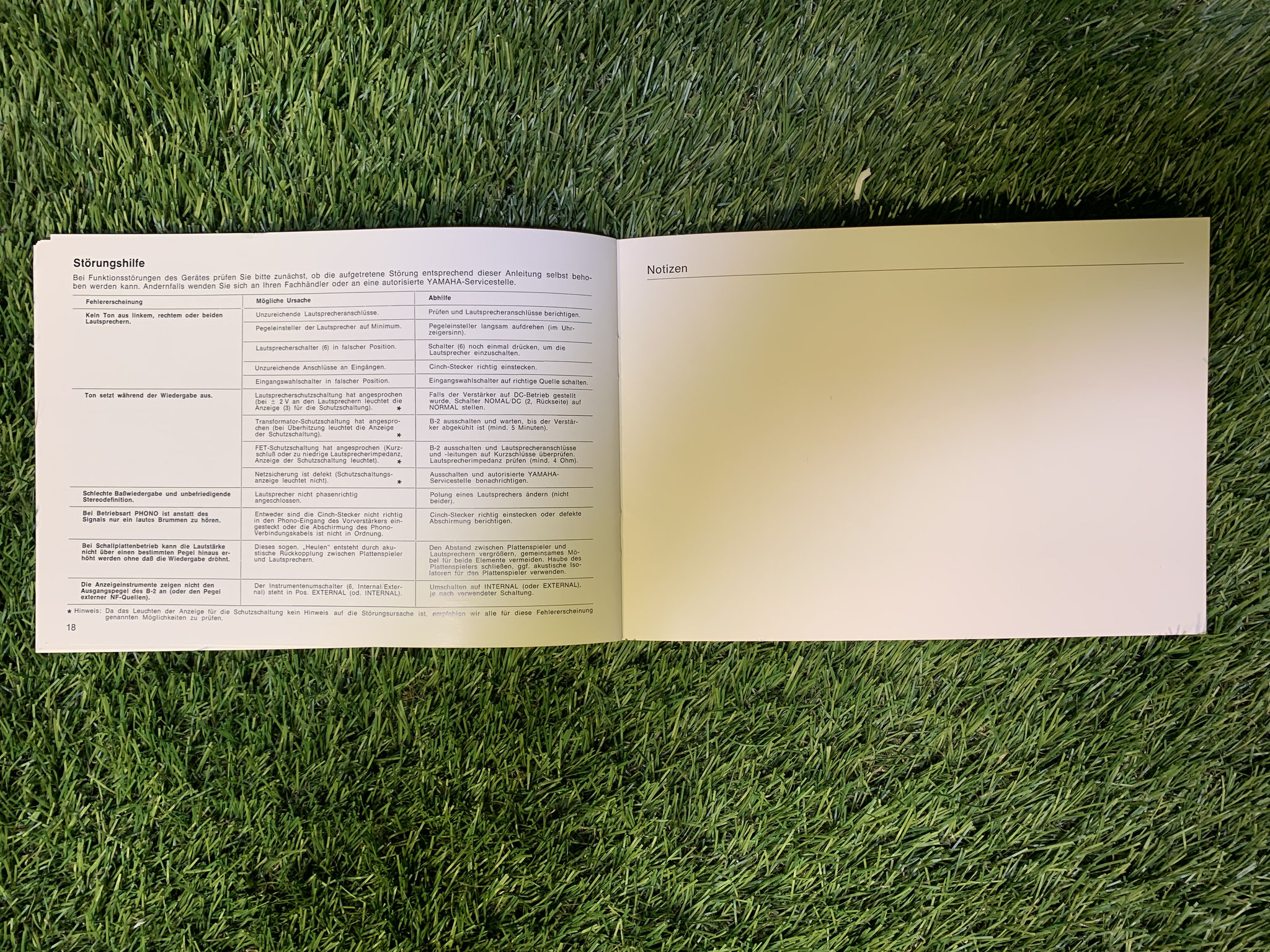

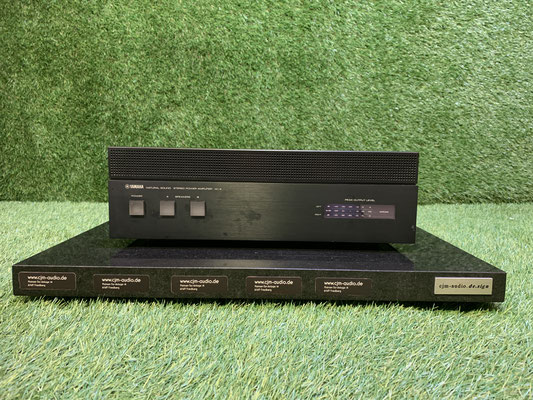

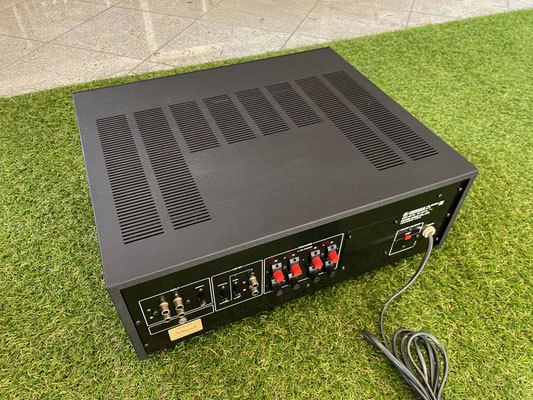

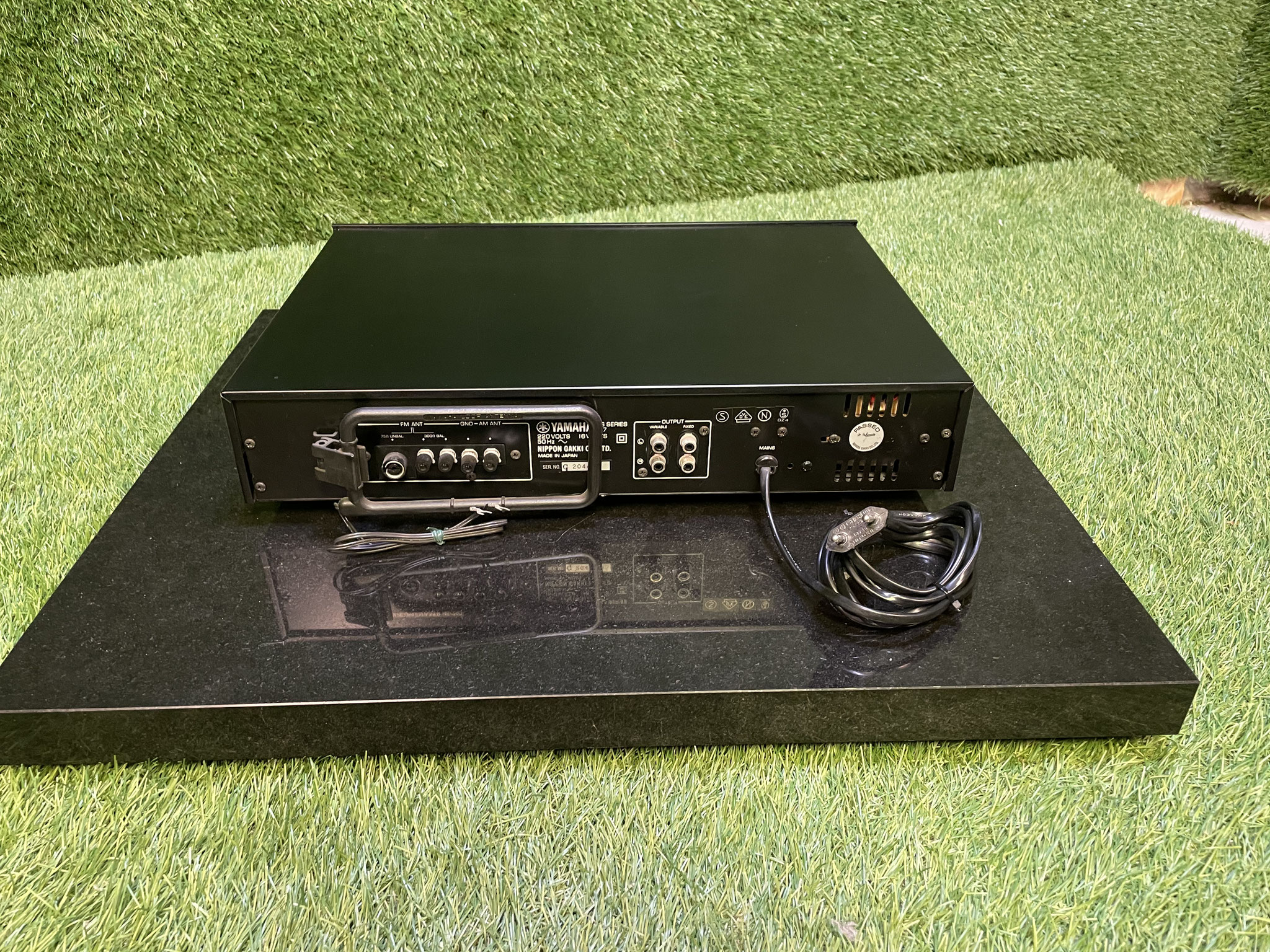

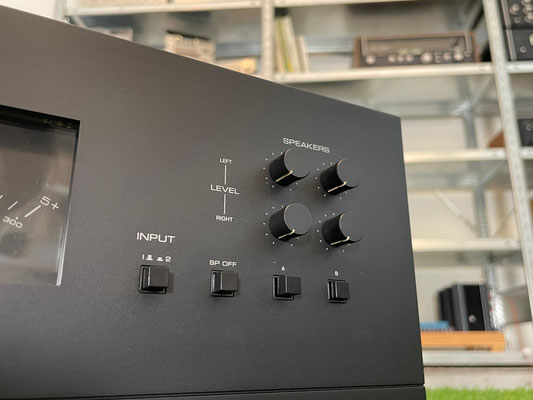

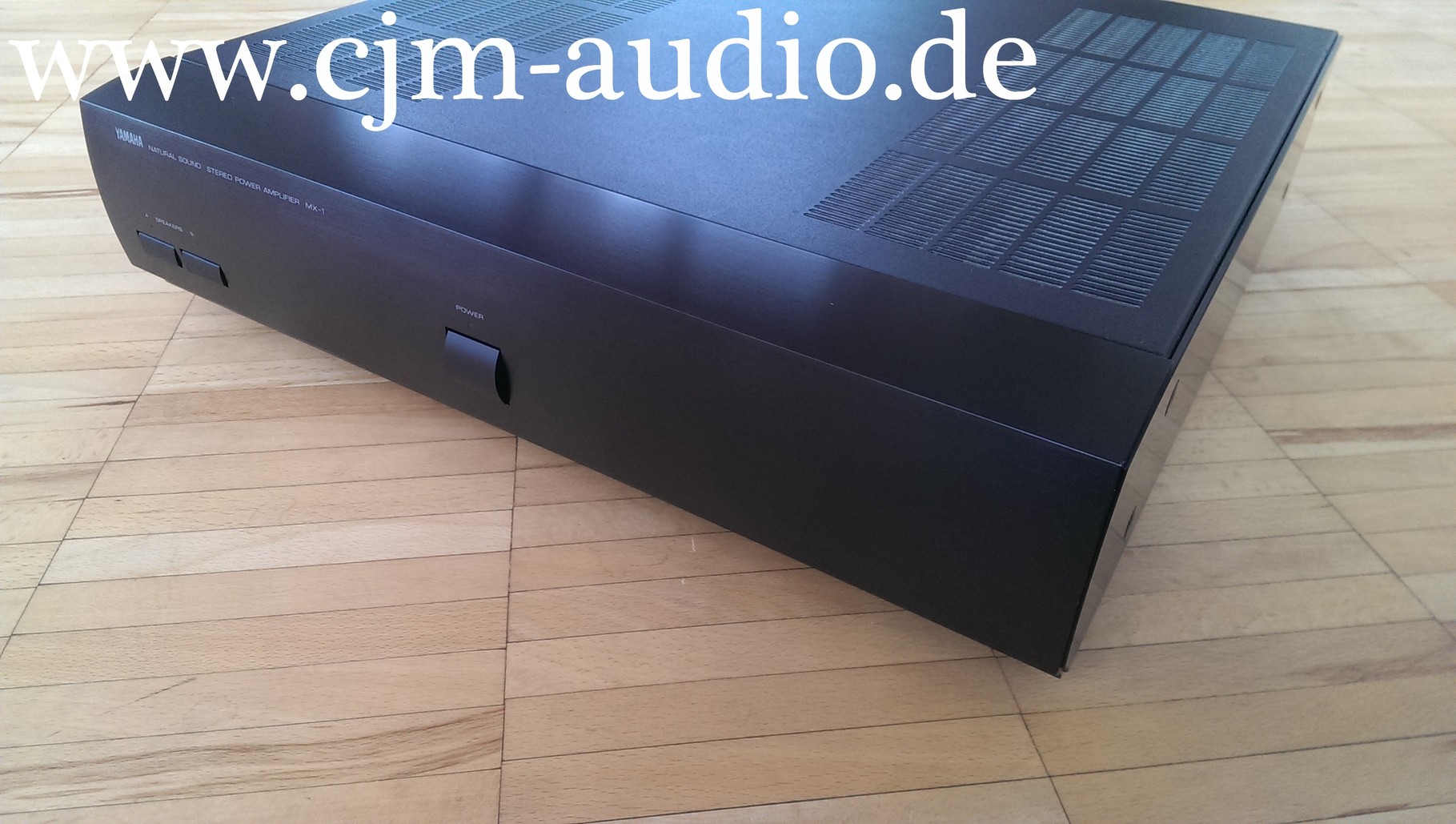

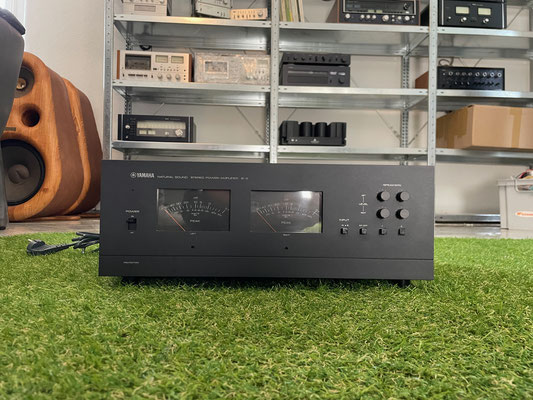

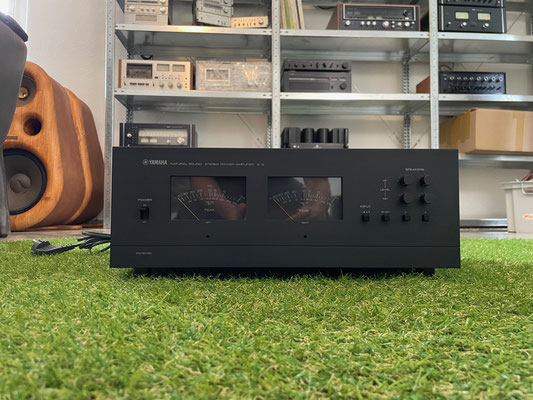

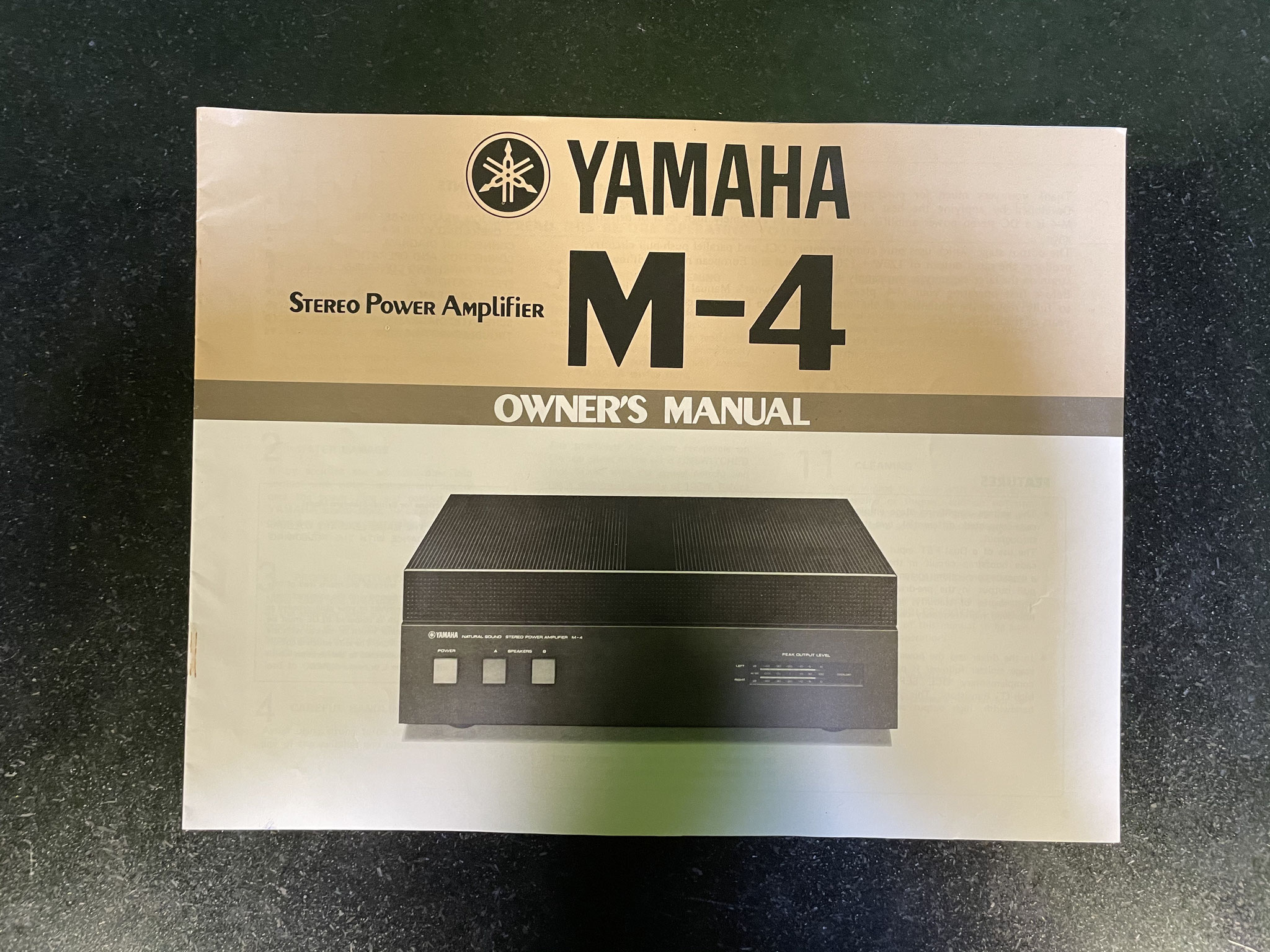

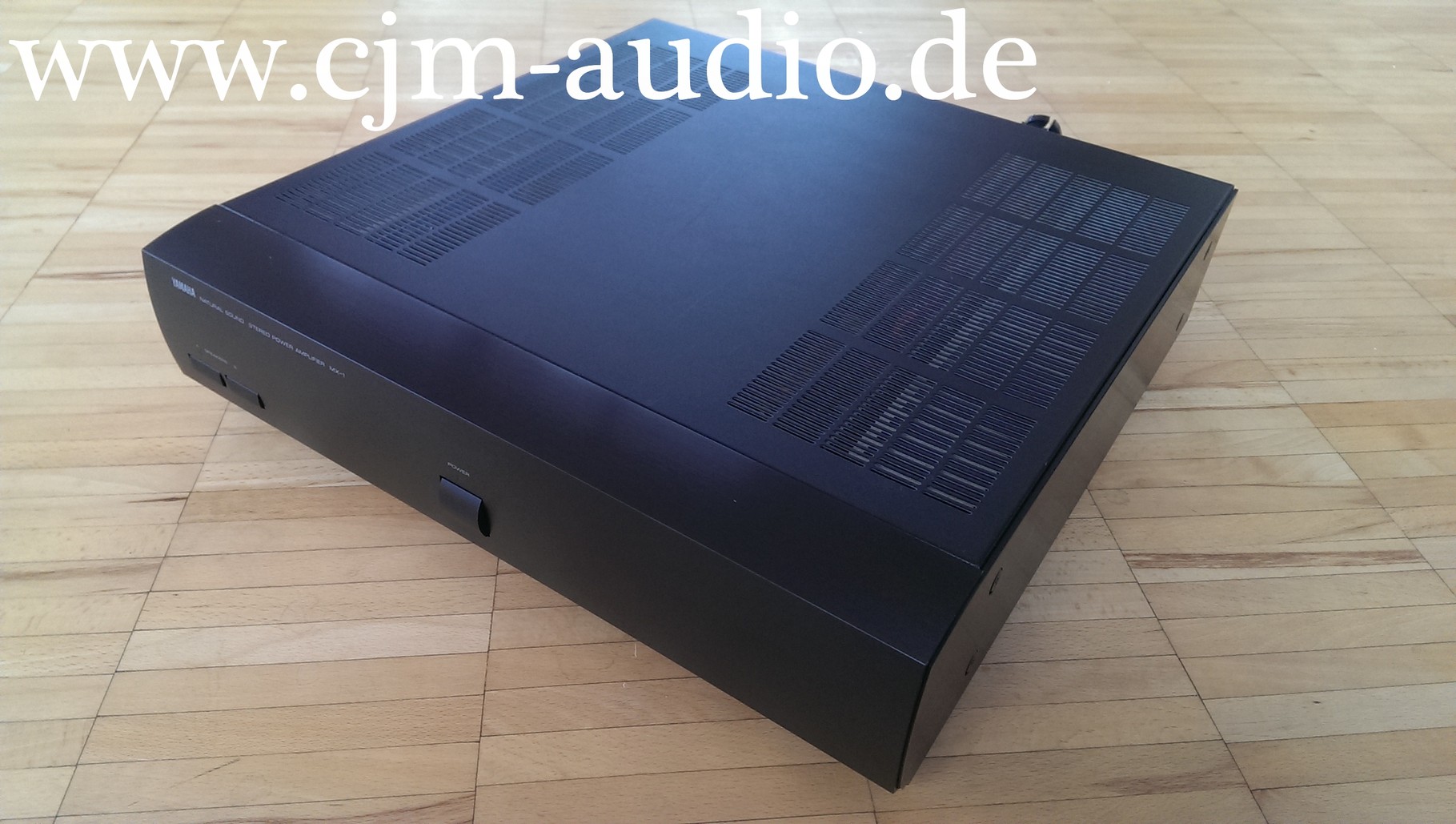

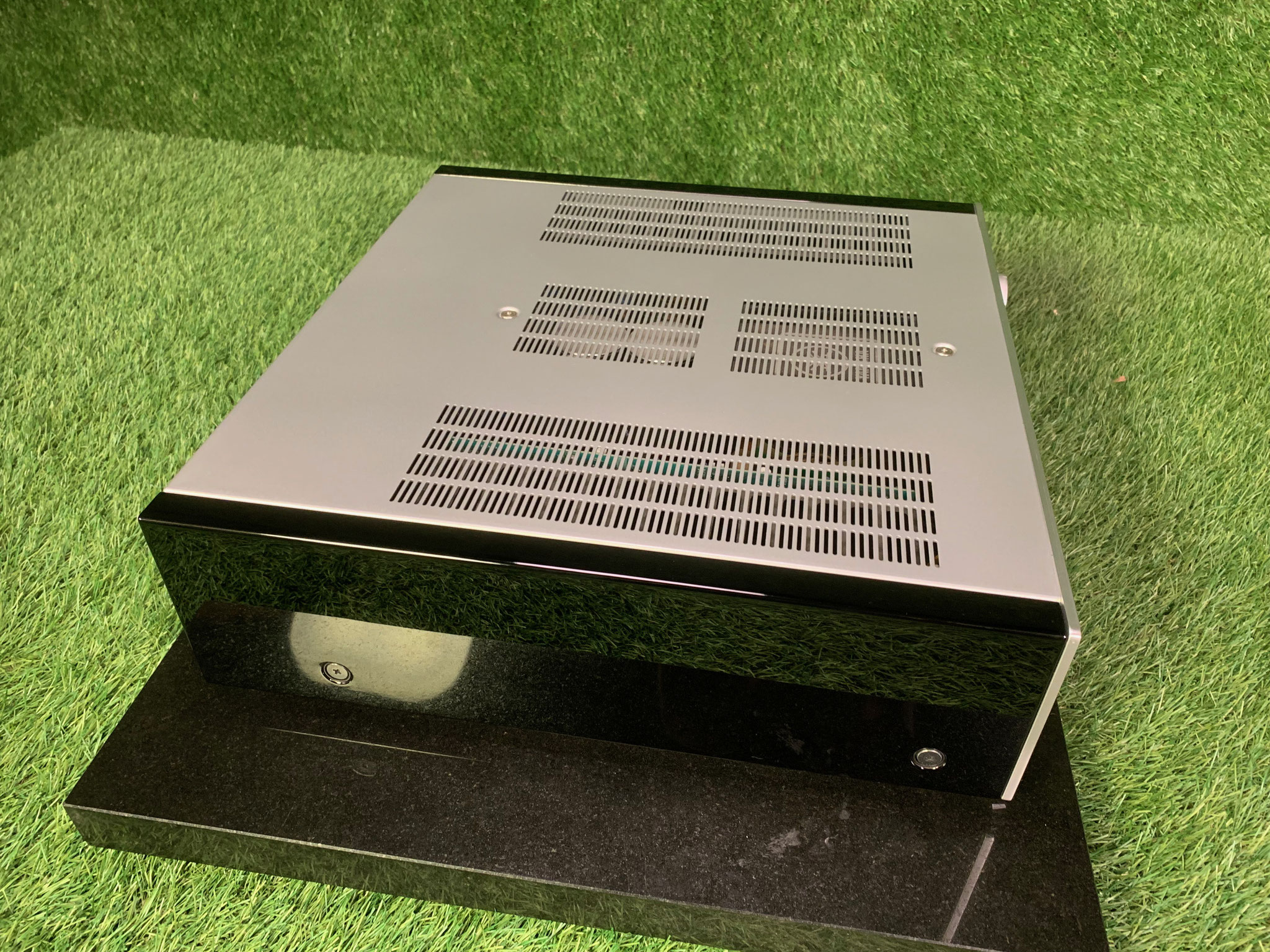

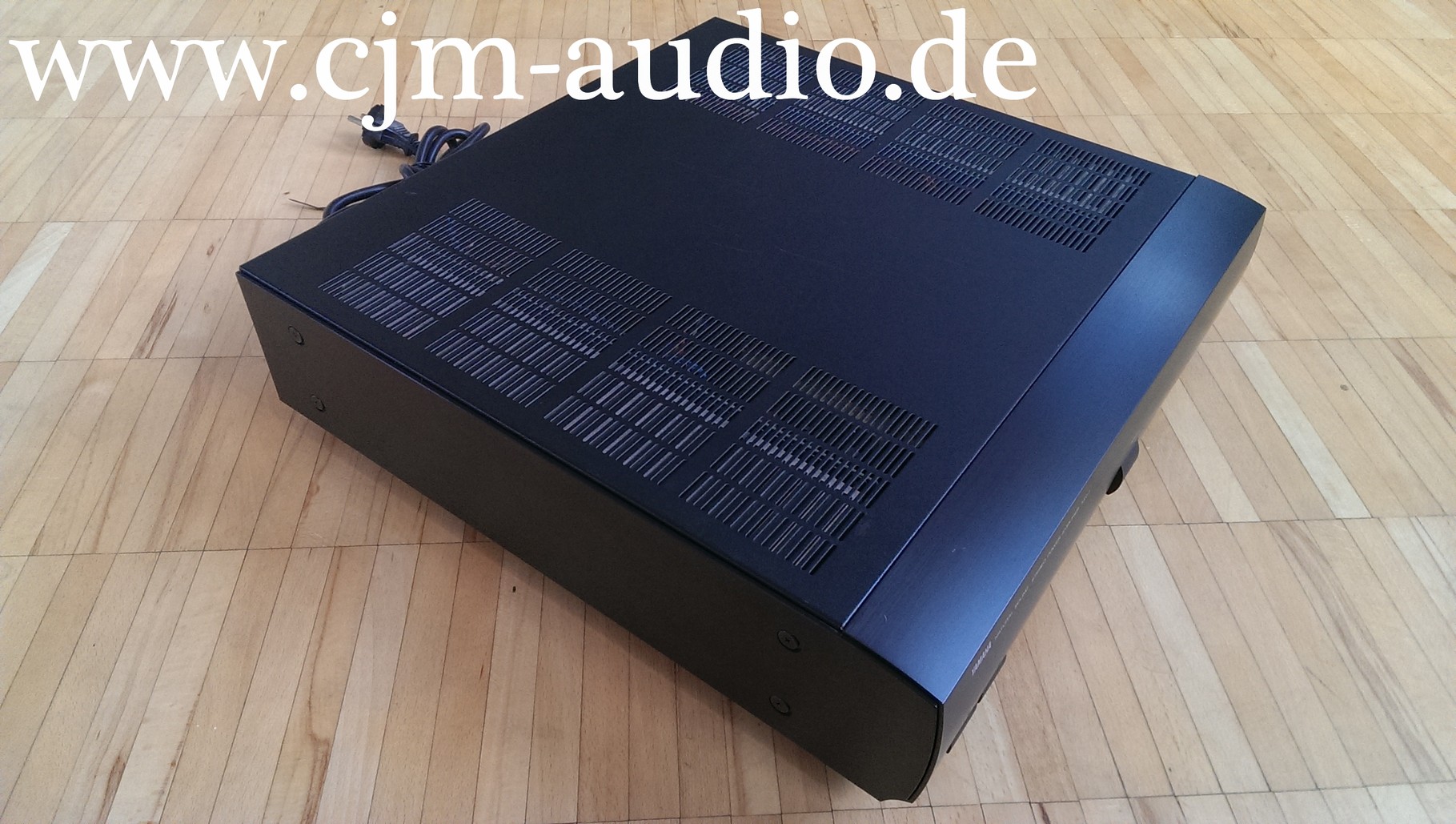

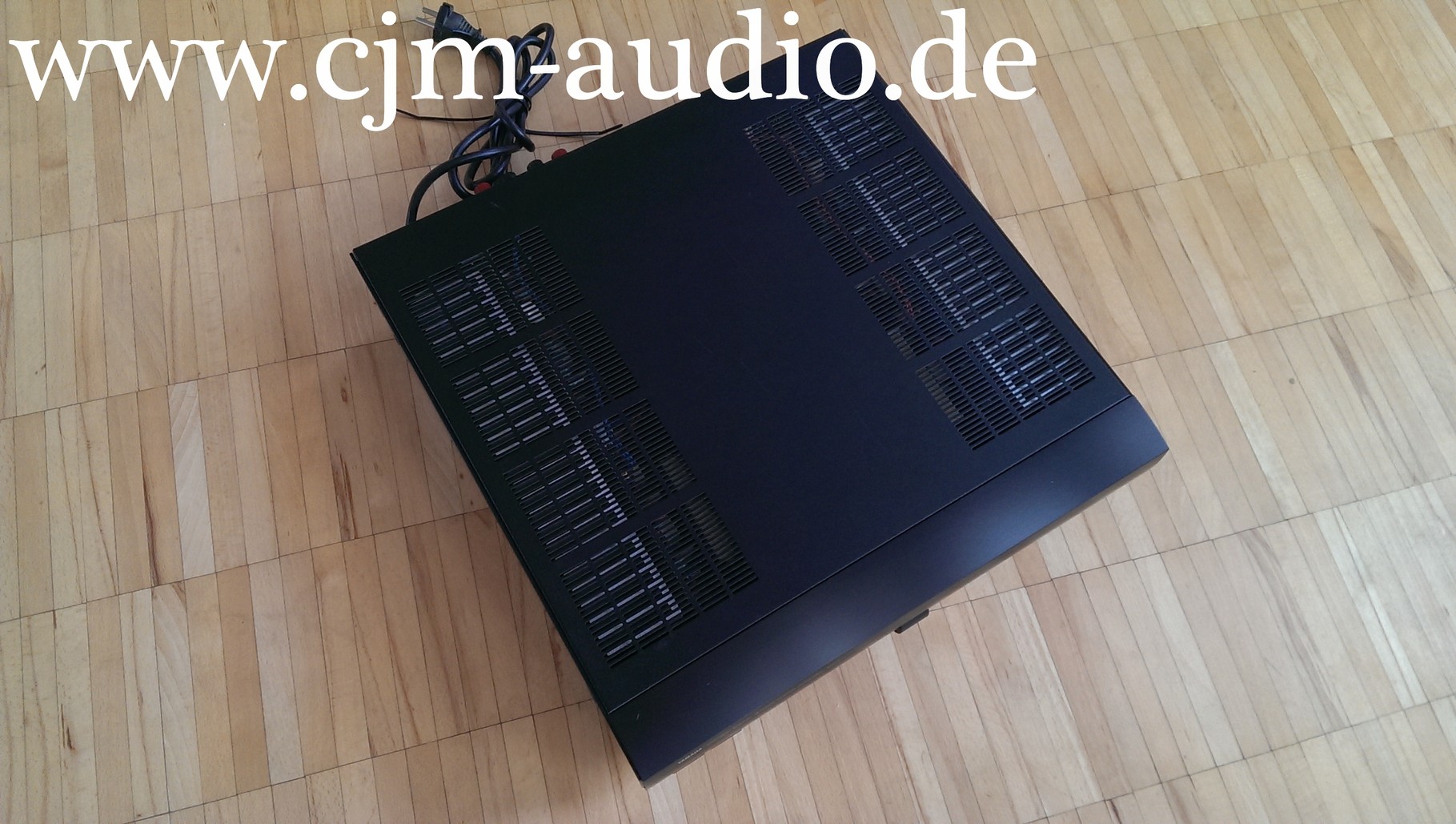

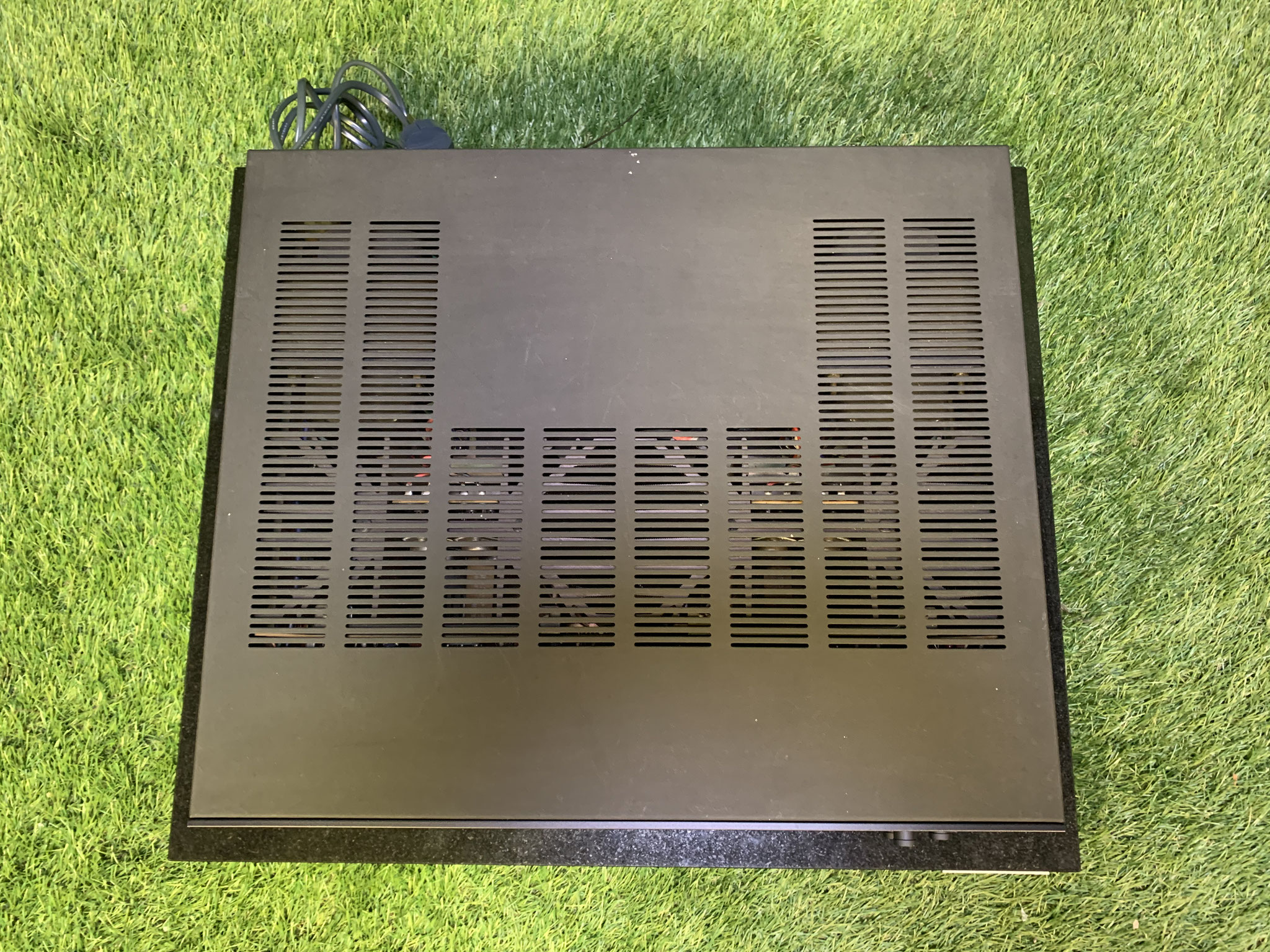

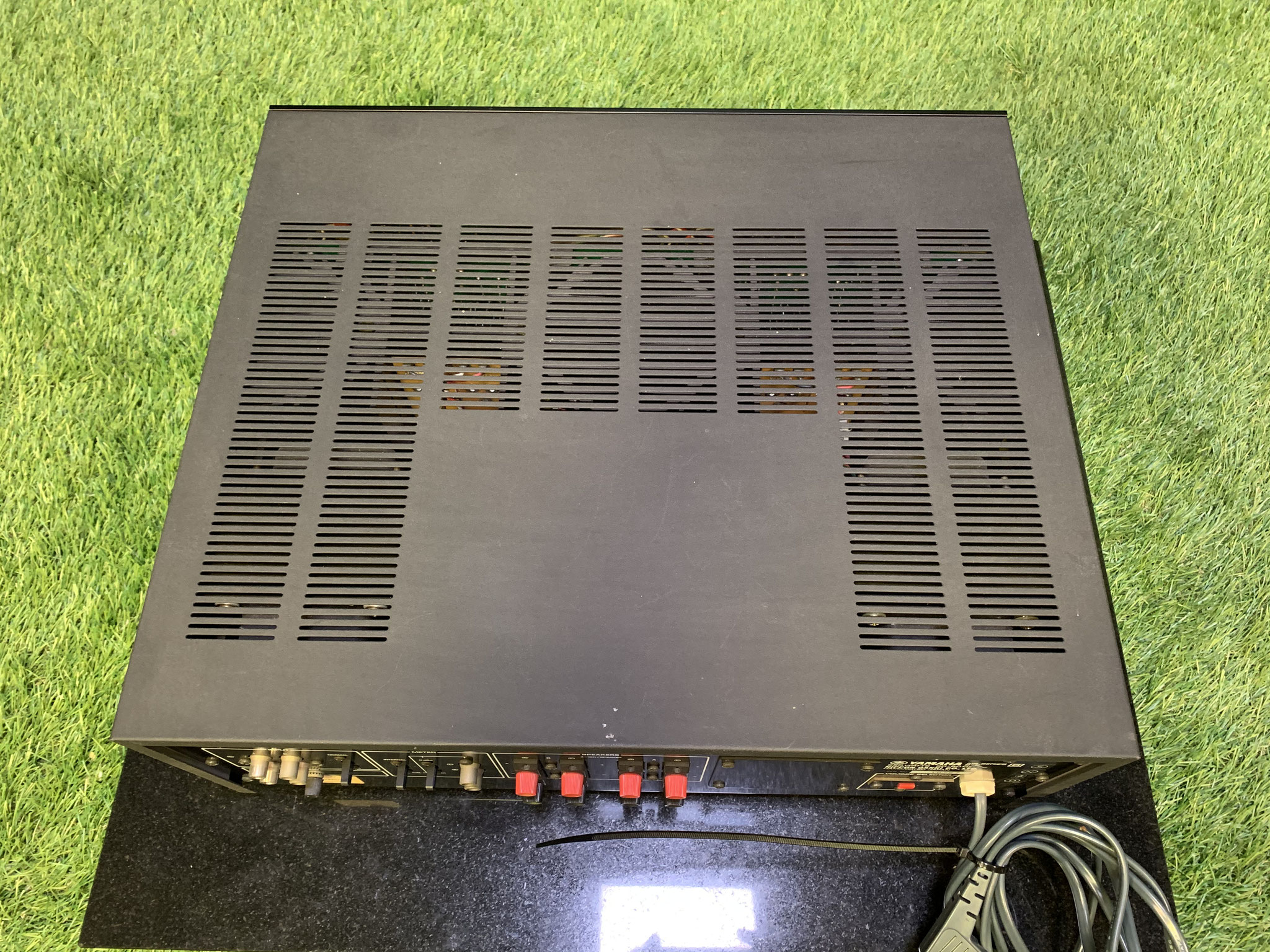

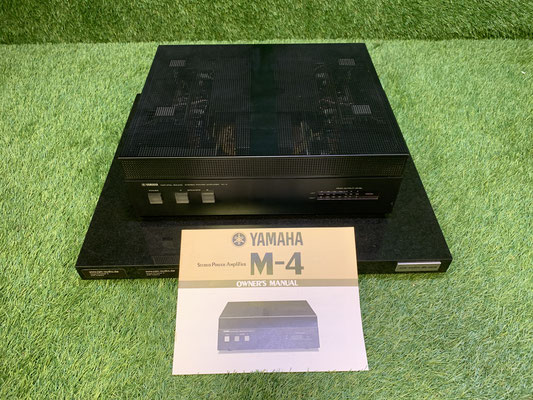

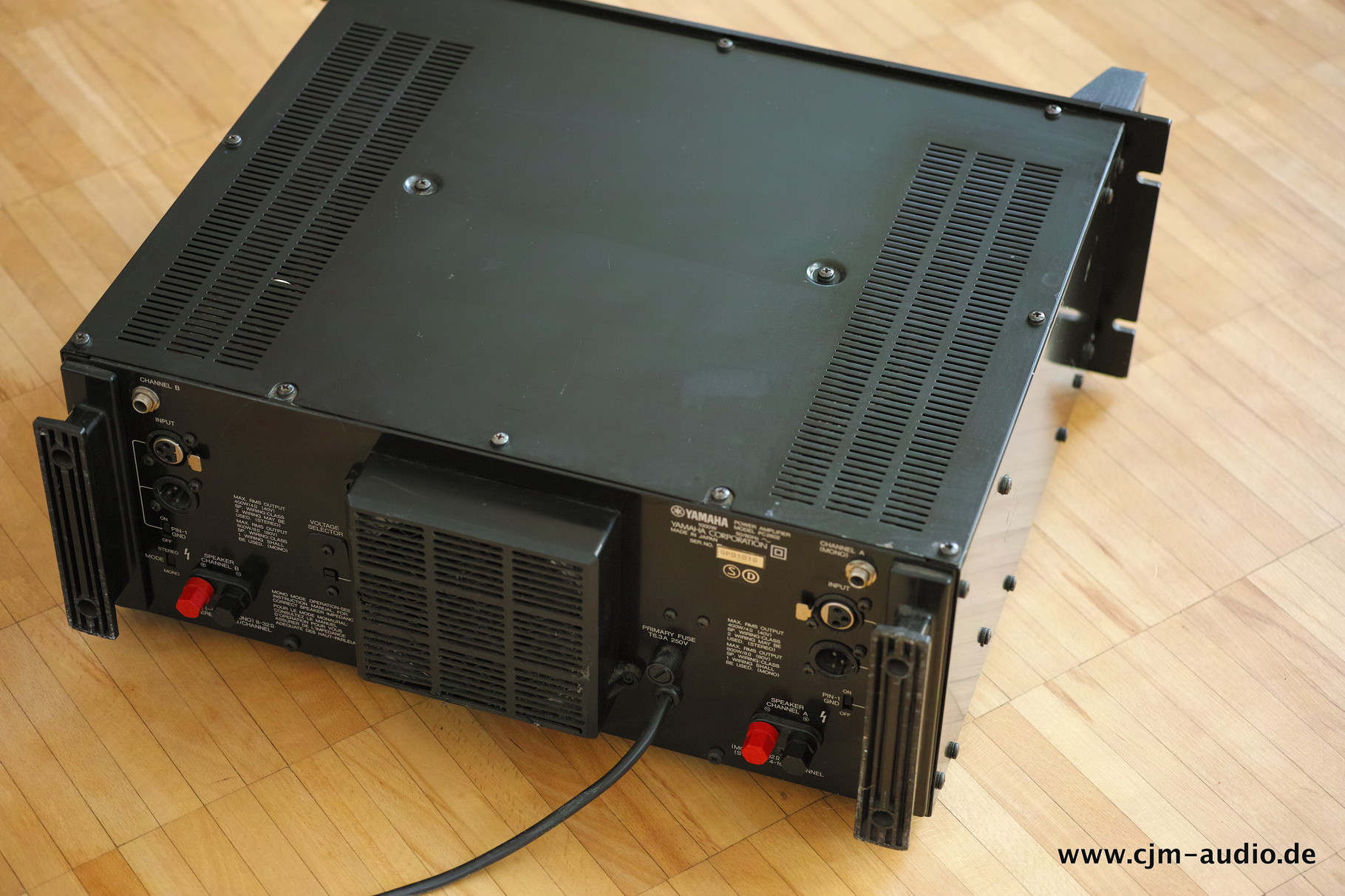

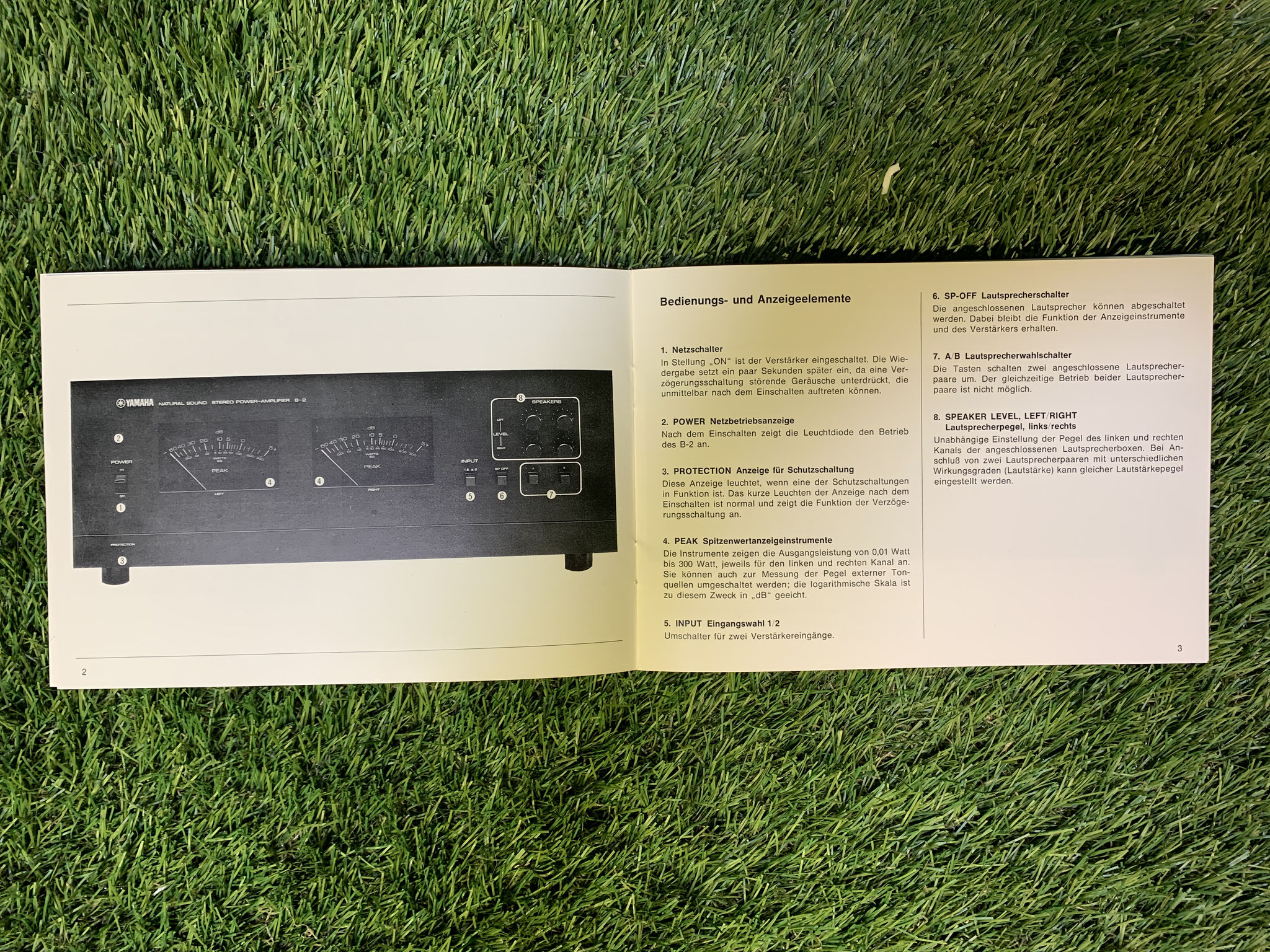

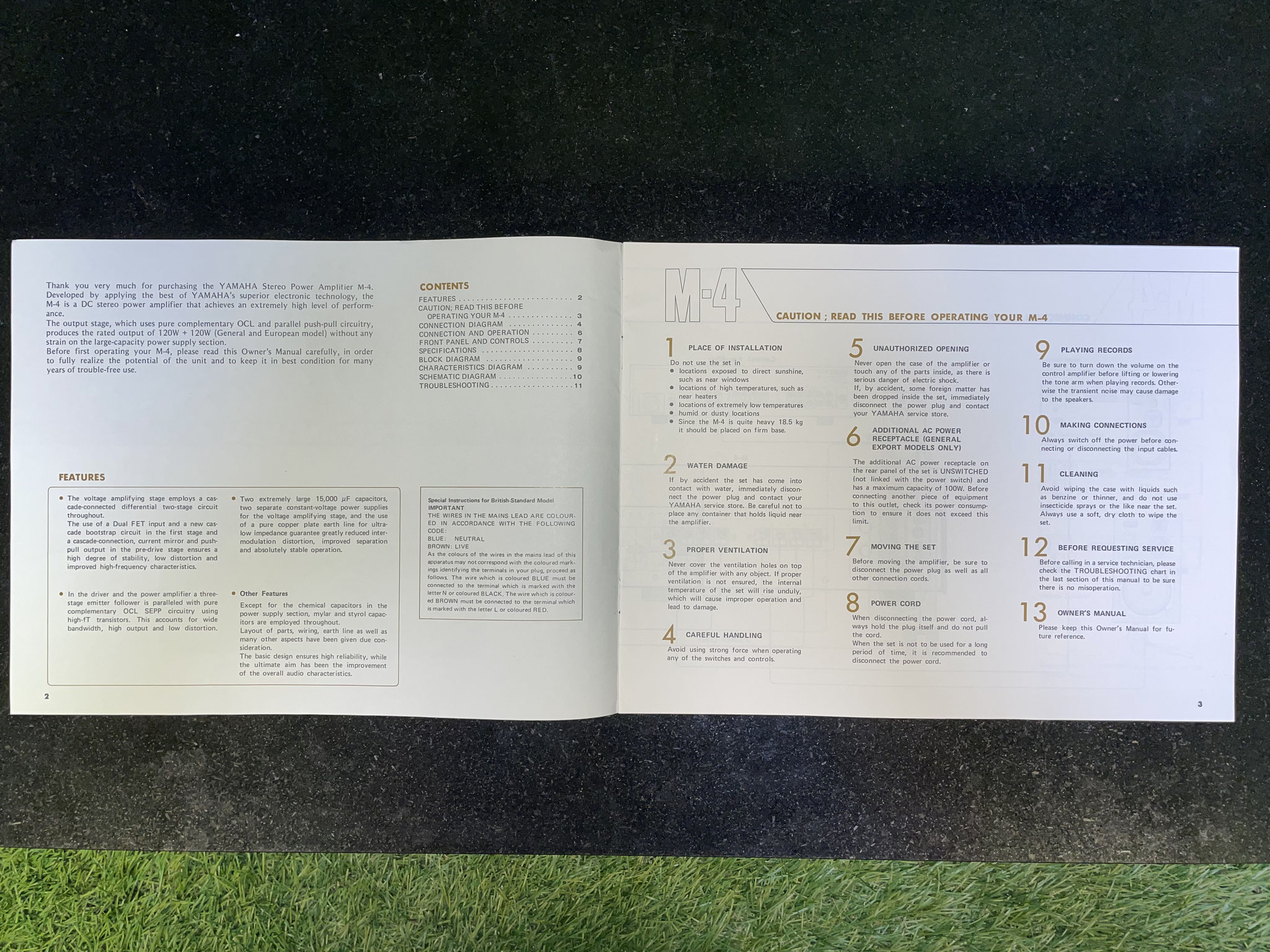

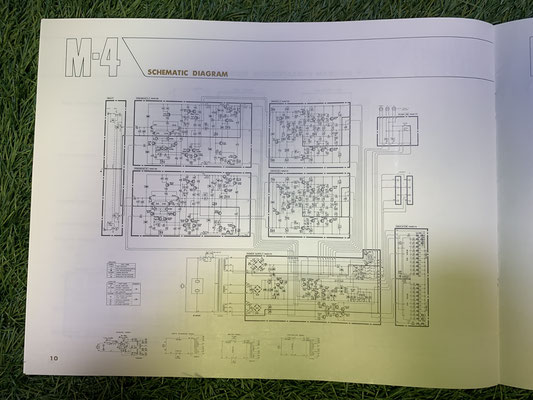

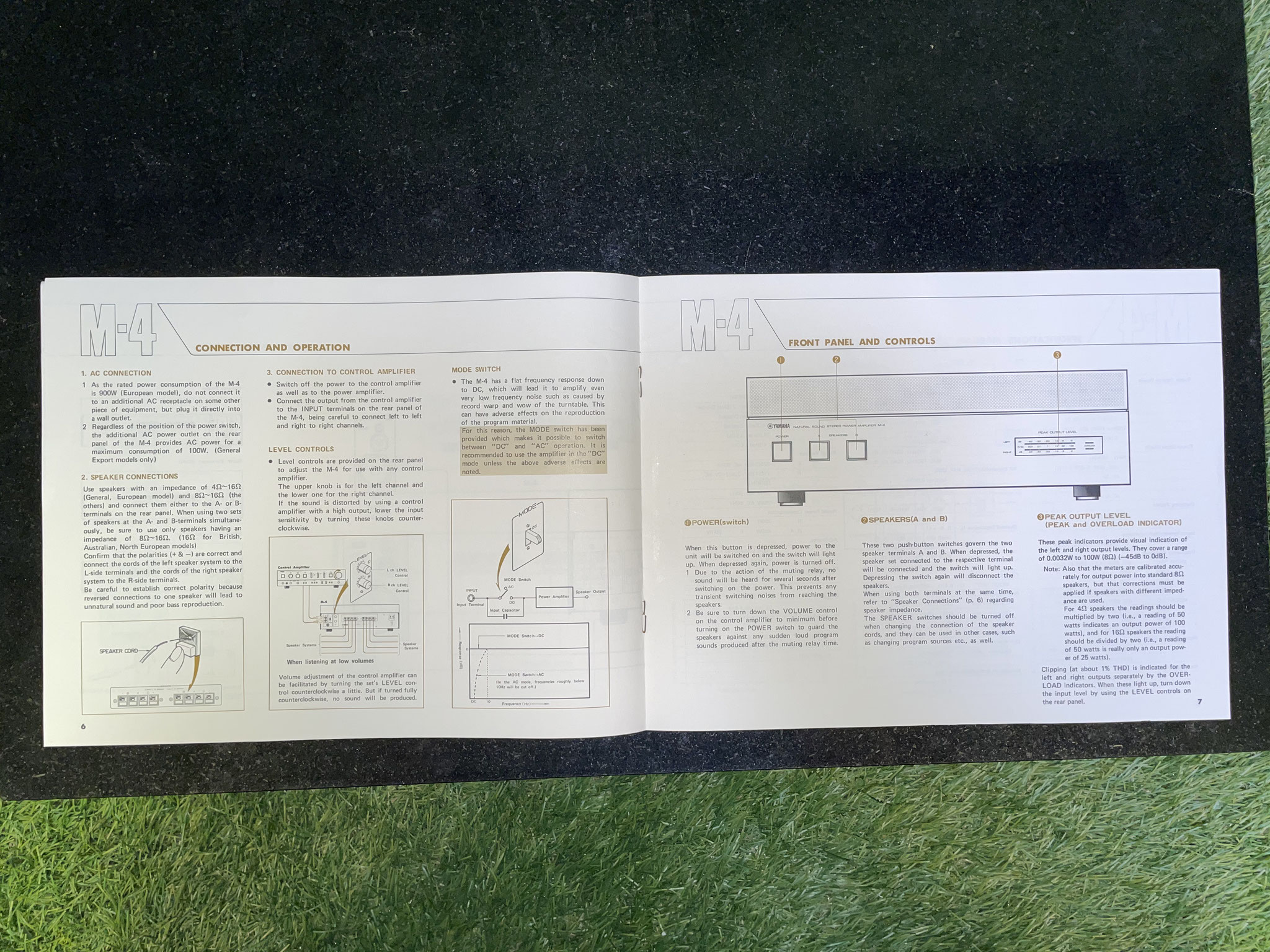

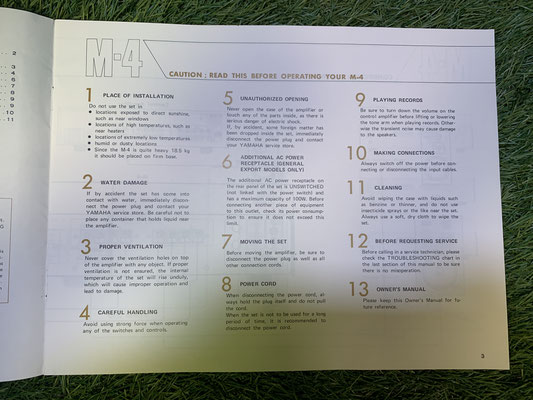

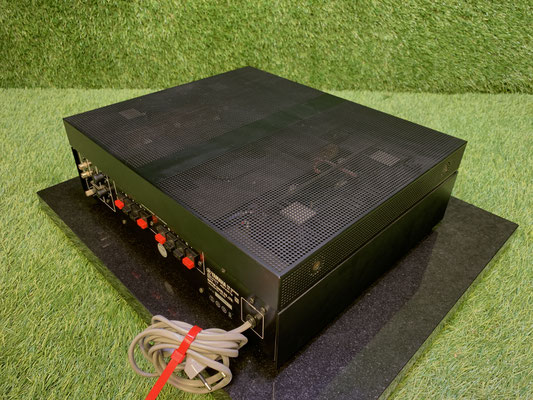

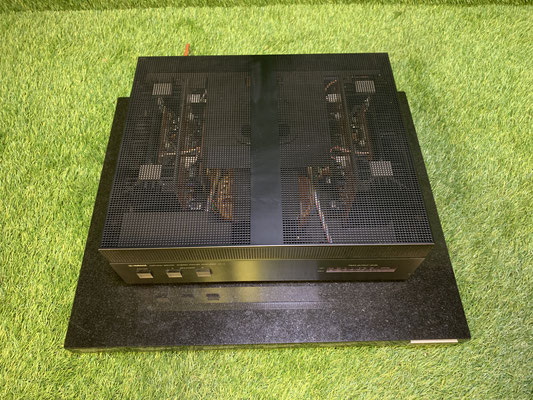

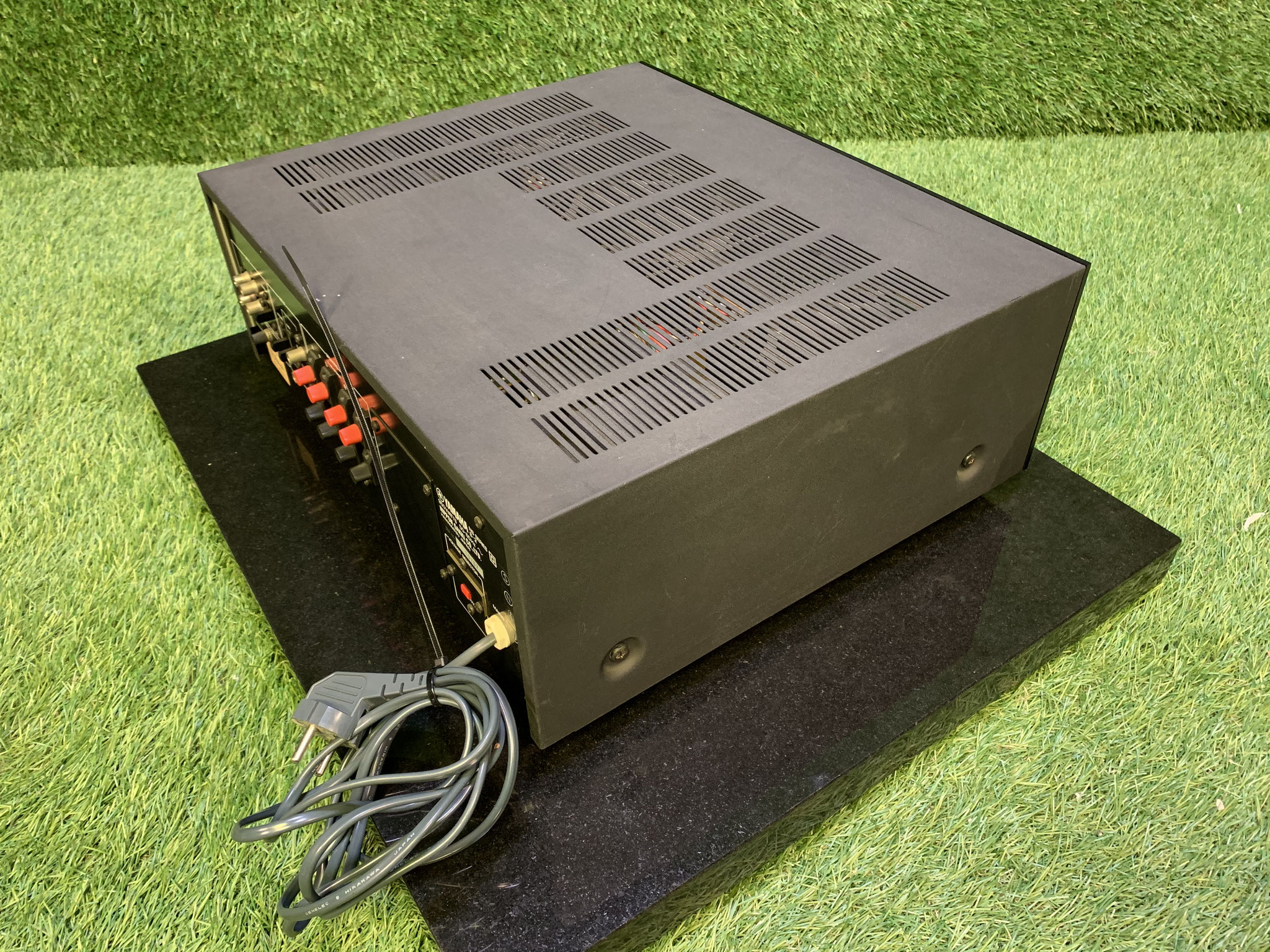

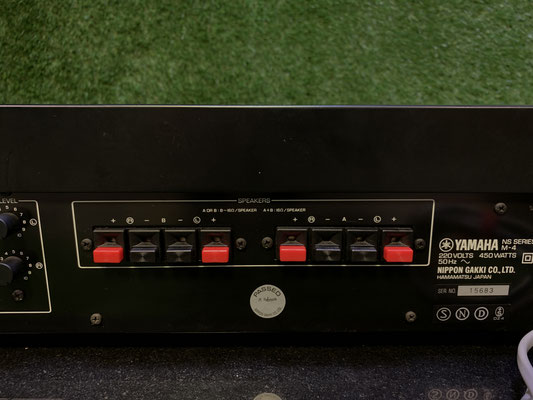

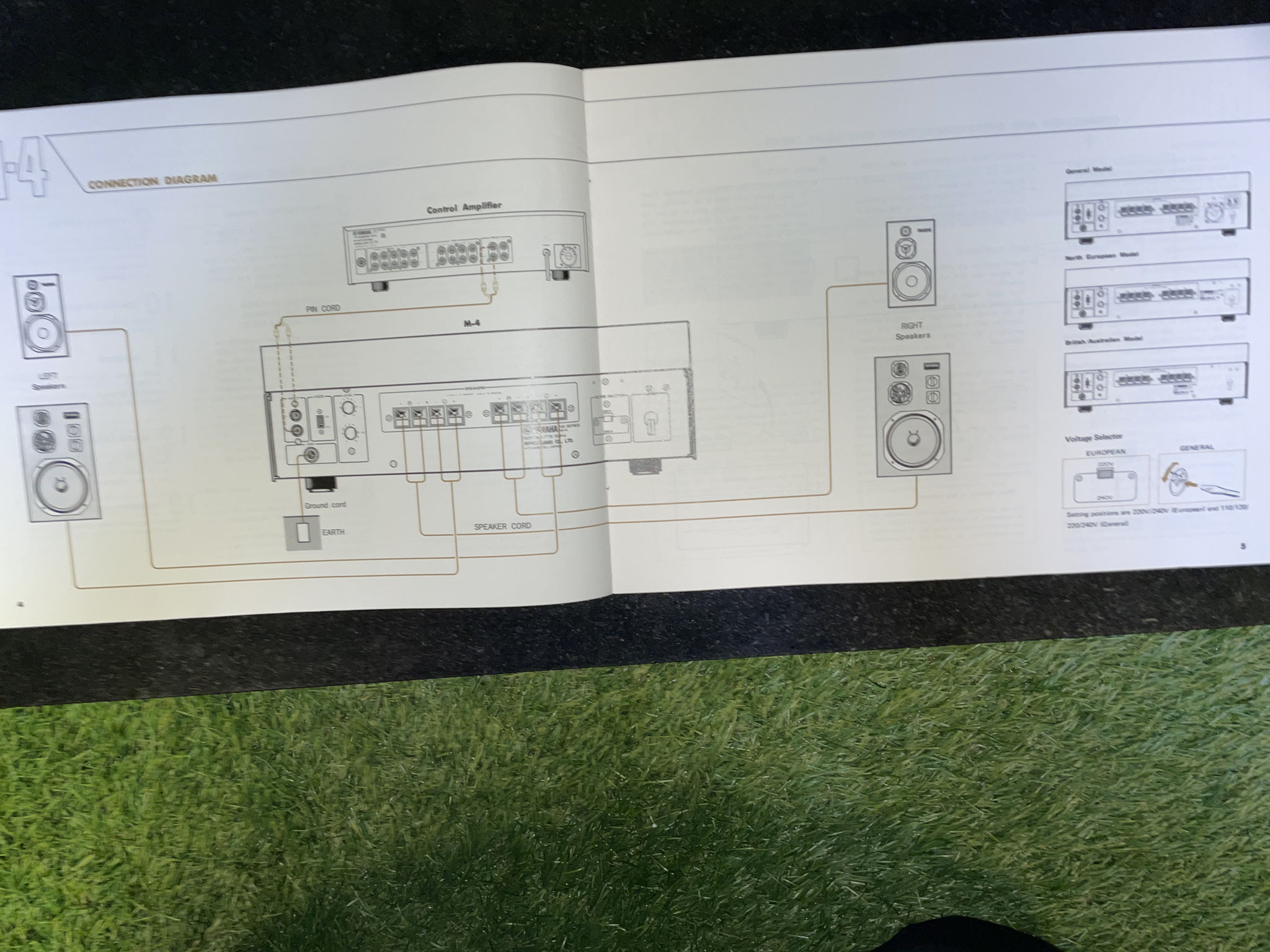

Hersteller: Yamaha

Modell: M-4

Baujahre: 1979 - 1981

Typ: Endverstärker

Farbe: Schwarz

Fernbedienung: Nein

Leistungsaufnahme: 900 Watt

Abmessungen: 435 x 146 x 375 mm (BxHxT)

Gewicht: 18,5 kg

Neupreis ca.: 1450 DM

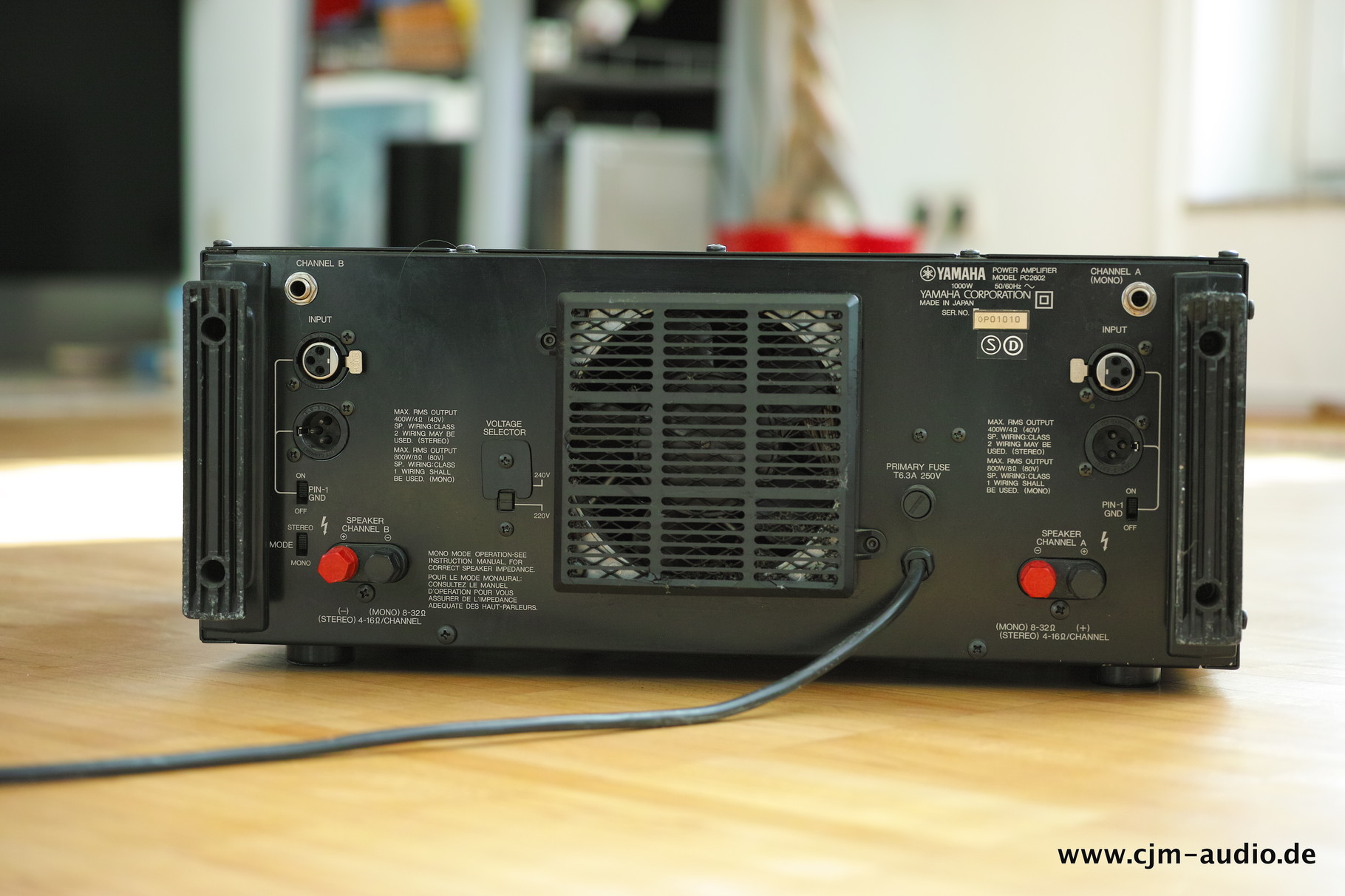

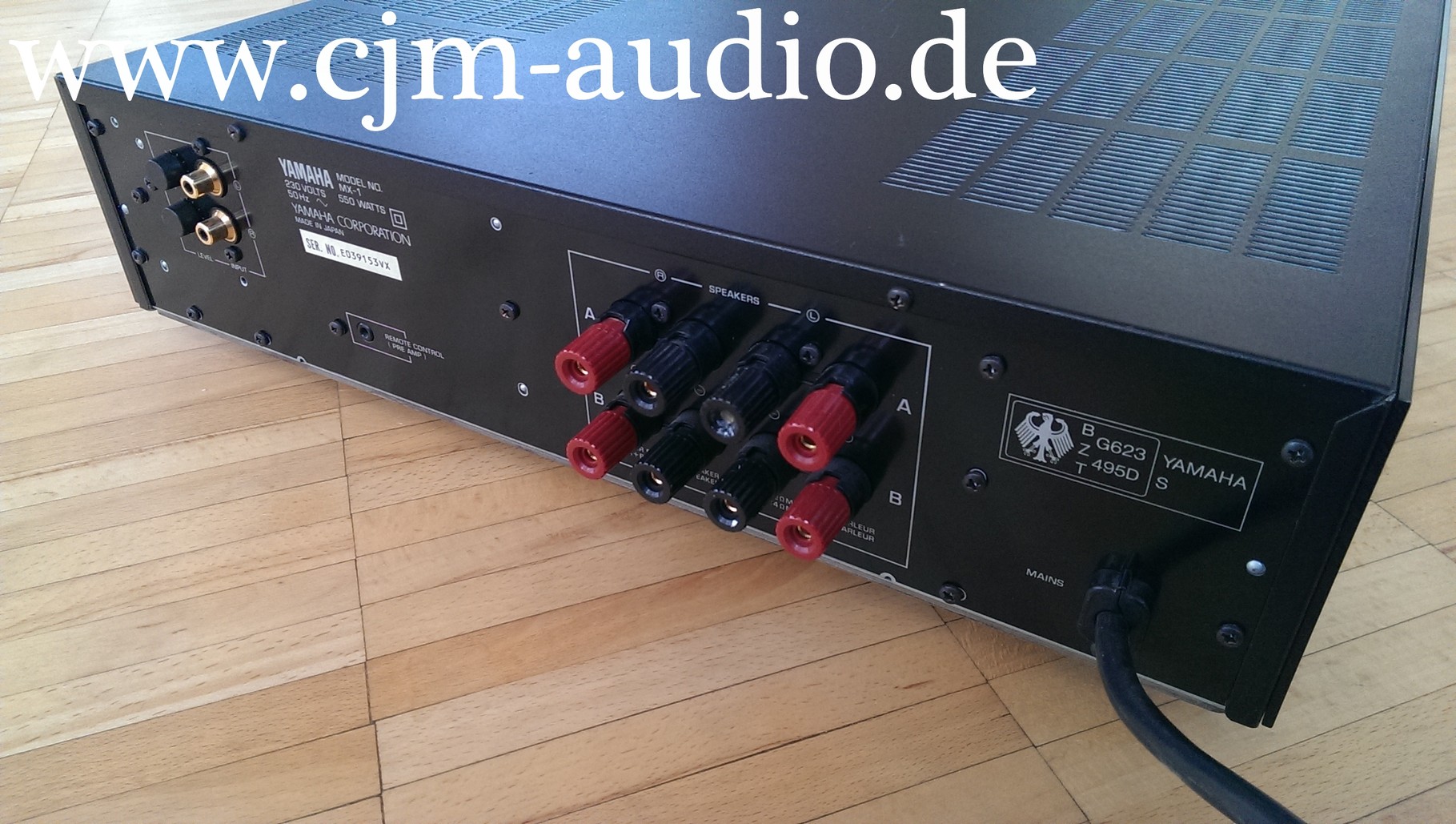

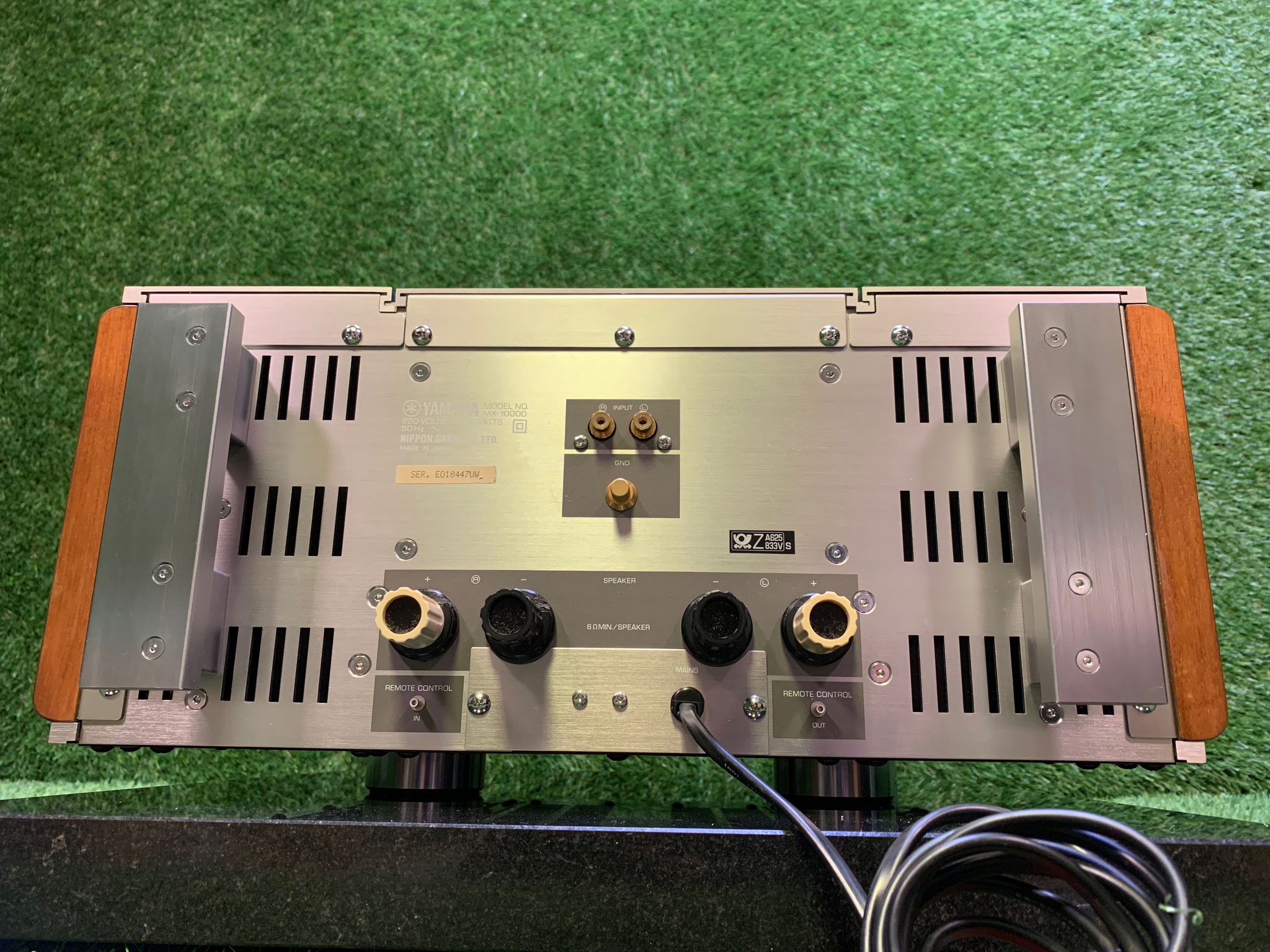

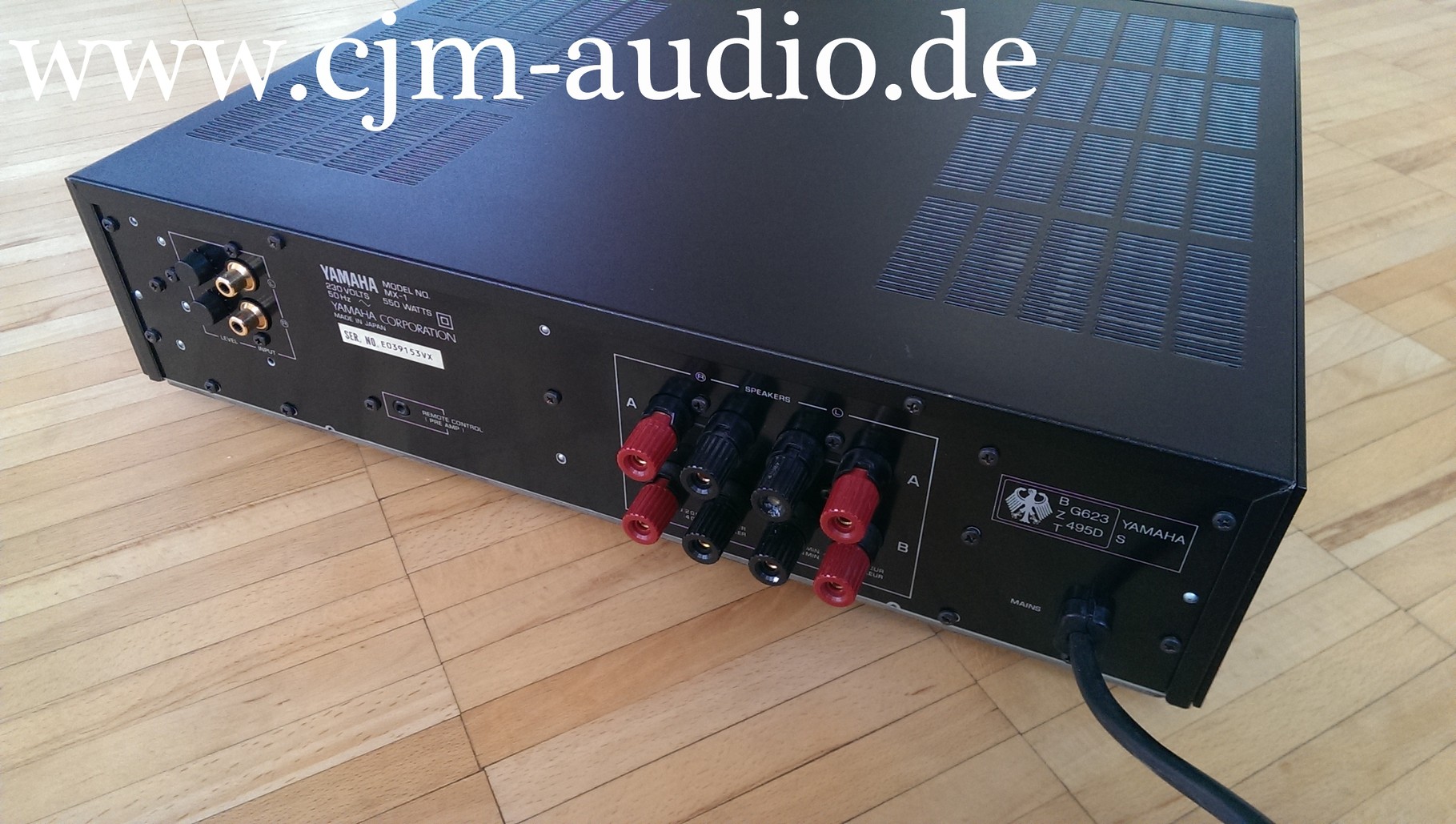

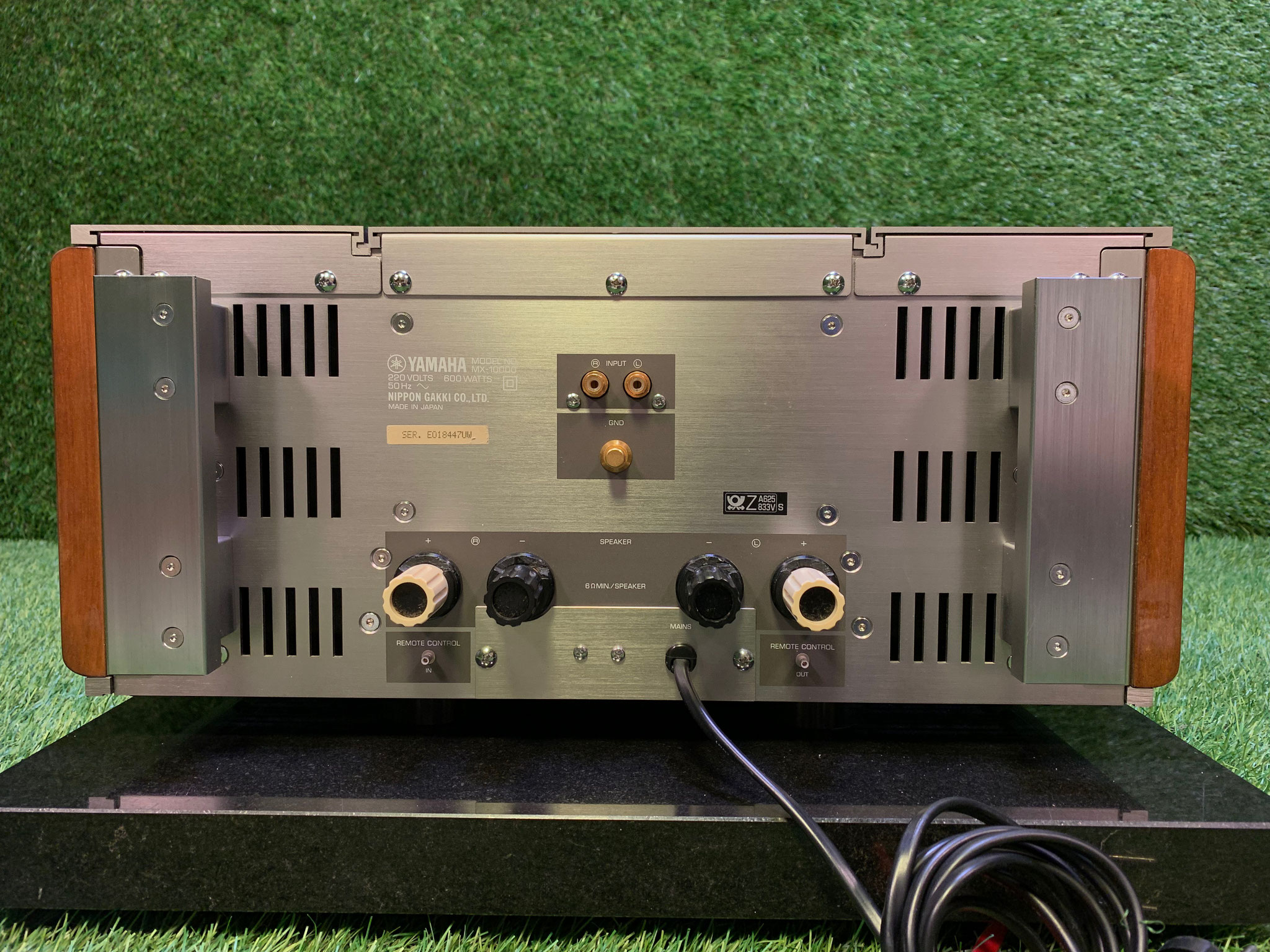

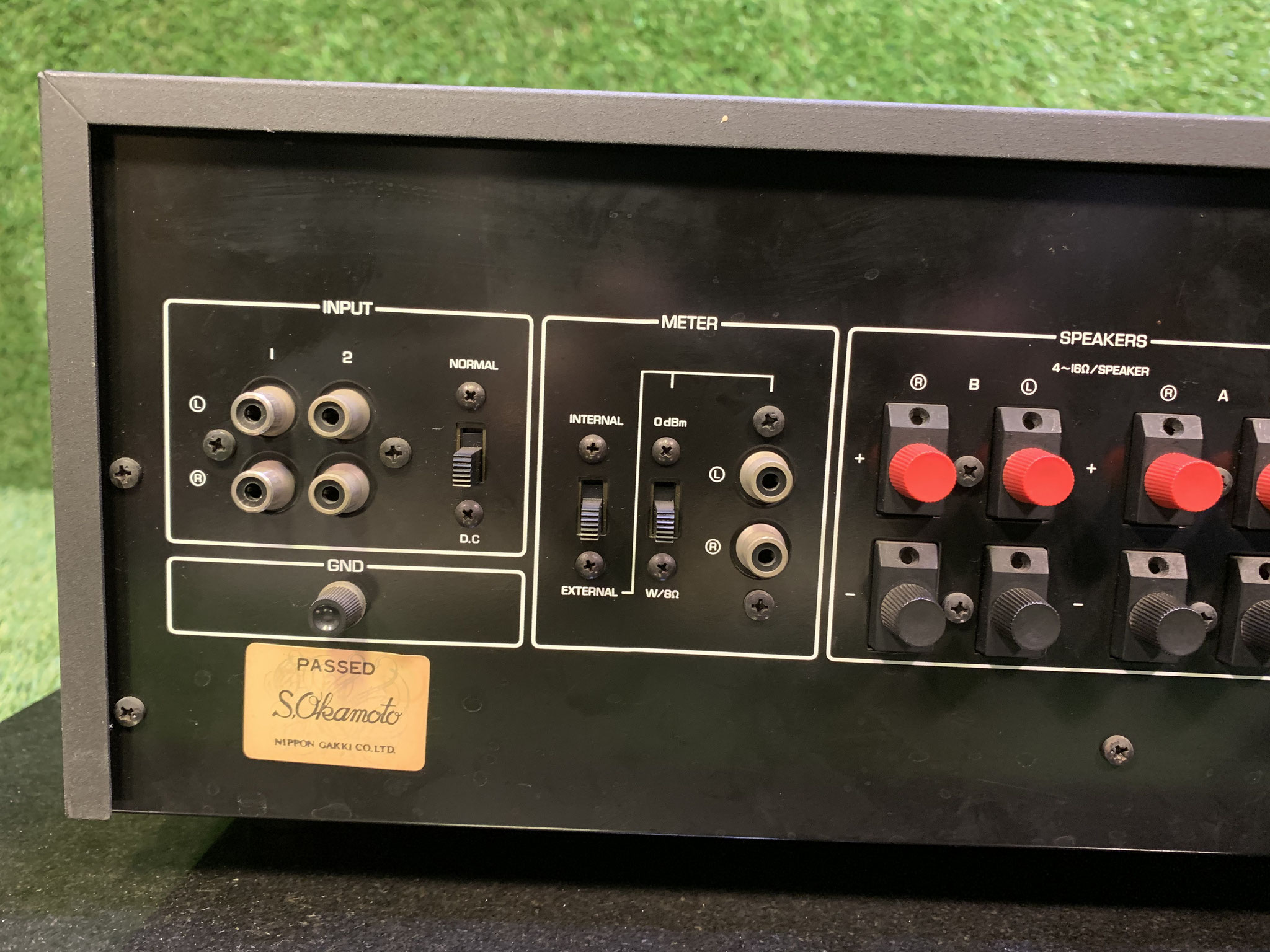

Anschlüsse

Anzahl der Eingänge:

Line: 1 V, 25 kOhm

Anzahl der Ausgänge:

2x Lautsprecher

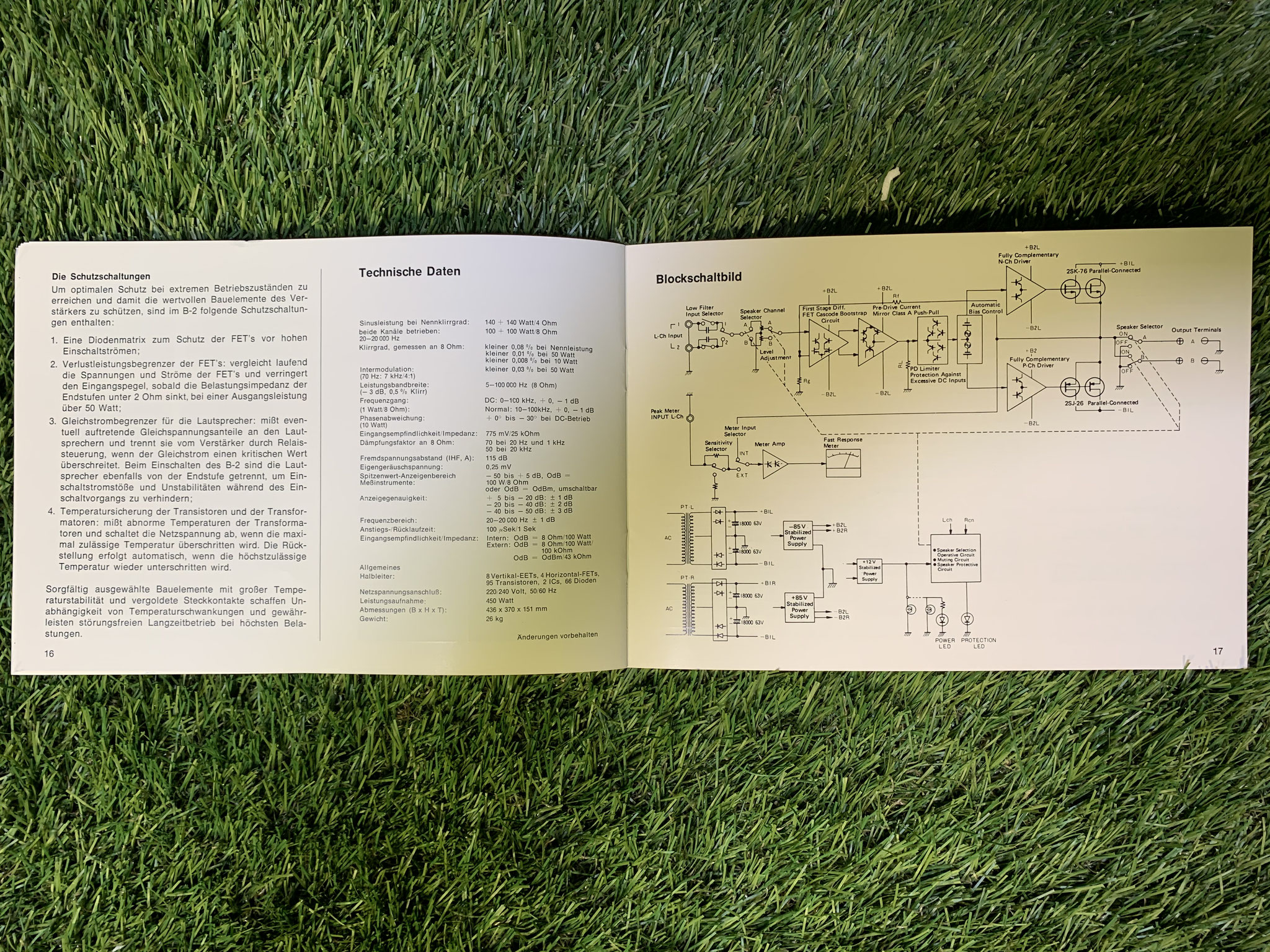

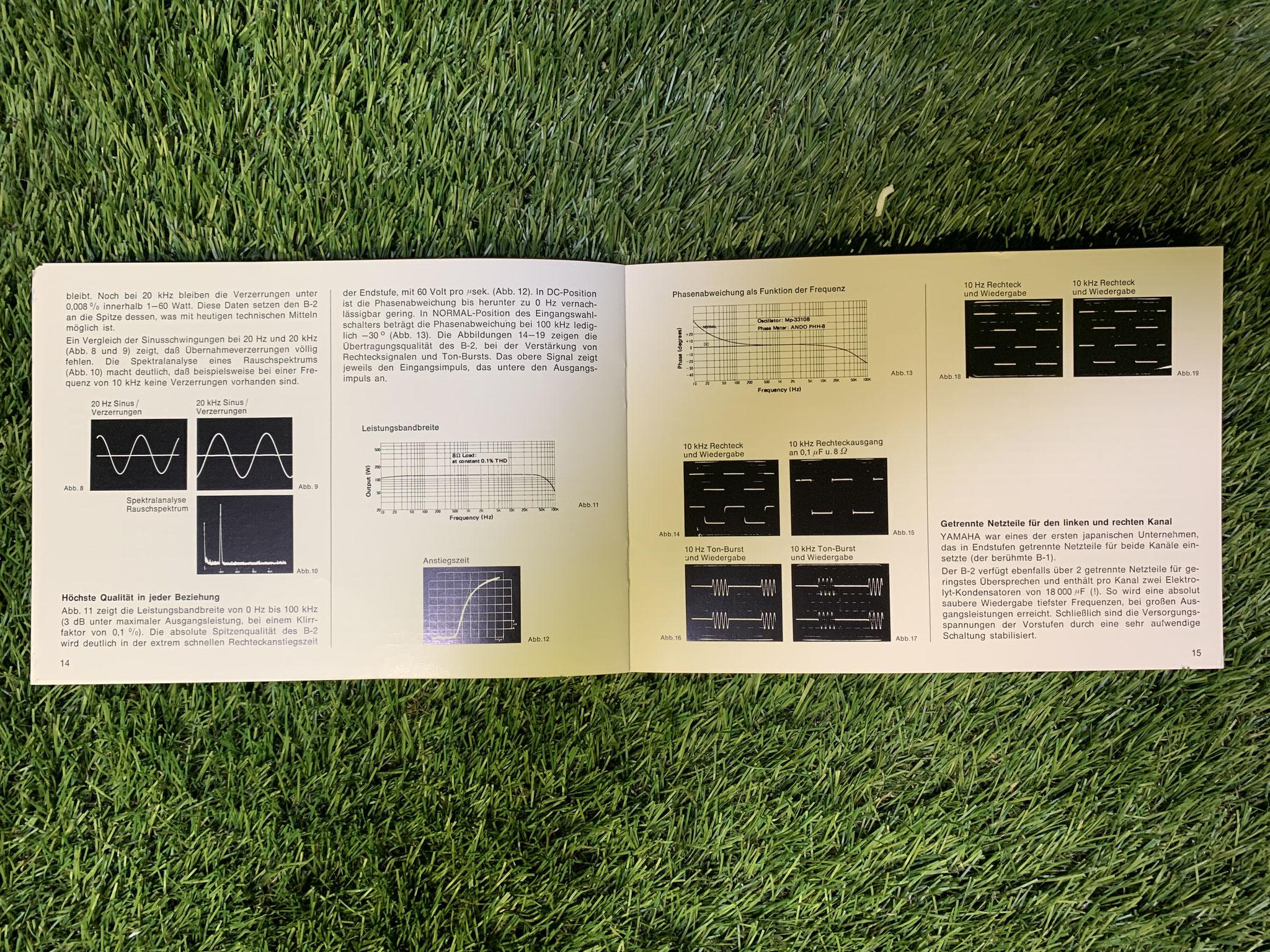

Technische Daten

Dauerleistung (bei Klirrfaktor)

8 Ohm: 2x 120 W

4 Ohm: 2x 170 W

Dynamikleistung

8 Ohm: 2x 135 W

4 Ohm: 2x 210 W

Gesamtklirrfaktor: 0,005% (120 W / 8Ώ ) / < 0,01% (170 W / 4Ώ)

Dämpfungsfaktor: 200 (8Ohm, 1kHz), 100 (4 Ohm / 1 kHz)

Frequenzgang: 10 - 100.000 Hz

Brummspannungsabstand (kurzgeschlossen):

Stereokanaltrennung: 90 dB (1 kHz)

Signalrauschabstand: 118 dB

Besondere Ausstattungen

Leistungsanzeige 2 mW - 145 W (10 LEDs / Kanal)

Überlastanzeigte (Verzerrungsabhängig)

Eingangspegelregler

Weiterführende Informationen:

Vollsymmetrische Konstruktion (vom Eingang bis zum Ausgang)

Komplette Signalwegtrennung

Potentialfreier symmetrischer Leistungsverstärker

Drei parallele Lautstärke- und Klangreglerkreise pro Kanal

Endstufe mit vier Hochleistungs-Netzteilen

Endstufe mit vier Hochleistungs-Netzteilen

Lokale Vorverstärker-Regler in Shunt-Konstruktion

Separater Verstärker für Kopfhöreranschluss mit geringer Impedanz

Discrete phono amp with high-precision head amp and equaliser amp

Spezielle Fußkonstruktion

HiFi Began with Yamaha

Yamaha’s involvement with and passion for music goes back more than a century, to when we built our first reed organ in 1887. Now we are the world’s leading producer of pianos and other musical instruments, and are involved with music in many other ways as well. We manufacture professional recording equipment, we design concert halls and we assist artists at concerts with set up and sound tuning.

This knowledge and experience benefits our production of audio components in many ways.

We introduced our first HiFi (High Fidelity) turntable in 1954, becoming the first company to actually use the term “HiFi.”

Thereafter we were one of the first to offer mass-produced, high quality audio equipment, and introduced many legendary stereo components.

We hope you enjoy the genuine HiFi experience of Yamaha Natural Sound.

Full Floating and Balanced Circuit Design Achieves for the First Time the Full Potential of Analogue Amplification

More than forty years have passed since the introduction and widespread adoption of full transistor HiFi audio amps during the 1960s.

In the 1970s, high performance, high output PNP-NPN transistors made possible the pure complementary configured power amps that are now the main type of high quality audio amps.

In recent years, however, digital amps have become popular for their high conversion efficiency and superior uniformity of operating precision, as well as for their lower weight, size and heat production as compared to analogue amps.

Which leads to the question, which direction will audiophile-level amps take in the future?

Generally, two possibilities are considered: continuing to improve the traditional pure complementary configuration analogue amps or working to achieve higher sound quality from digital amps.

But Yamaha has selected a third approach.

This is an entirely new floating and balanced power amp that, by using power transistors with the same polarity that are not complementary, achieves complete symmetry of pullable operation at the output stage and permits full balanced transmission

(amplification) from the input jack to just before the speaker jack — a capability that has long been the dream of audiophiles.

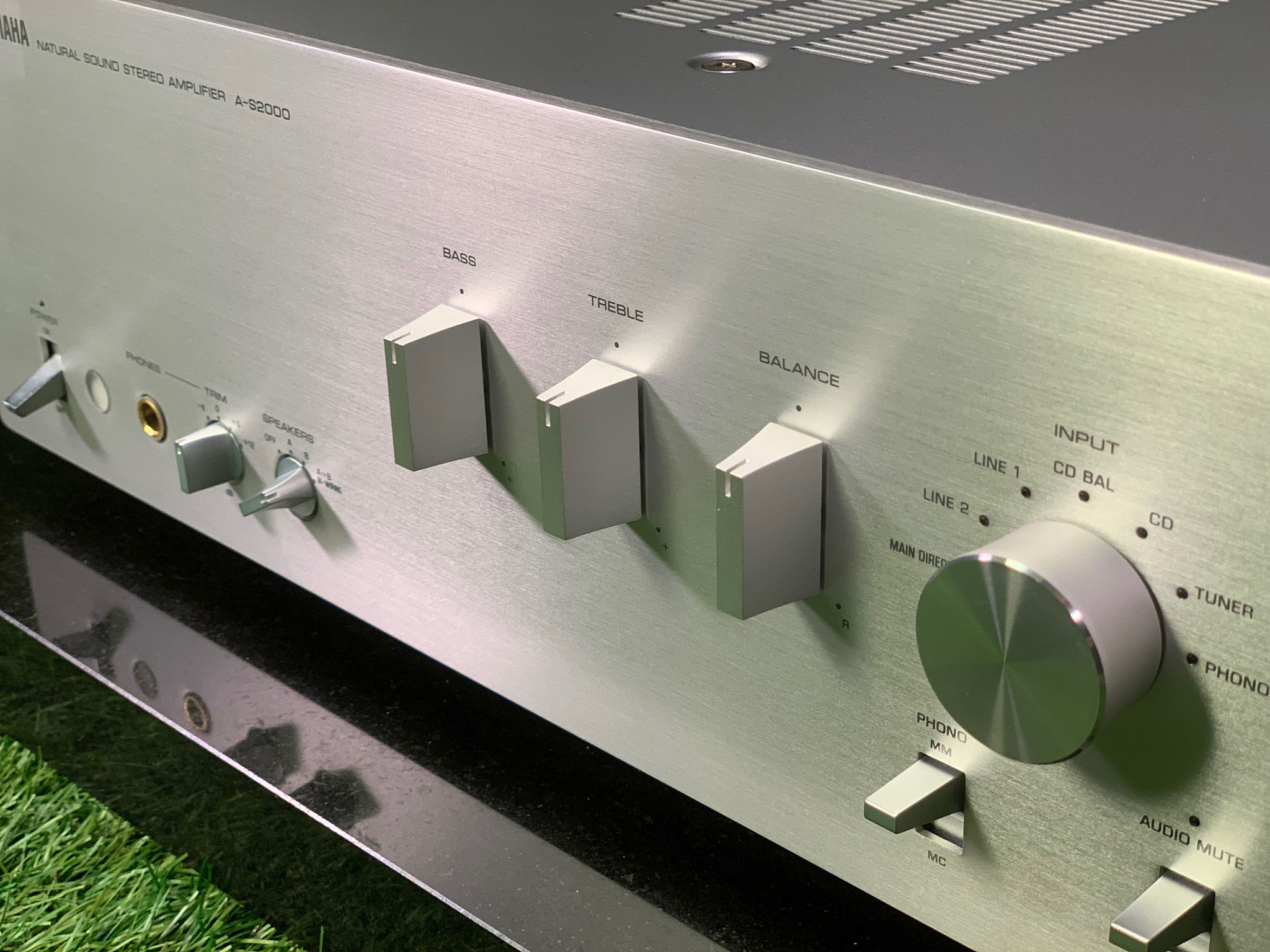

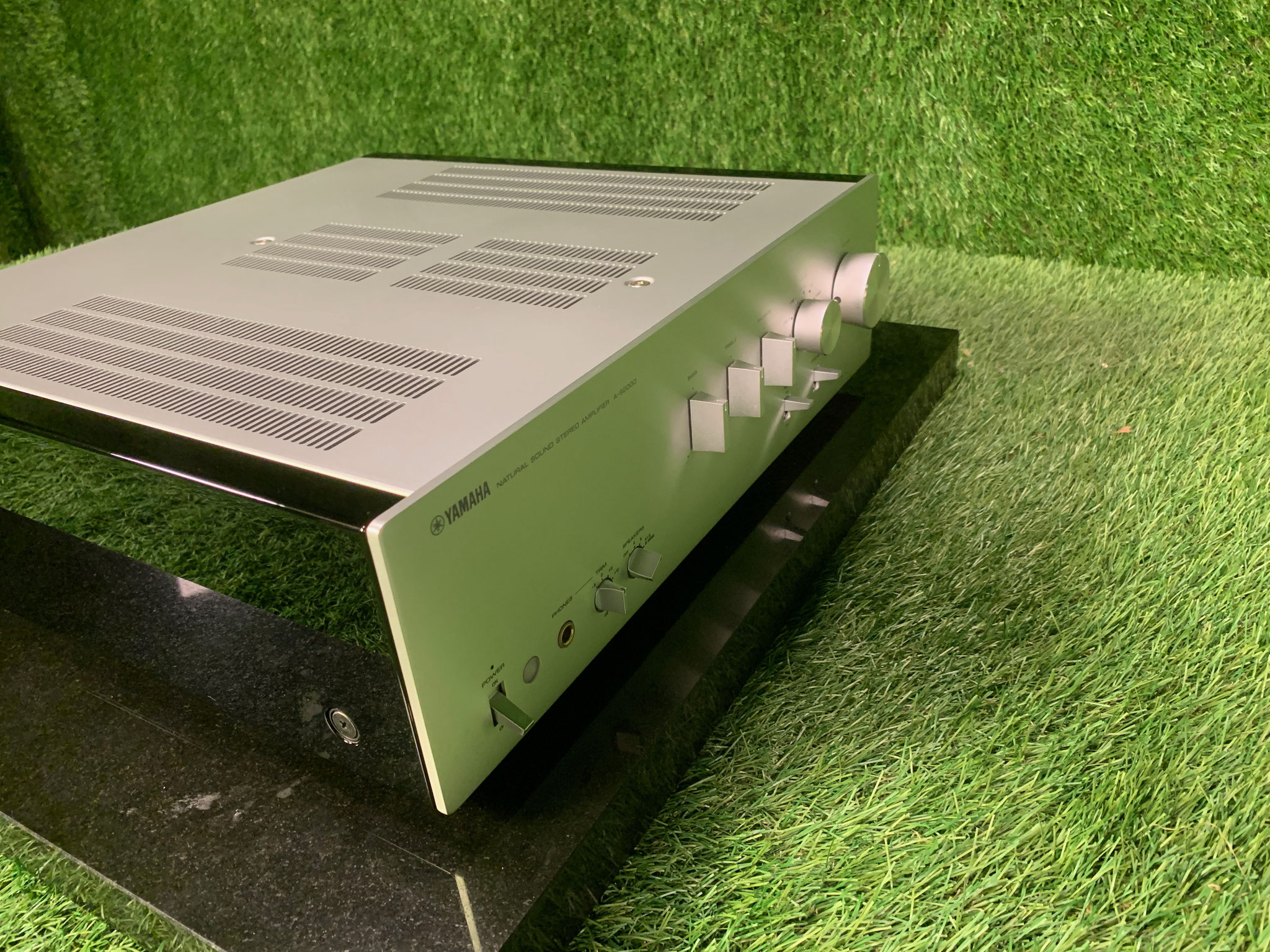

Full-Stage Balanced Signal Transmission

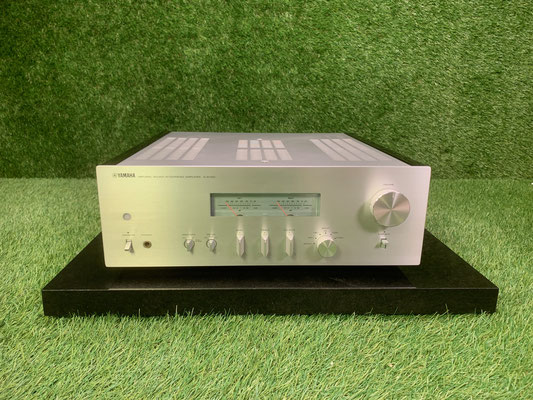

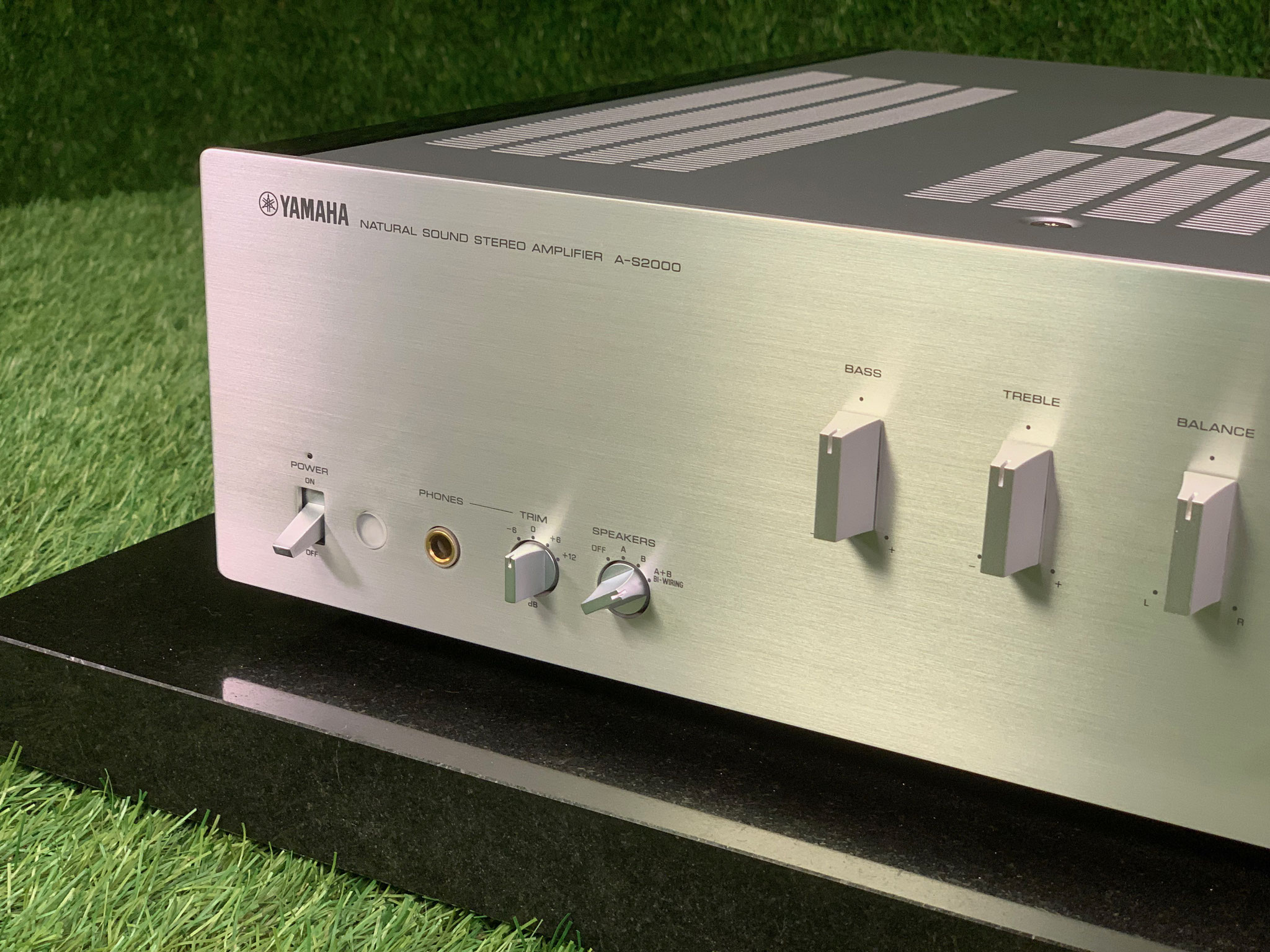

The A-S2000 achieves fully balanced signal transmission from input to output (balanced design refers to the use of two signal

conductors that have equal impedances to ground).

Balanced transmission is capable of canceling noise produced internally and externally, and so is considered to be an ideal

amplification method, eliminating the sound quality degradation caused by noise.

If it is only partially adopted, however, it will be largely ineffective and may even have negative effects.

The A-S2000 is the world’s first integrated amp to offer full-stage balanced transmission, combining high power output with good sound texture and outstanding S/N performance.

Its capabilities will be heard to best effect when paired with the CD-S2000 CD player, which employs the same principle.

Floating Balanced Power Amp

The Floating Balanced Power Amp configuration is completely different from the pure complementary circuit design that has been the mainstream of HiFi amps for nearly forty years.

It adopts an output element having identical polarity on the plus and minus sides of the output stage, with both sides having their own power supply and feedback, thereby achieving total symmetry of pullable operation at the output stage.

The power supply unit has four floating elements (no restrictive grounding connections), two for each channel, so plus and minus and completely symmetrical.

Komplett symmetrische Signalverarbeitung

Der A-S2000 bietet eine vollständige symmetrische Signalübertragung. Darüber hinaus verfügen die Steuerschaltungen (Lautstärke, Ton, etc.) des Vorverstärkers über einen völlig symmetrischen Aufbau, wodurch eine ideale Balance in allen Phasen realisiert wird.

Der Aufbau der Verstärkerschaltung verfügt über unabhängige Vorverstärker- und Endstufenblöcke, sowie über eine perfekte Links-Rechts-Symmetrie.

Die Trennung von Vorverstärker, welcher die niedrigen Signale, und der Endstufe, welche die verstärkten Signale verarbeitet, reduziert Störungen im Klang, die durch gegenseitige Störungen entstehen können.

Parallel Volume and Tone Controls

To ensure ideal fully balanced operation, the volume and tone control systems must be extremely precise.

Conventional analogue volume systems suffer from gang error, and cannot achieve sufficient accuracy, even when using high precision parts.

Therefore, for the A-S2000 we developed a unique method: canceling out slight precision differences by the parallel operation of three high sound quality digital volume ICs for each channel and operating the system with an analogue encoder.

When using the bass and treble tone controls, each of the three volume elements is applied in succession, and during tone default, three equivalent volume elements for each channel are used for volume adjustment.

This ensures the best sound quality during both tone control and default operation.

Power Supply

The A-S2000 has four large capacity power supplies for the power amp that are completely isolated from ground.

Shunt type local regulators that prevent degradation of sound quality by amperage fluctuation ensure a clean and stable power supply for the preamp.

Naturally, parts that directly affect sound quality such as the large power supply transformer and carbon sheath block capacitors

were chosen only after careful evaluation.

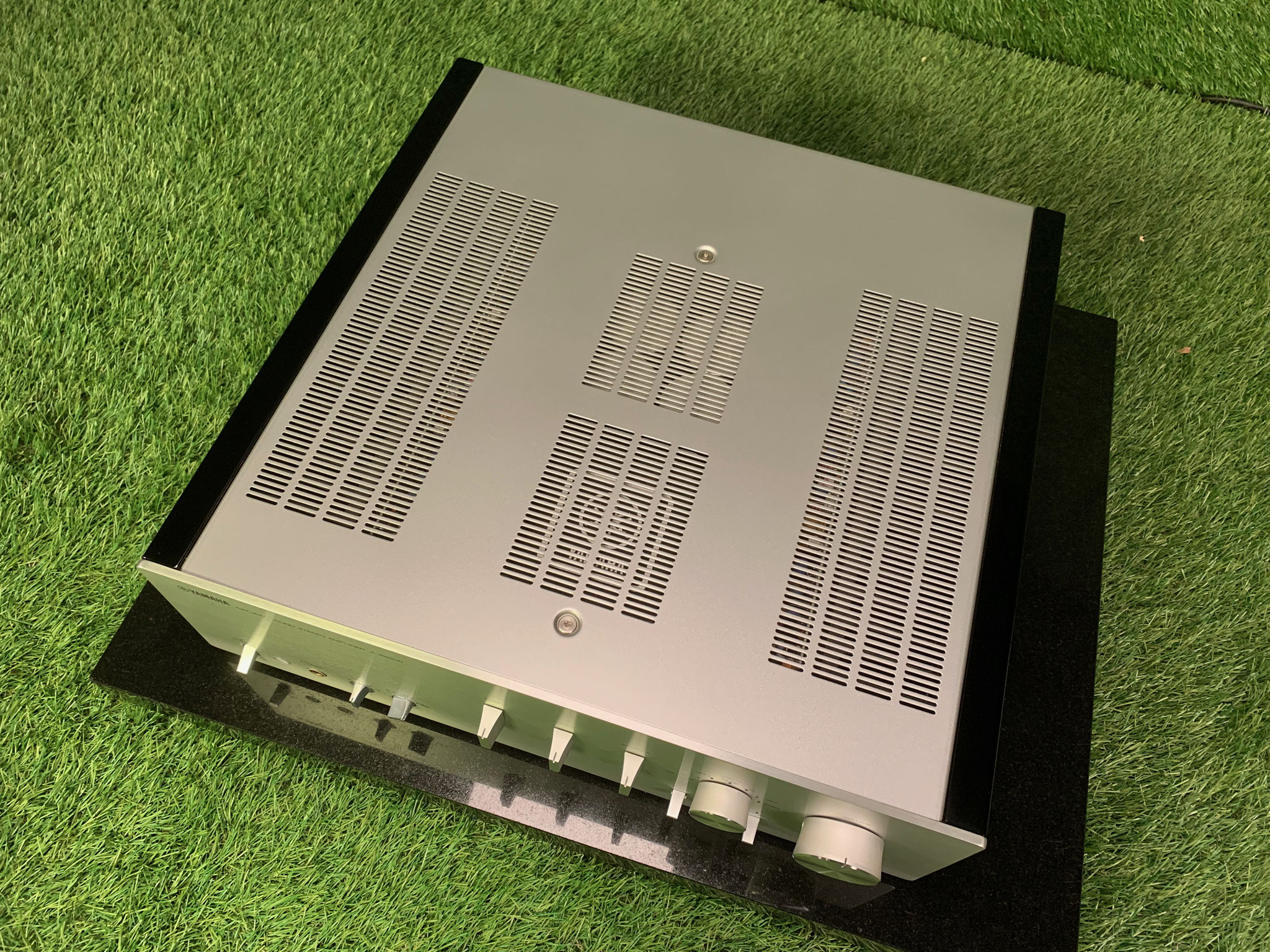

Symmetrical Construction

The A-S2000 has a completely symmetrical construction intended to achieve the ultimate in integrated amp left-right separation, equal to that of separate amps.

A central reinforcing bar ensures that the chassis is rigid and stable.

Specially Designed Feet

The extra-heavy feet provide a choice of two bases.

You can leave the round, flat neodymium magnets in place or remove them to rest the amplifier on four single points.

The feet are also height adjustable.

They ensure stability on any surface, with superior vibration damping.

Headphone Amp for Low Impedance Drive

The fully discrete, high performance headphone amp is compatible with low impedance drive.

Its pure and powerful sound quality is best appreciated with high quality headphones.

Discrete Phono Amp

An extremely low-noise phono amp plus a dedicated MC head amp ensure excellent musical clarity and imaging with both MC and MM phono cartridges.

Receiver / Integrated AmplifierMax. Ausgangsleistung (4 ohms, 1kHz, 0.7% THD, for Europe)Hohe dynamische Ausgangsleistung / Kanal ( 8/6/4/2 ohm )DämpfungsfaktorFrequenzgangPhono EntzerrungKlirranteil( CD zu Sp Out, 20 Hz-20 kHz )Signal Rauschabstand ( CD )Eingangsempfindlichkeit (CD)Abmessungen ( B x H x T )Gewicht

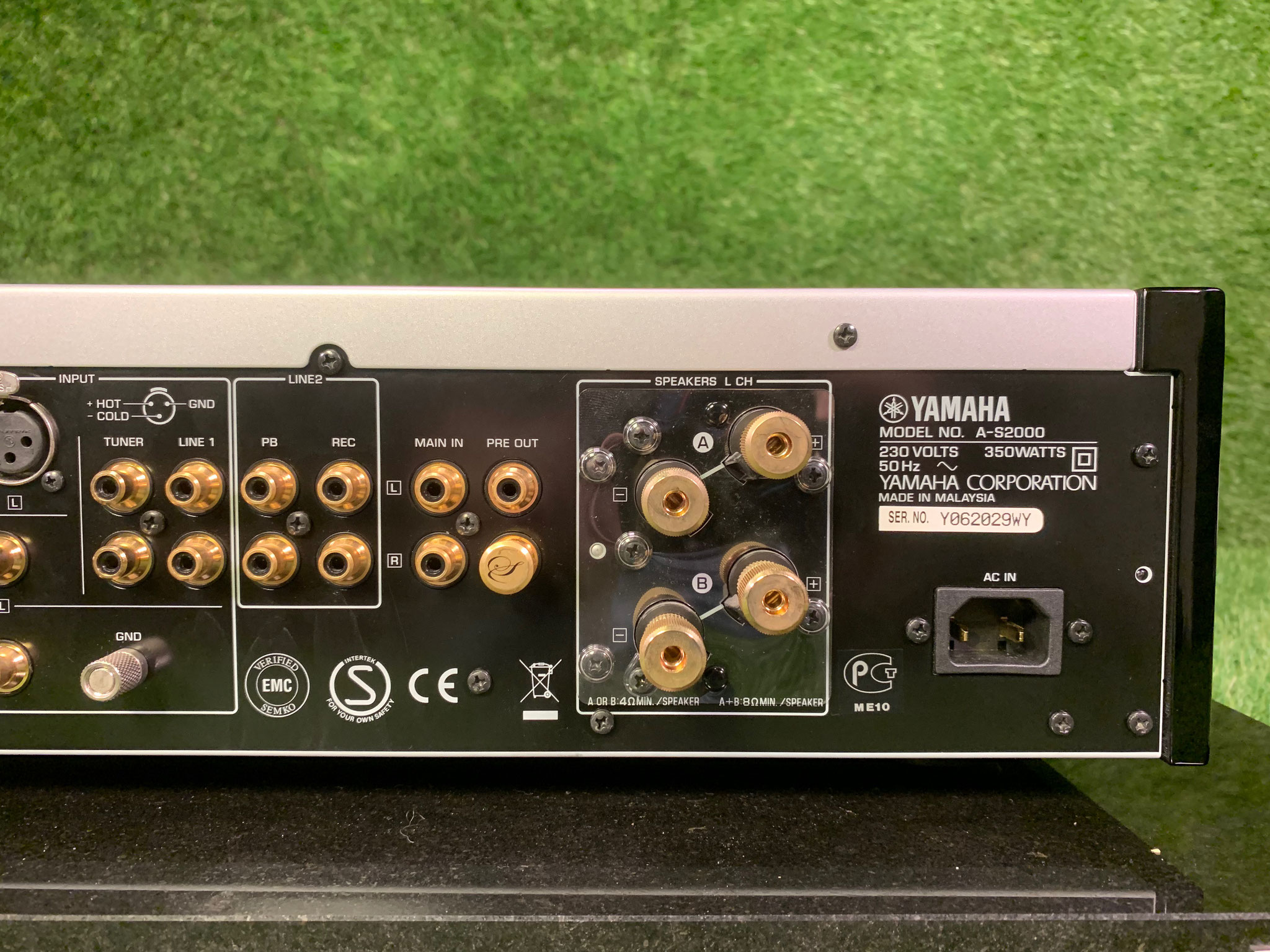

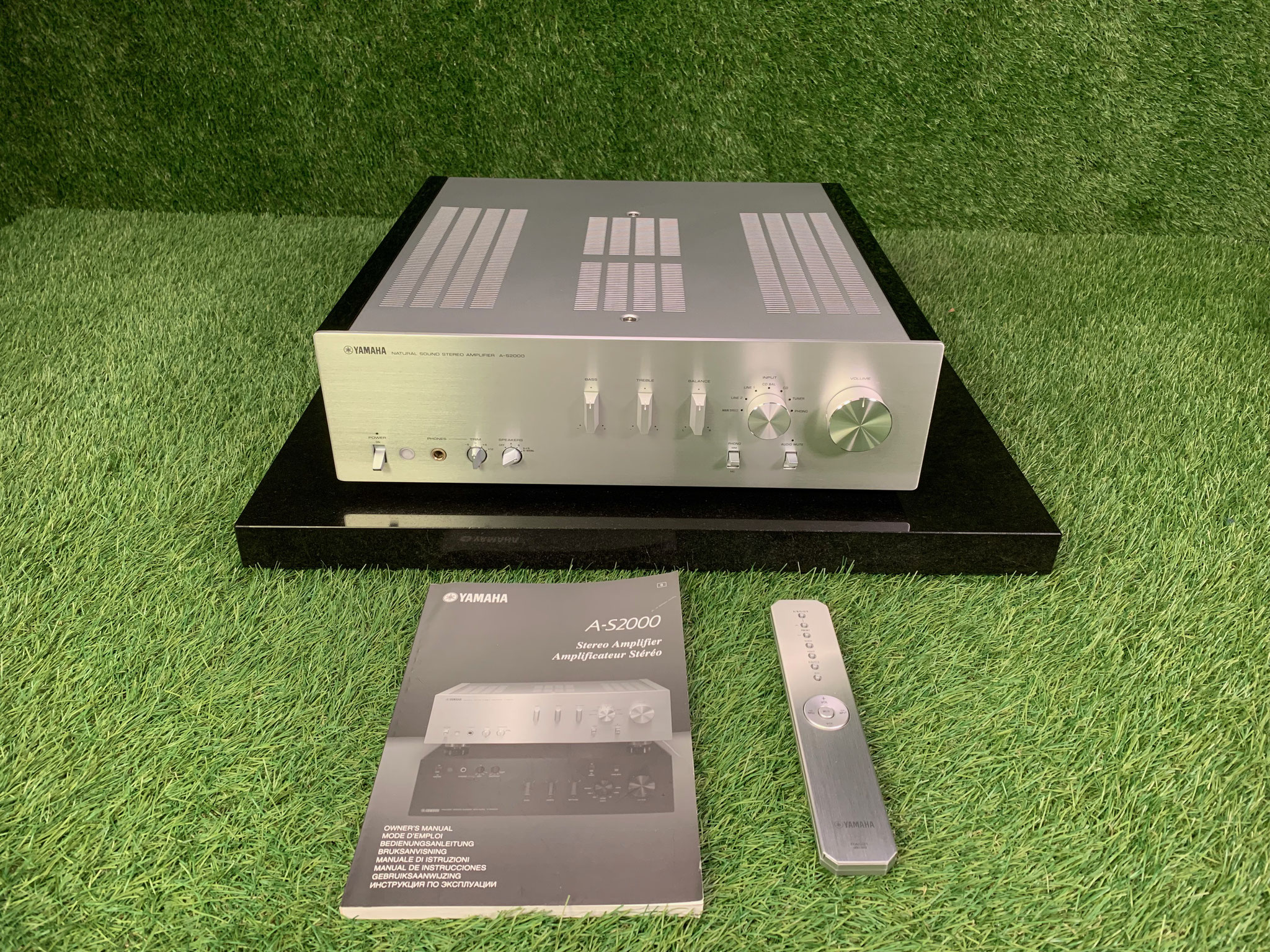

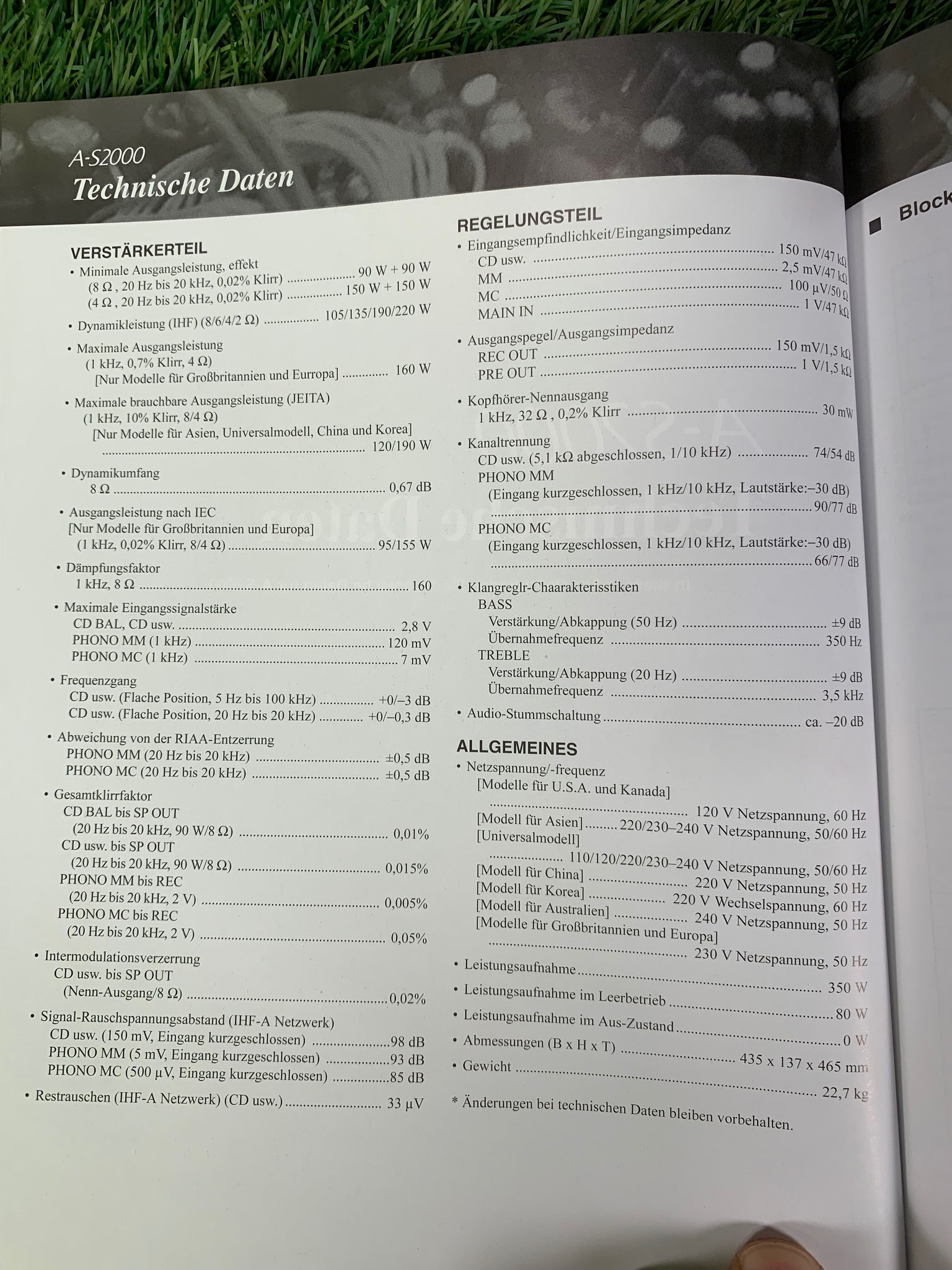

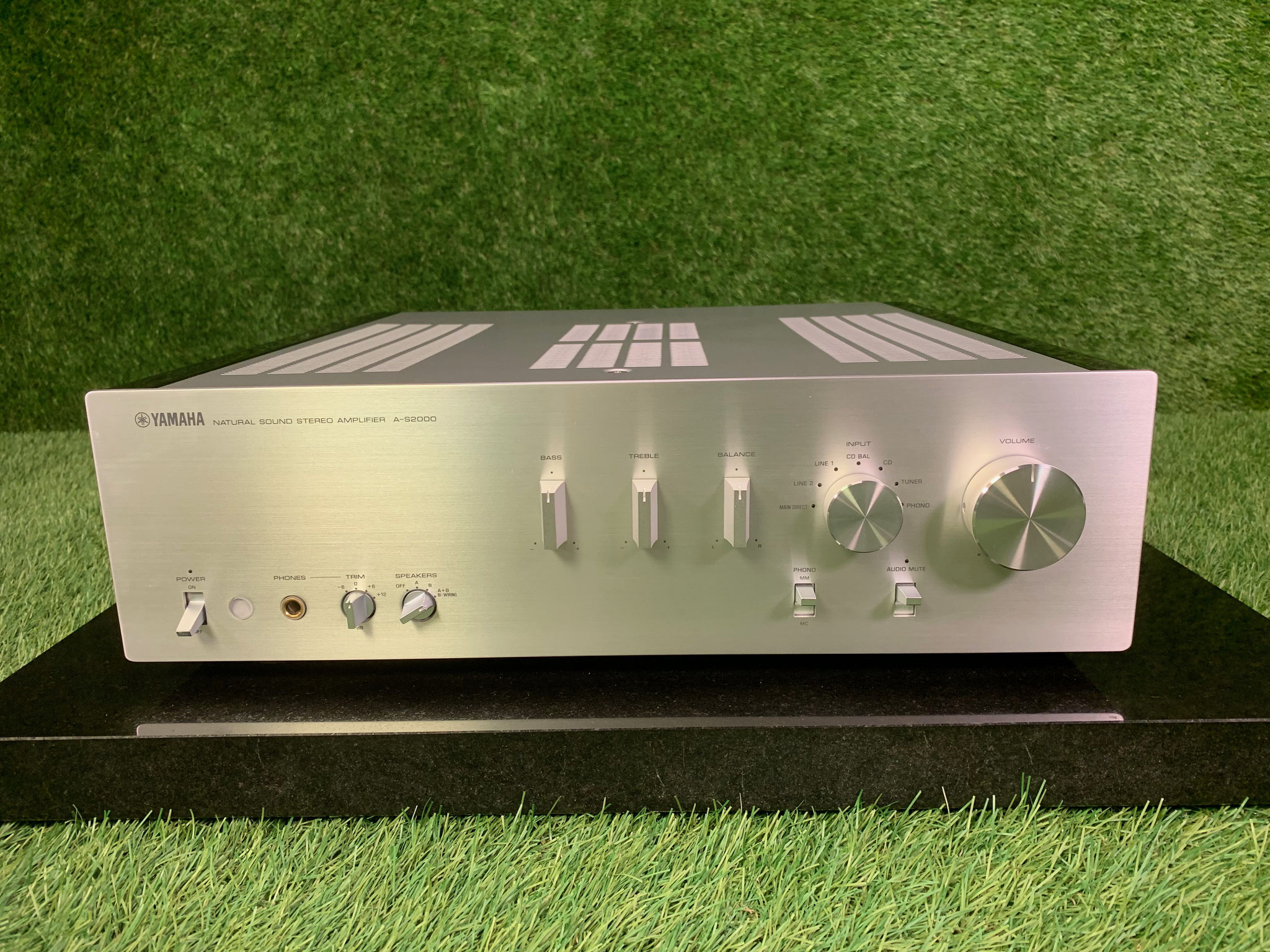

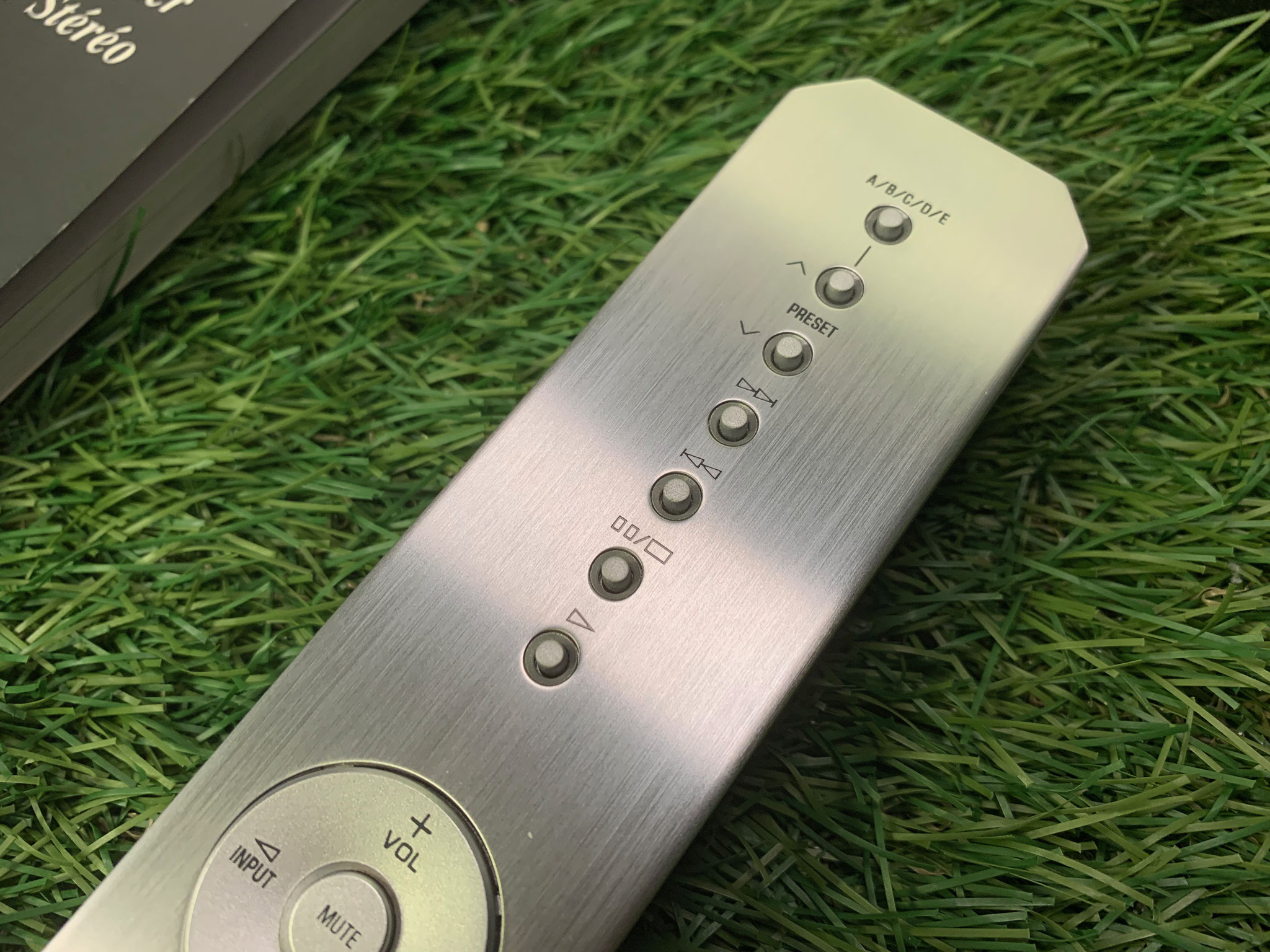

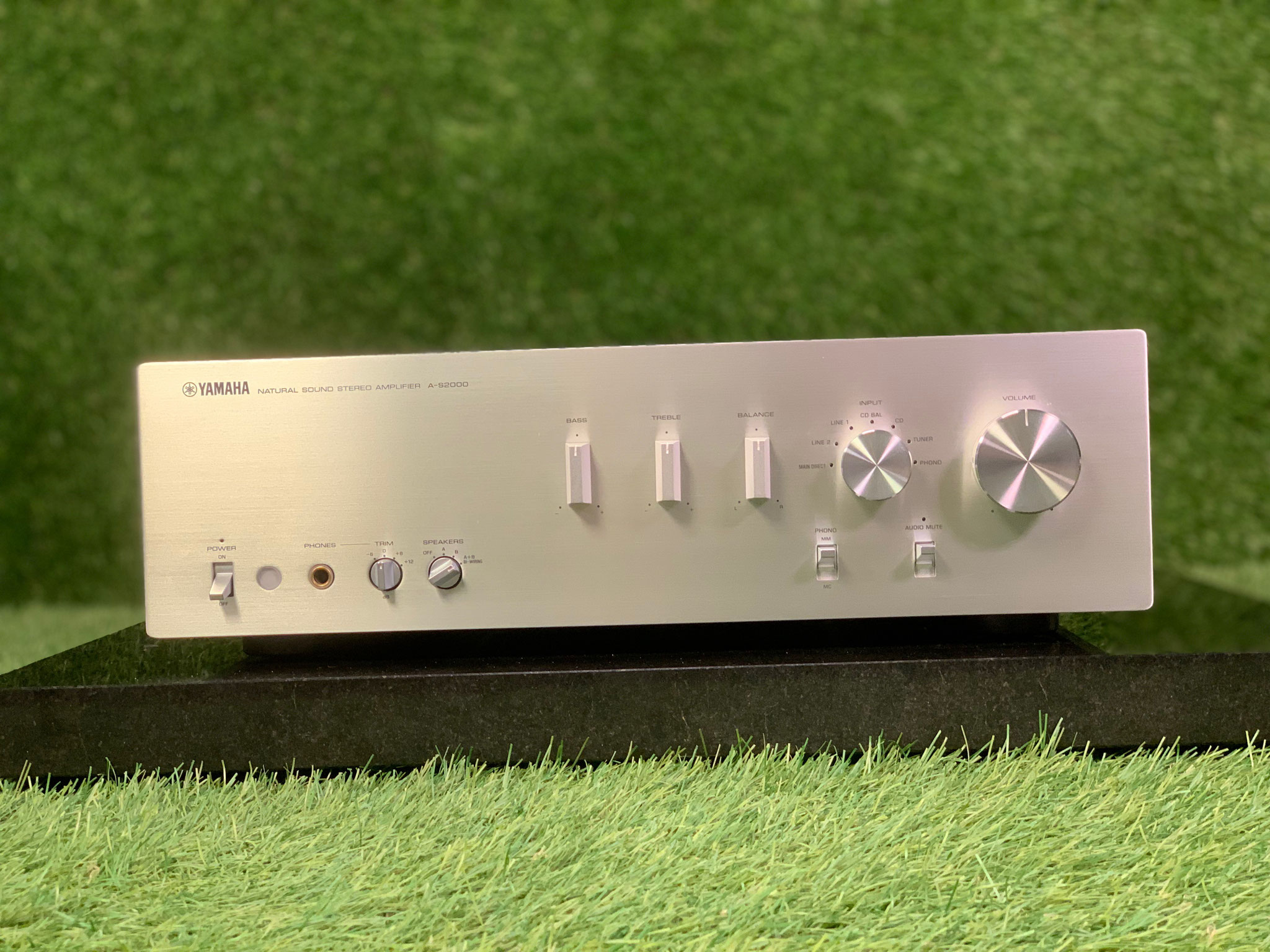

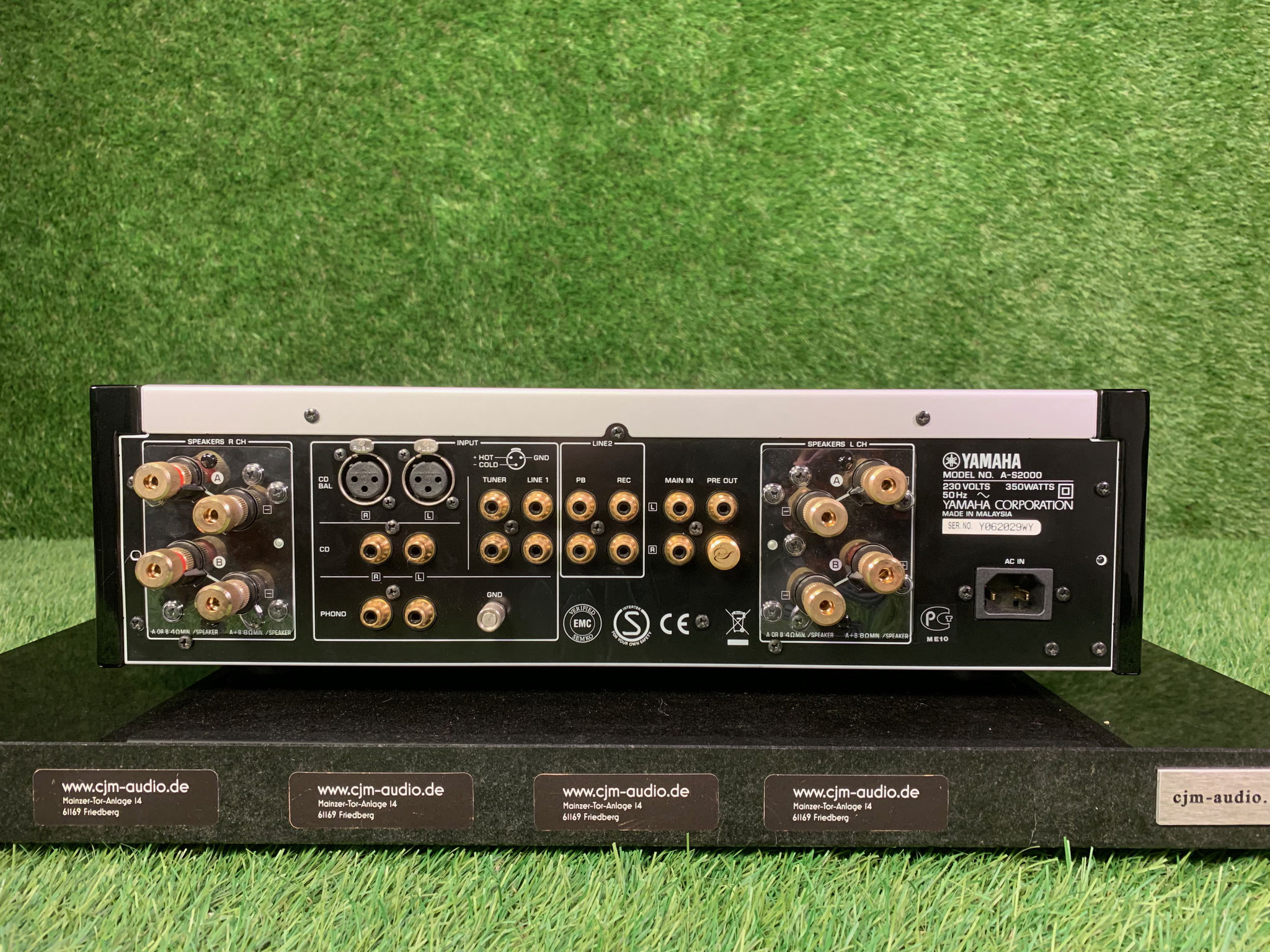

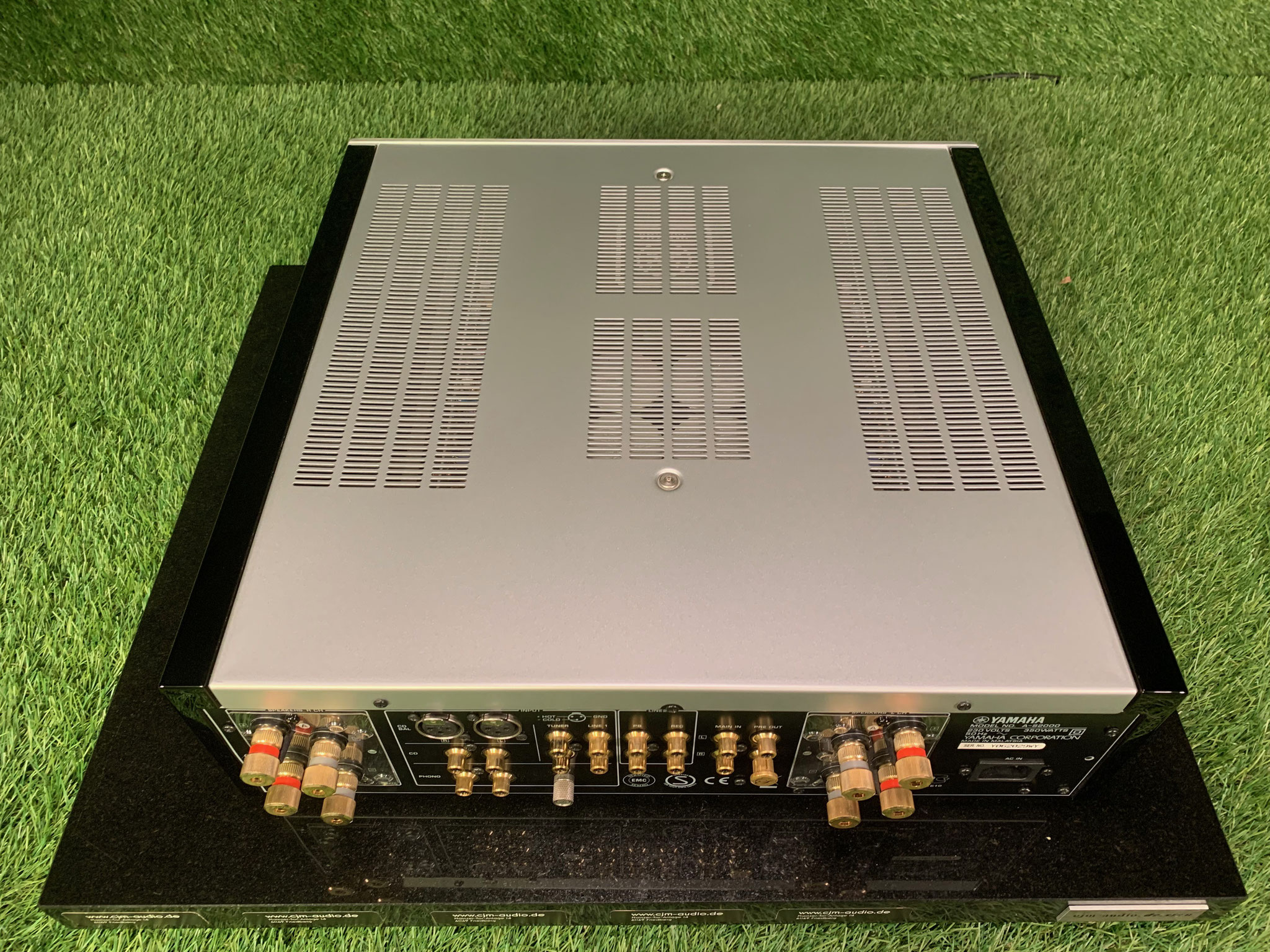

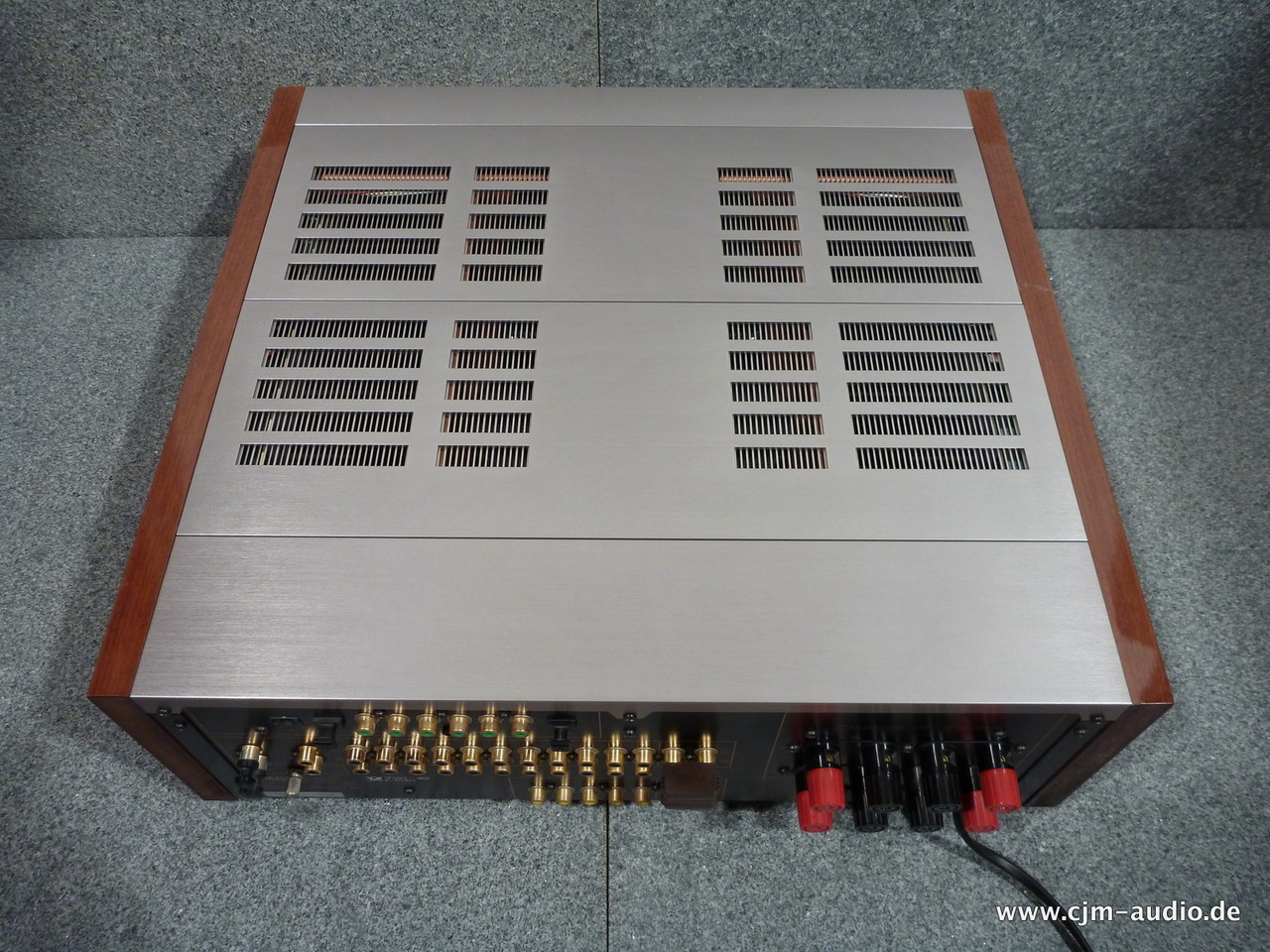

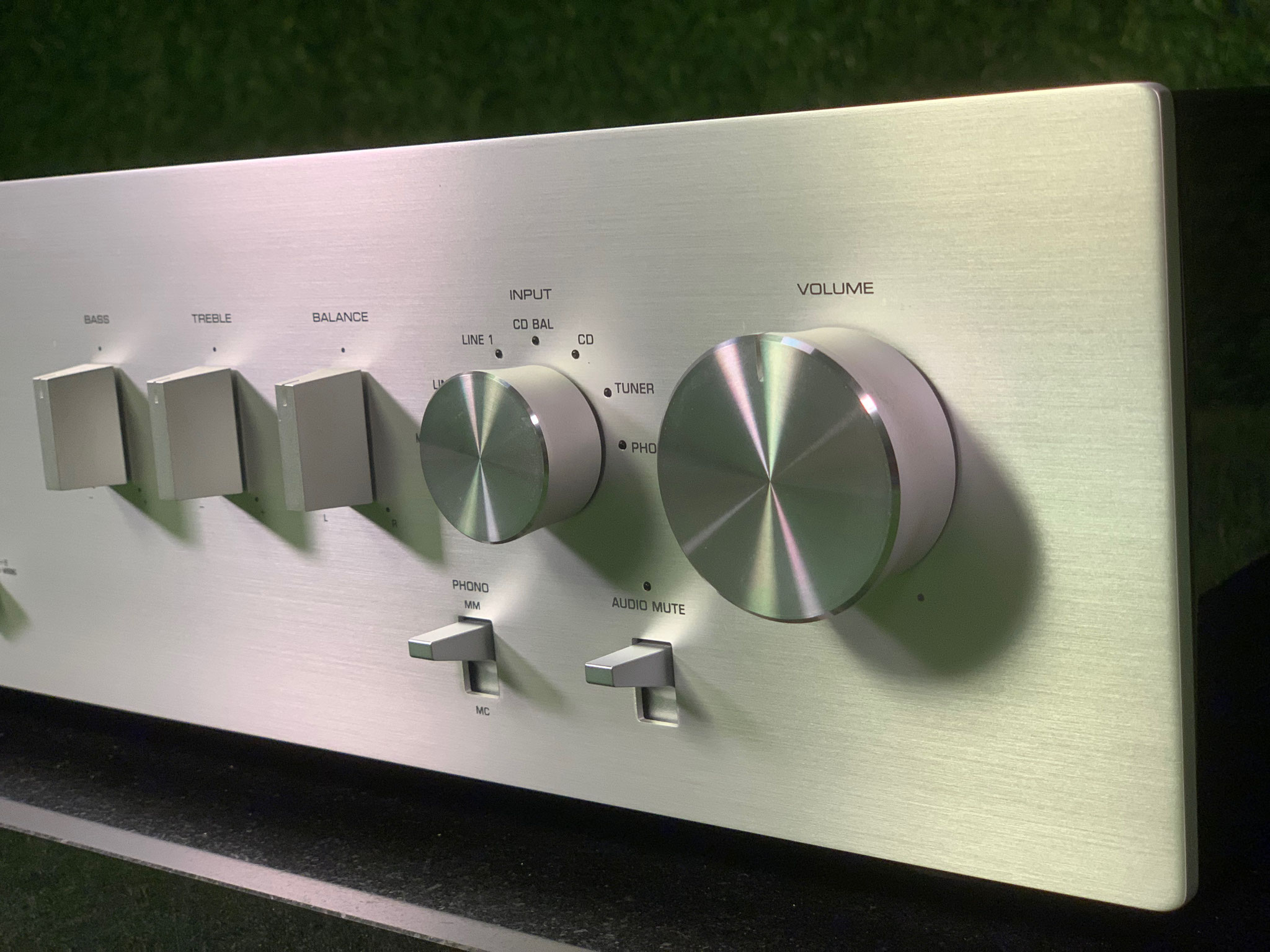

A-S2000

Receiver / Integrated Amplifier

Max. Ausgangsleistung (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W

Hohe dynamische Ausgangsleistung / Kanal ( 8/6/4/2 ohm ) 105/135/190/220 W

Dämpfungsfaktor 160

Frequenzgang 5 Hz-100 kHz (+0 dB/-3 dB)

Phono Entzerrung 20 Hz-20 kHz +/-0.5 dB

Klirranteil( CD zu Sp Out, 20 Hz-20 kHz ) 0.015%

Signal Rauschabstand ( CD ) 98 dB (S: 150 mV)

Eingangsempfindlichkeit (CD) 150mV/47k ohms

Abmessungen ( B x H x T ) 435 x 137 x 465 mm; 17-1/8” x 5-3/8” x 18-5/16”

Gewicht 22.7 kg; 50 lbs.

Technische Daten

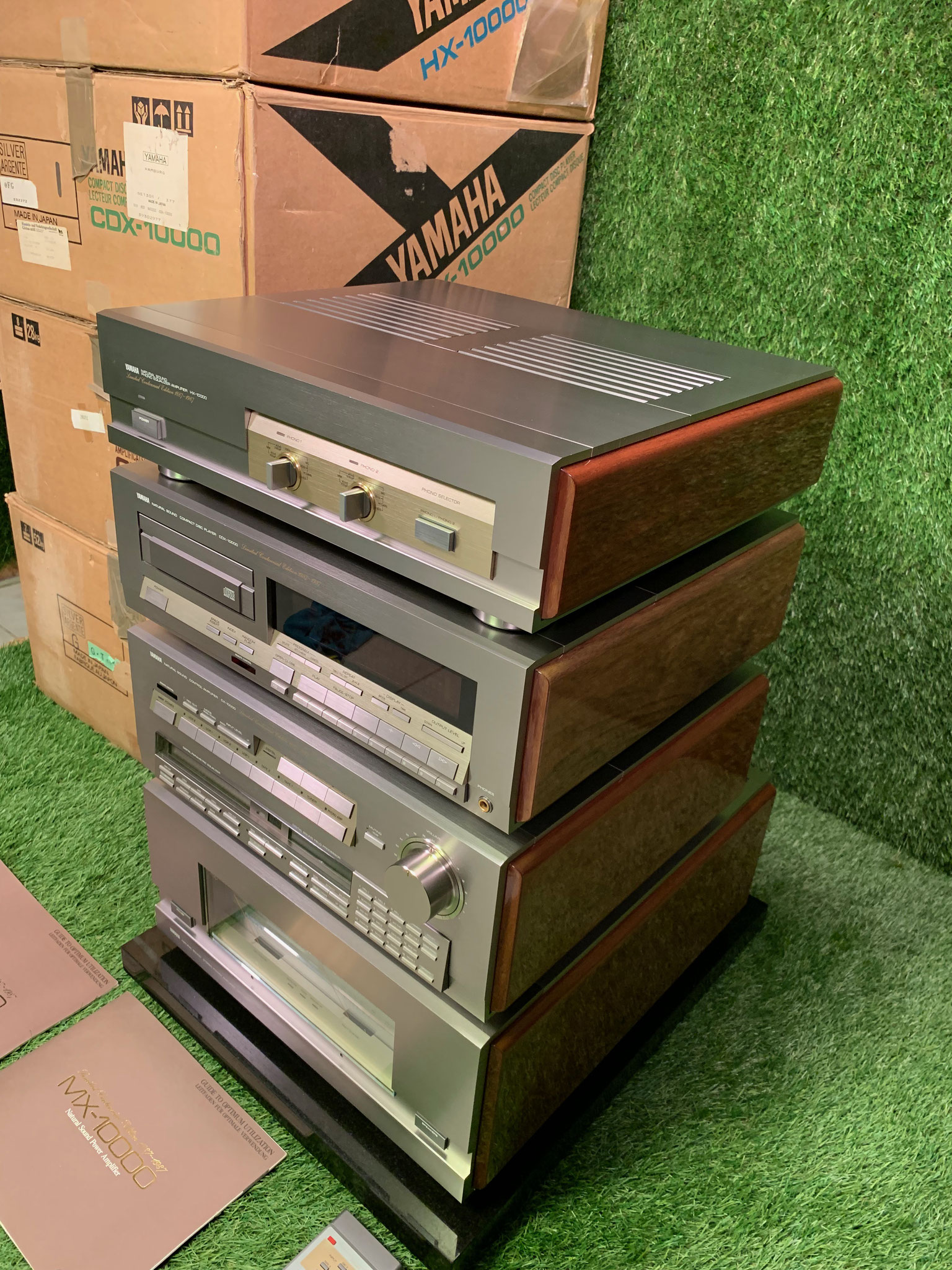

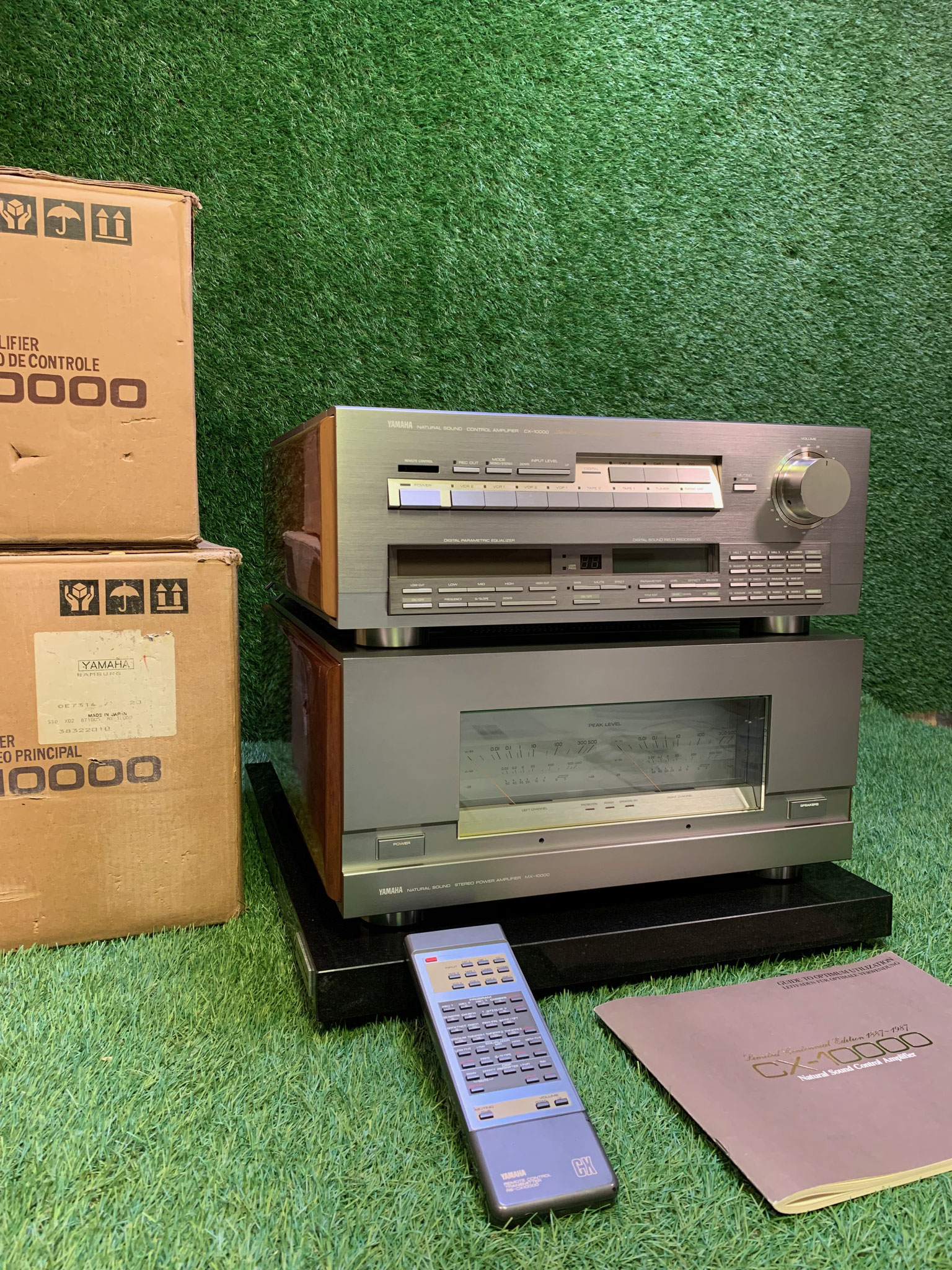

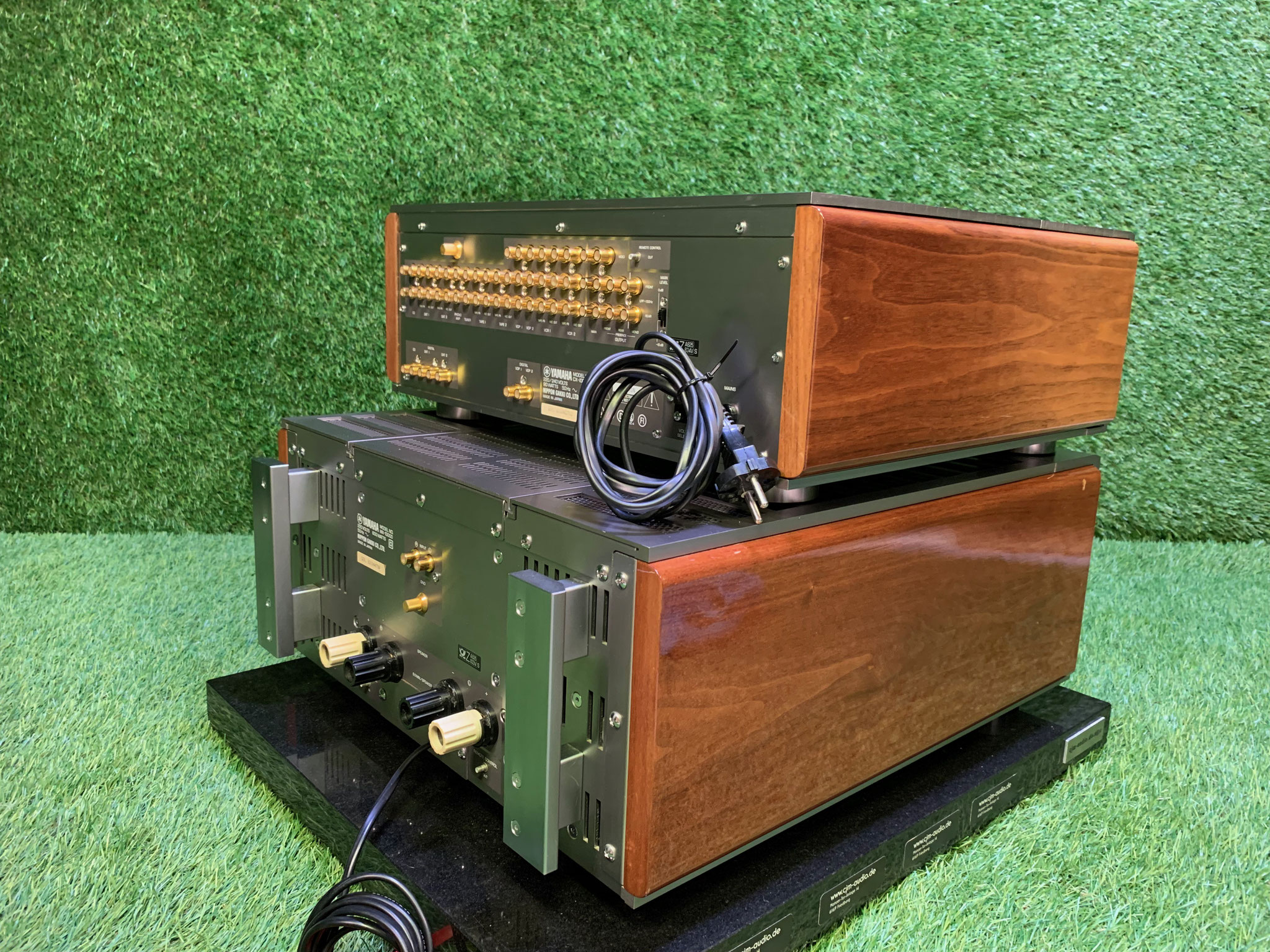

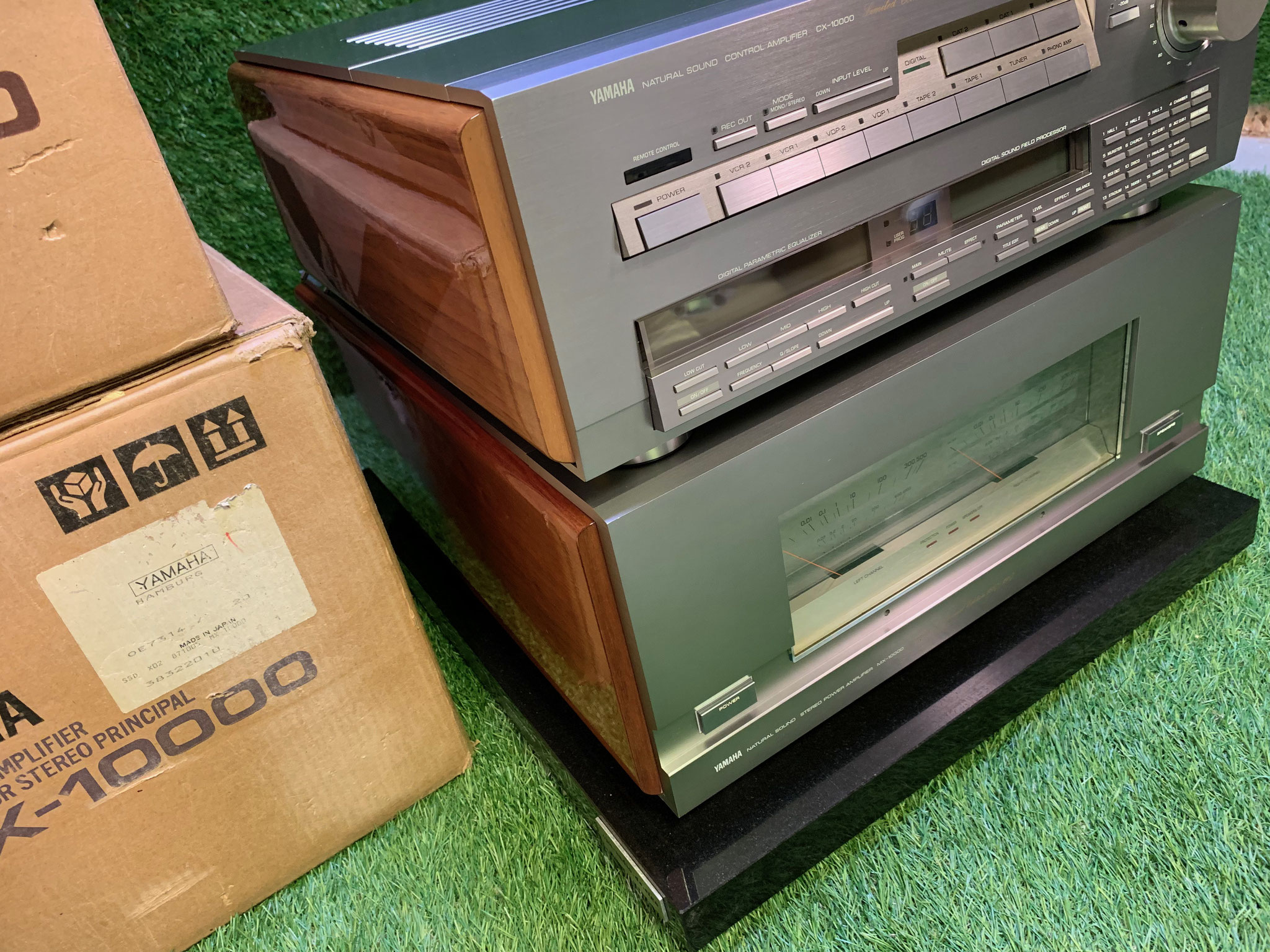

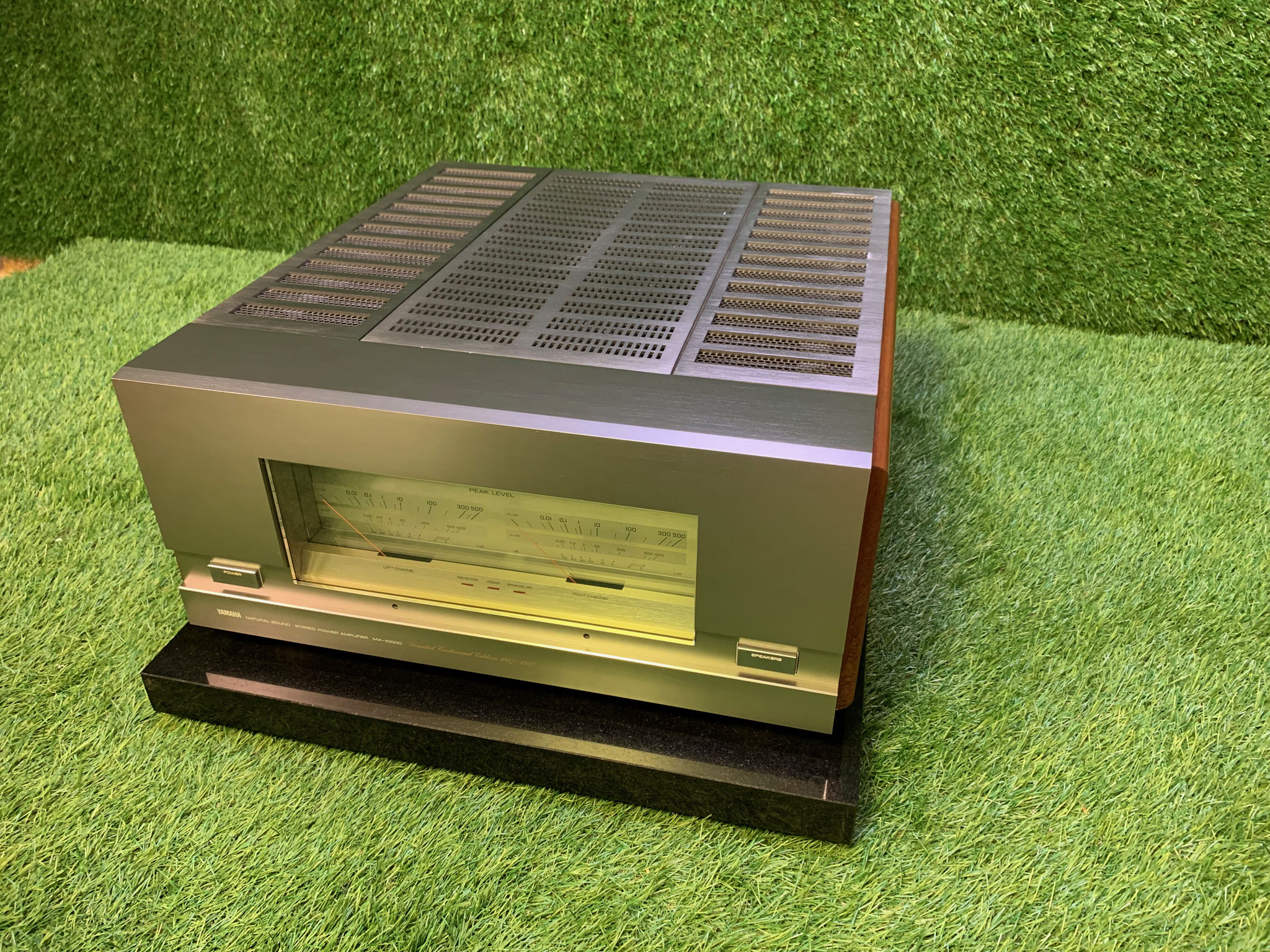

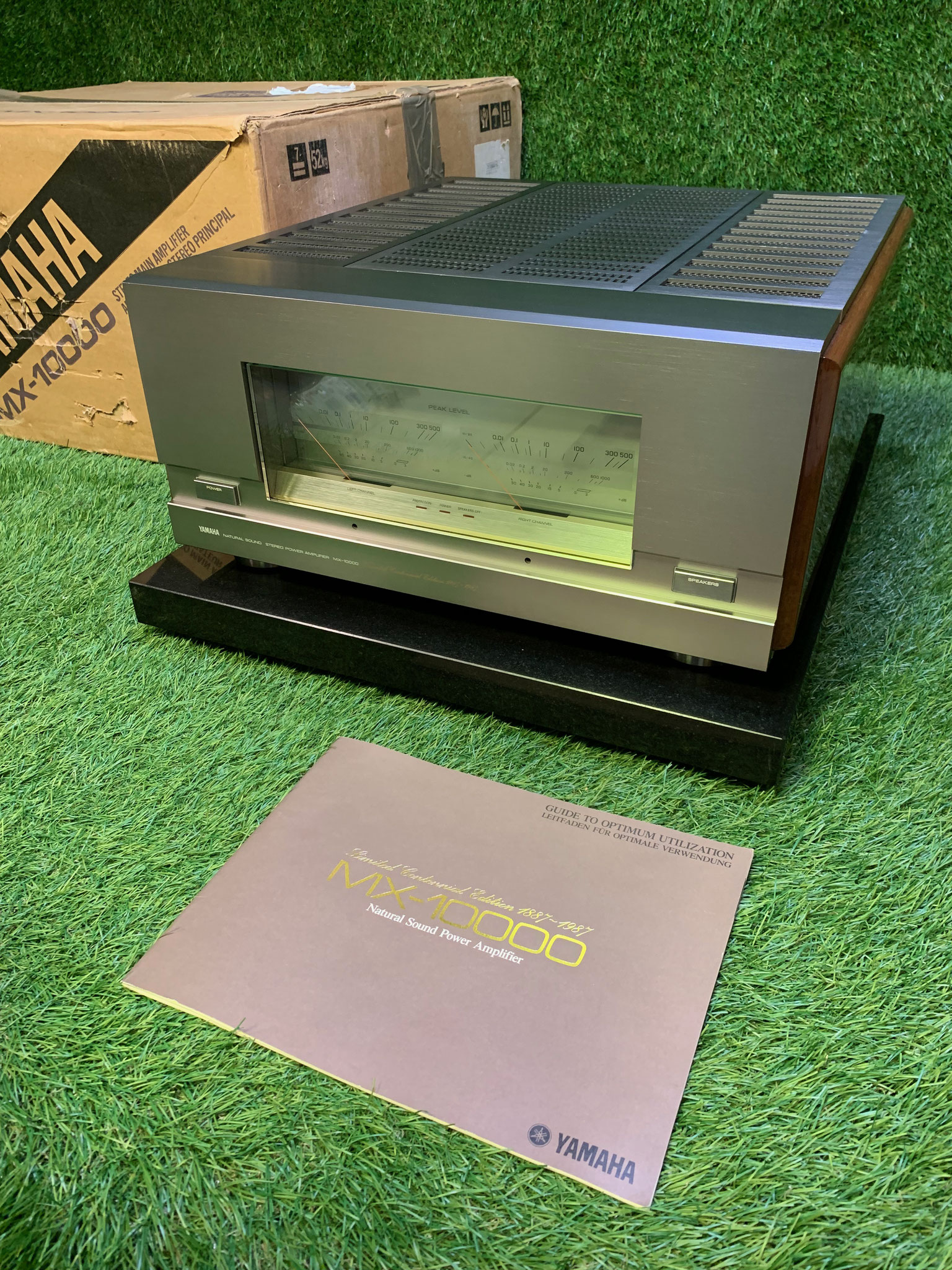

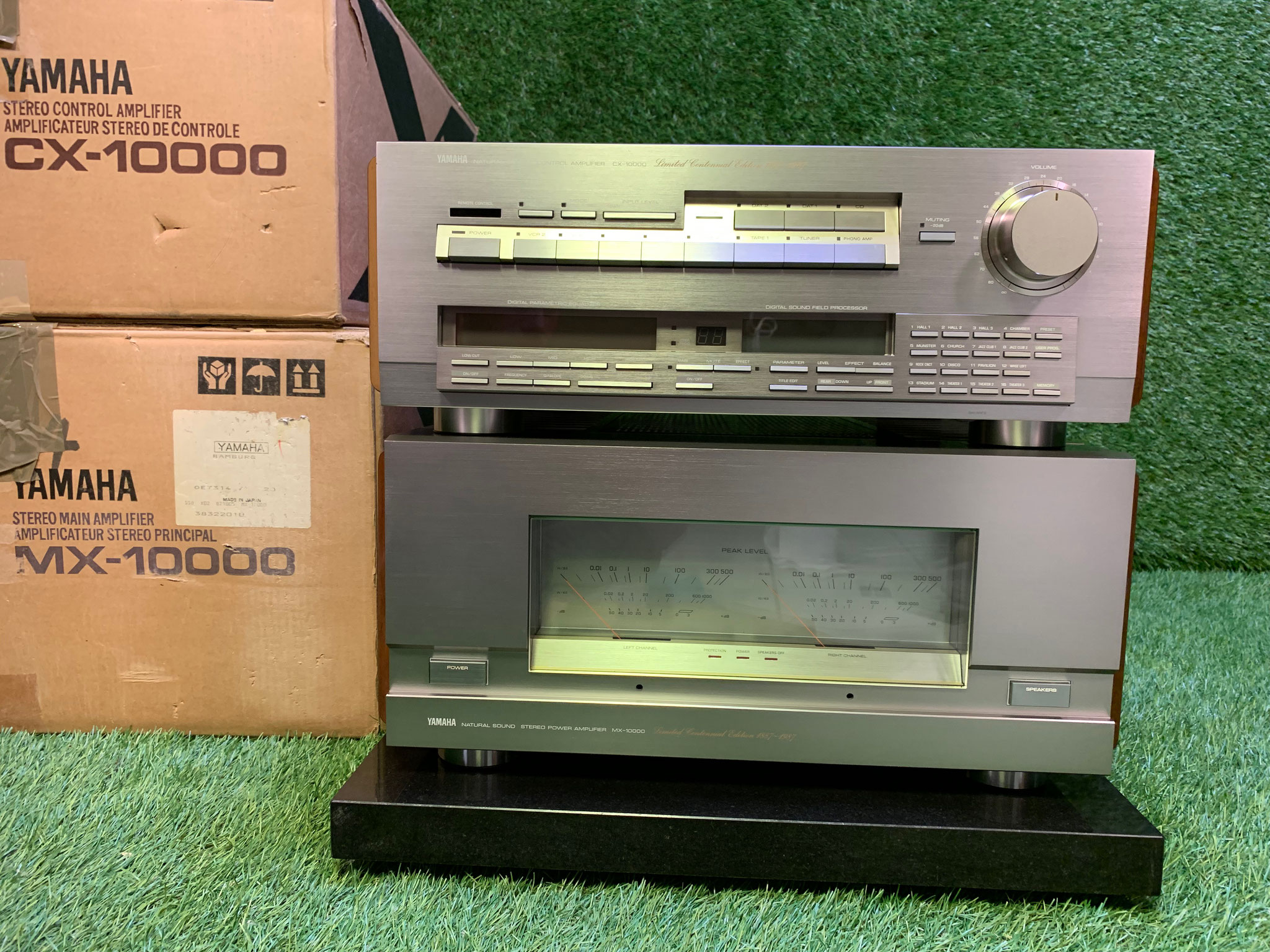

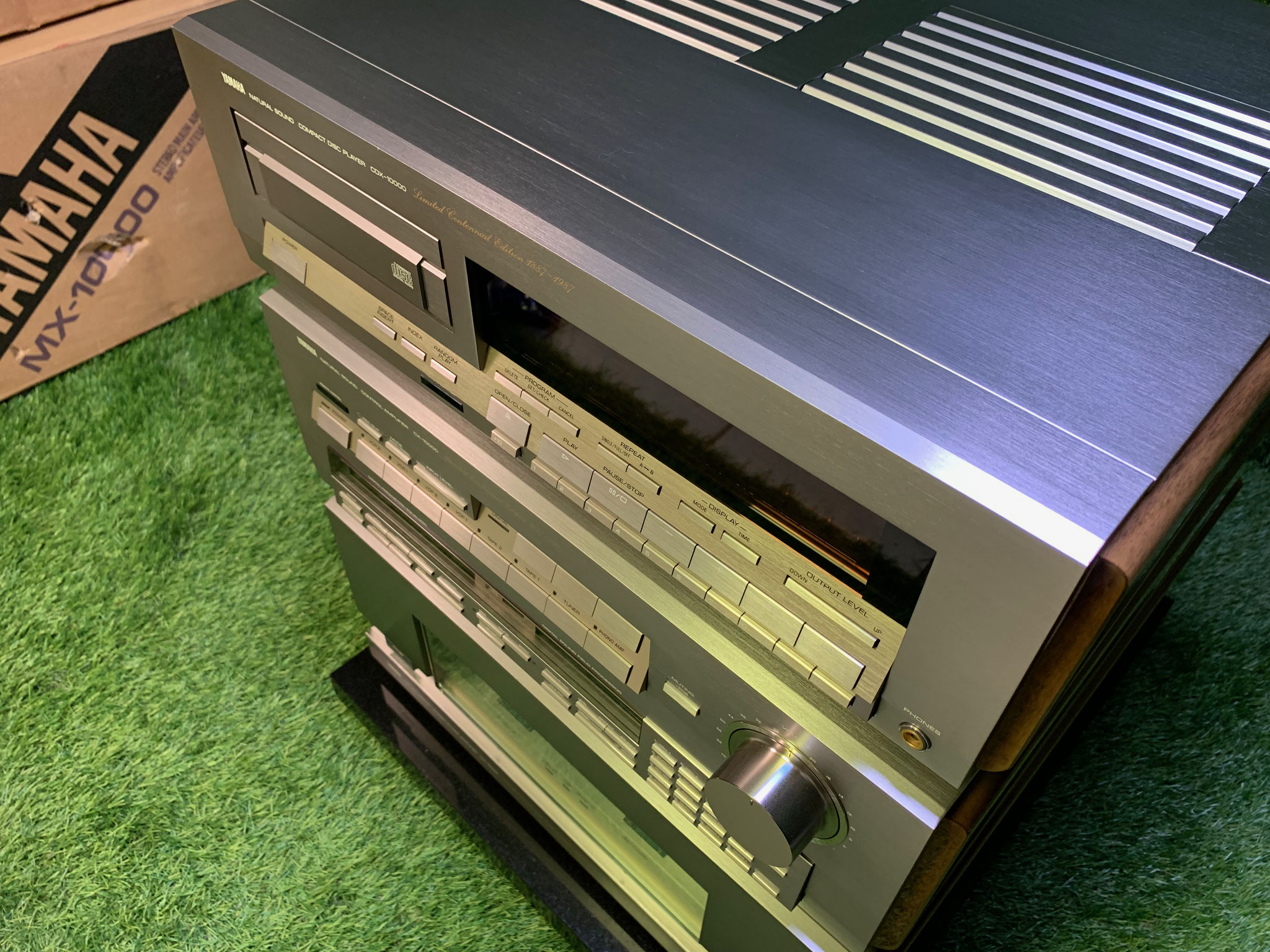

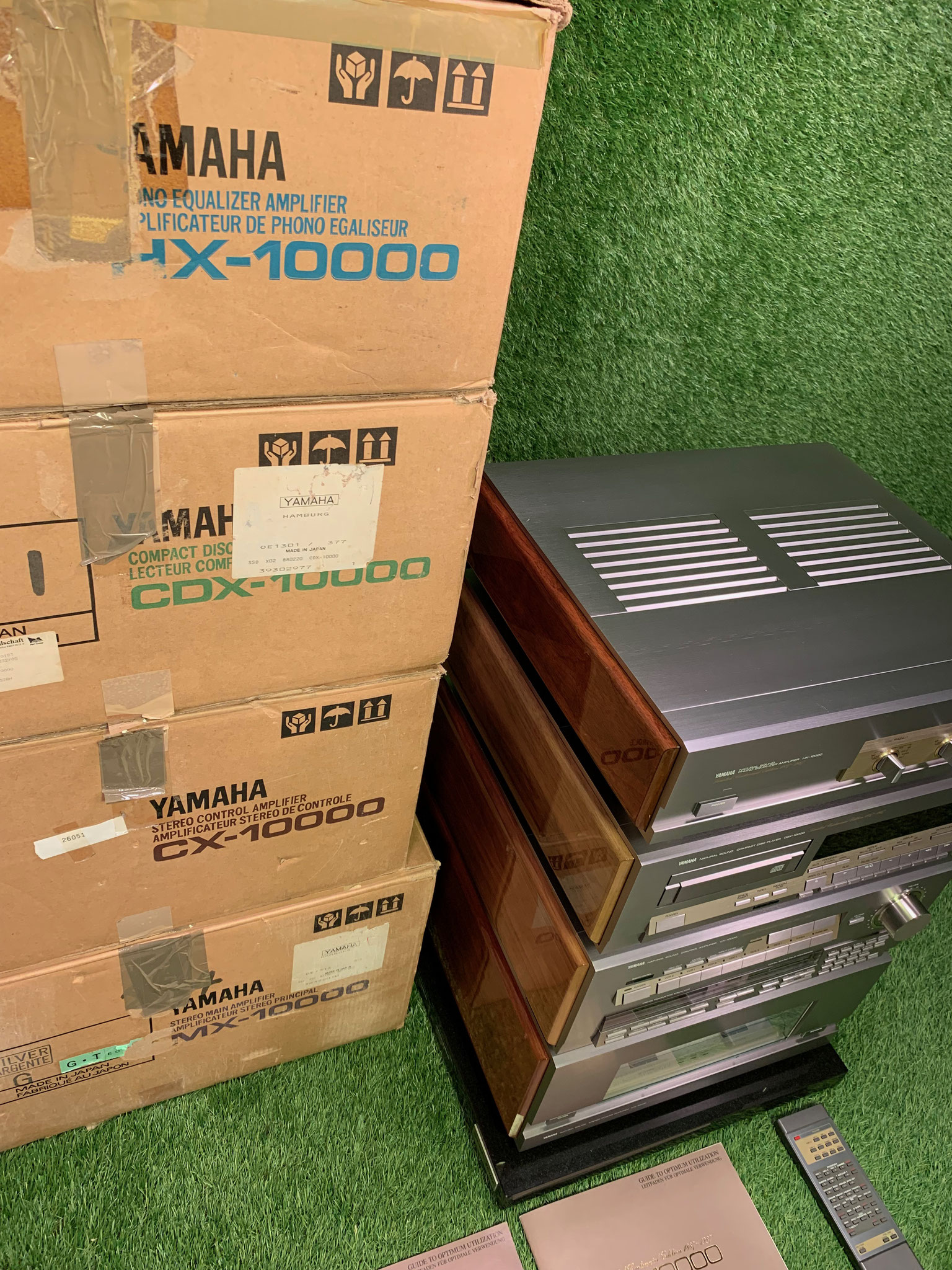

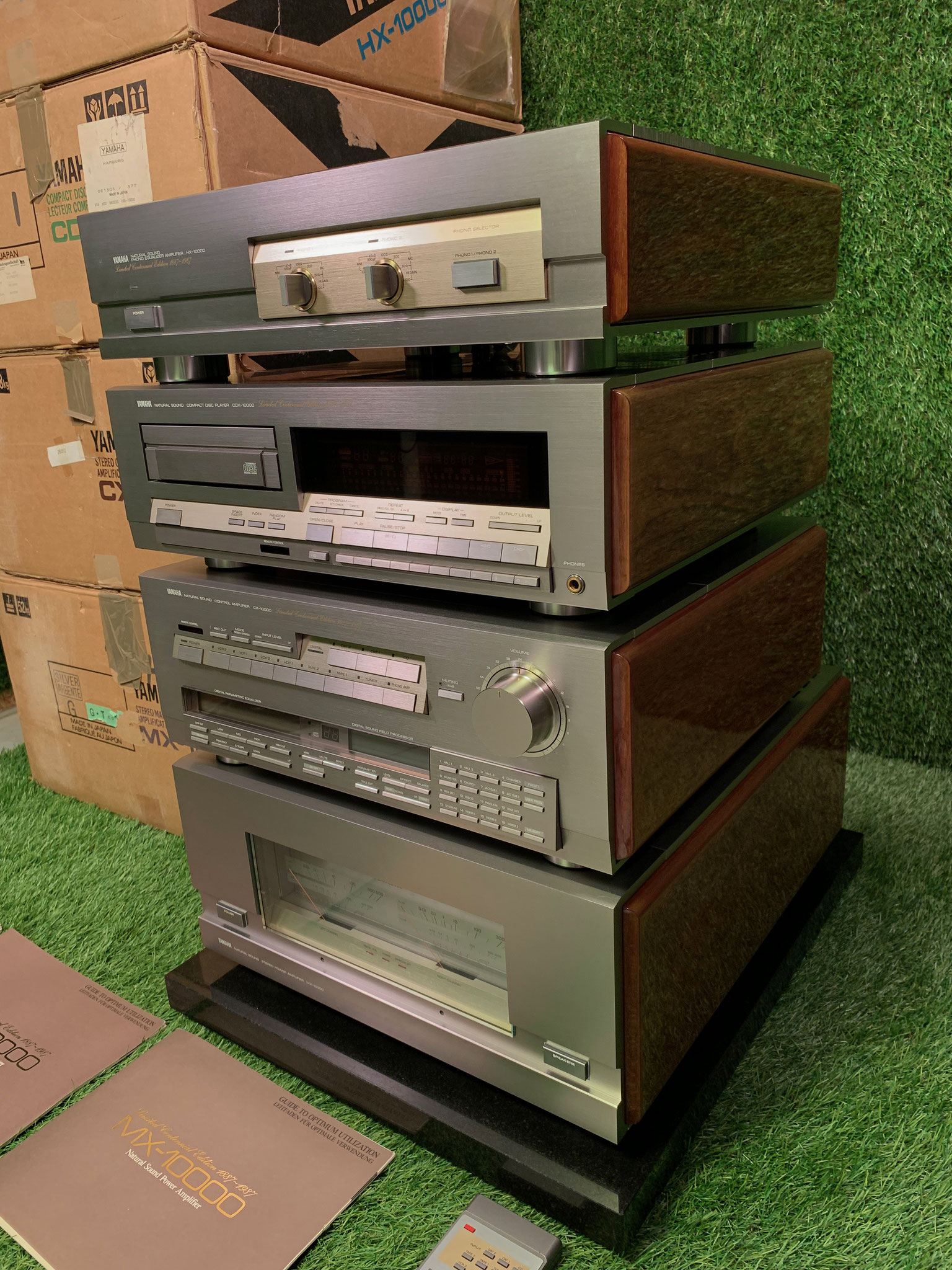

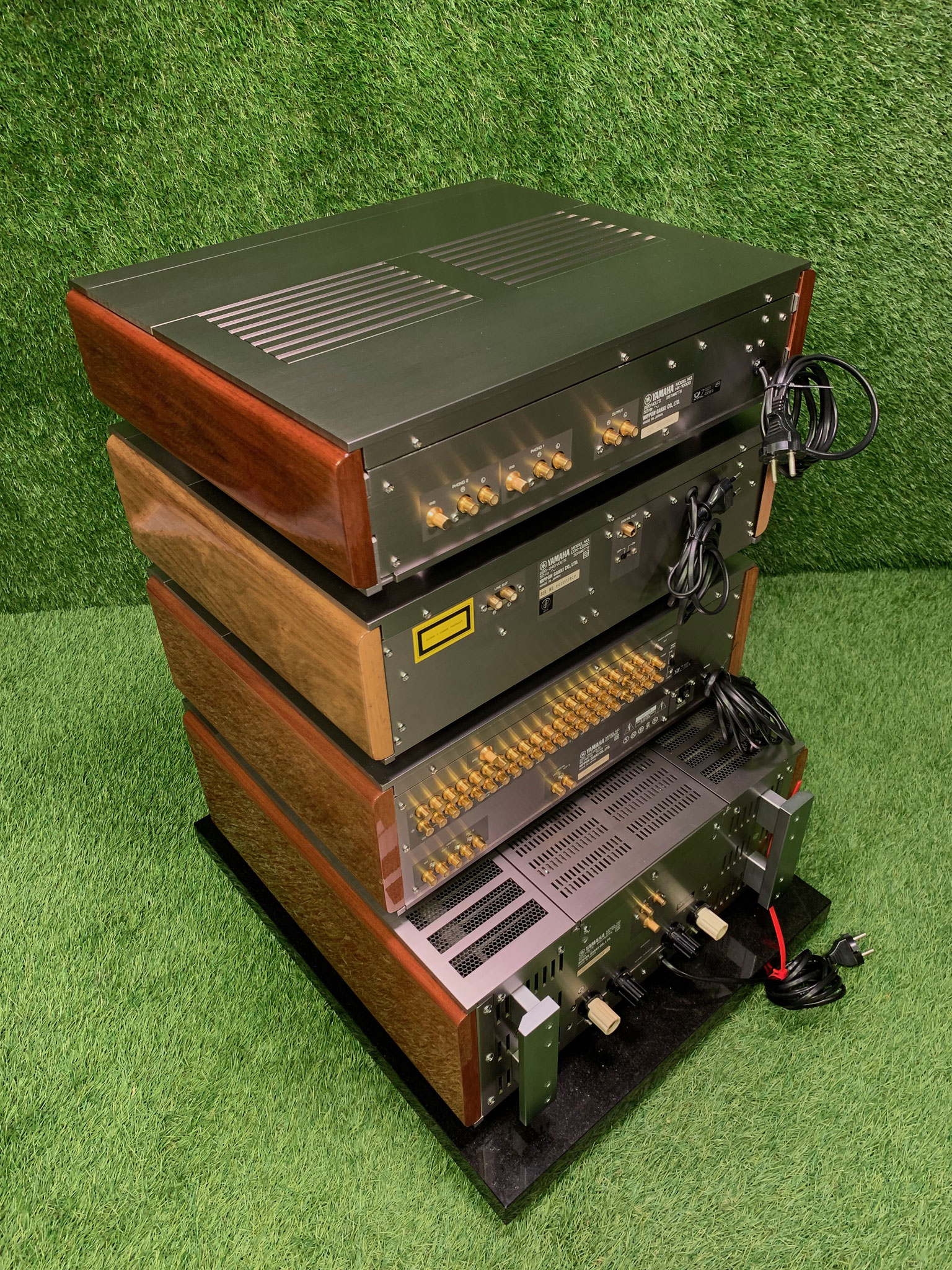

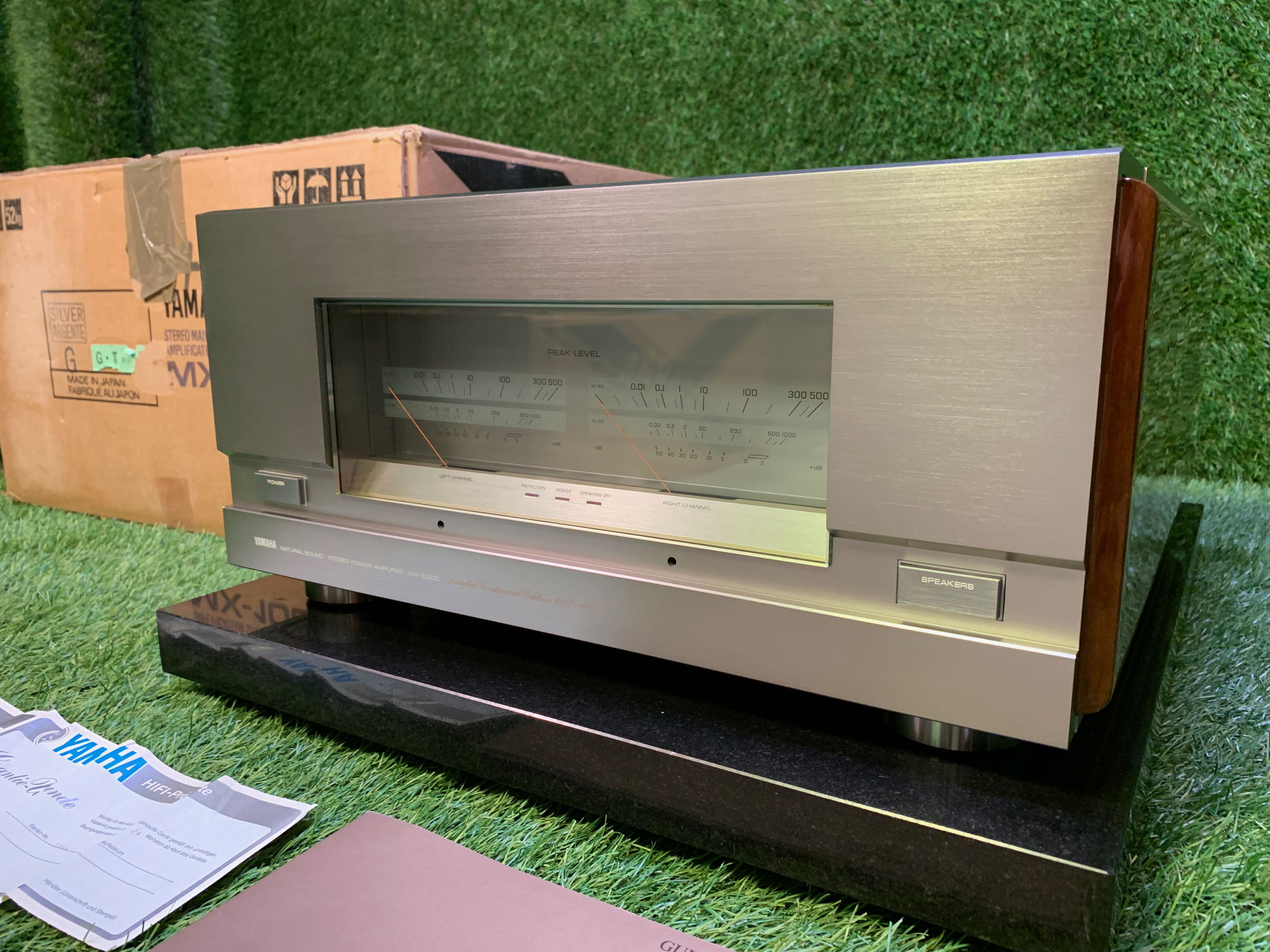

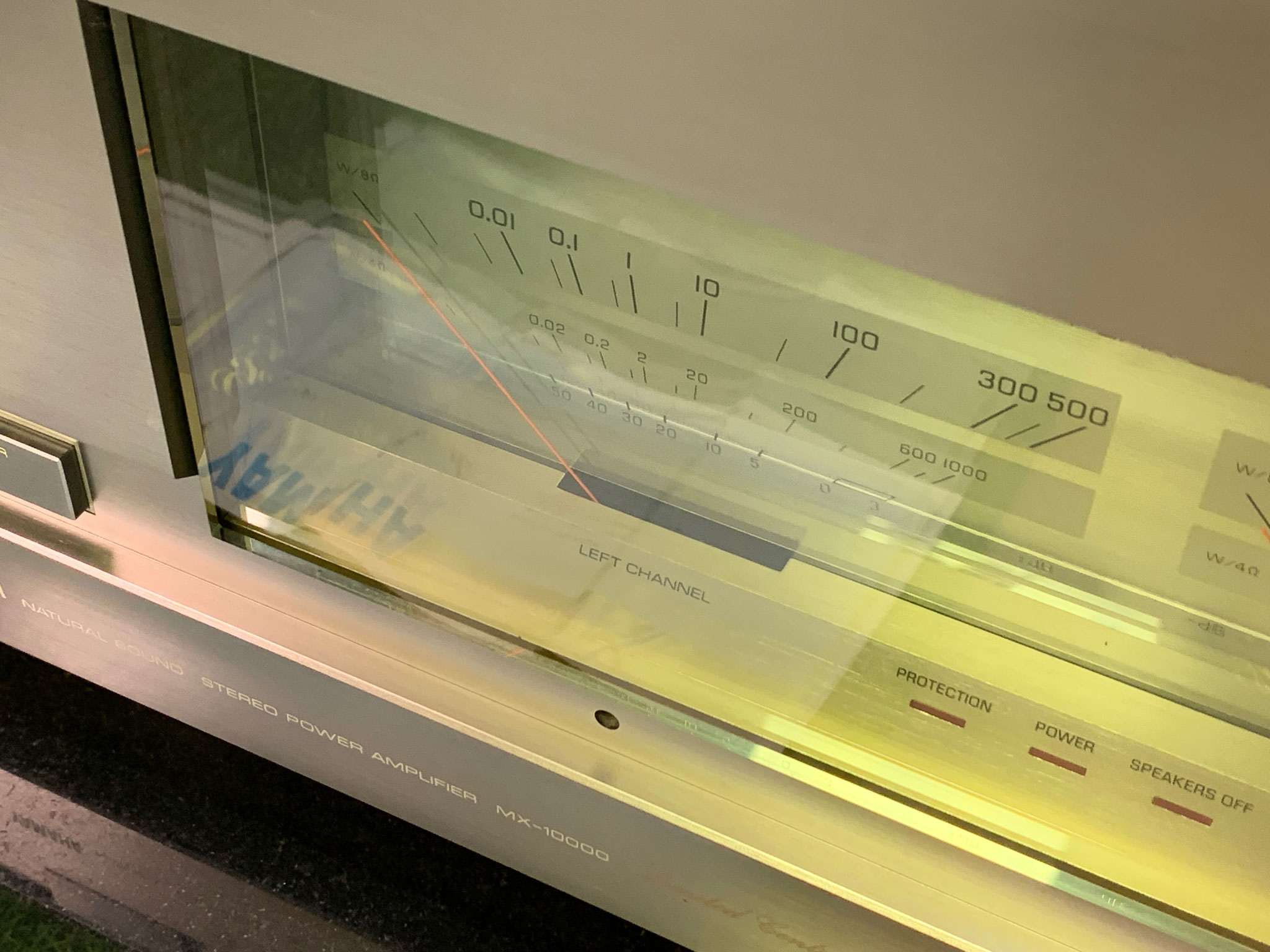

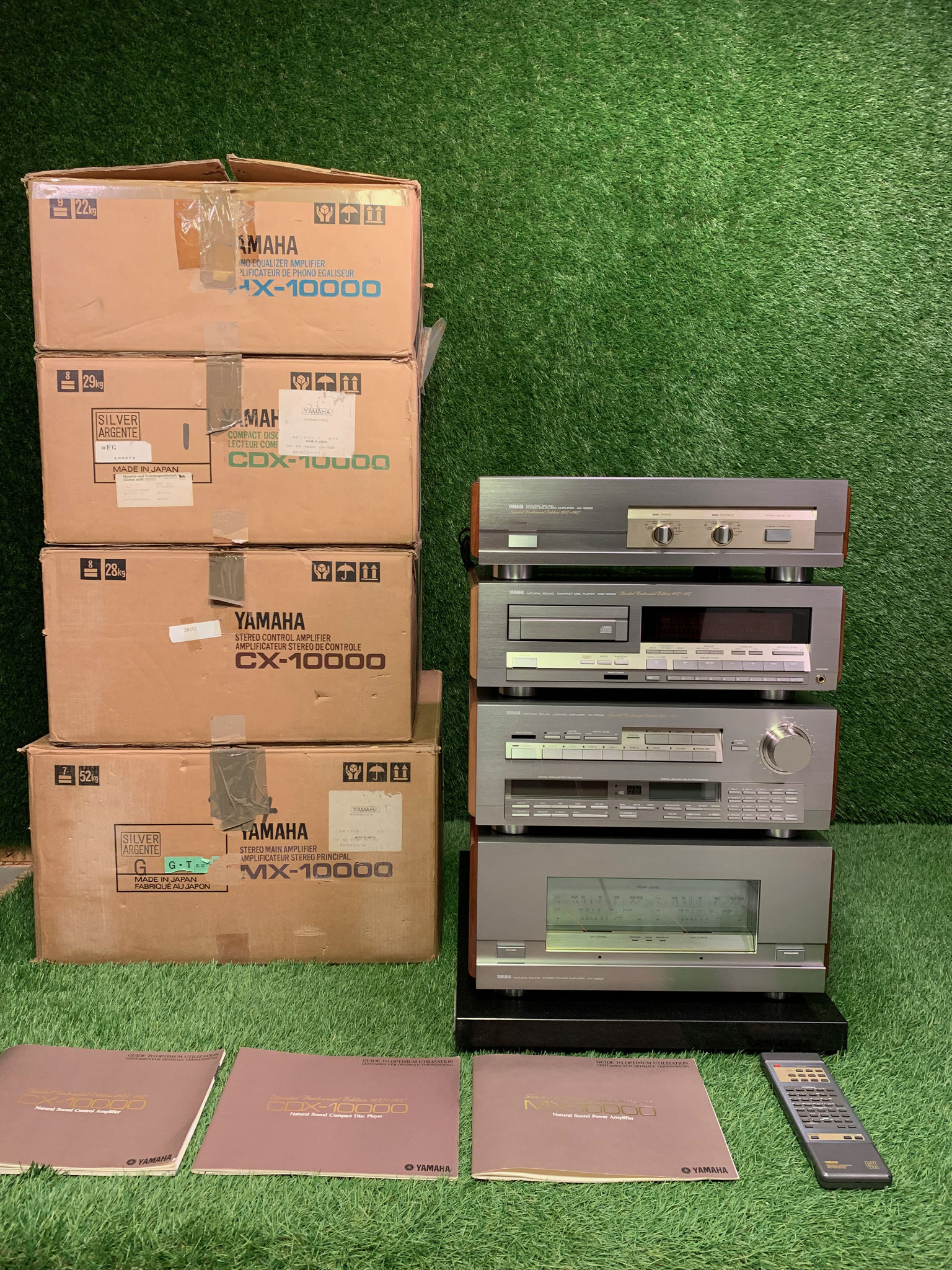

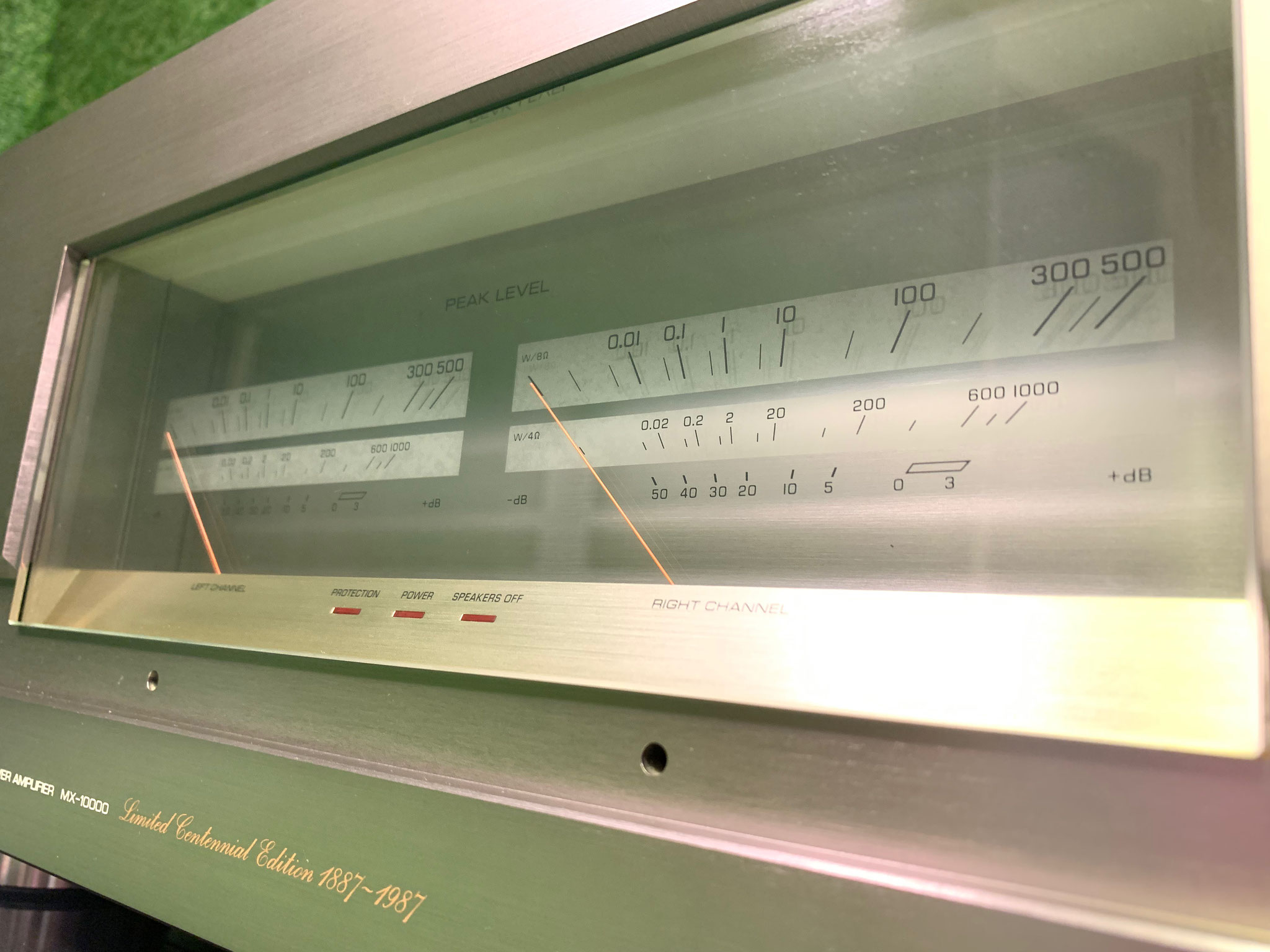

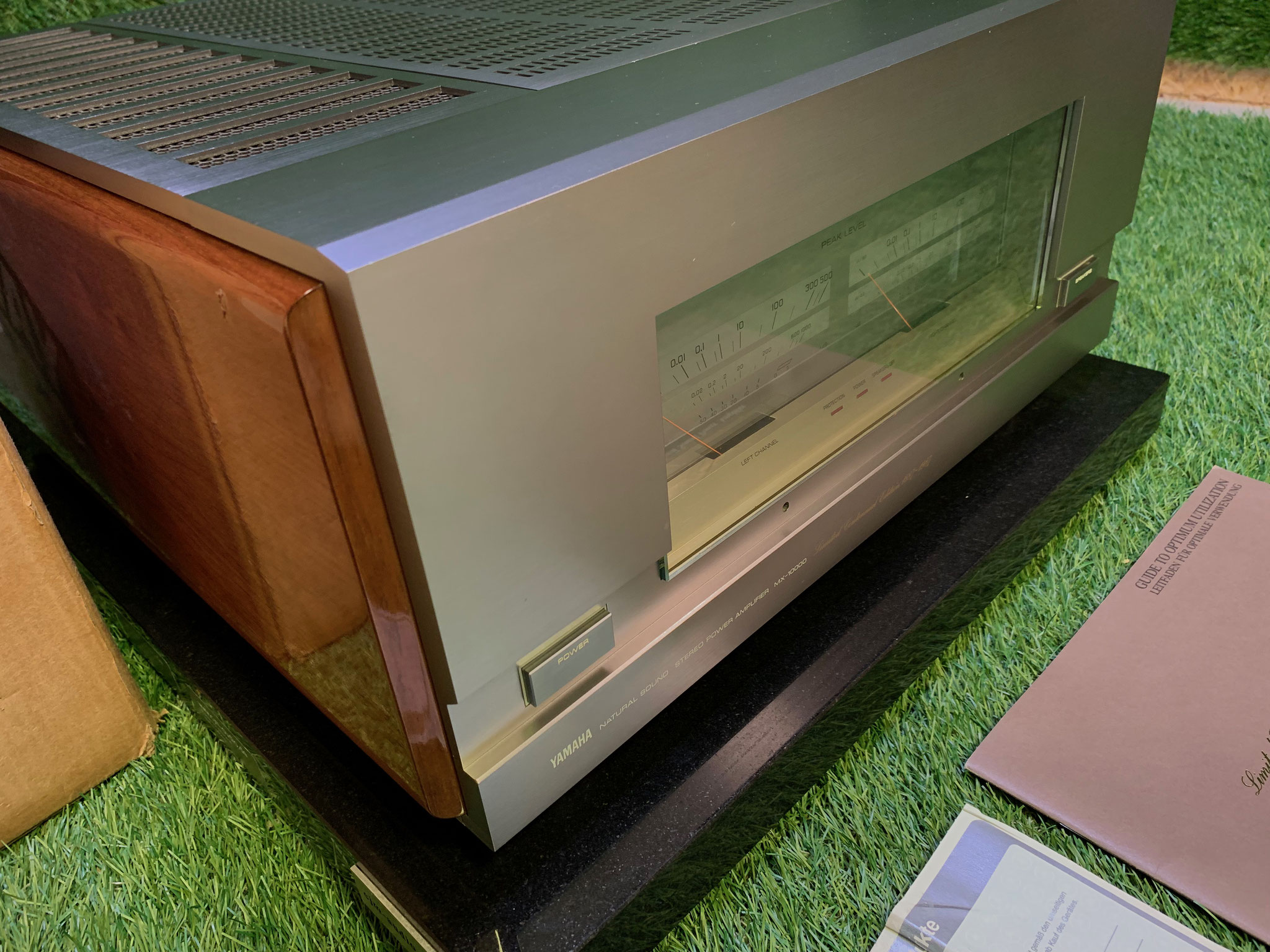

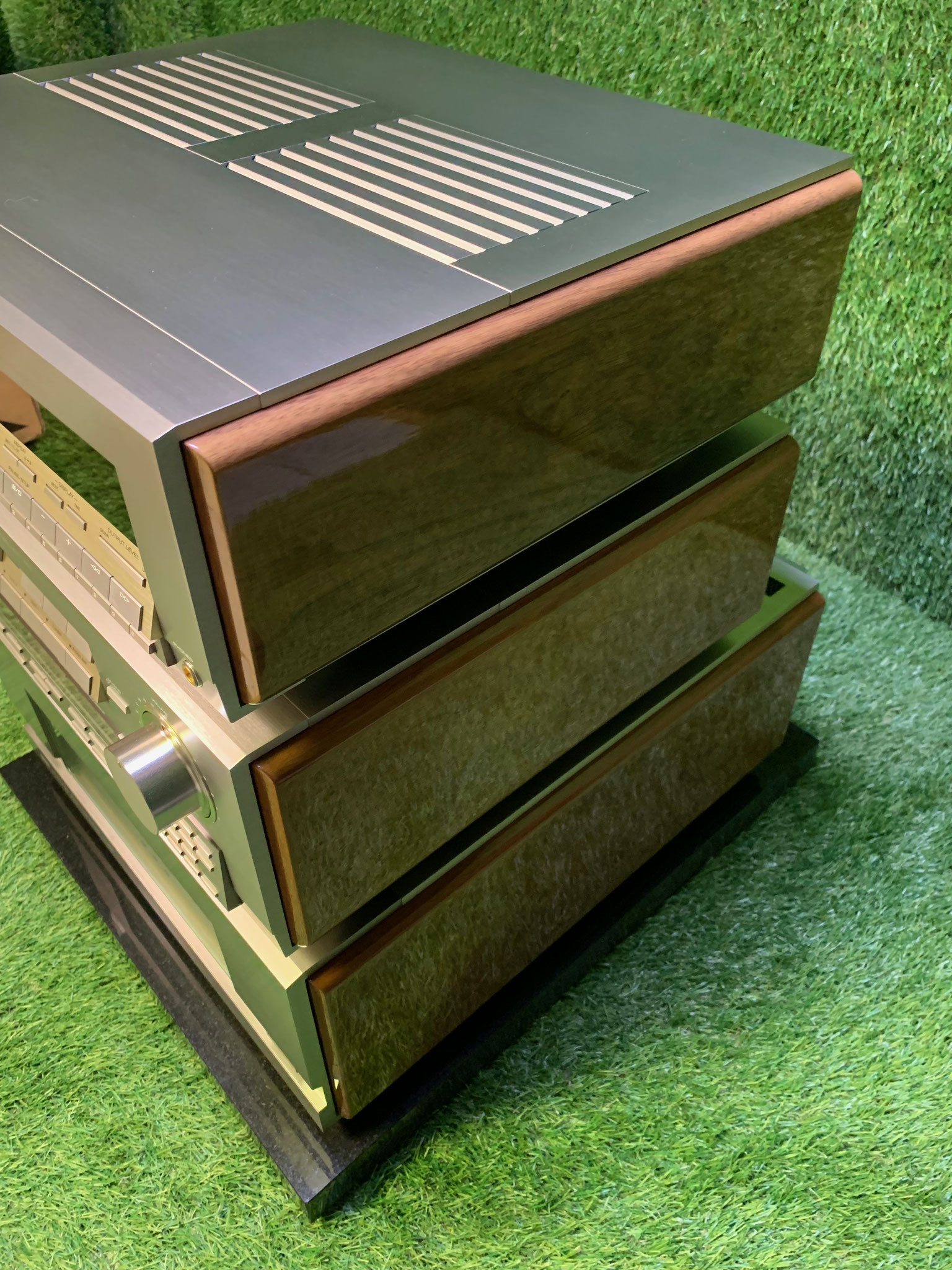

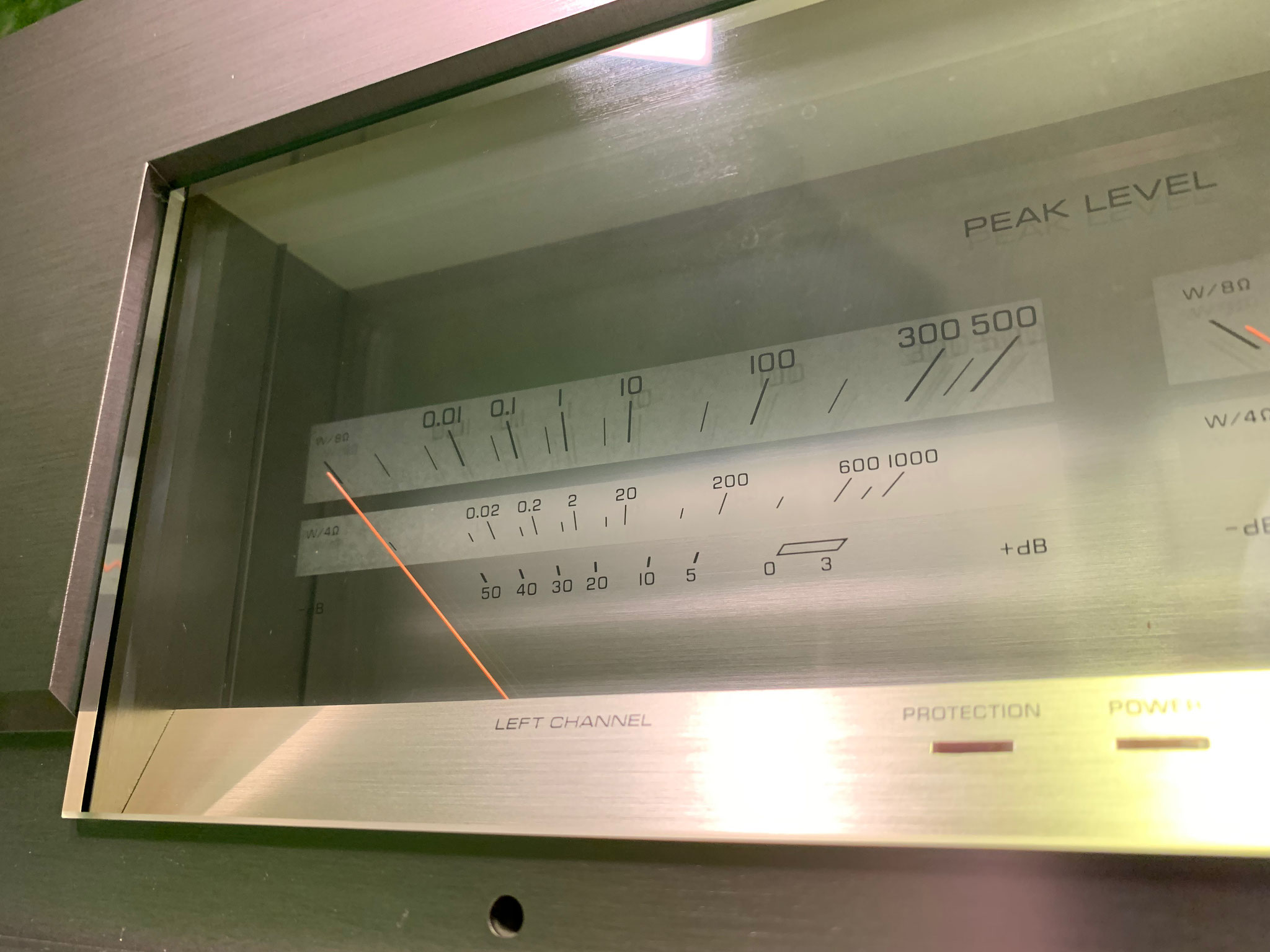

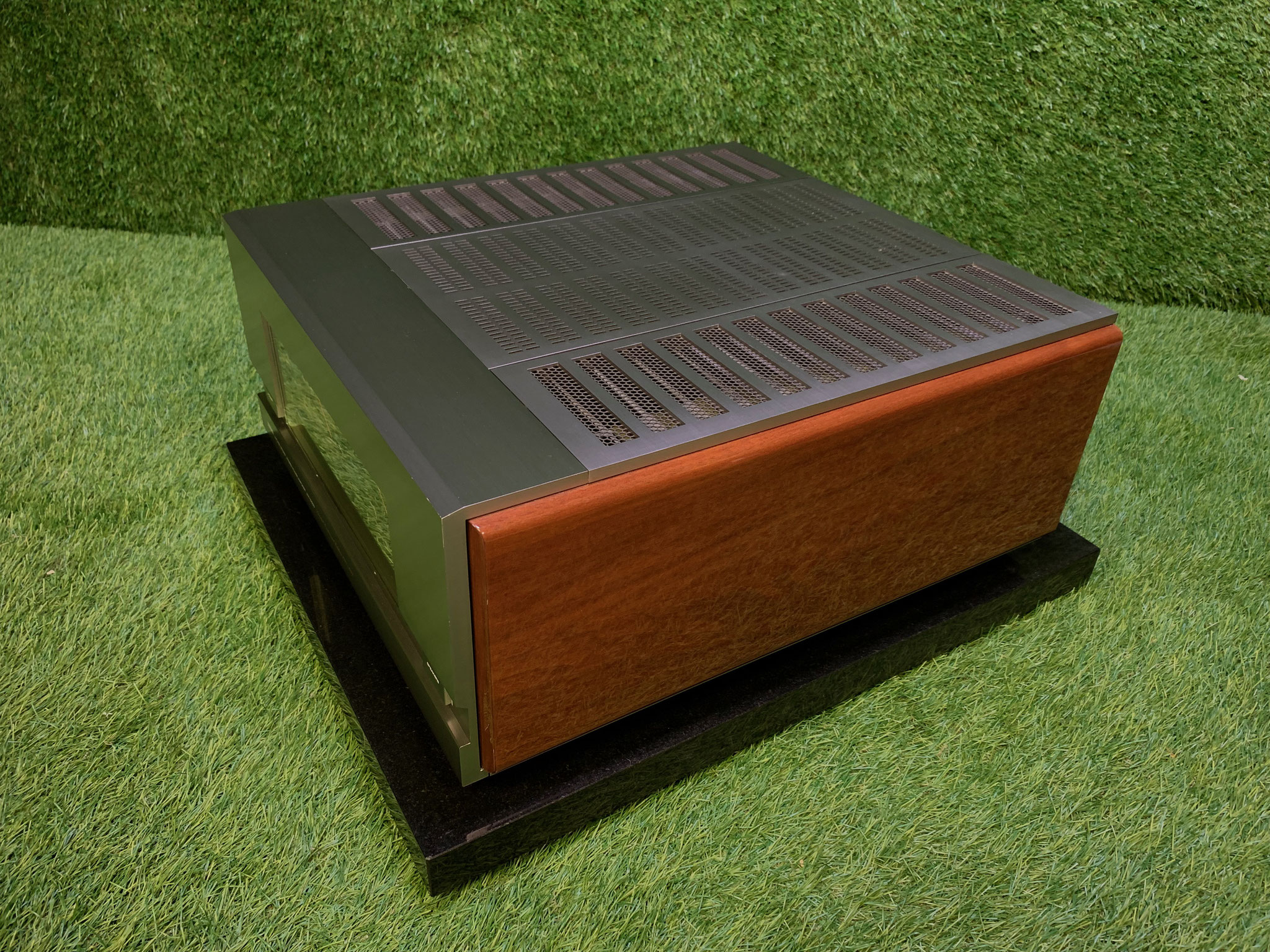

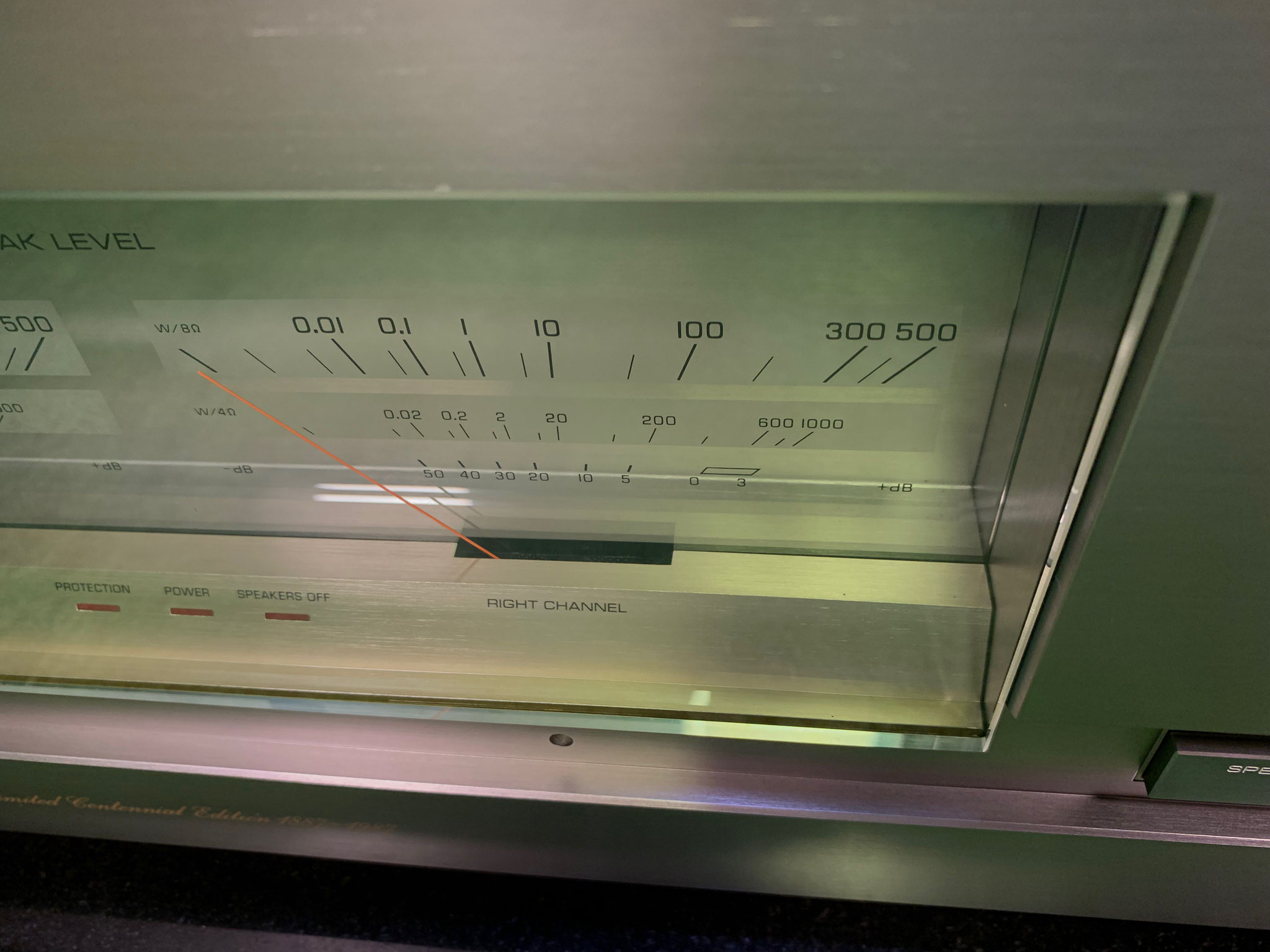

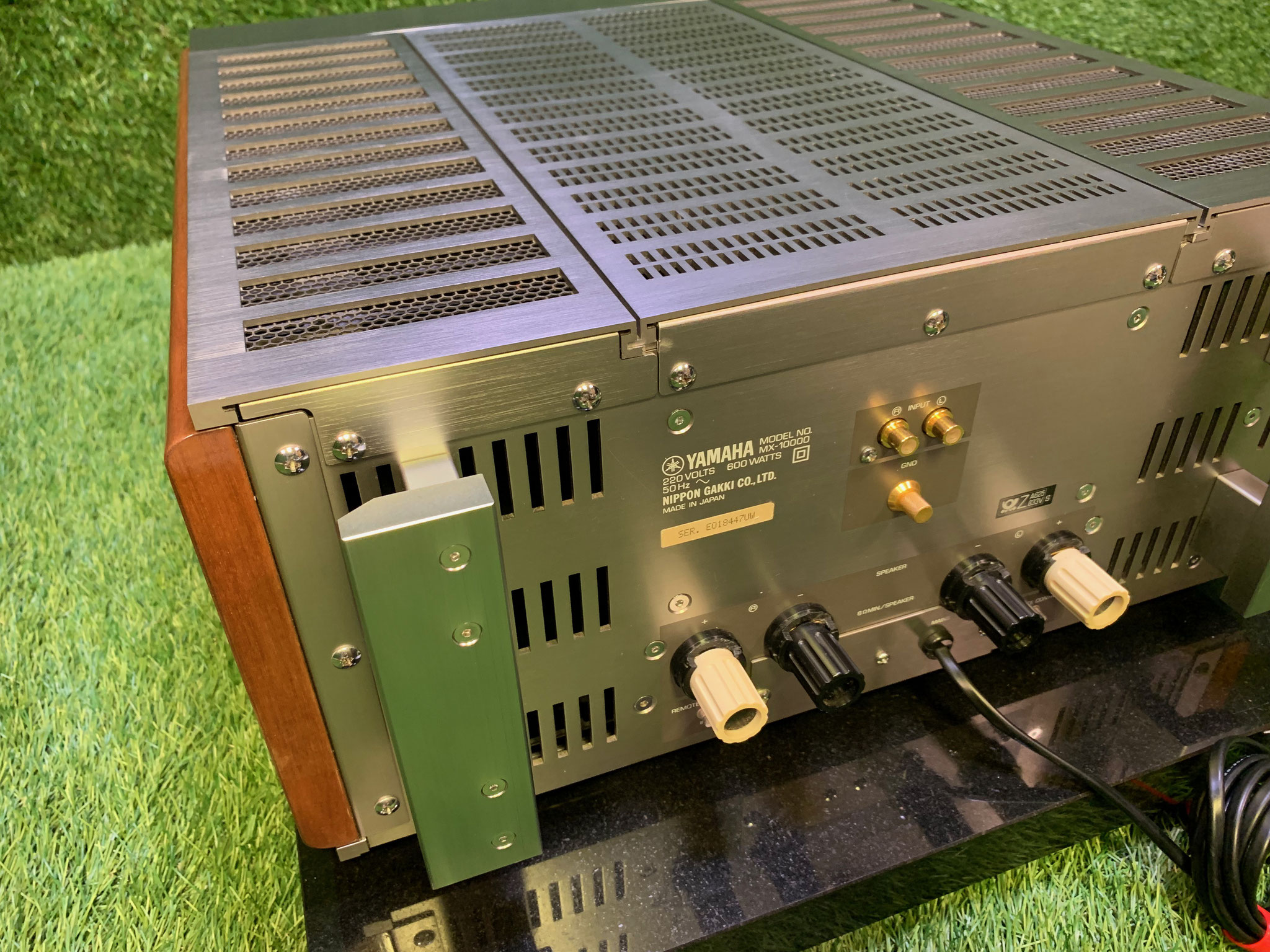

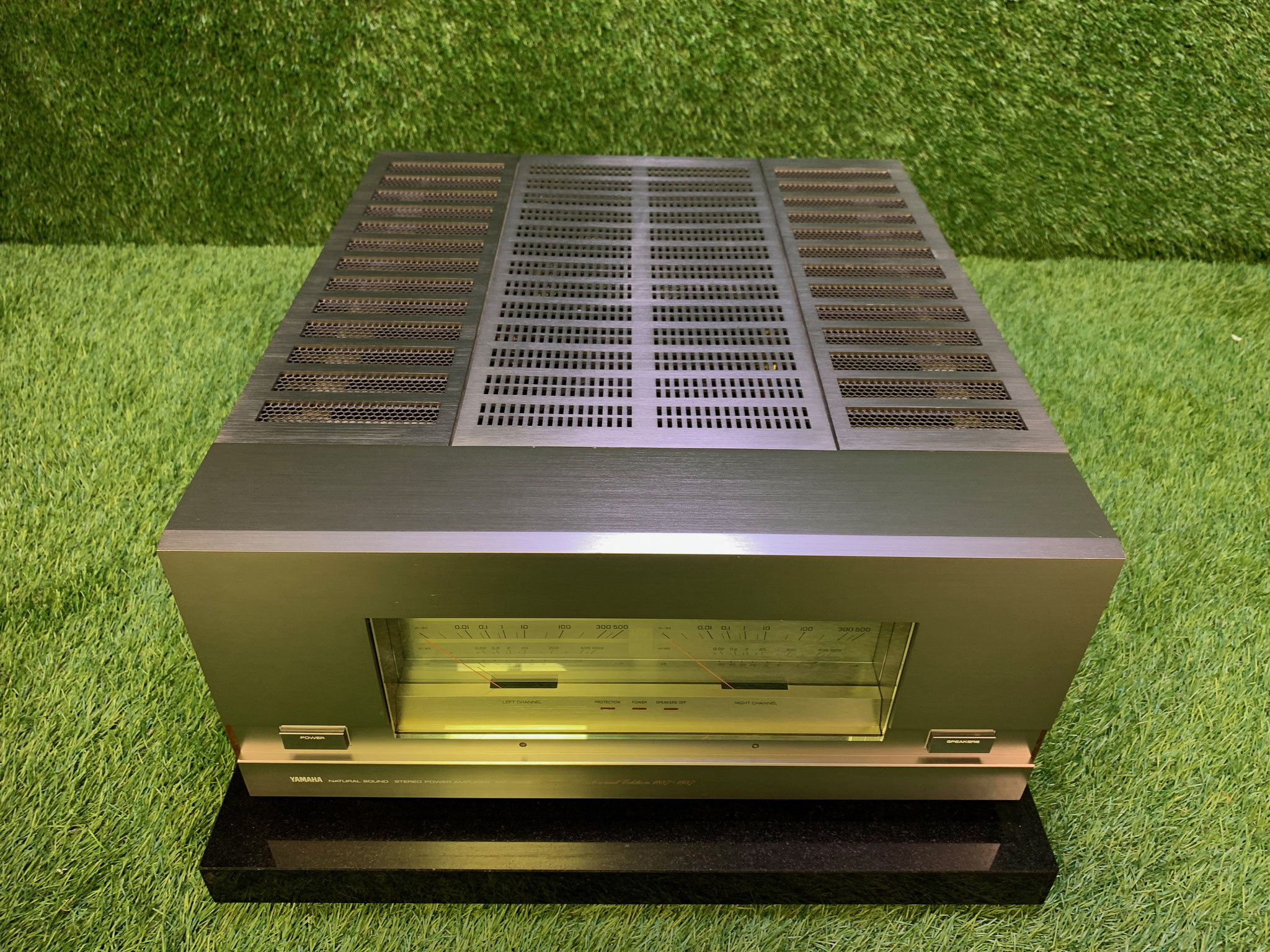

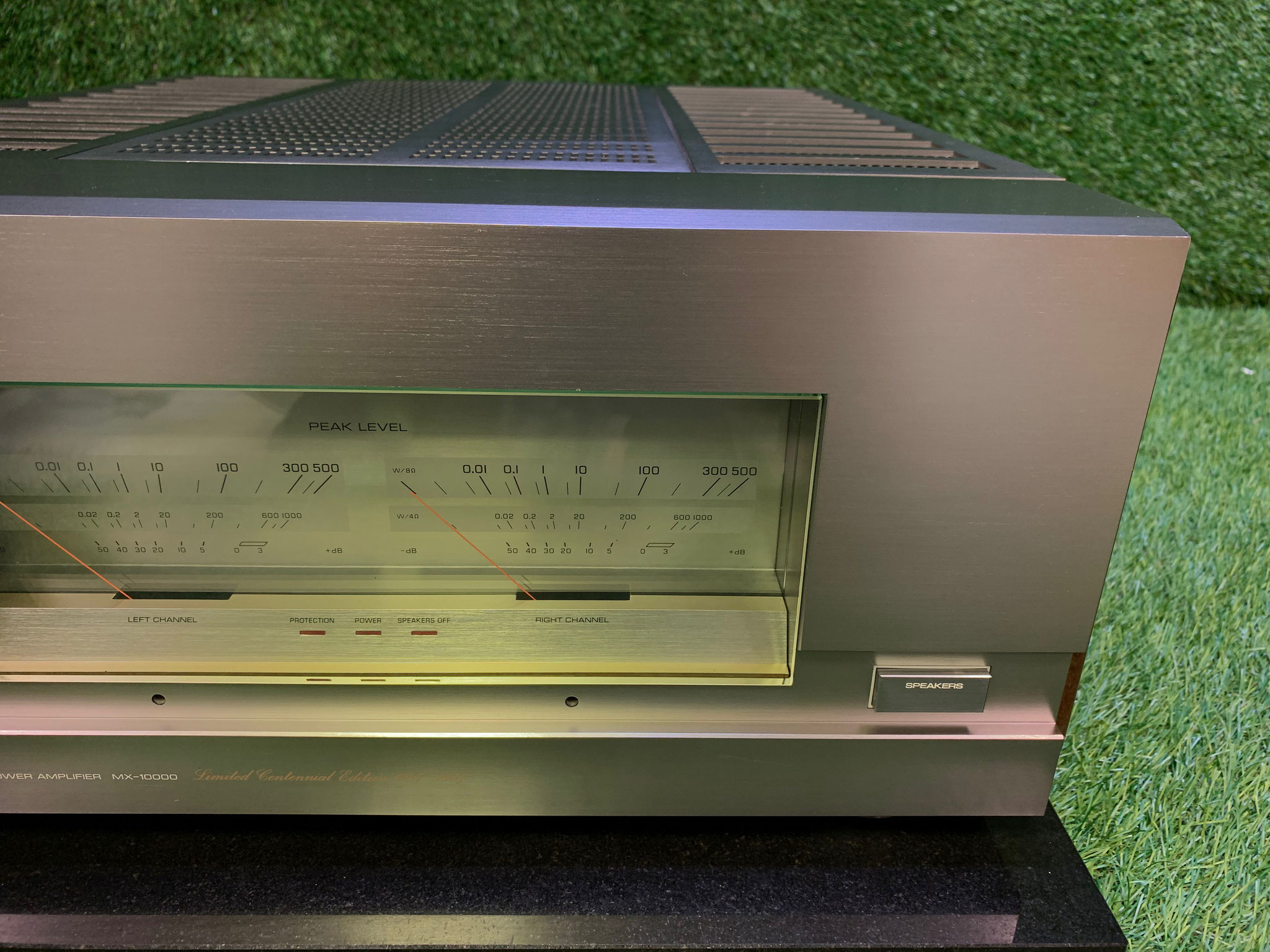

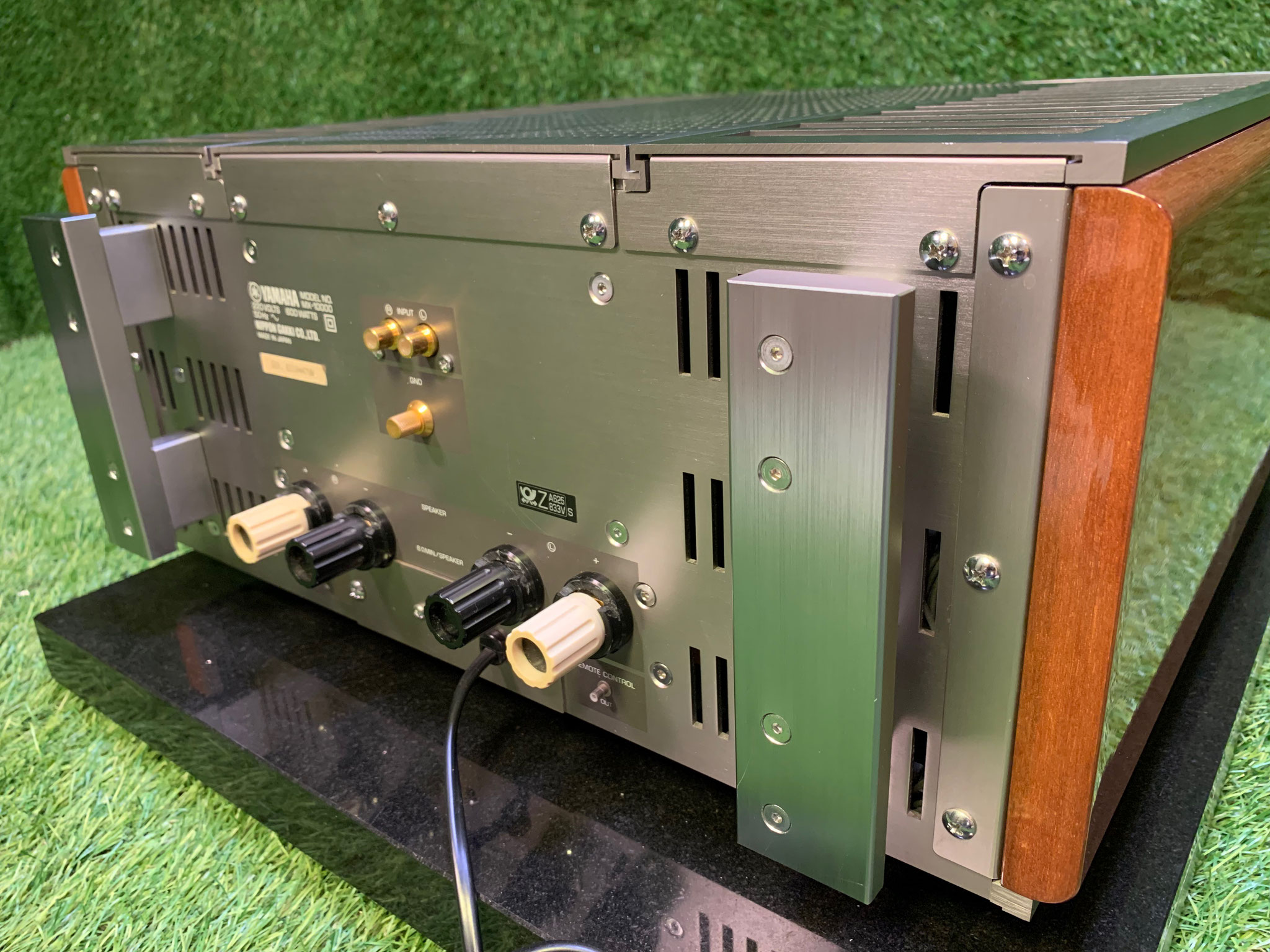

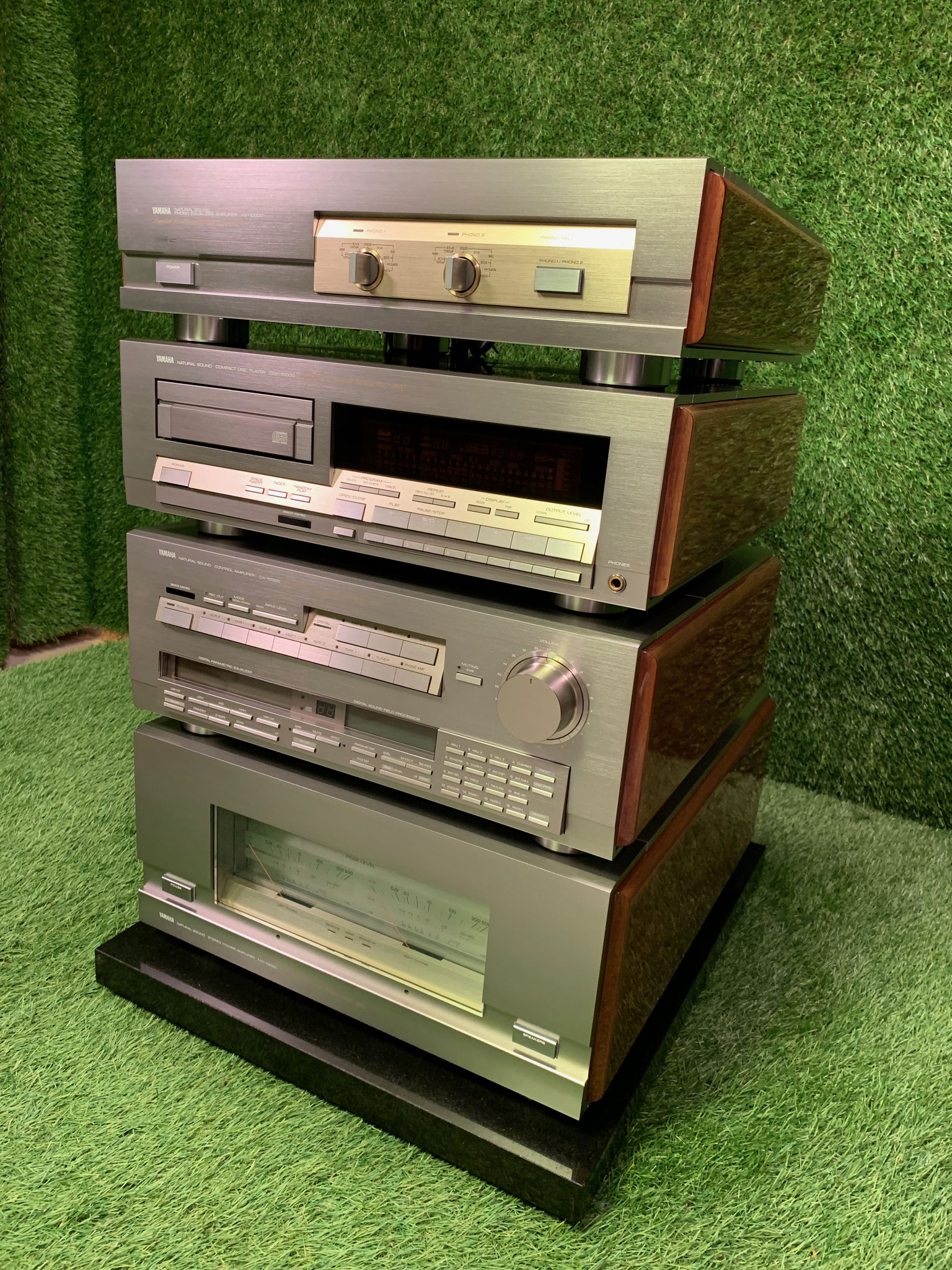

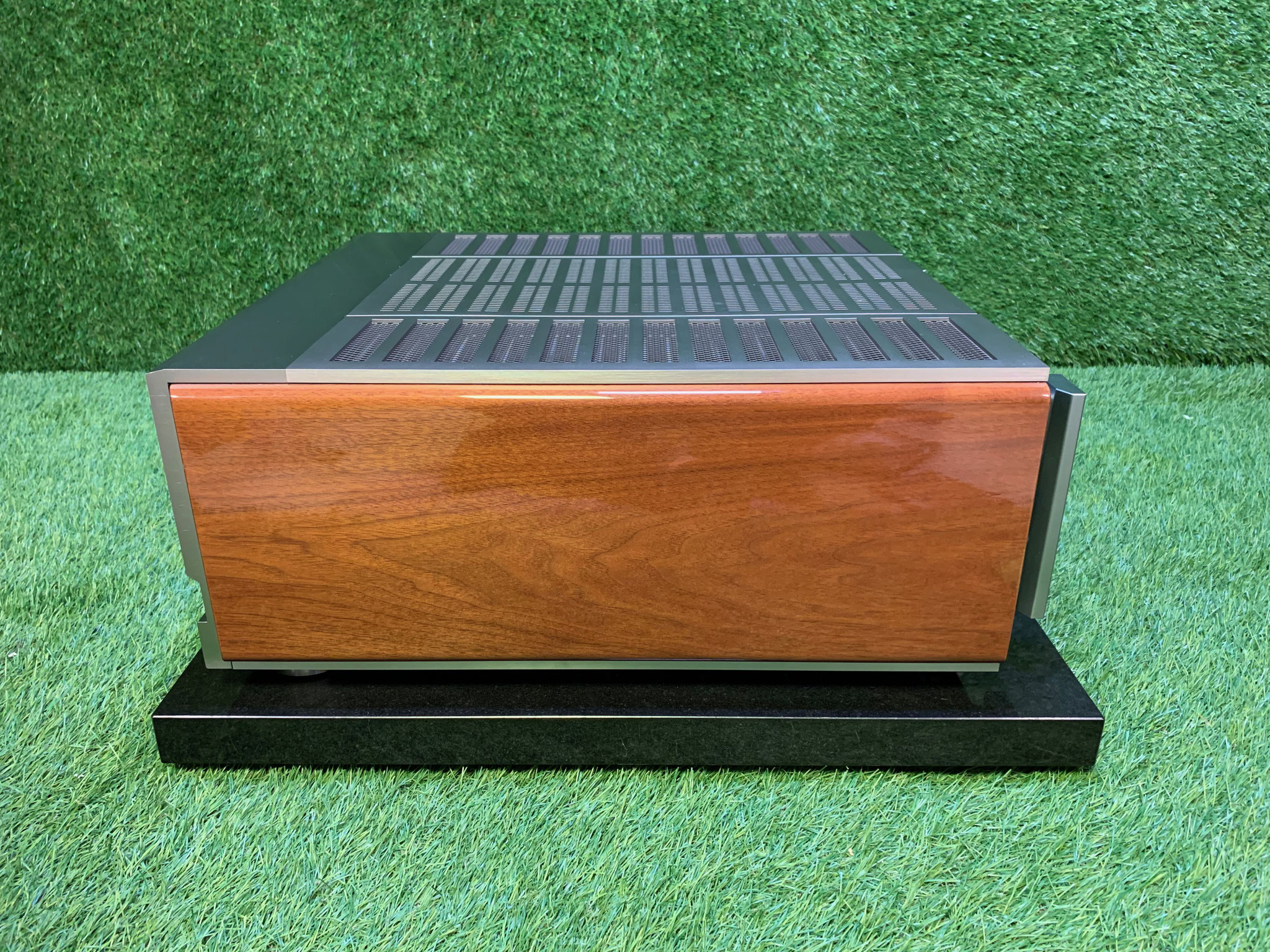

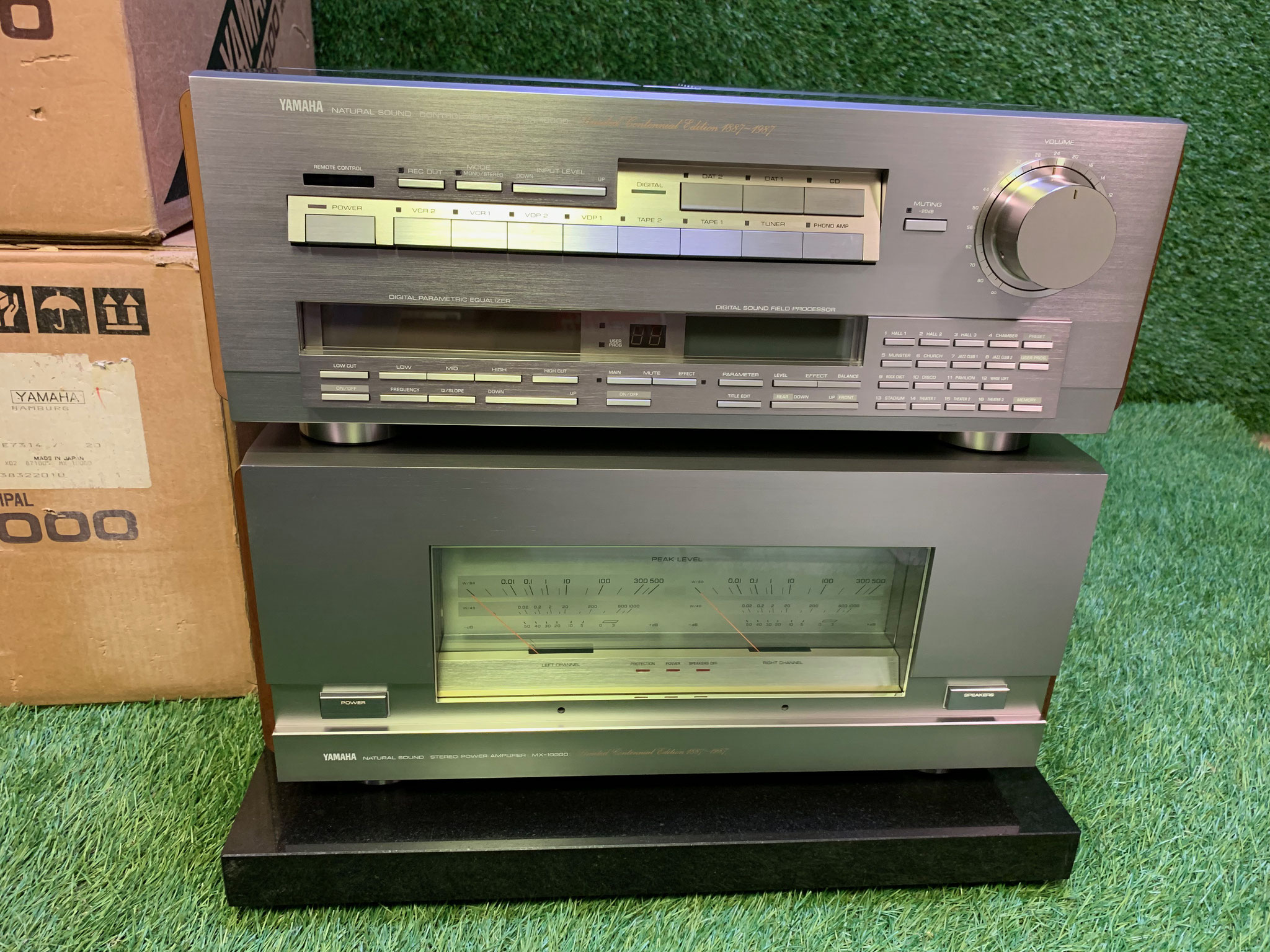

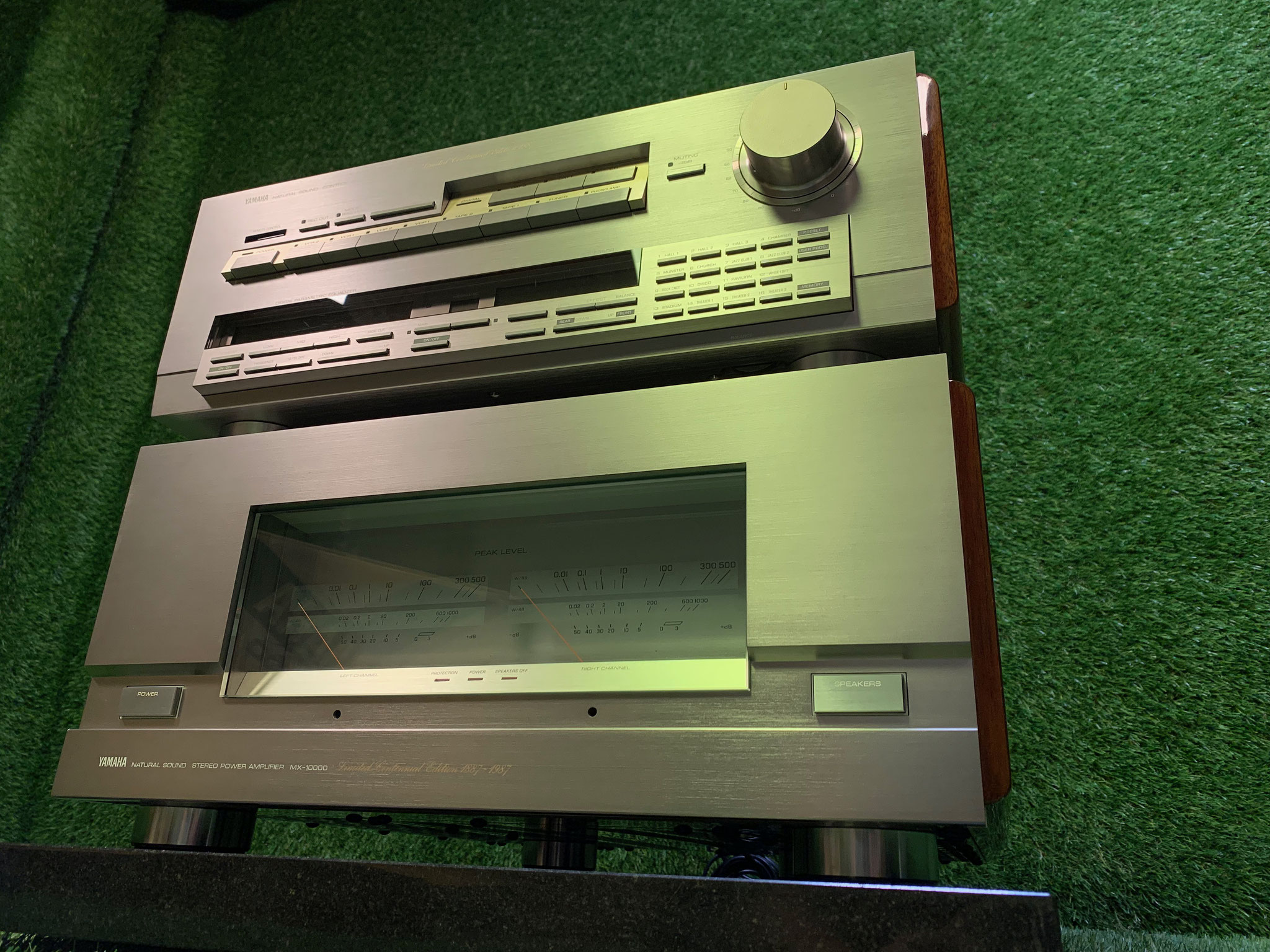

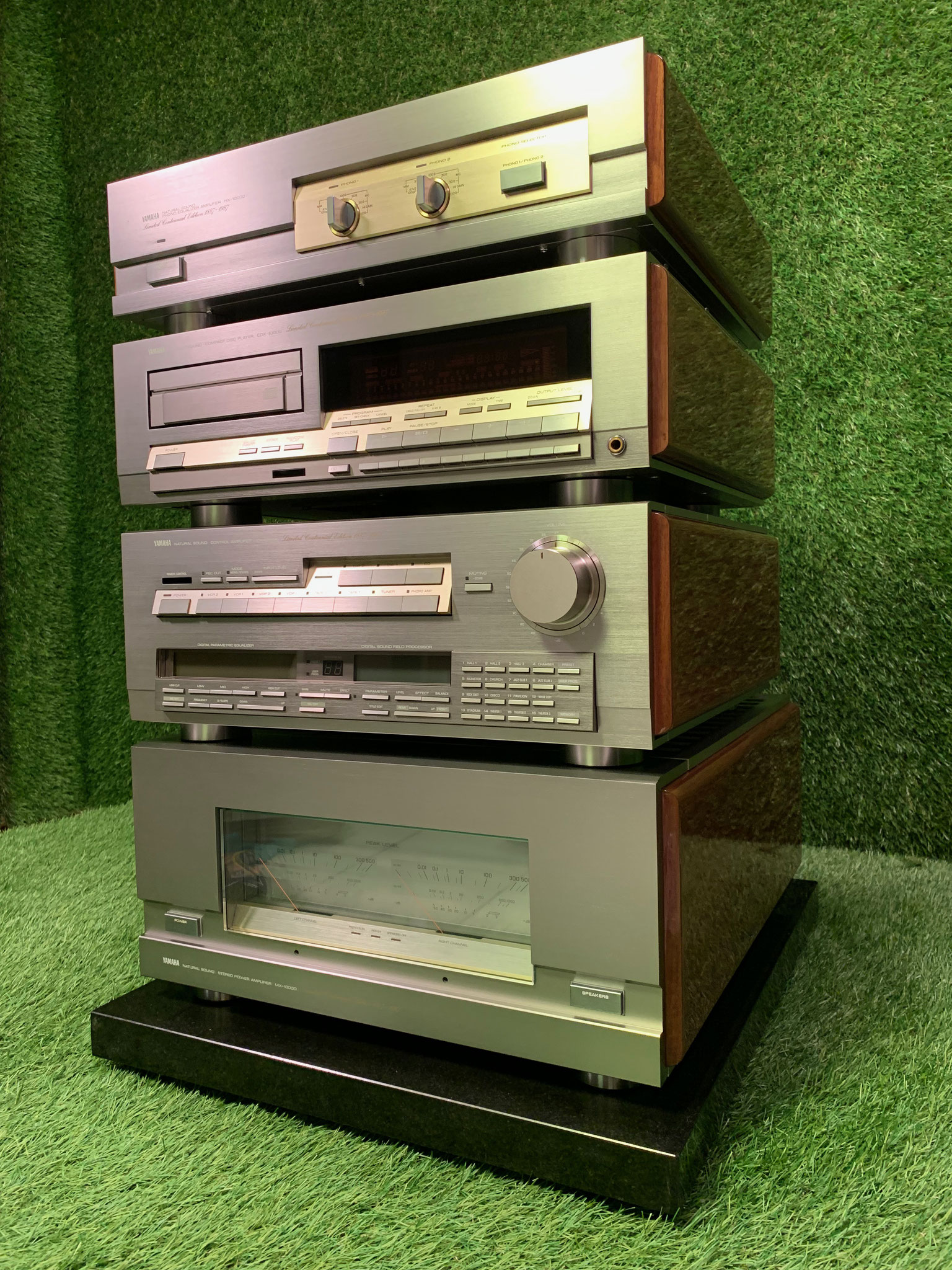

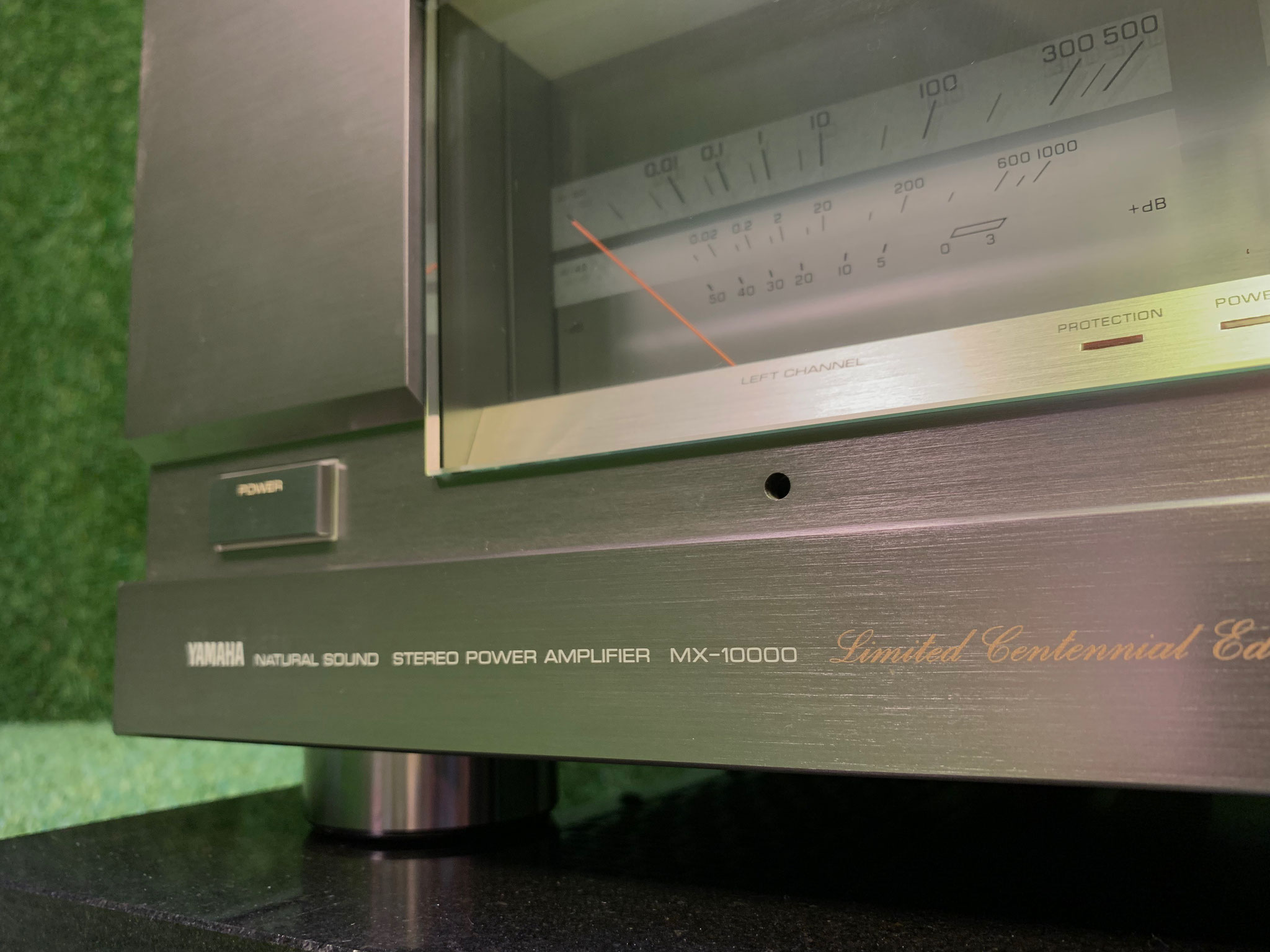

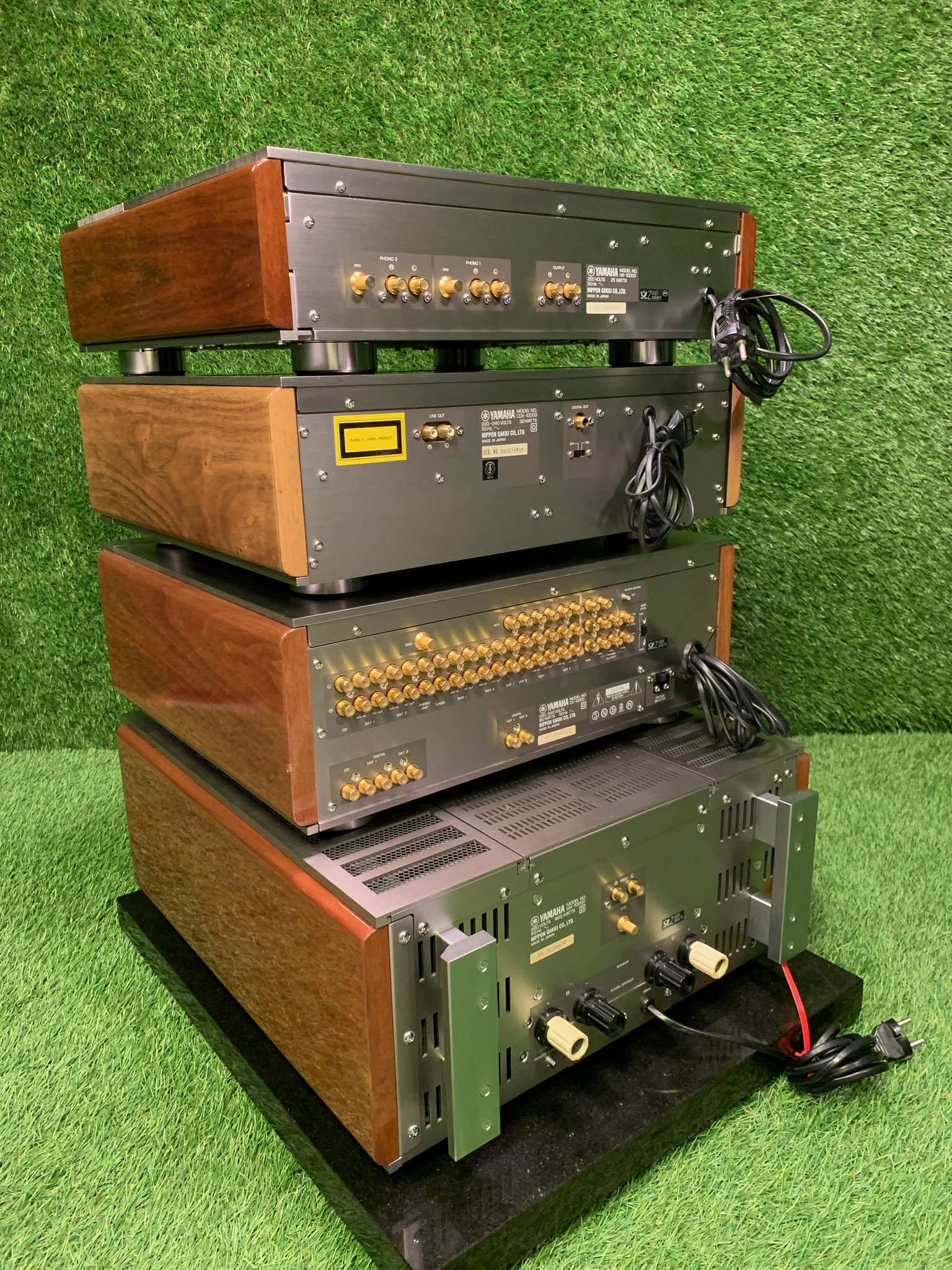

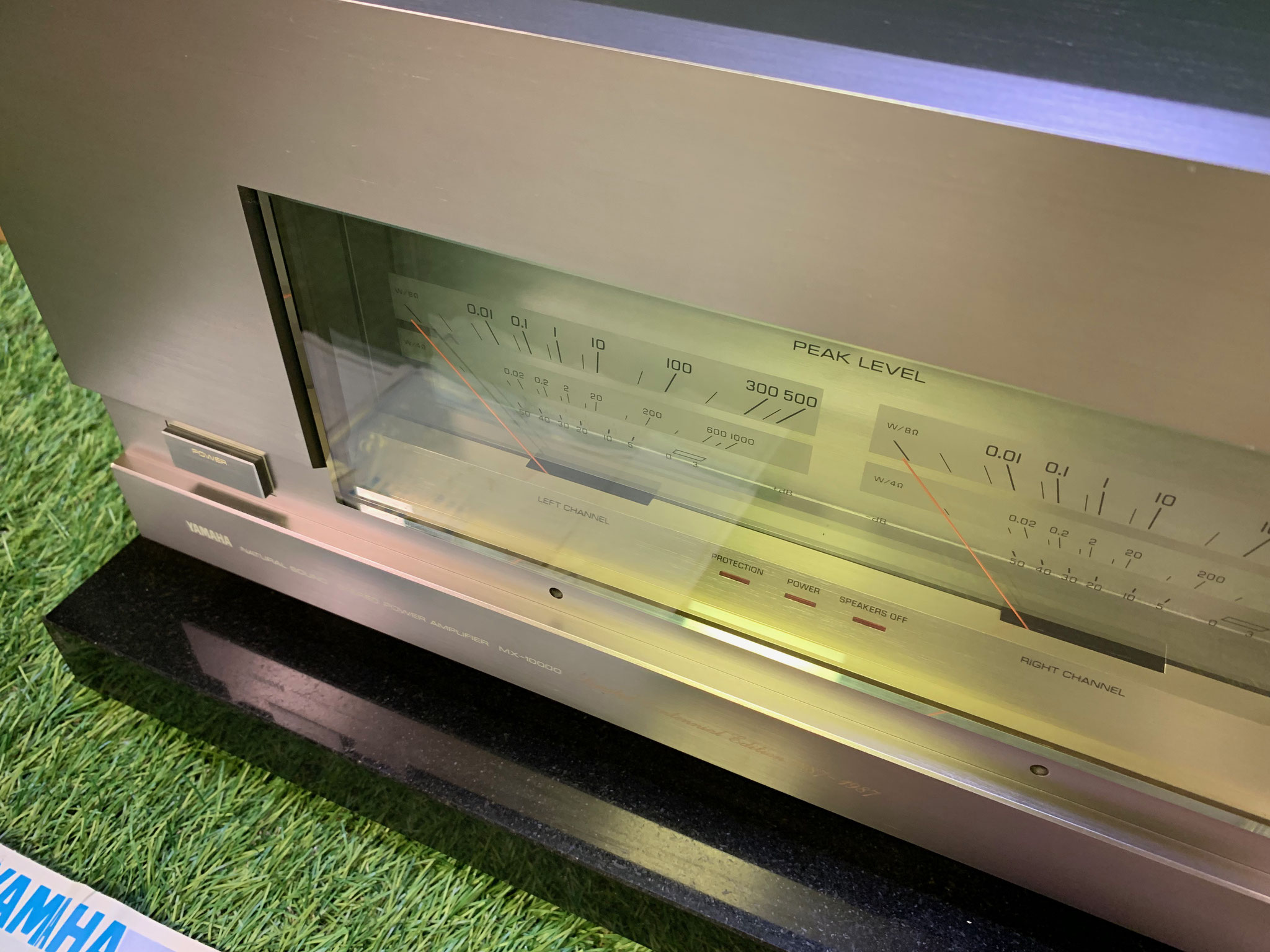

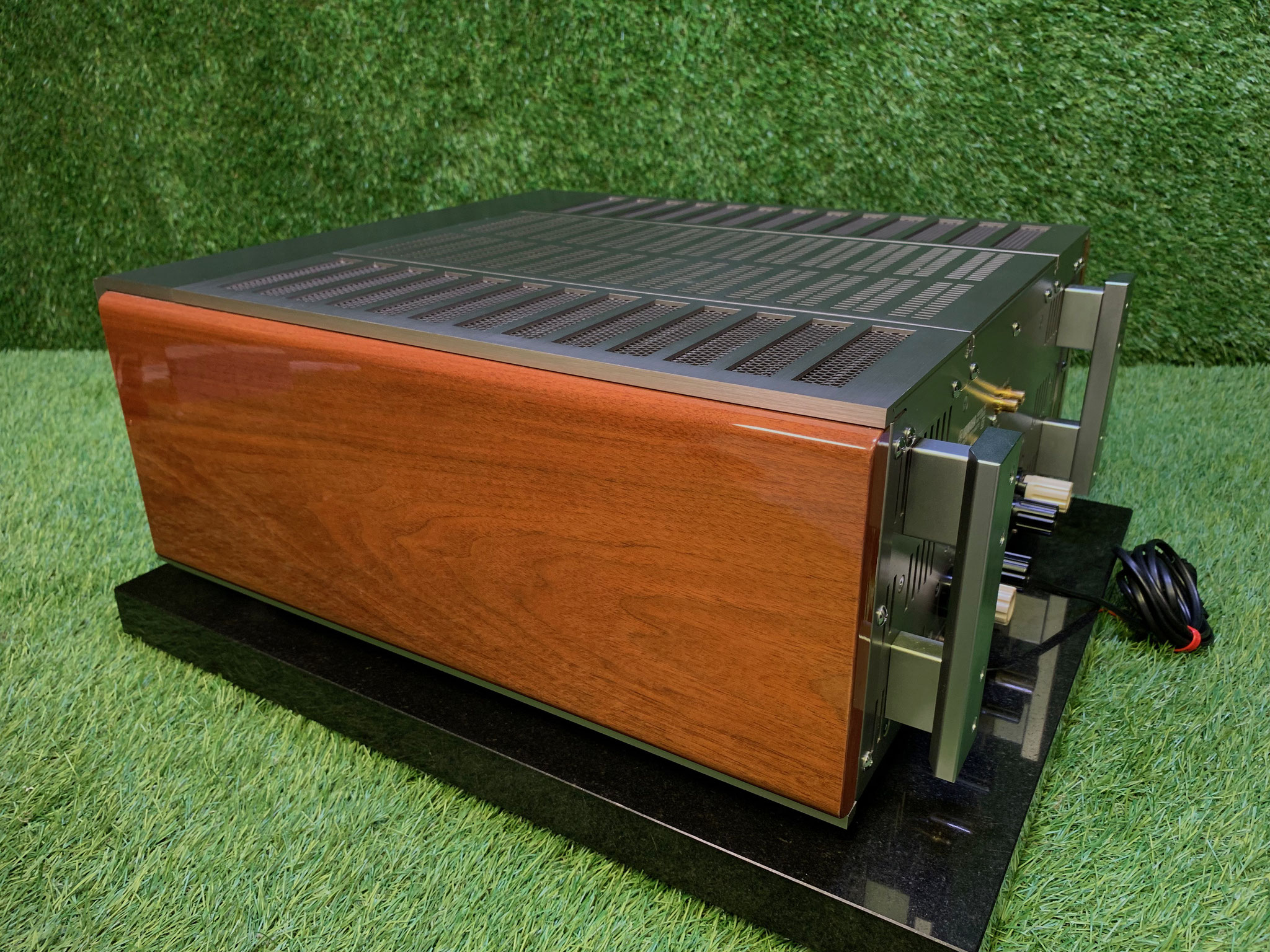

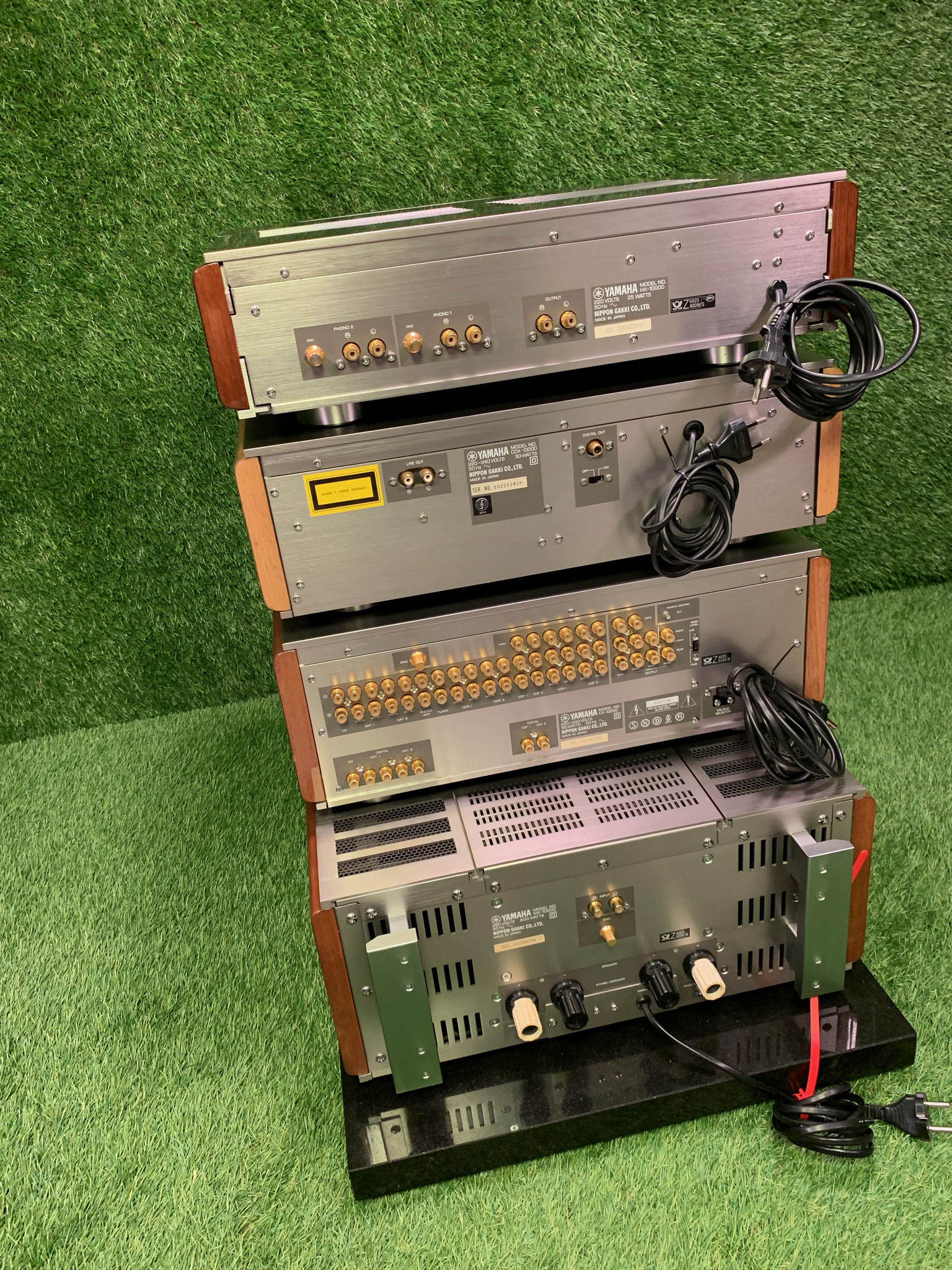

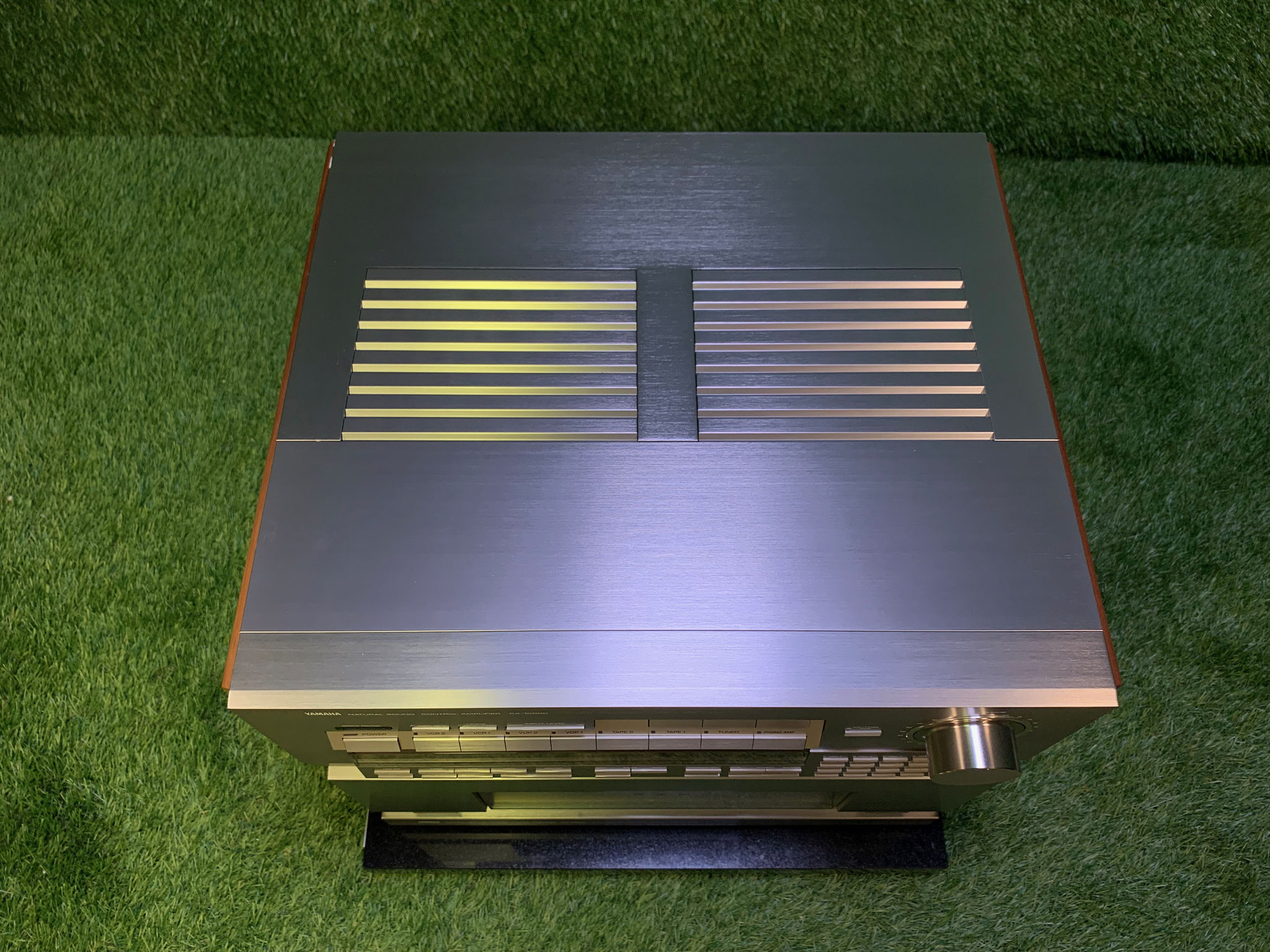

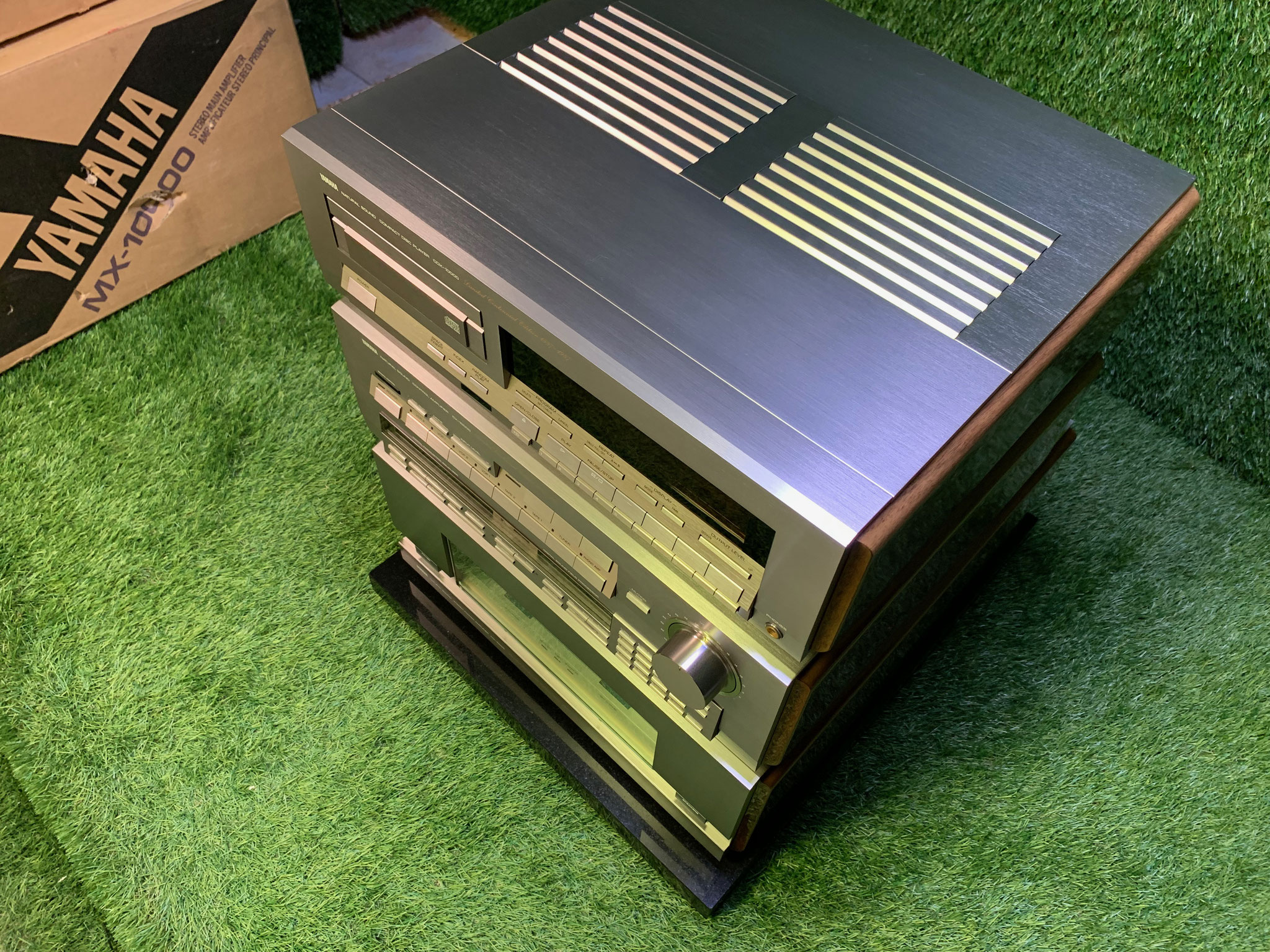

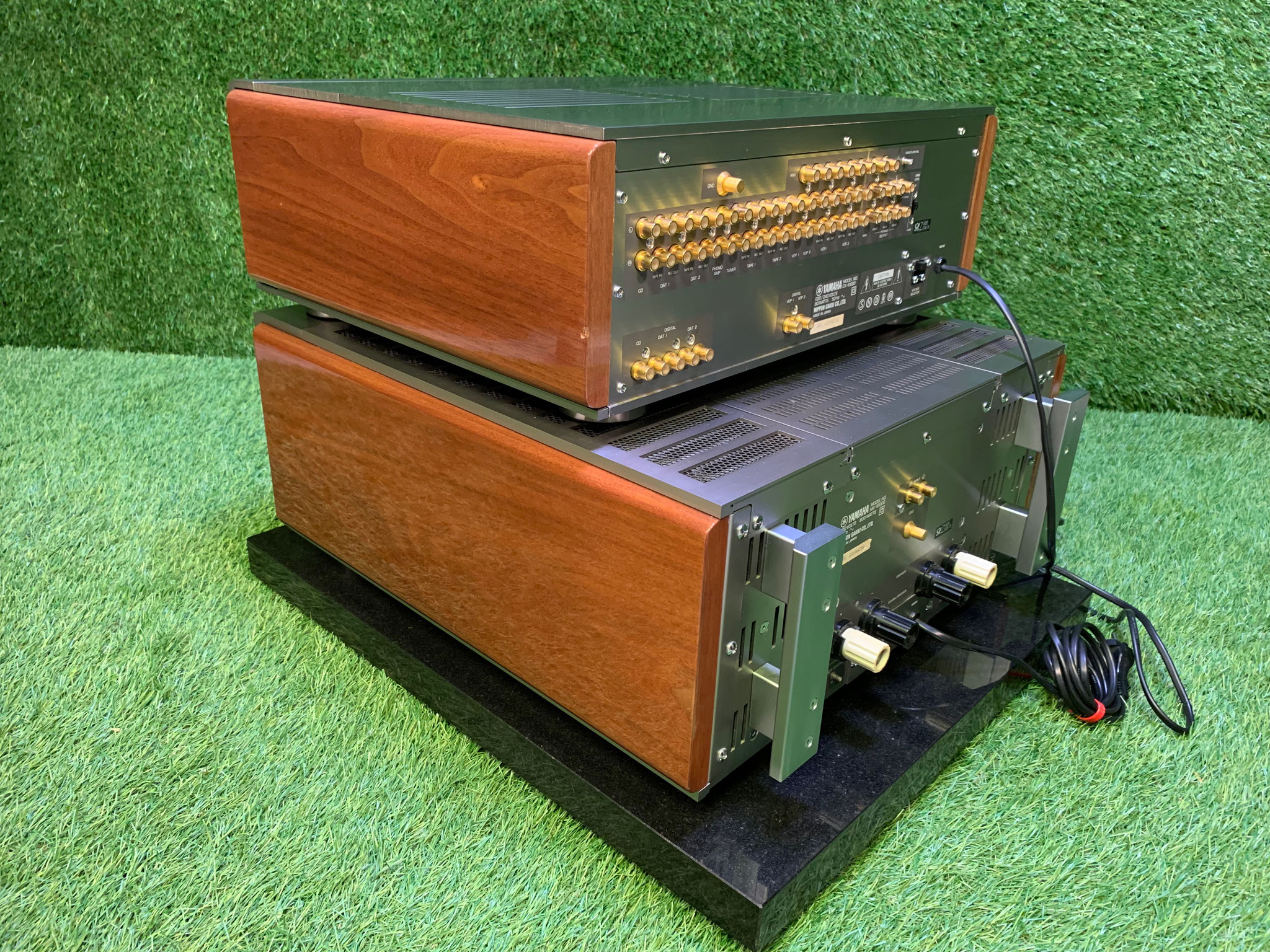

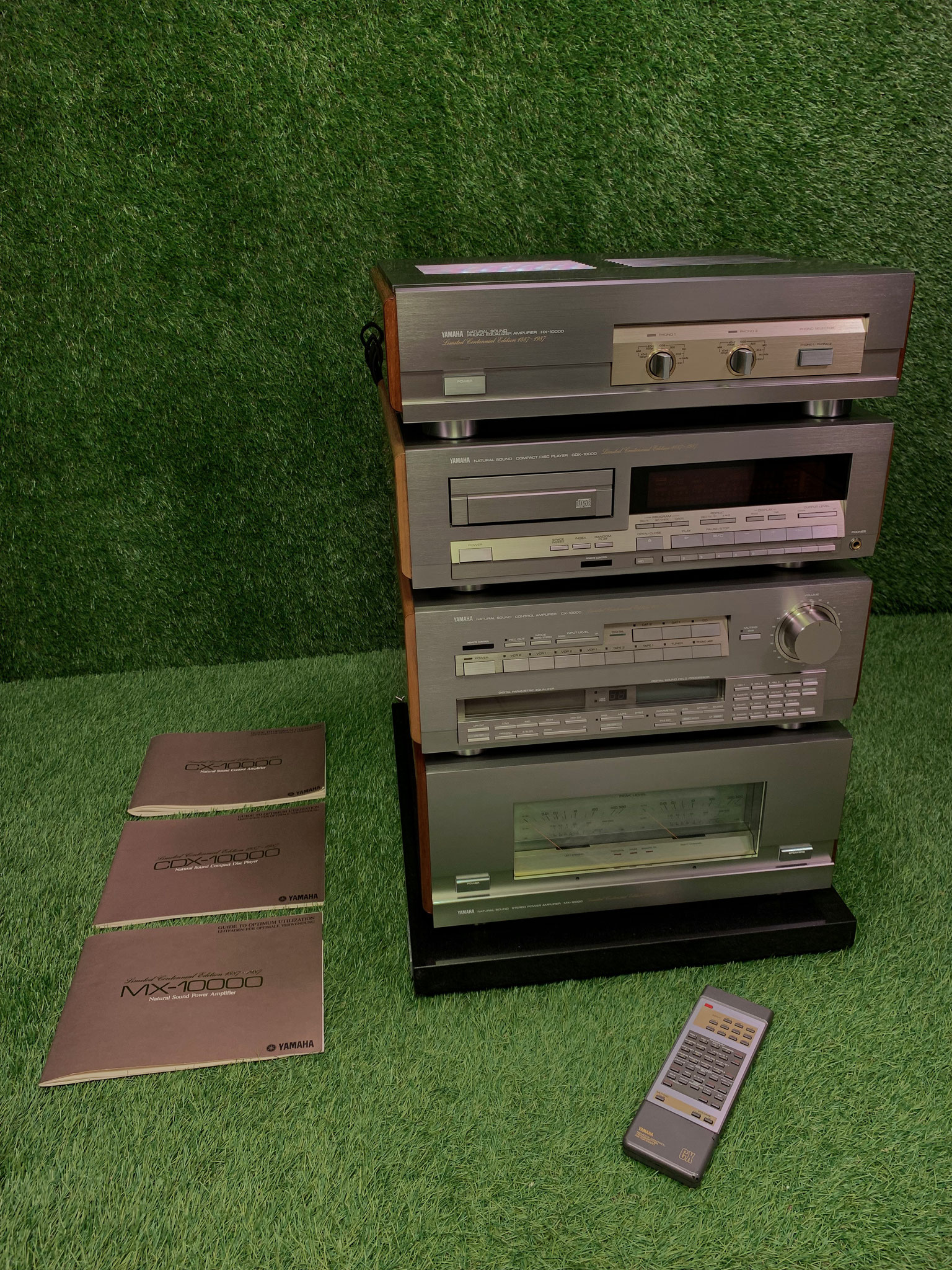

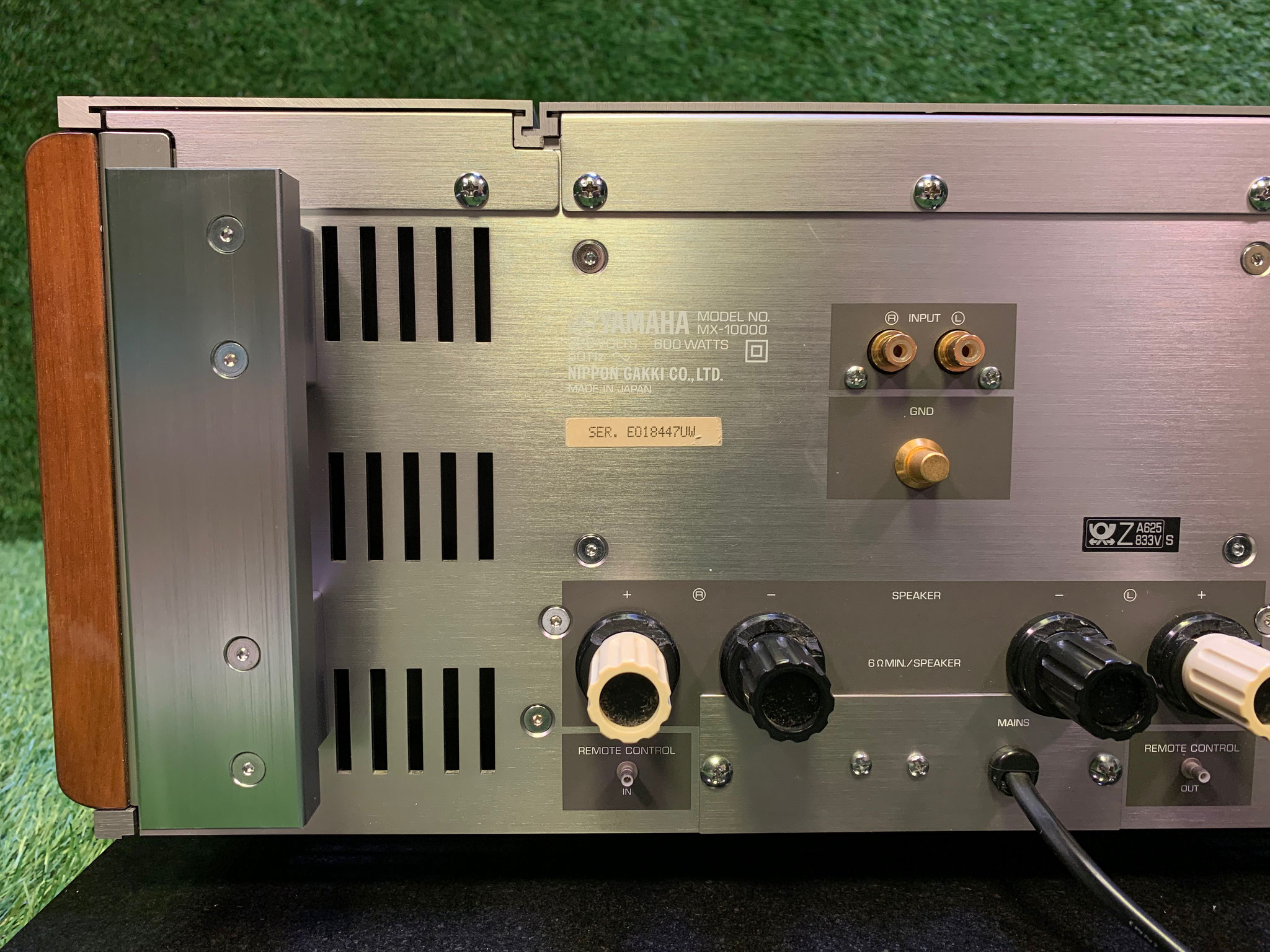

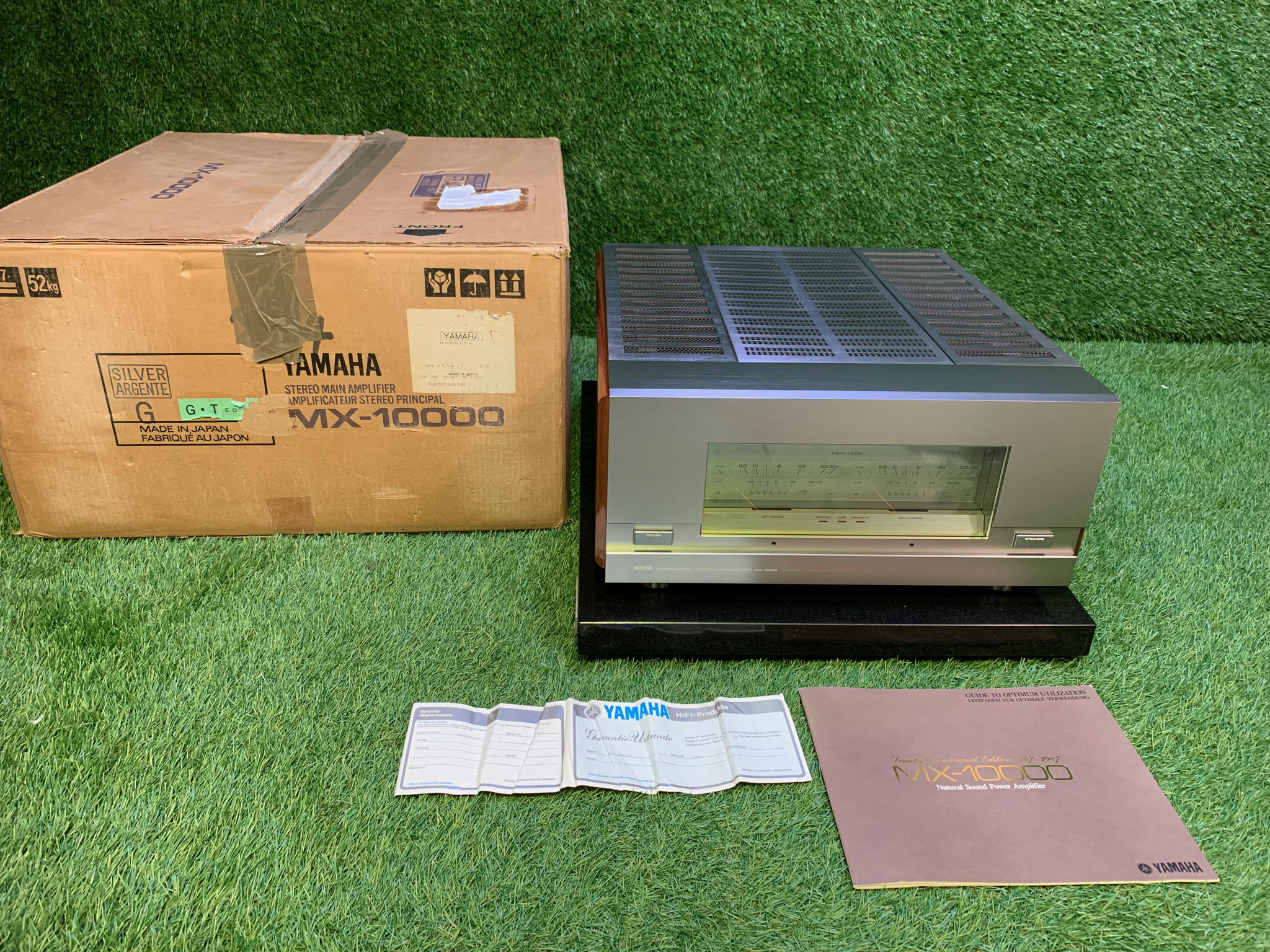

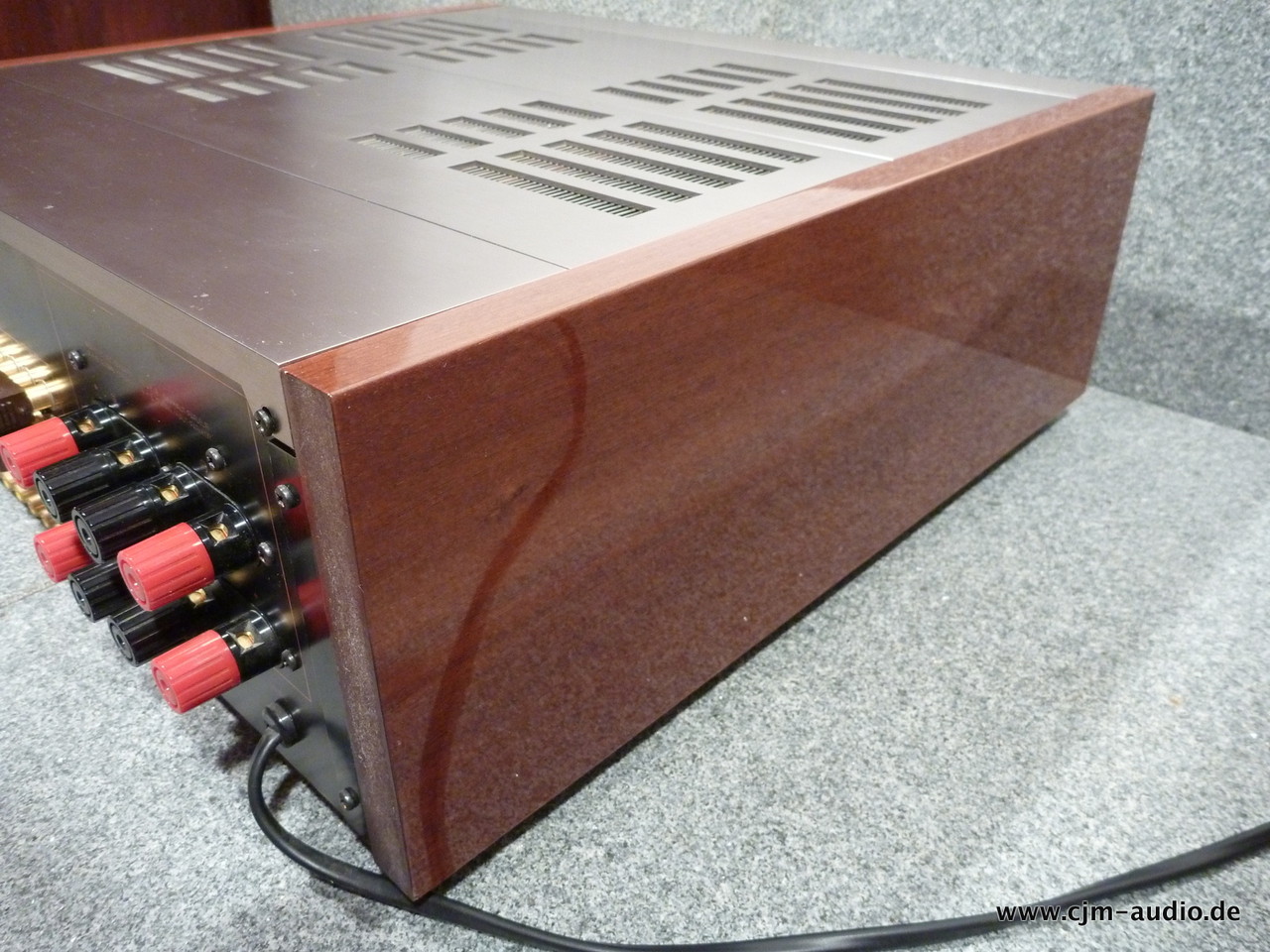

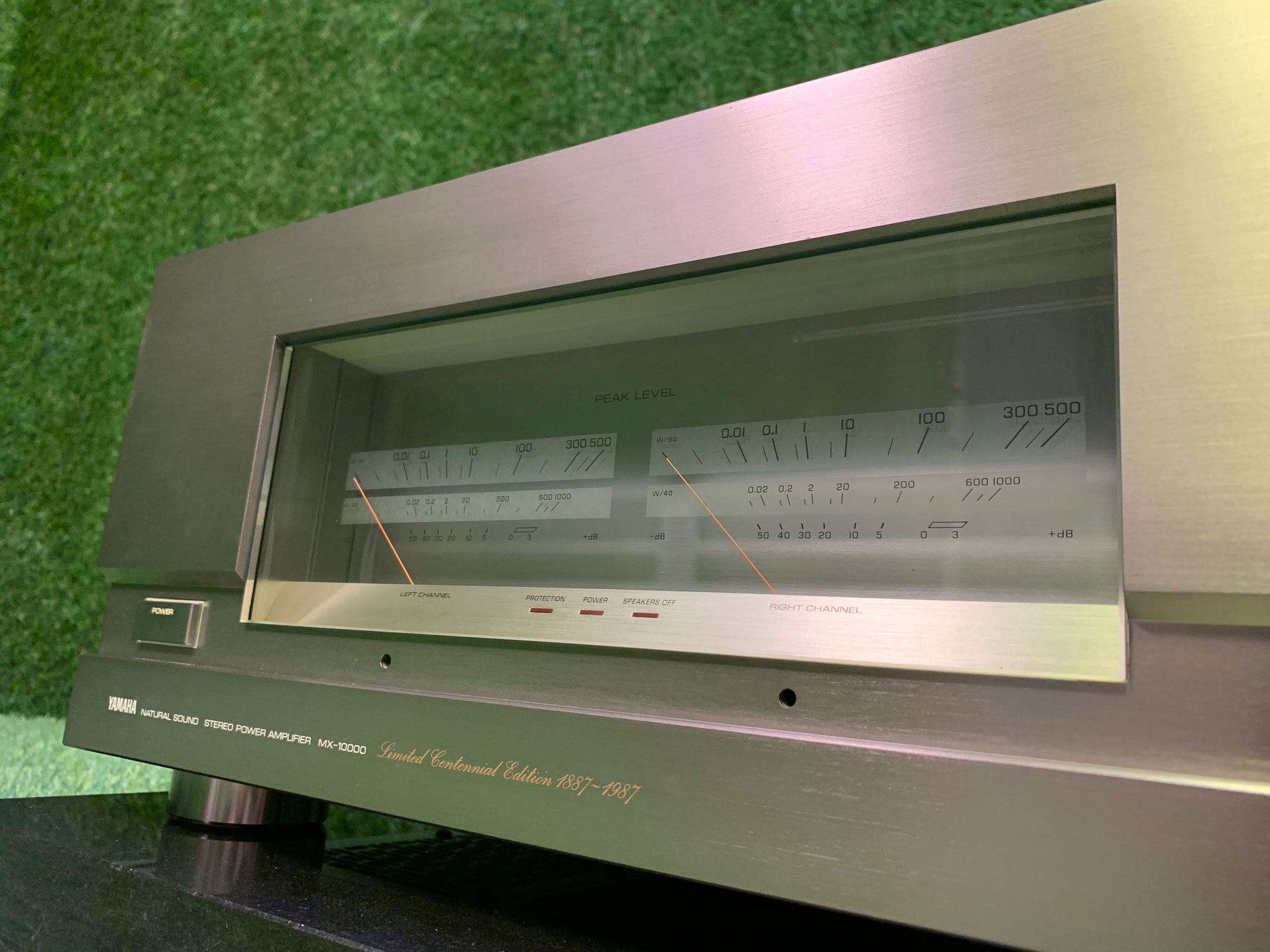

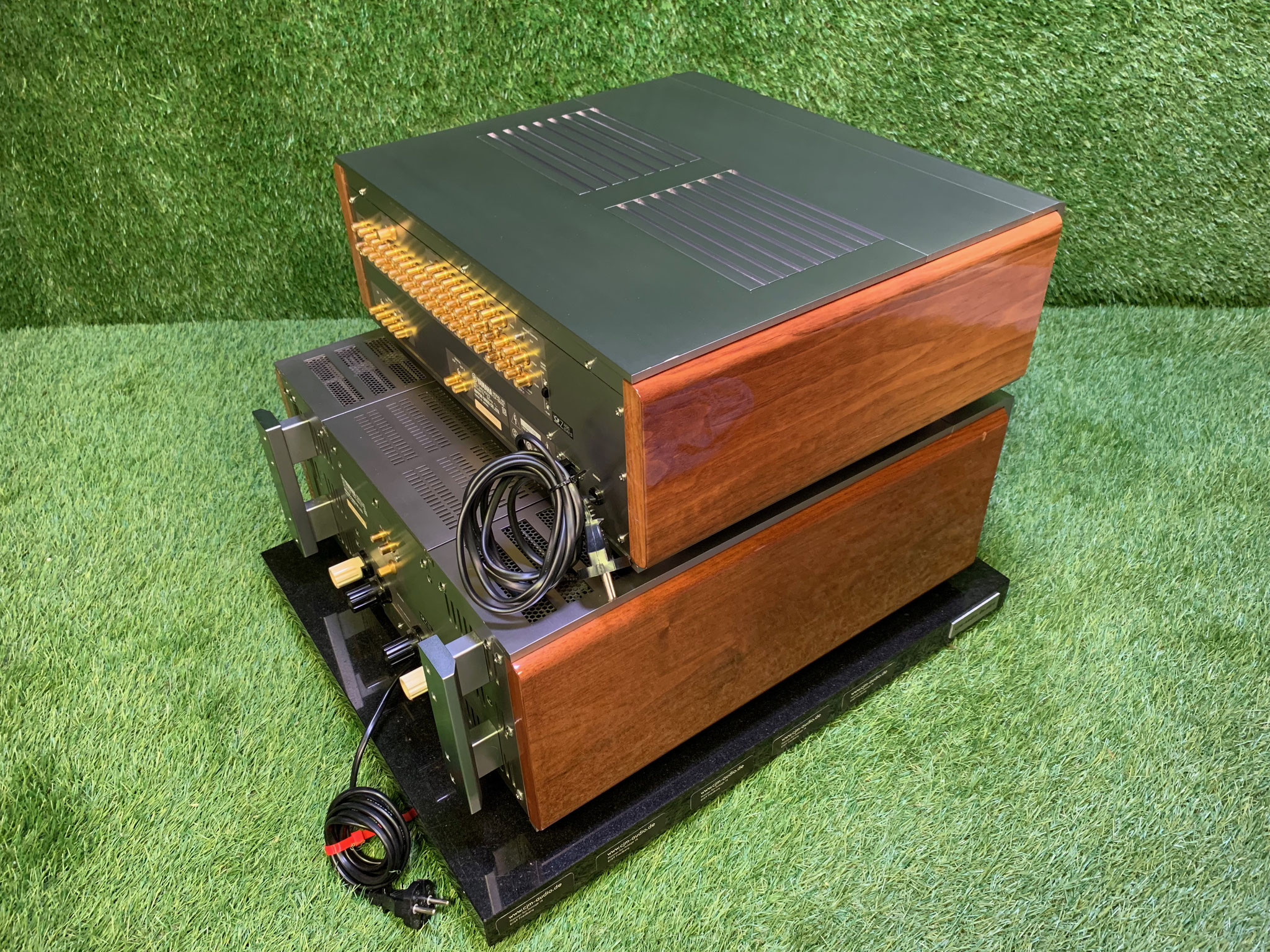

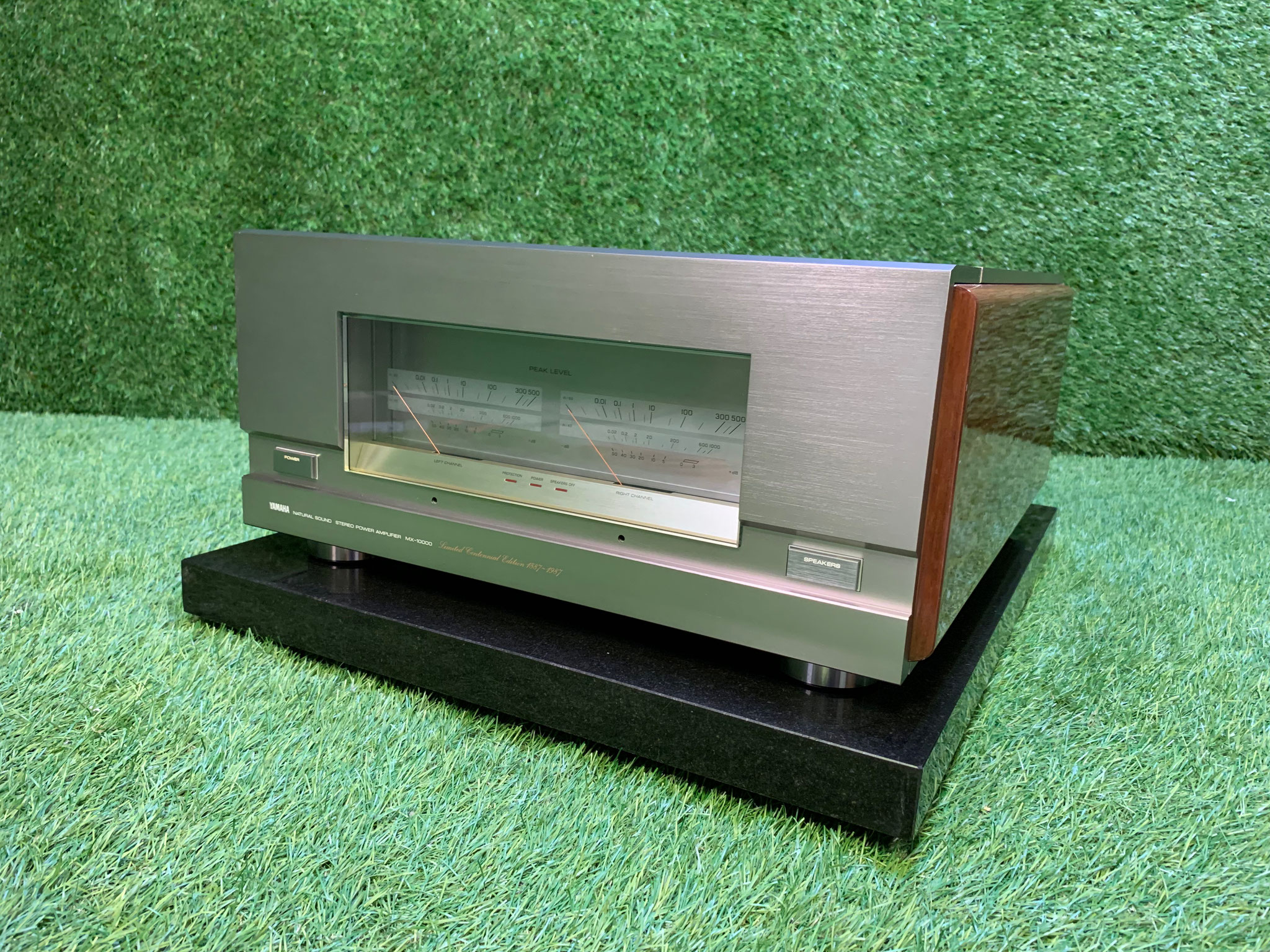

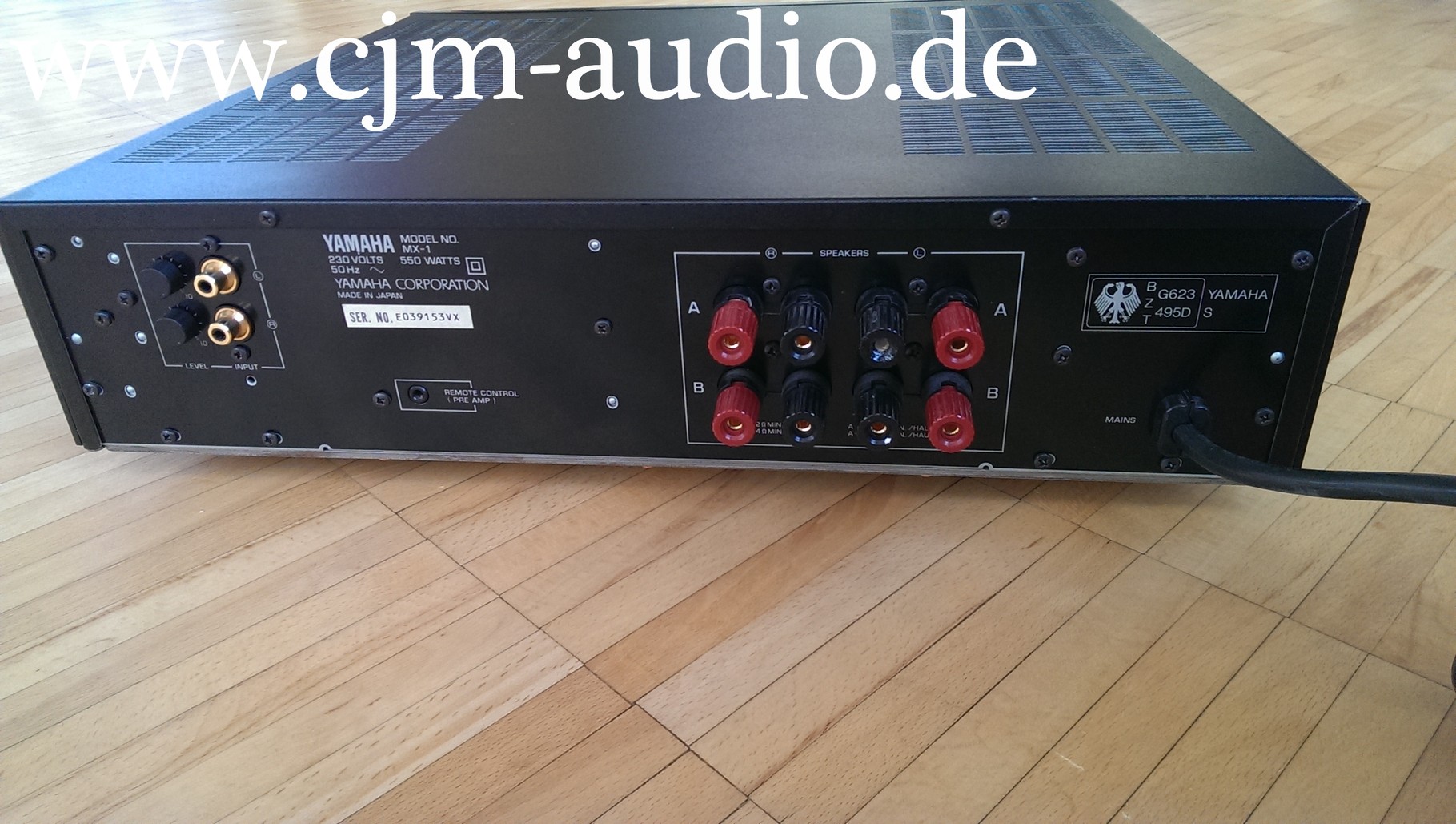

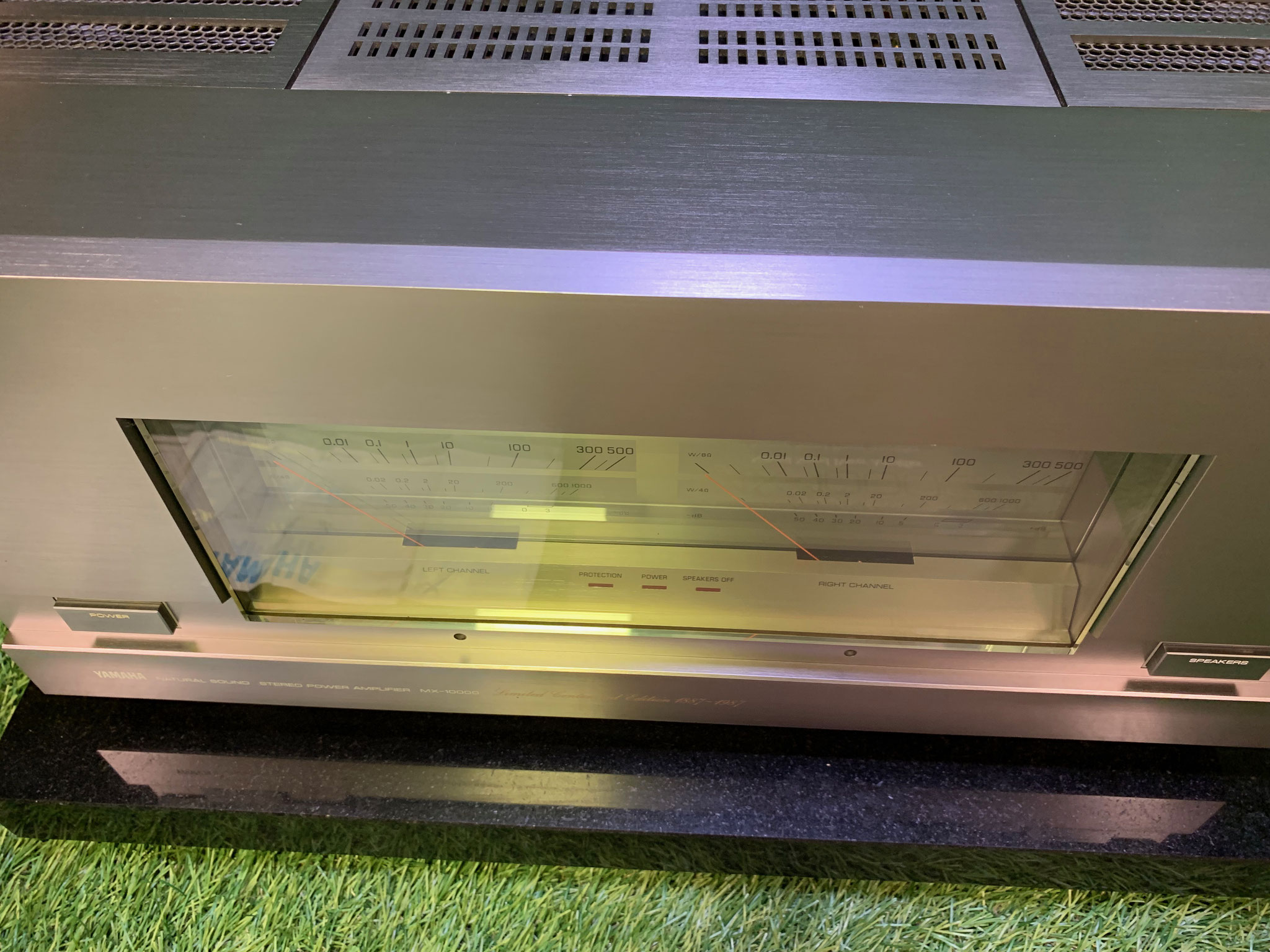

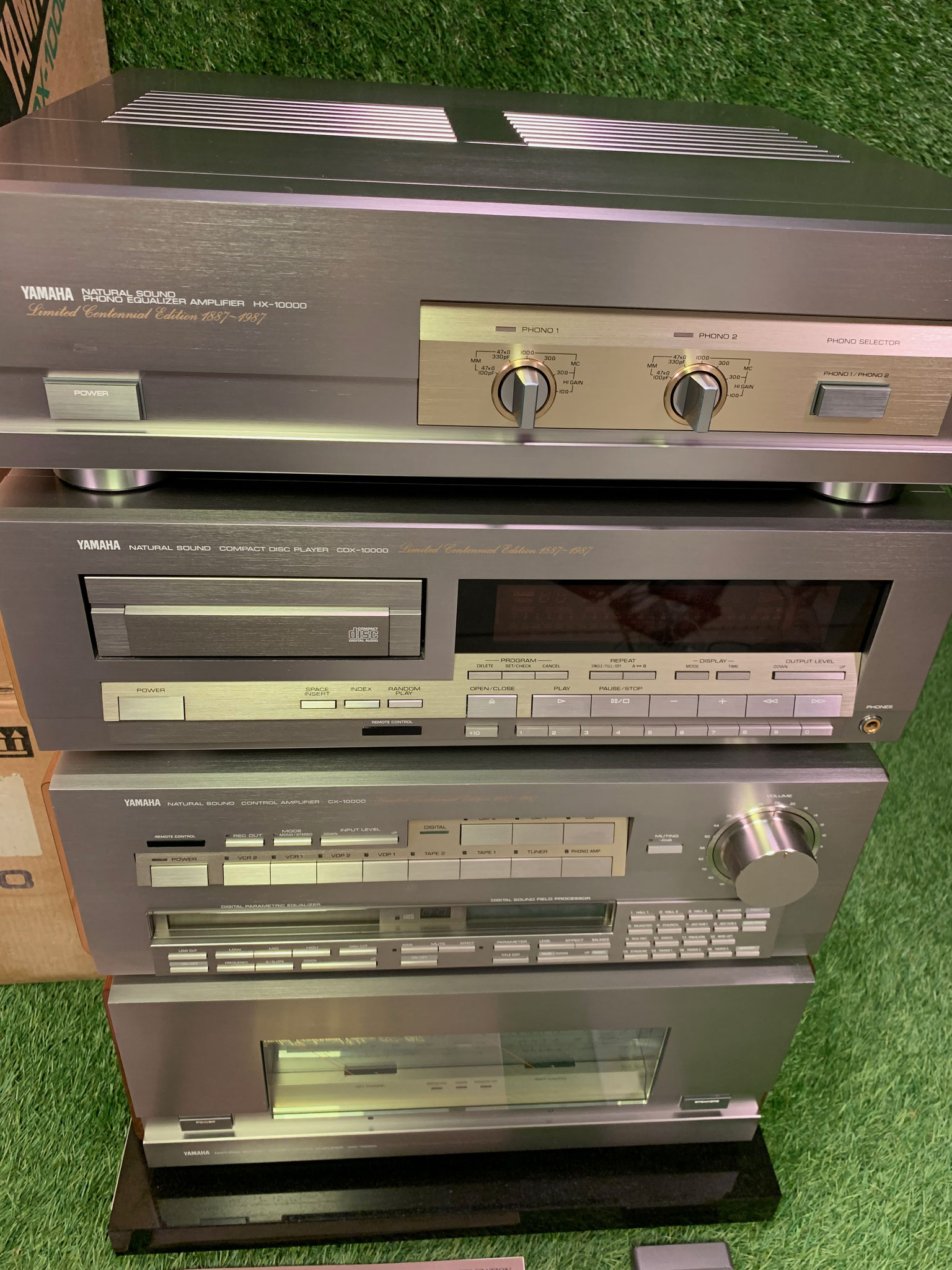

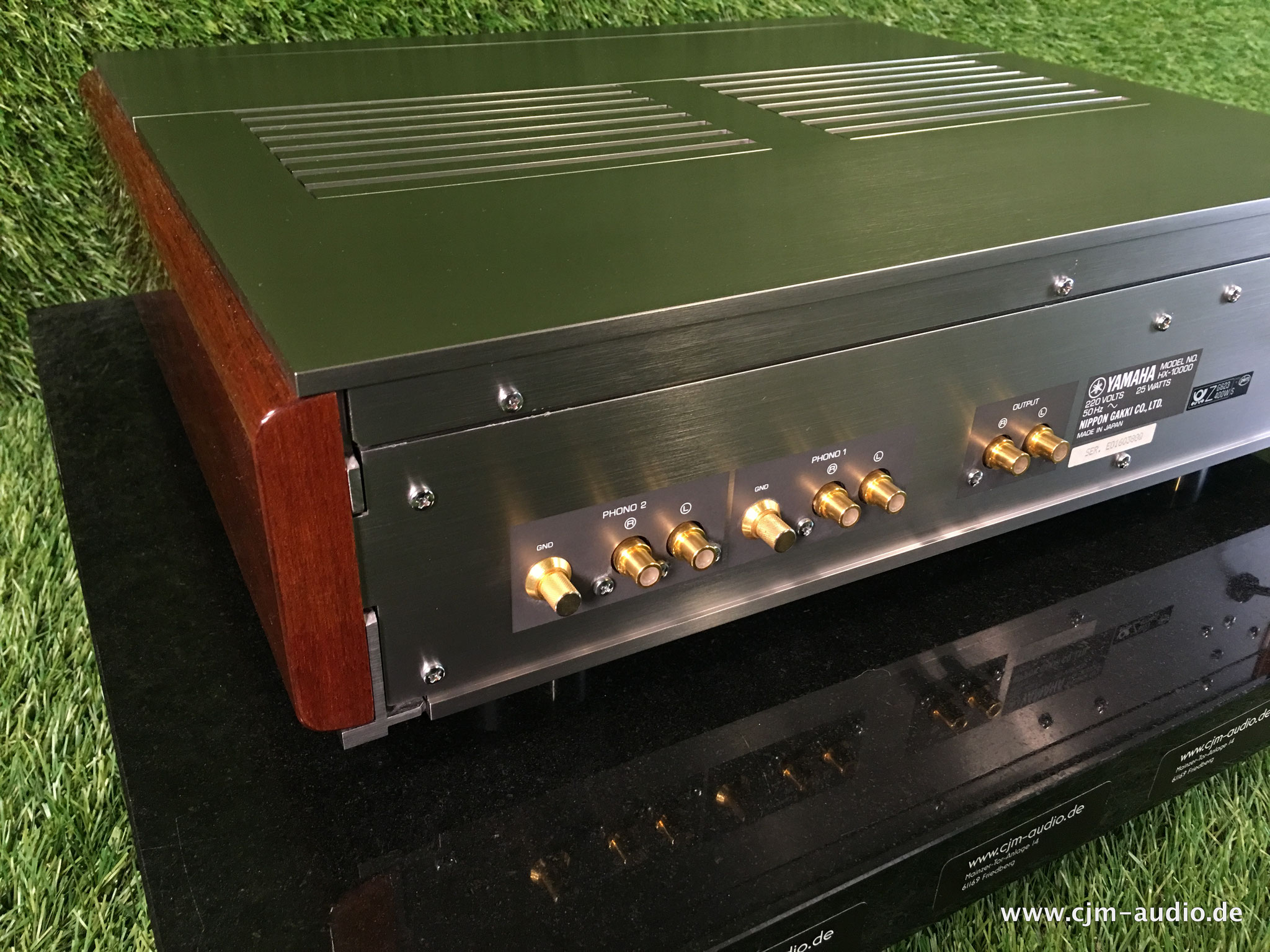

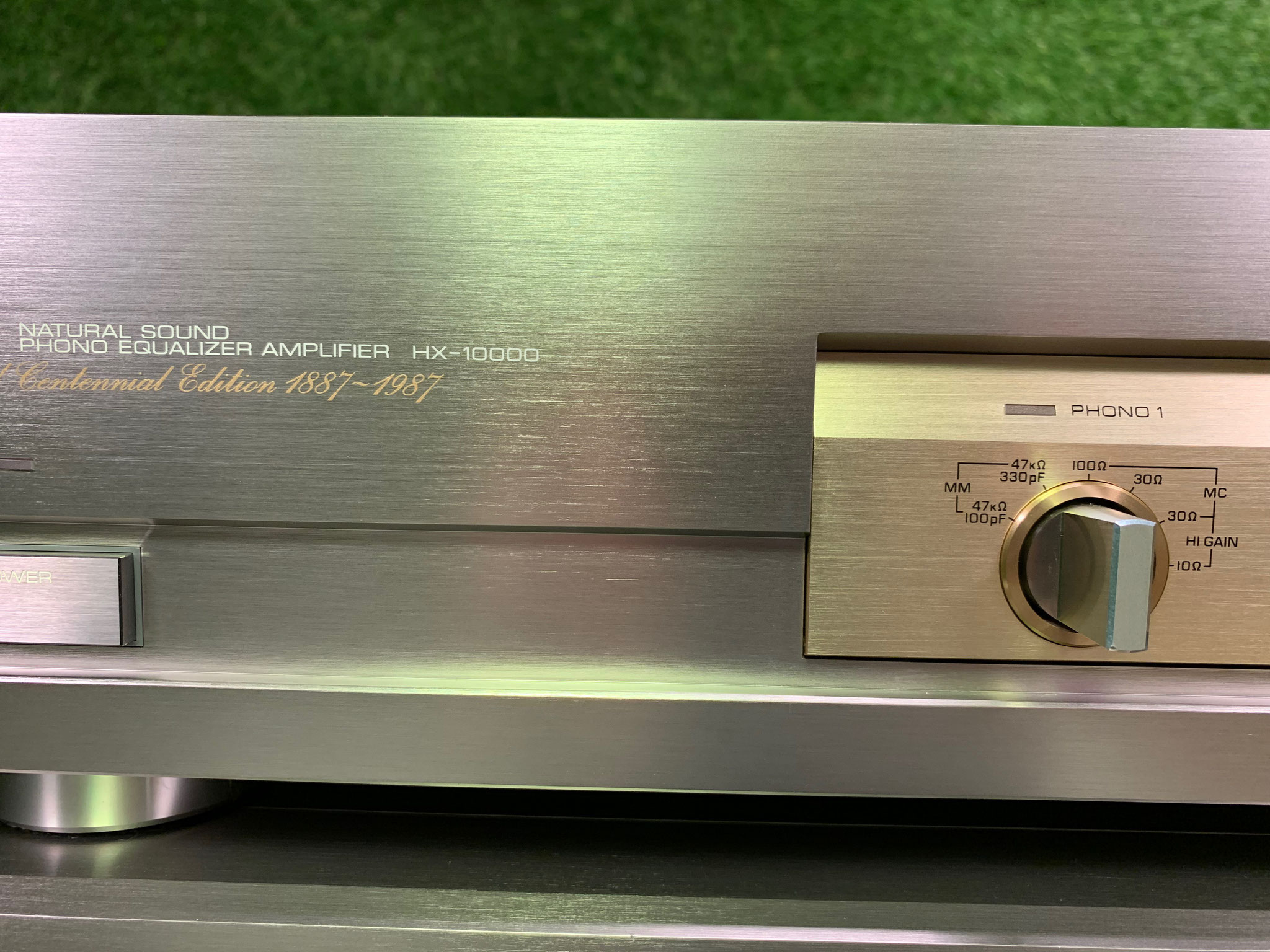

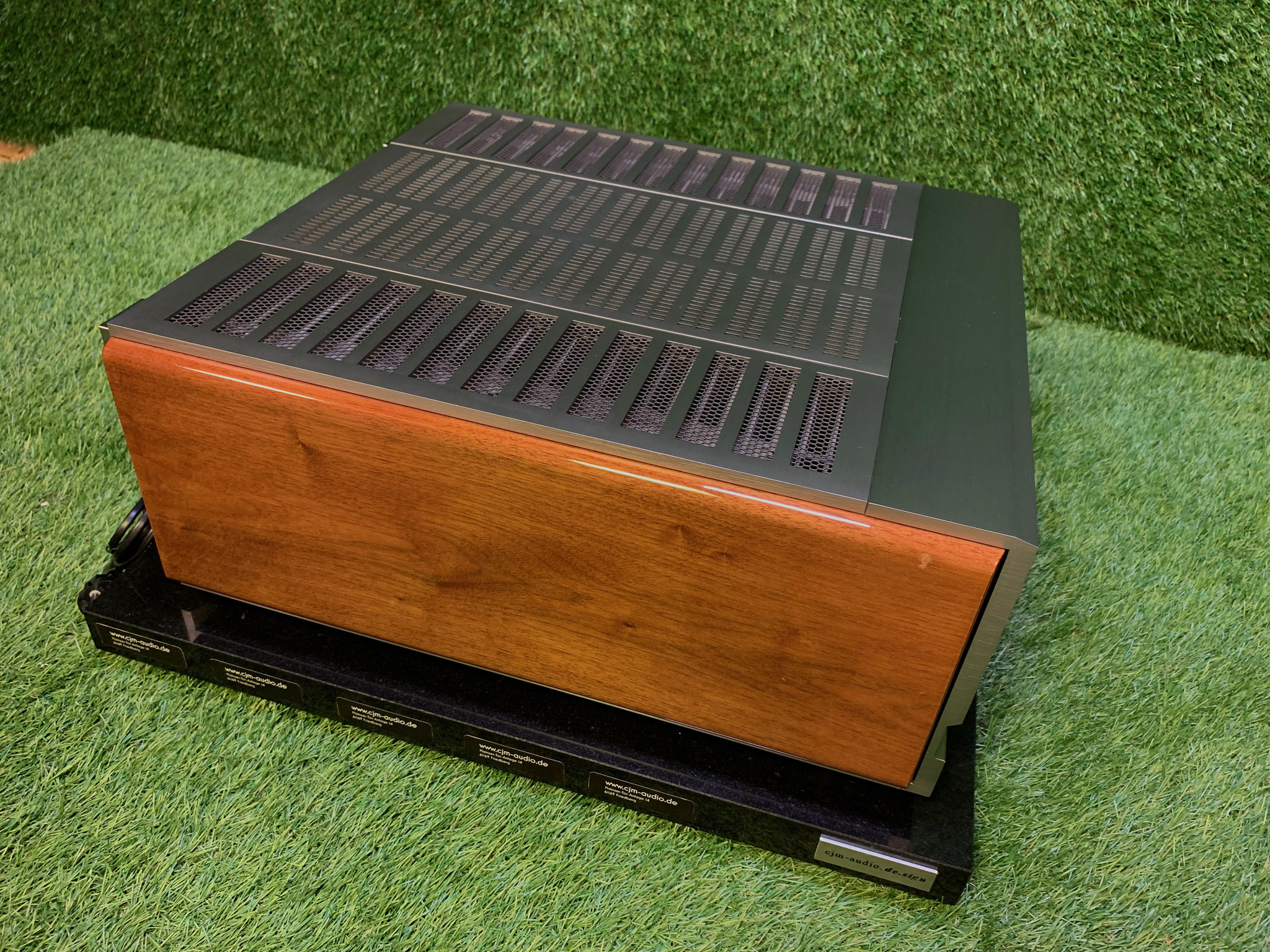

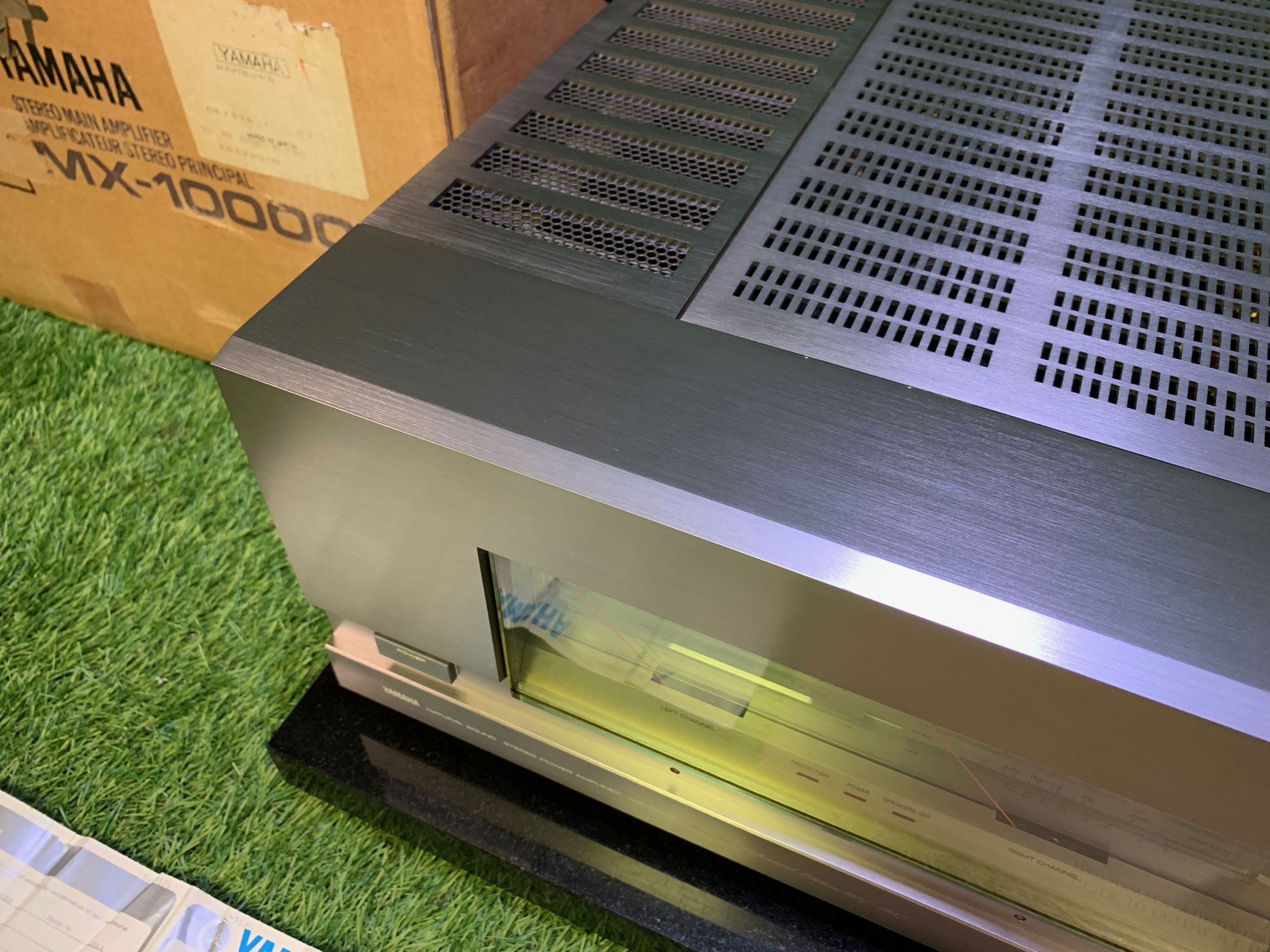

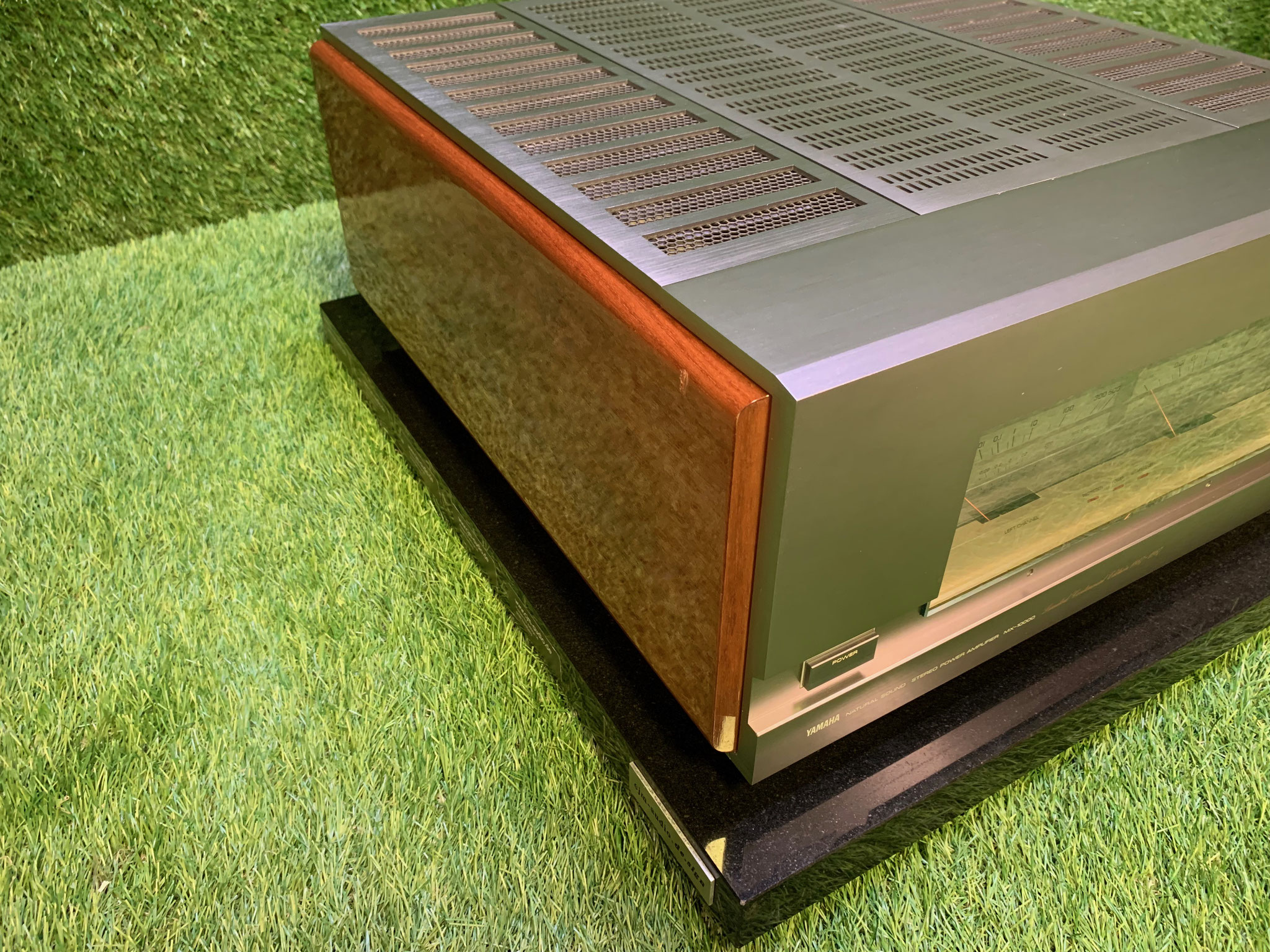

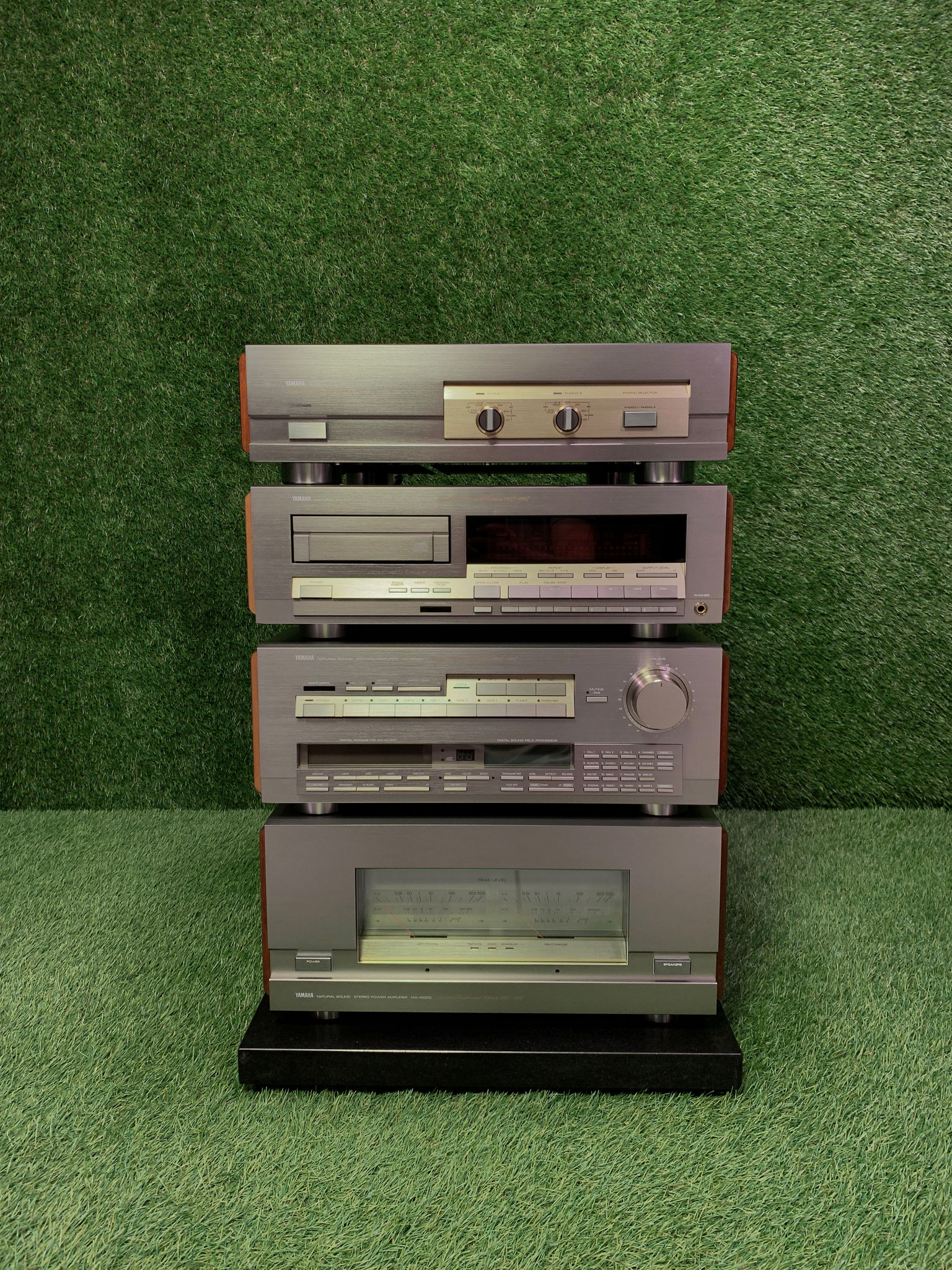

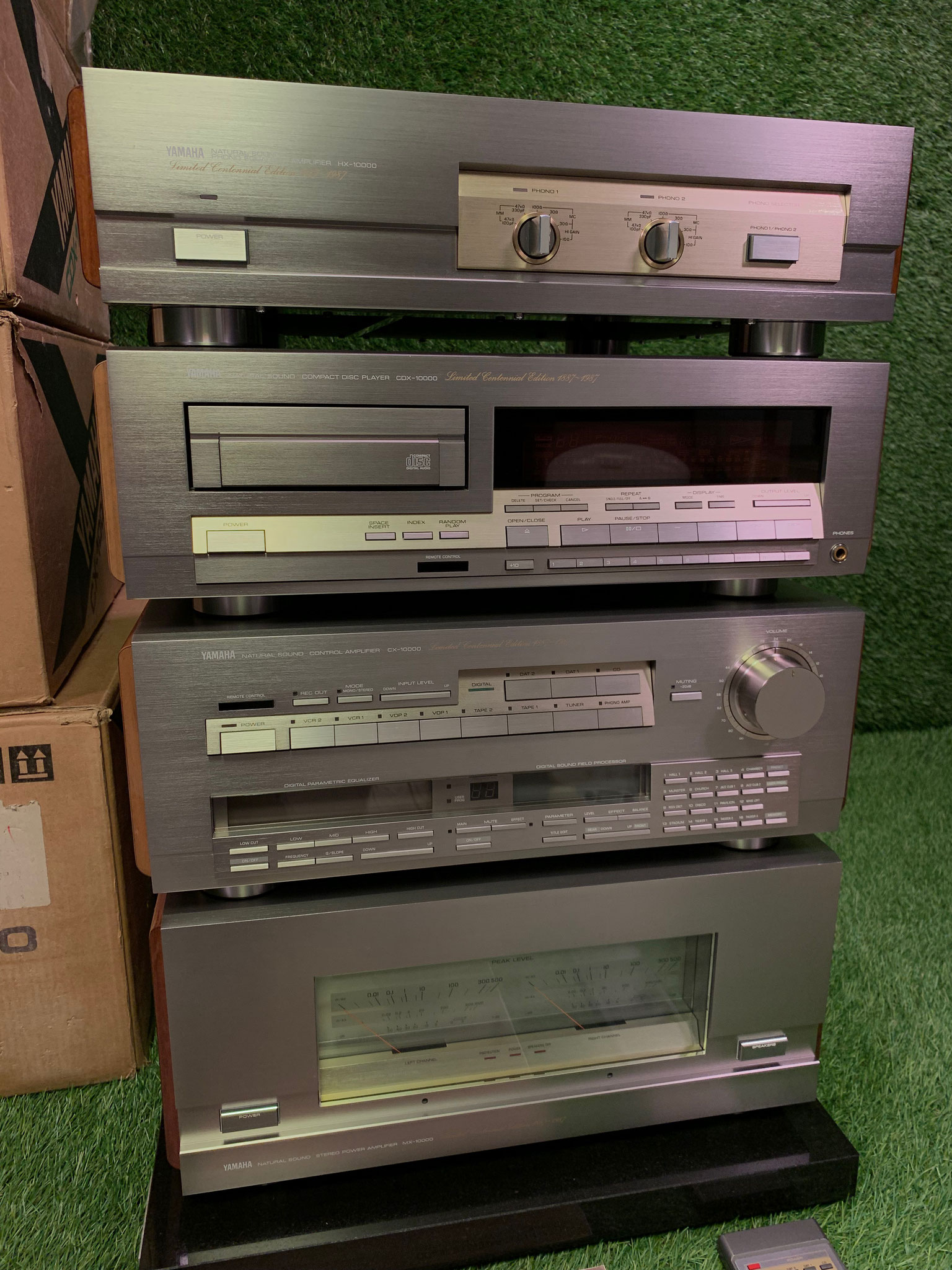

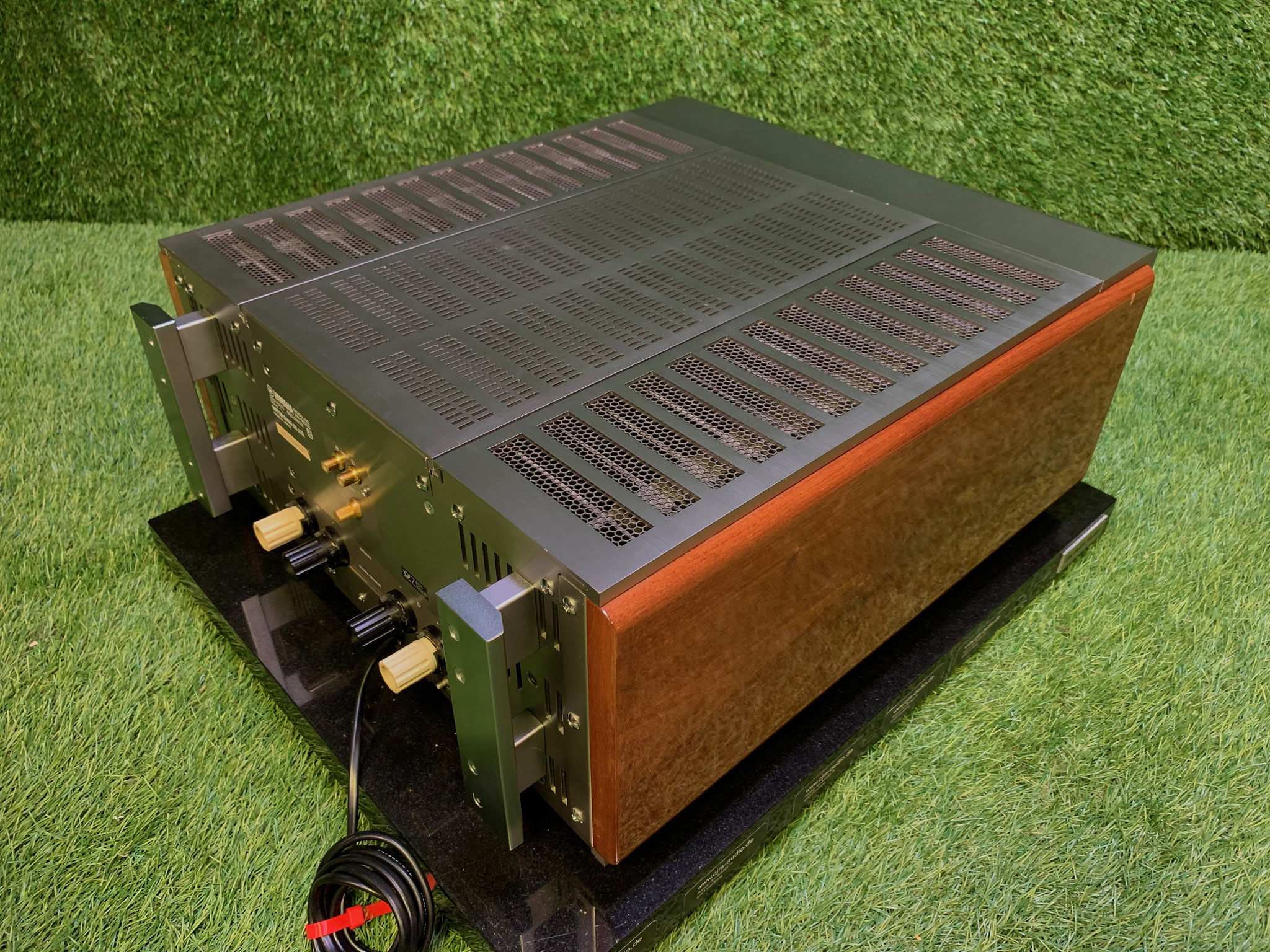

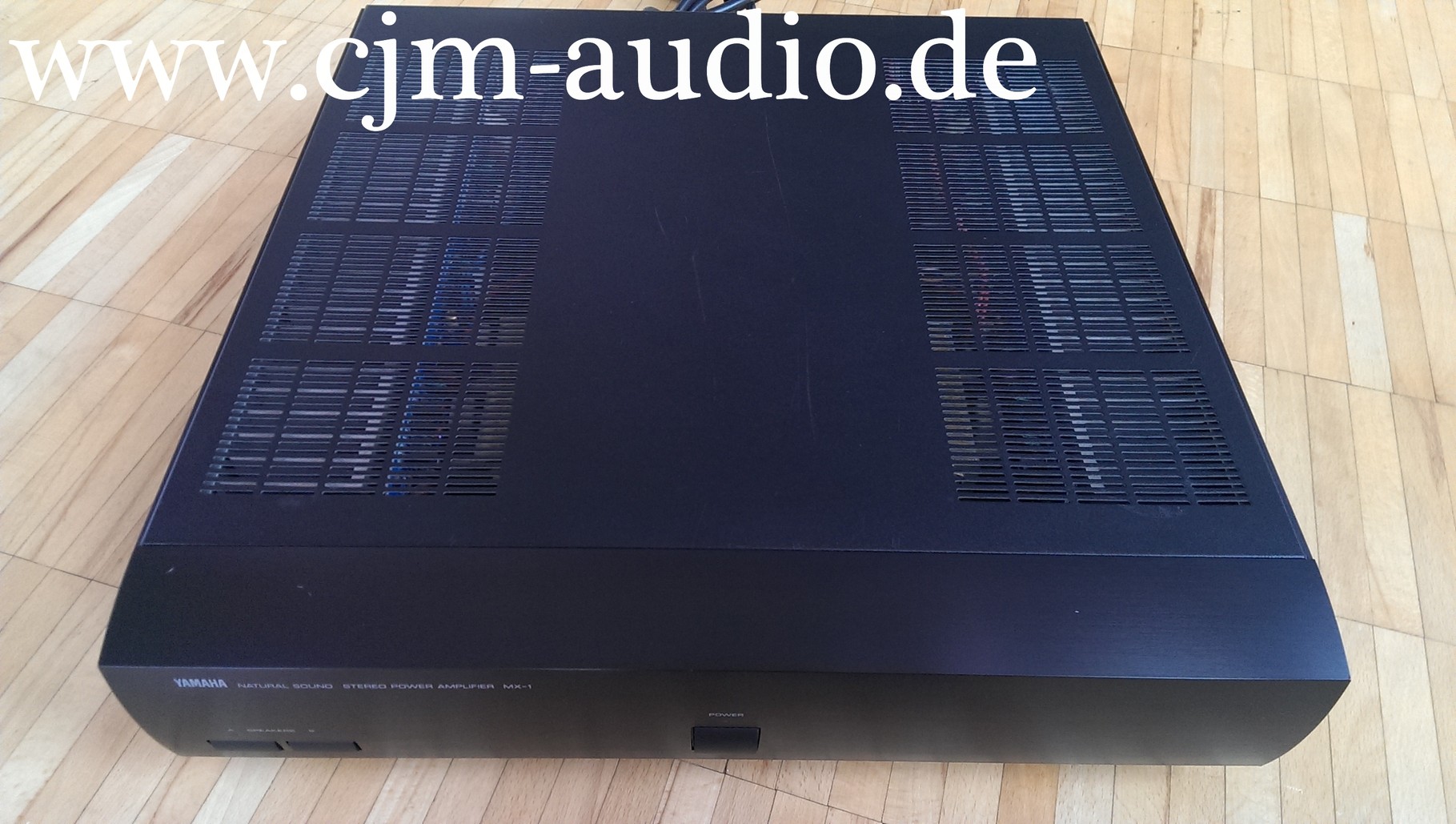

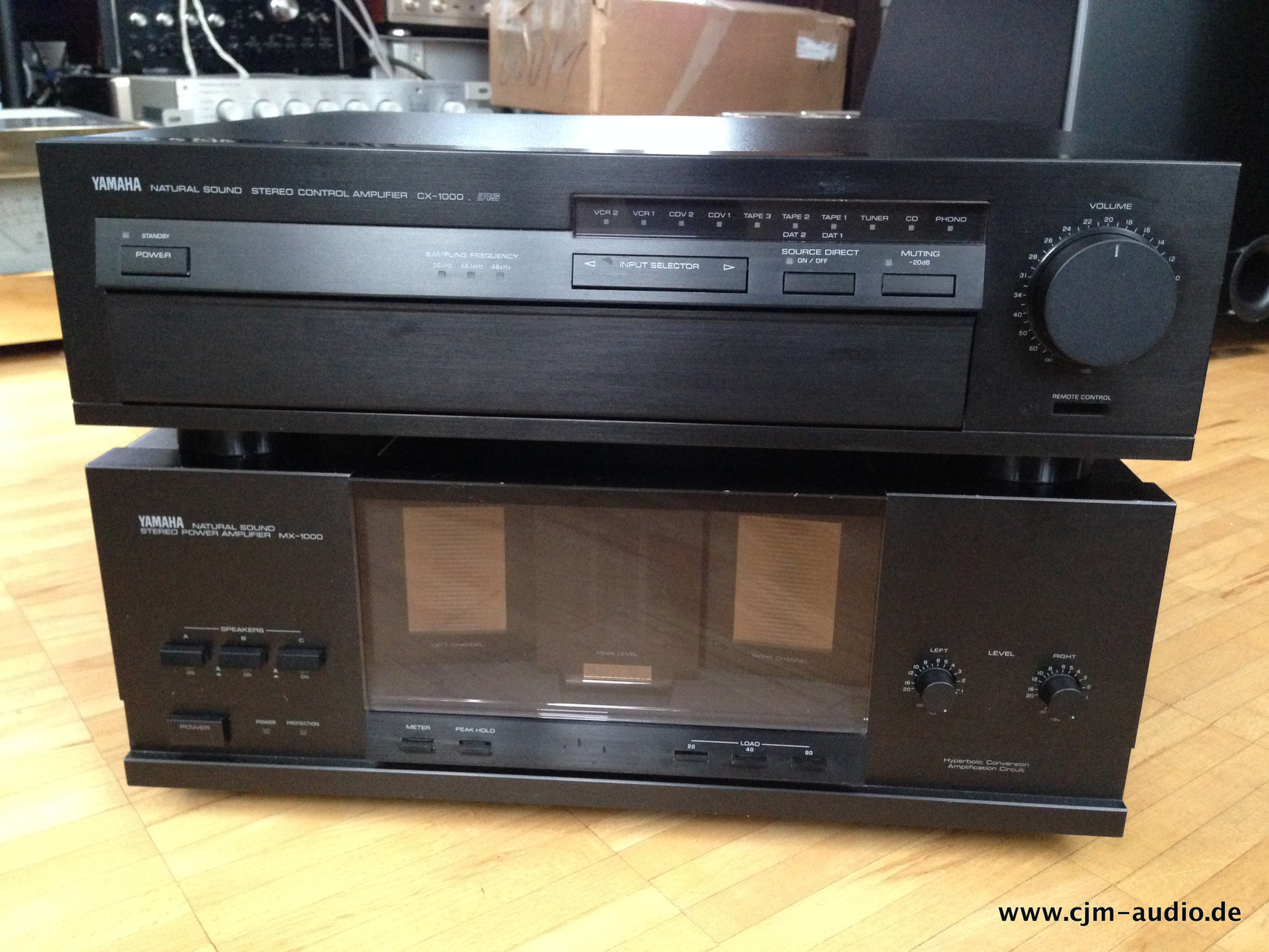

Yamaha MX-1000:

Dauerleistung (bei Klirrfaktor)

8 Ohm: 2x 260 Watt RMS (0,003%)

4 Ohm: 2x 330 Watt RMS (0,02%)

Dynamikleistung

8 Ohm: 2x 450 Watt

4 Ohm: 2x 740 Watt

Gesamtklirrfaktor: 0,003%

Dämpfungsfaktor: 130 an 8 Ohm

Eingang (Empfindlichkeit/Impedanz)

Line 1,62V/60 KOhm

Frequenzgang: 10-60000 Hz

Brummspannungsabstand (kurzgeschlossen):

Stereokanaltrennung: 89dB

Signalrauschabstand: 126dB

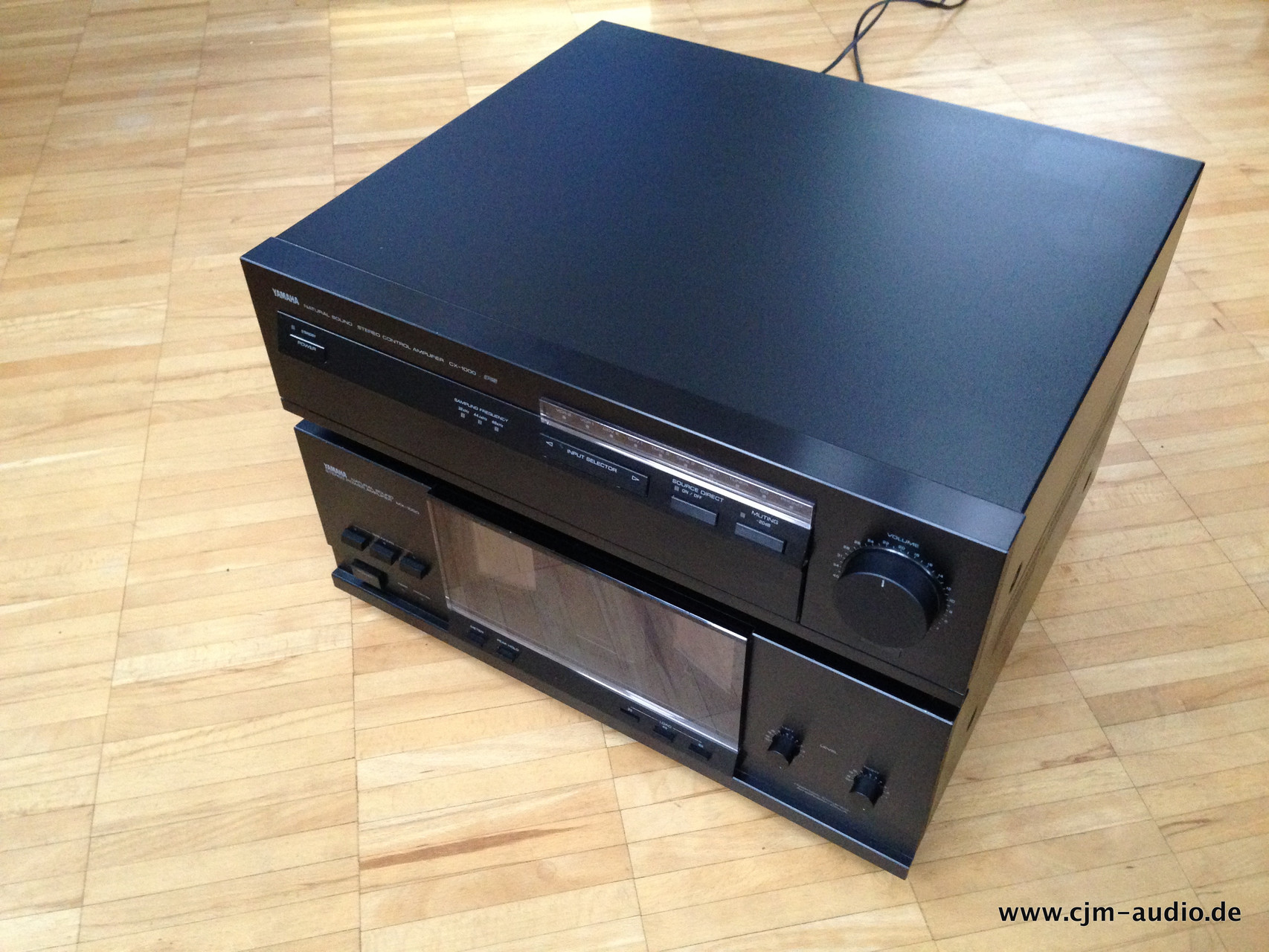

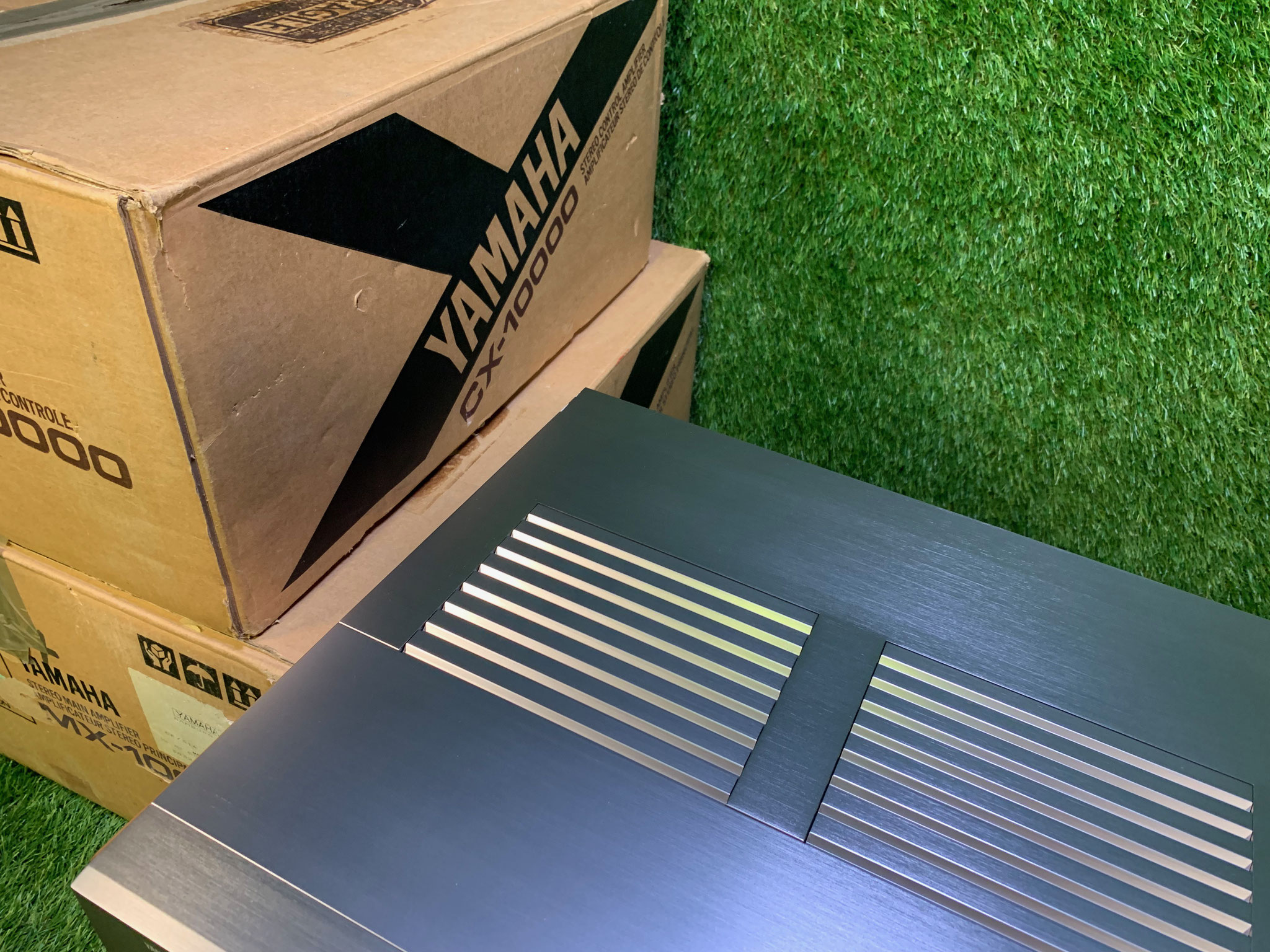

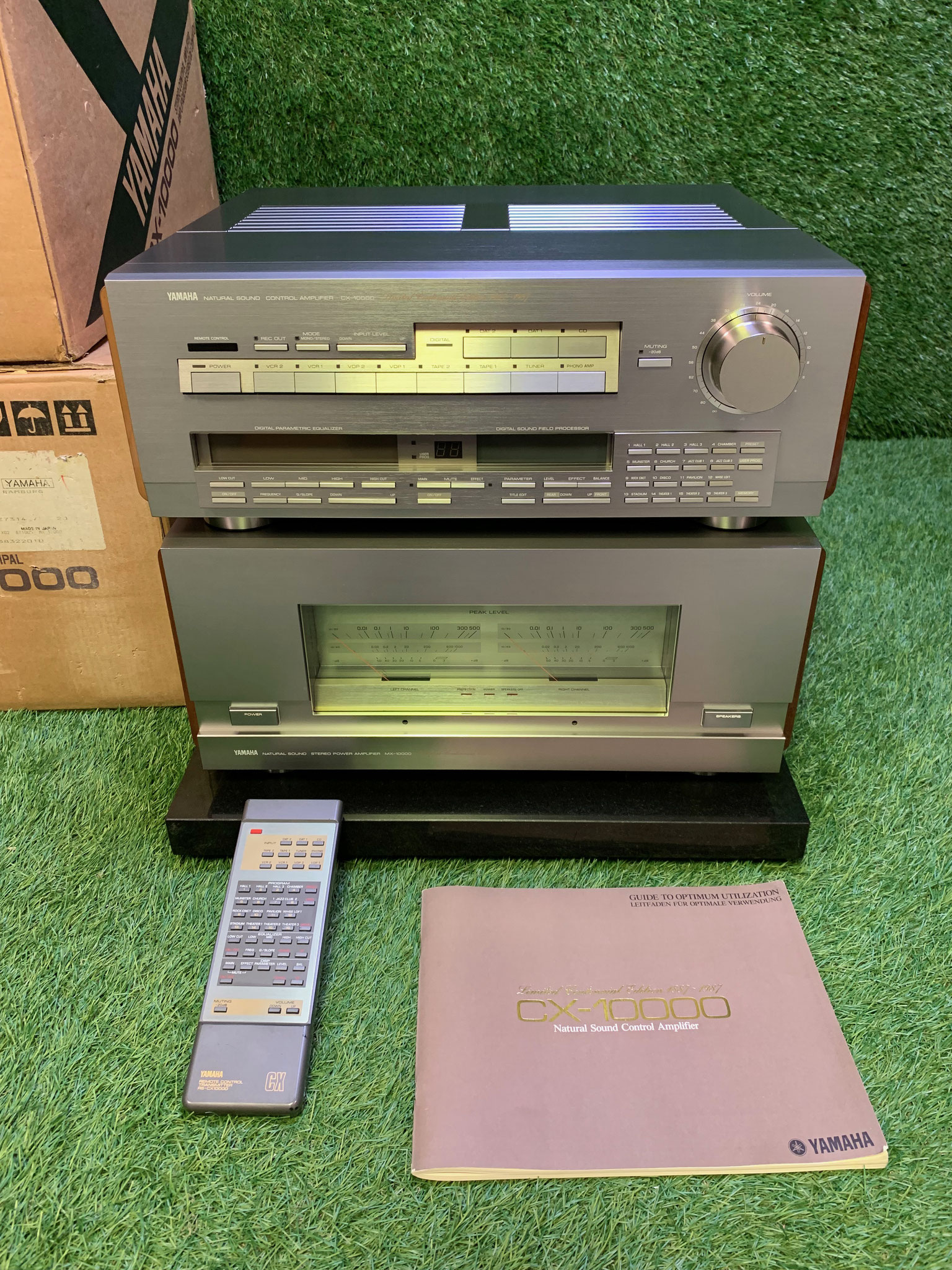

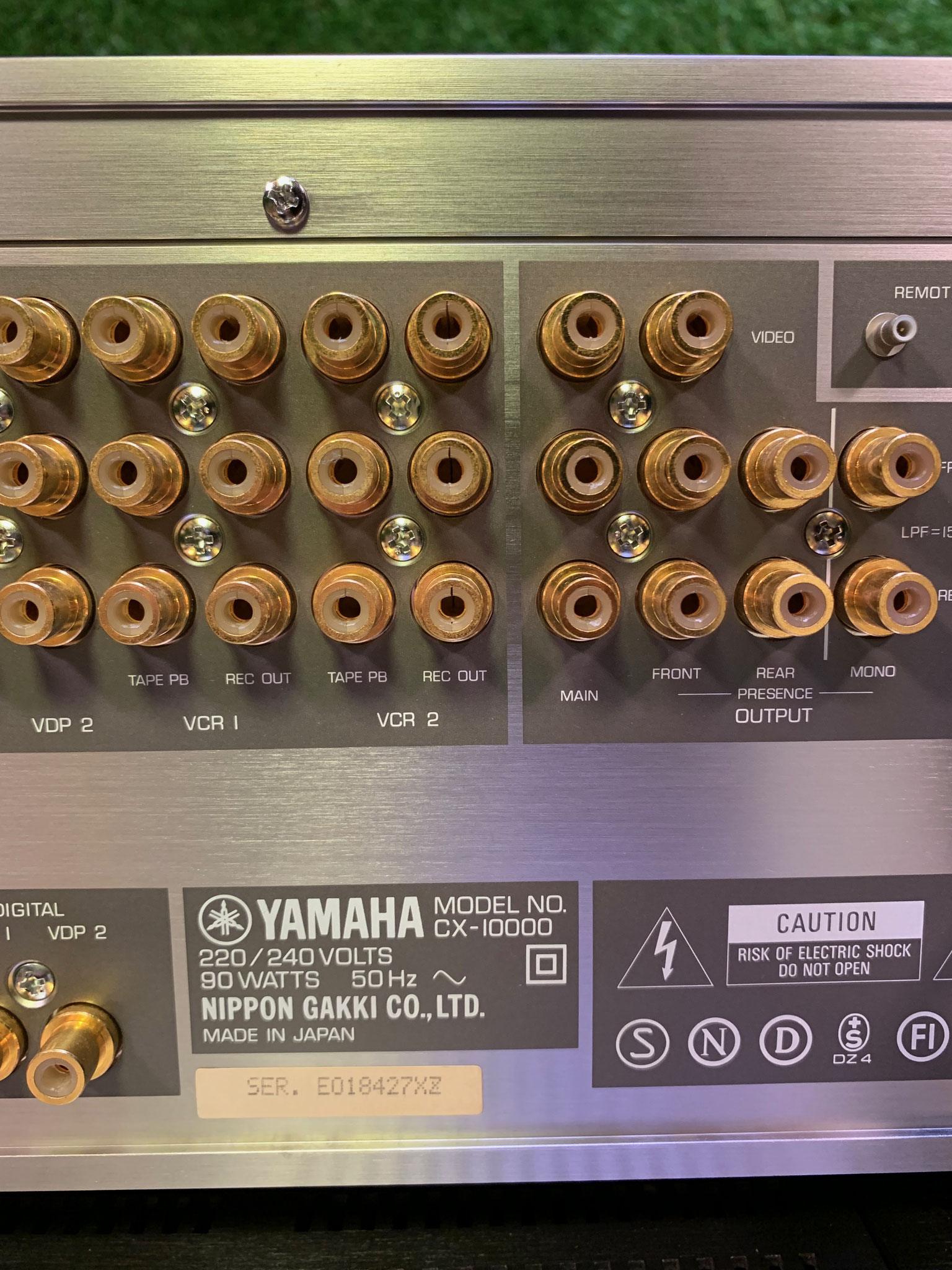

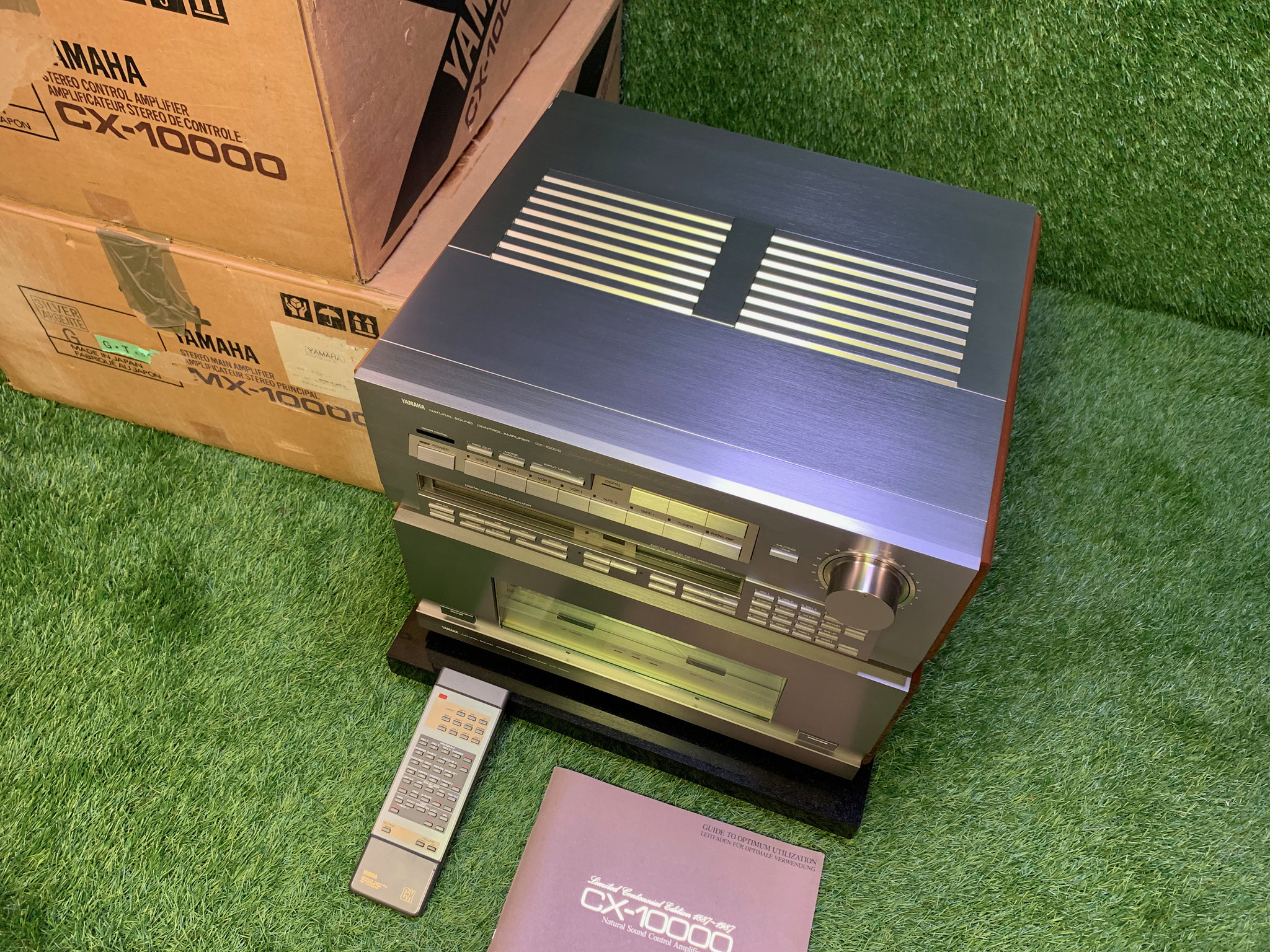

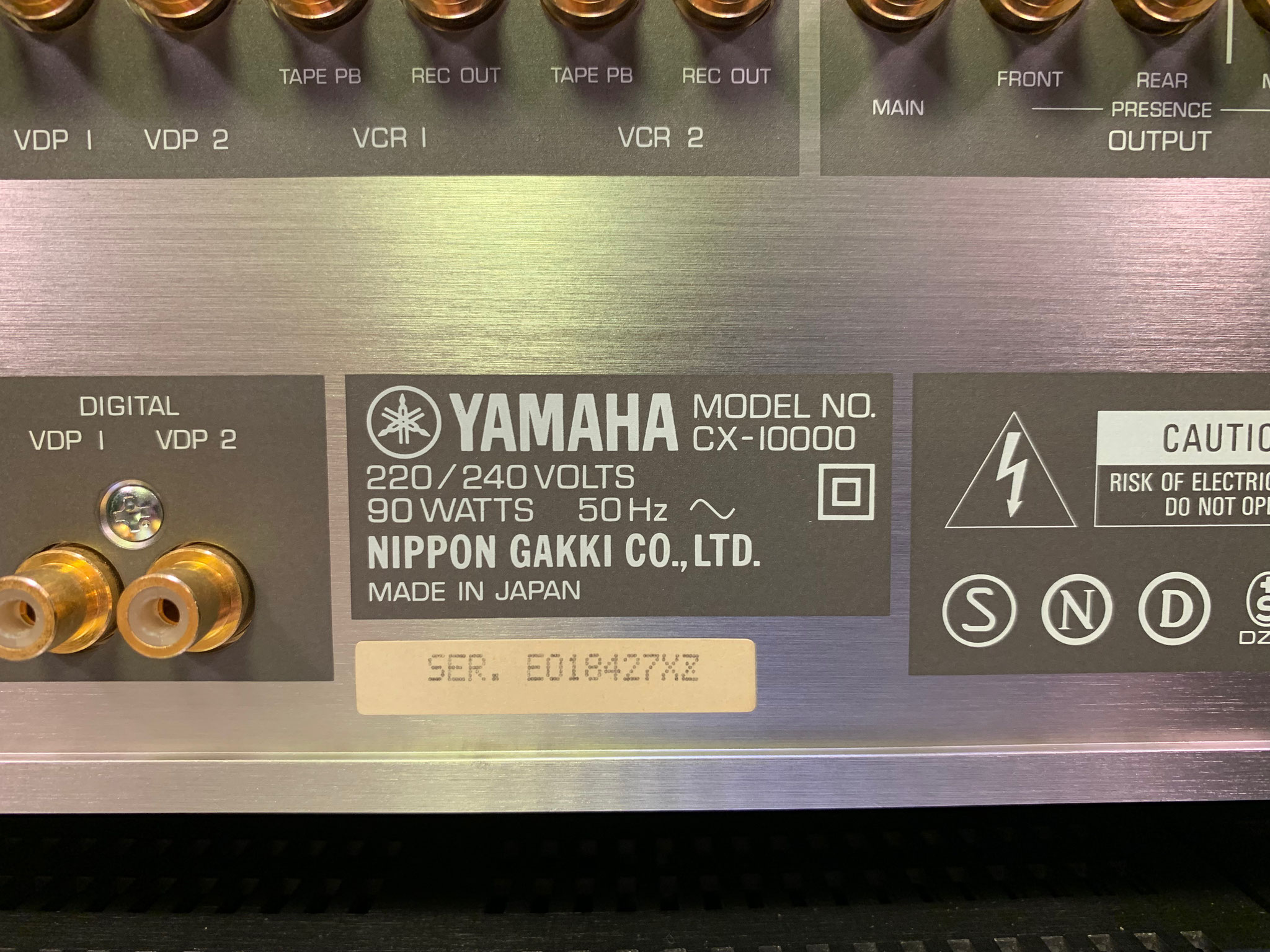

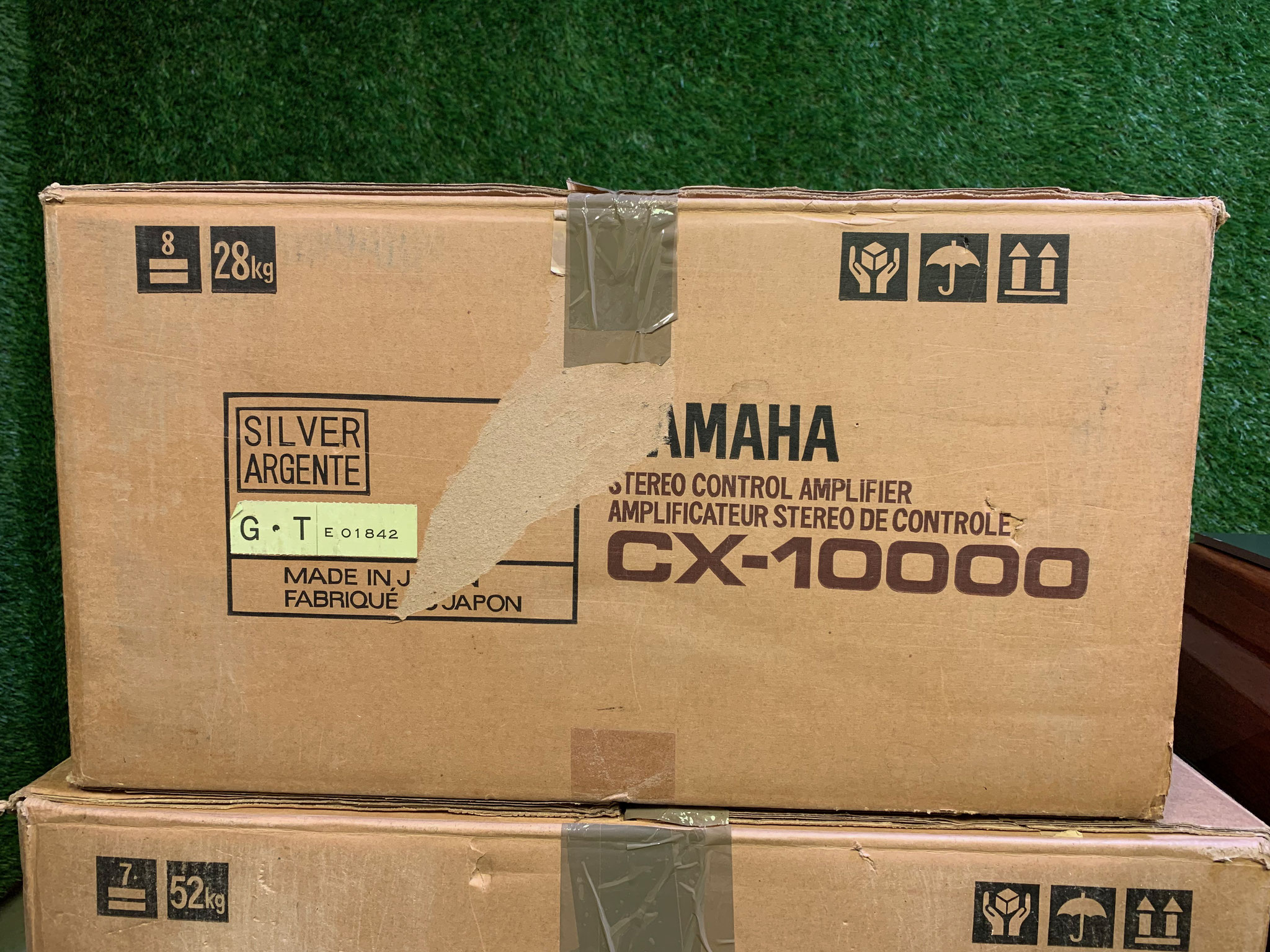

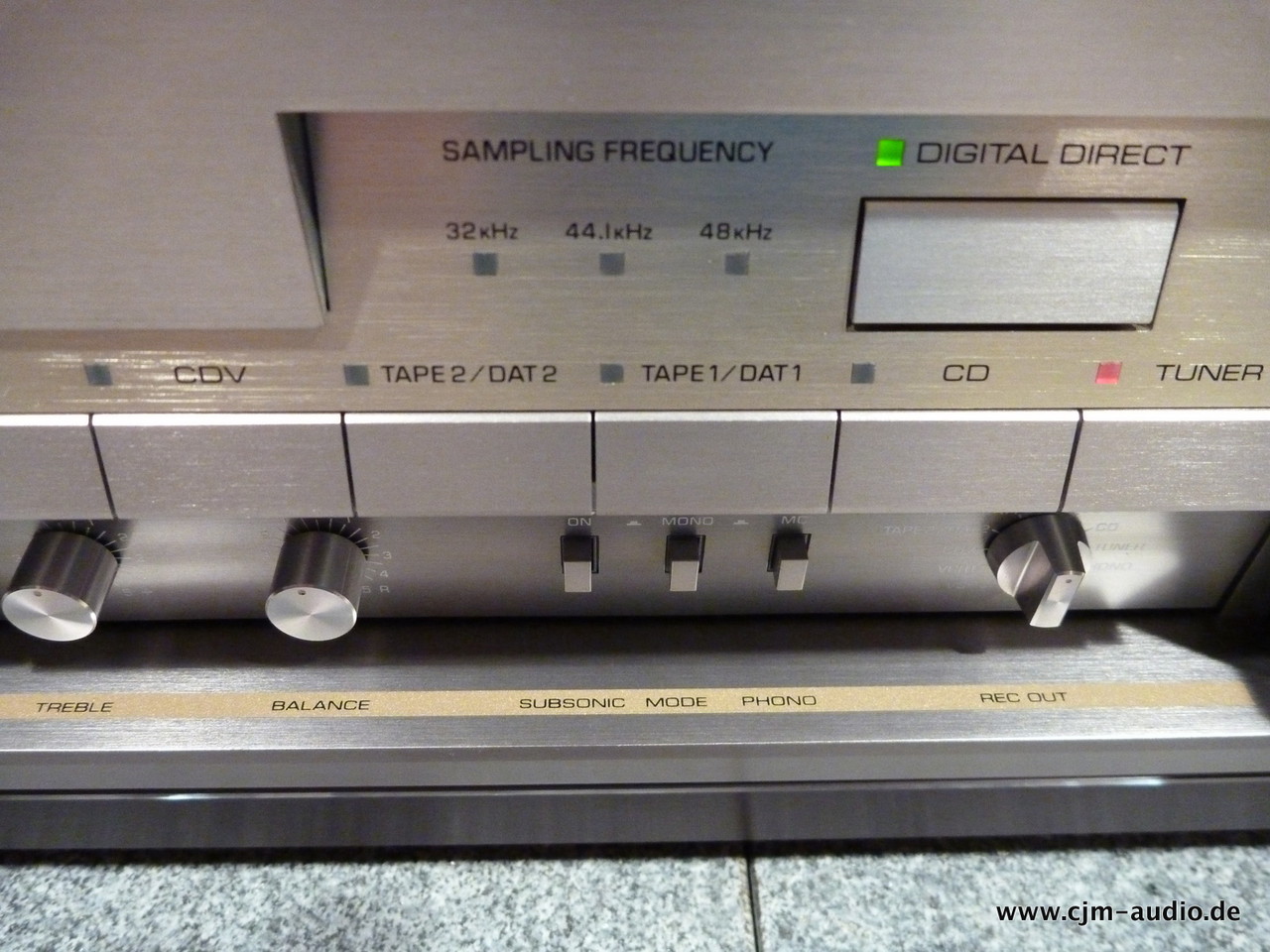

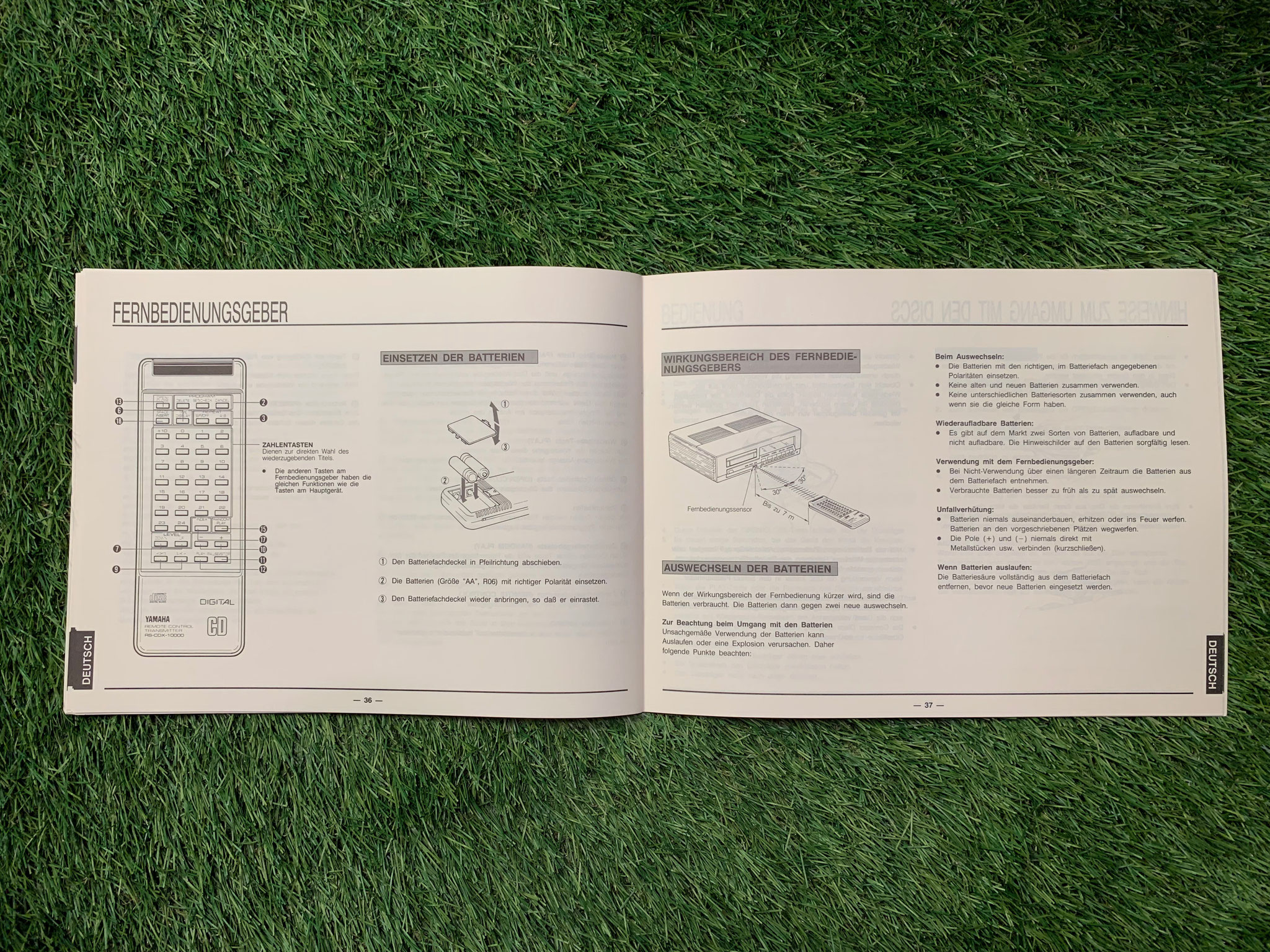

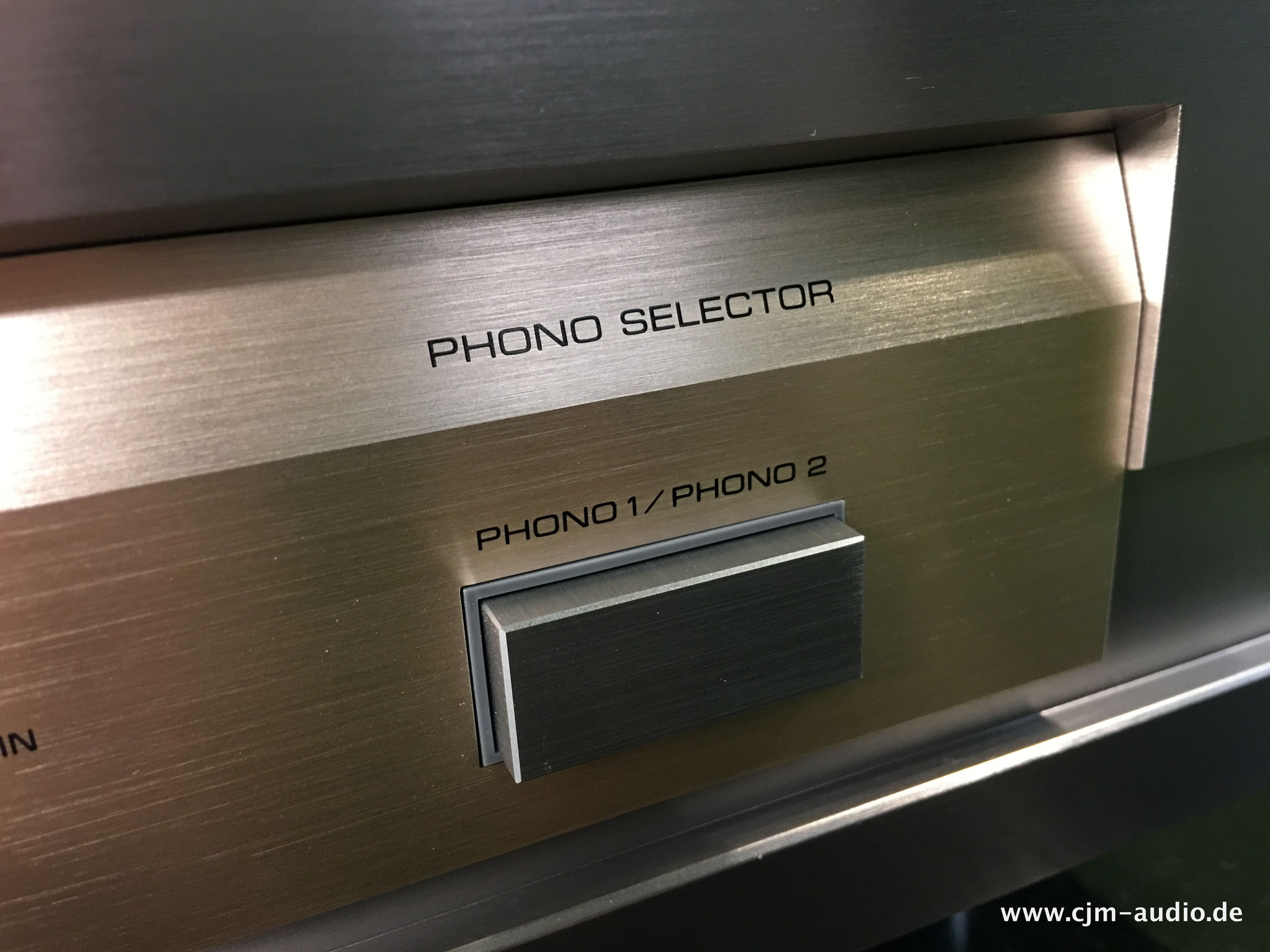

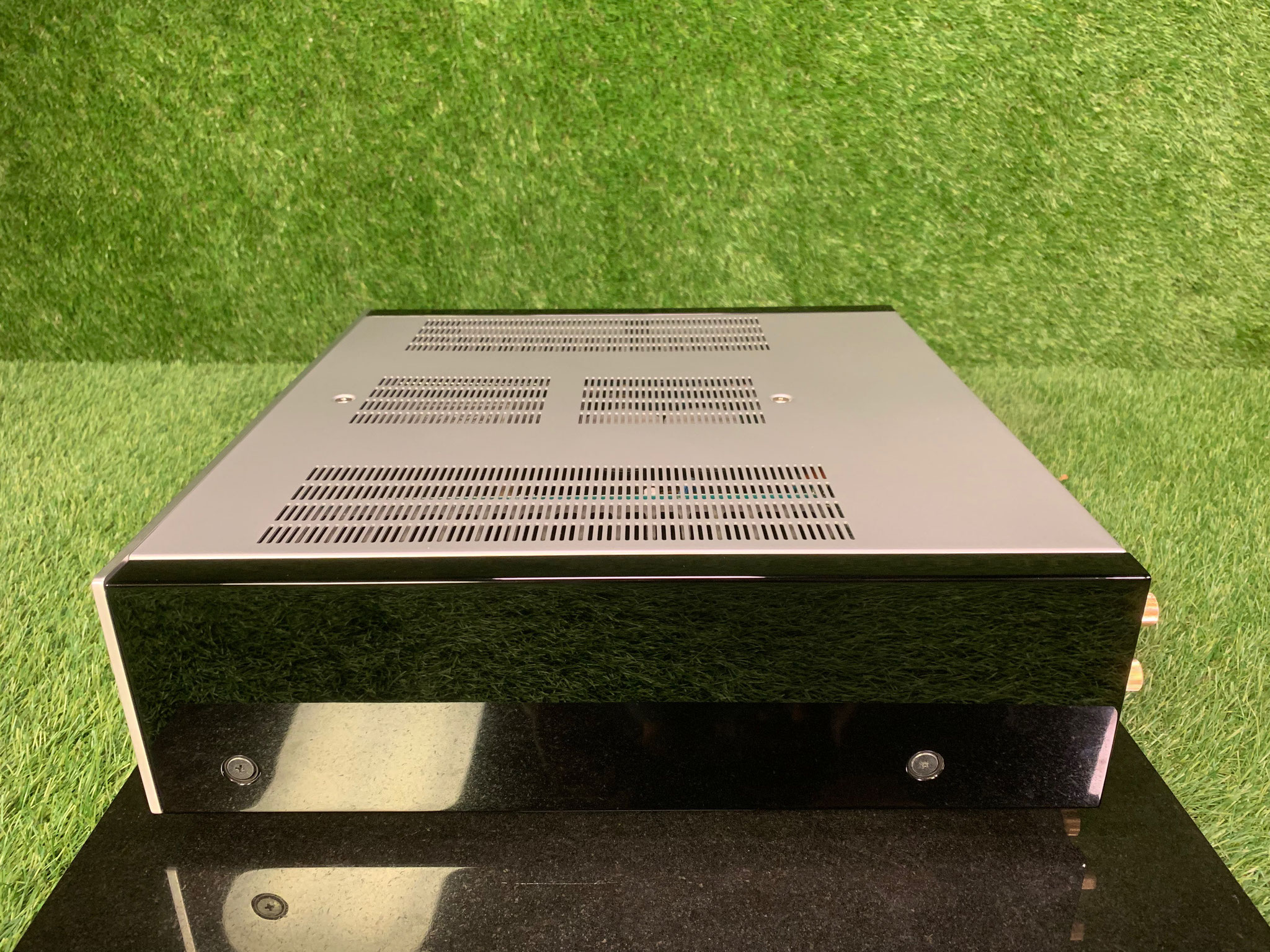

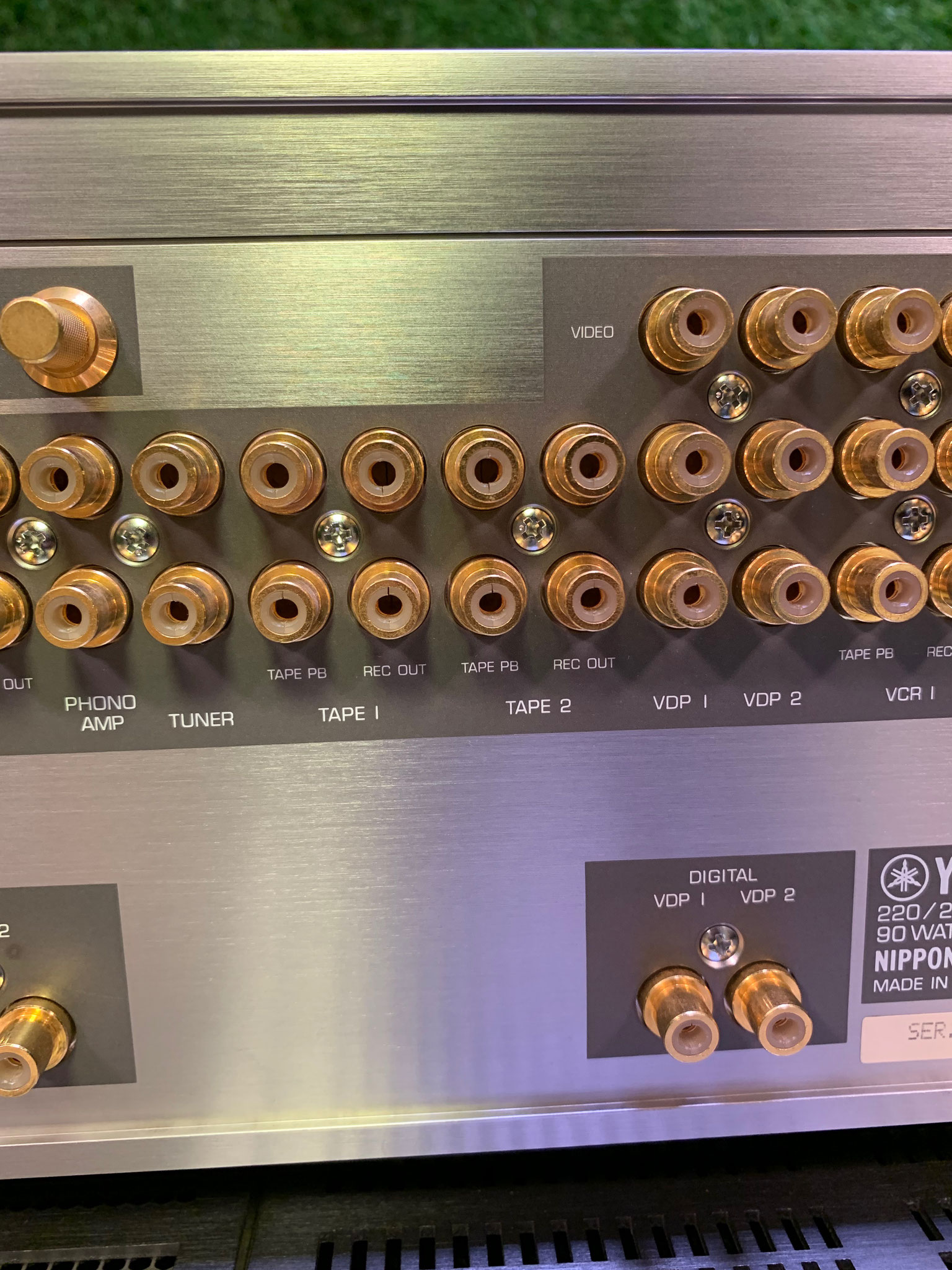

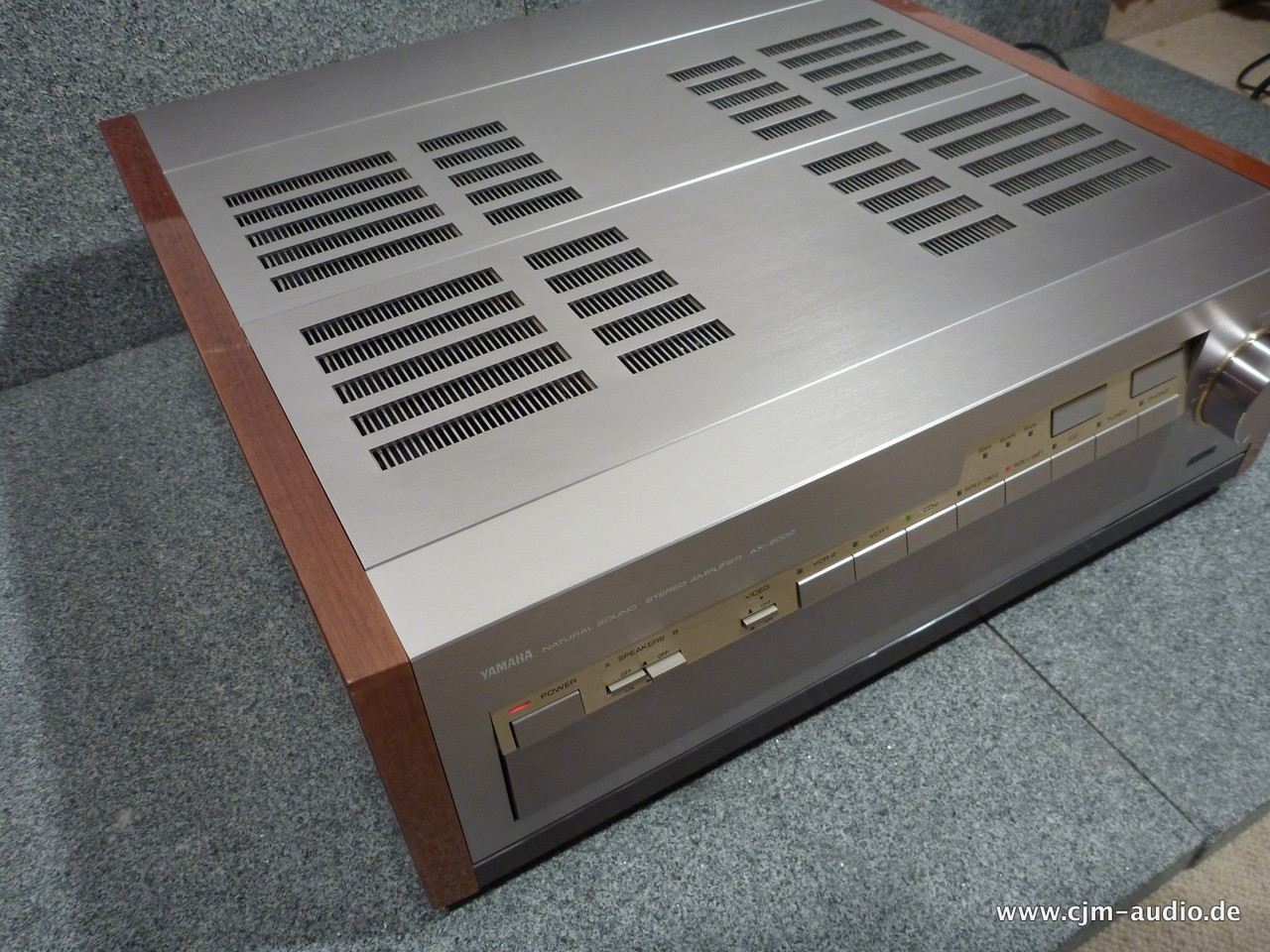

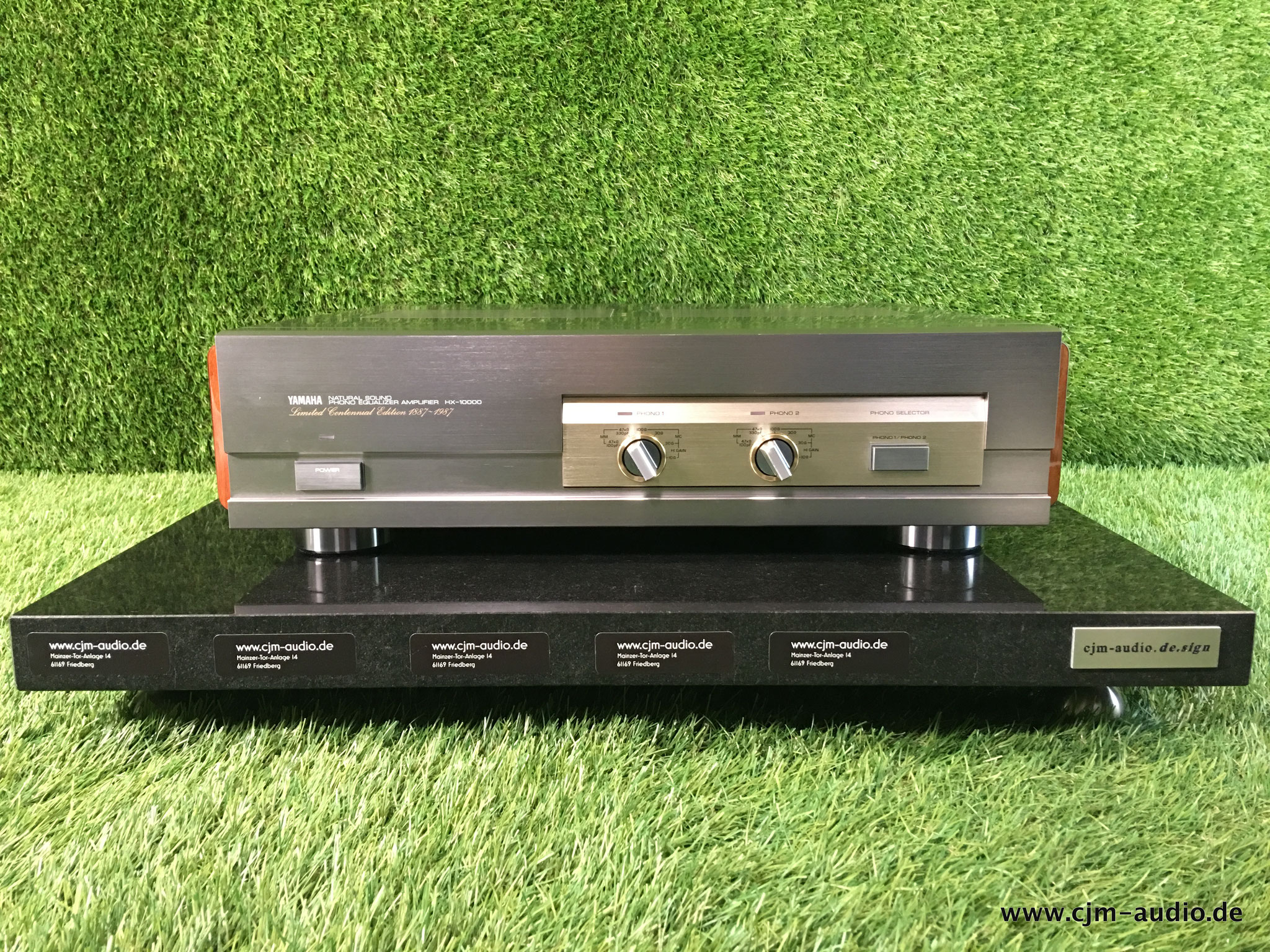

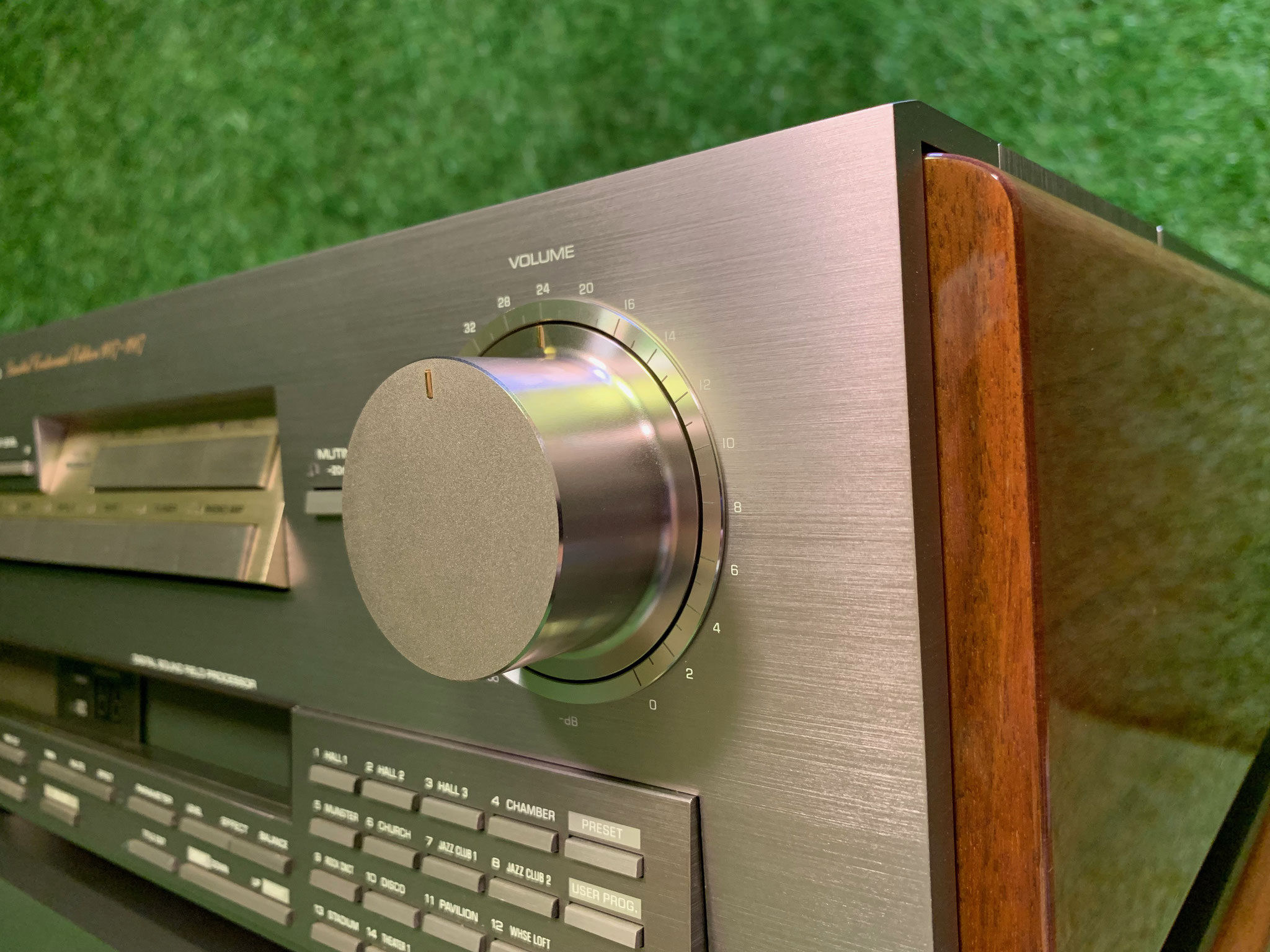

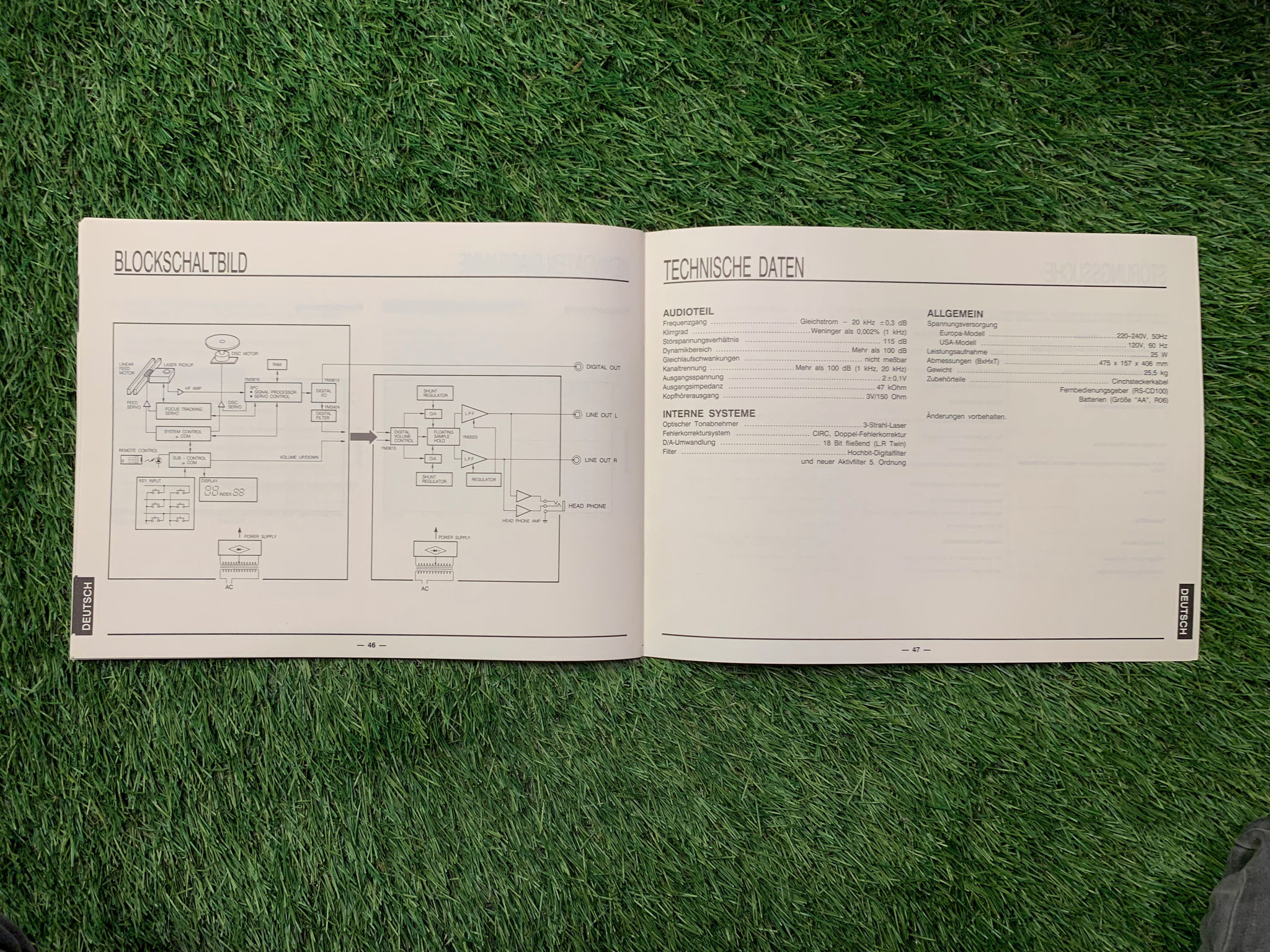

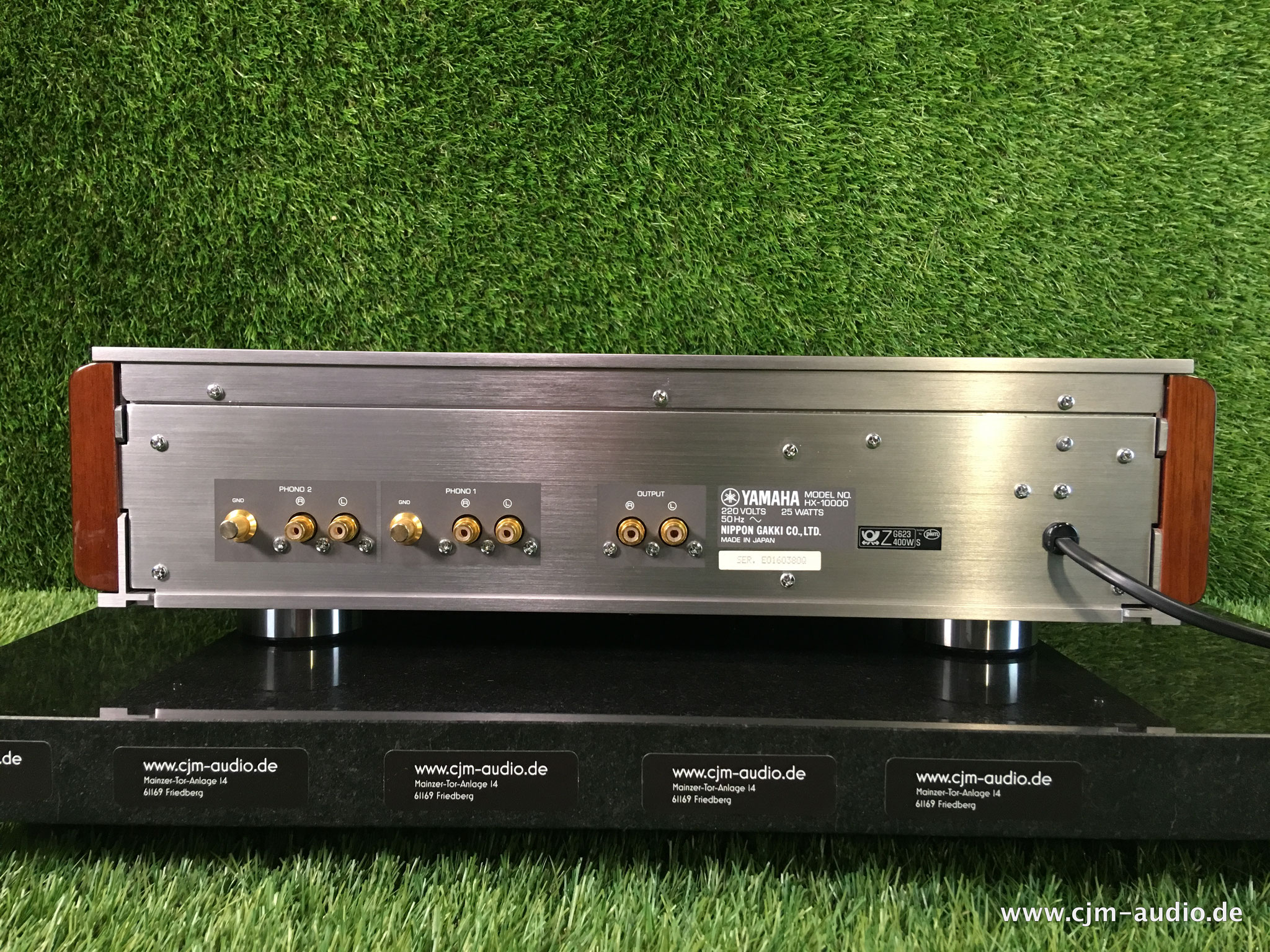

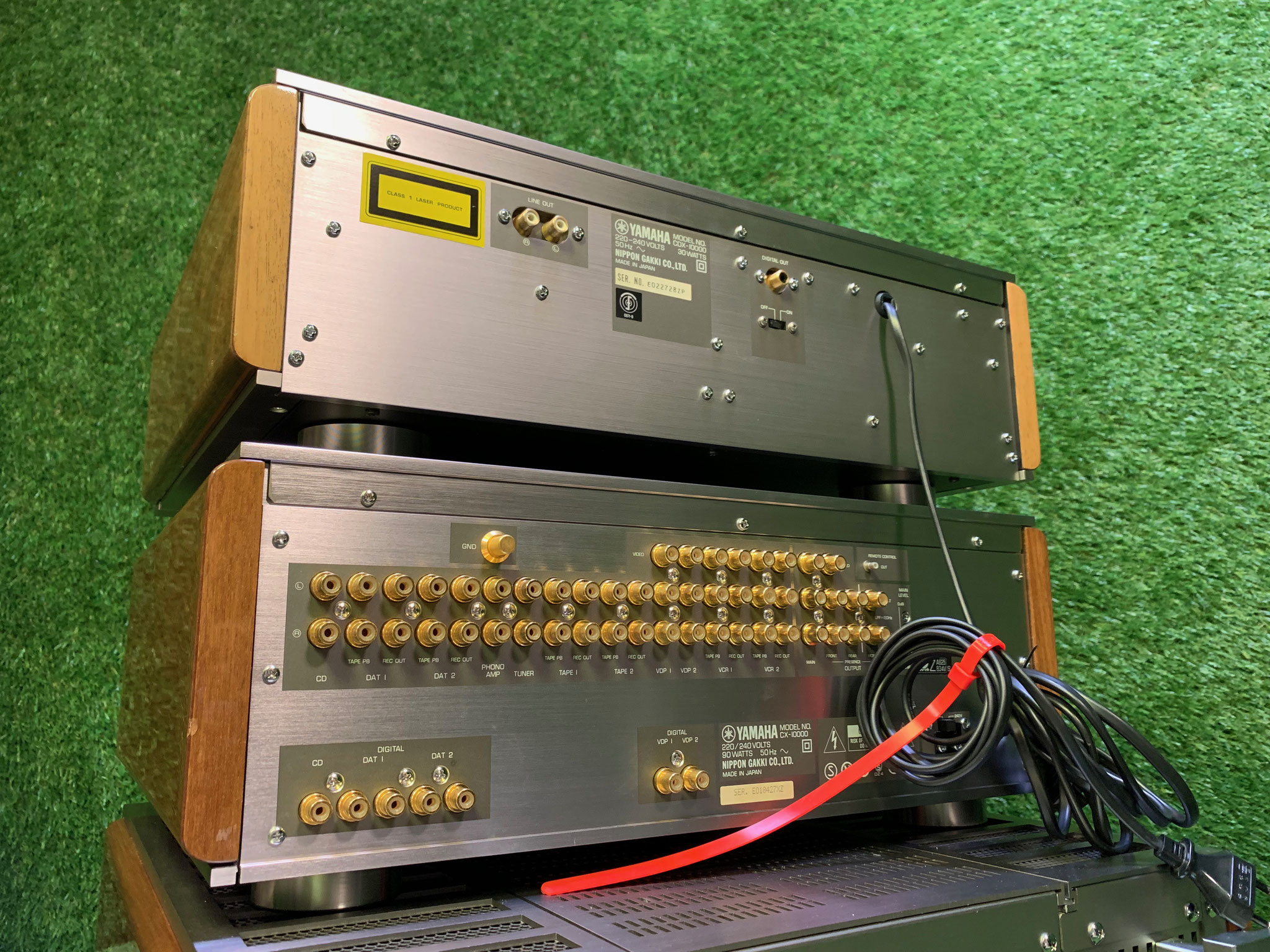

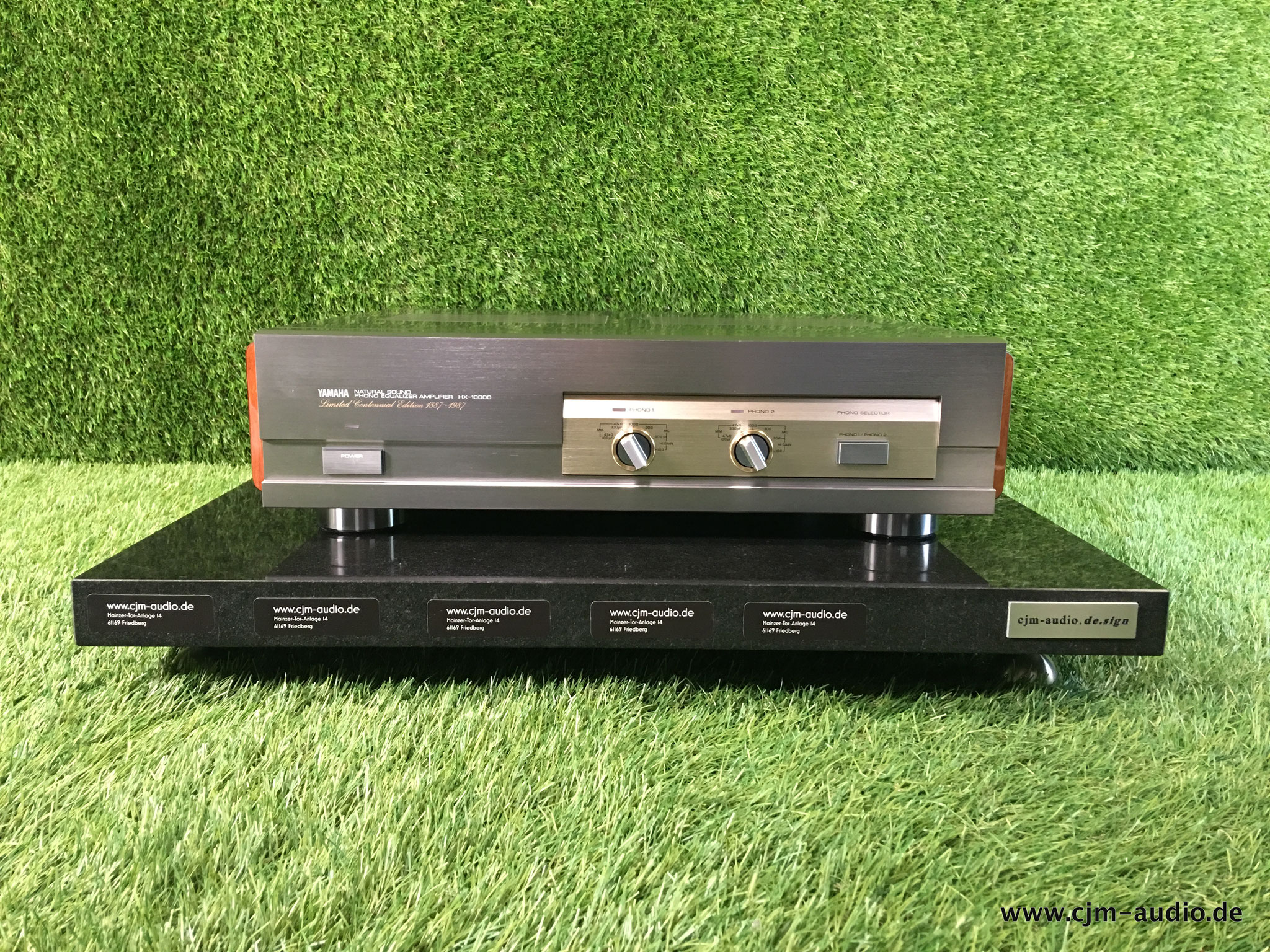

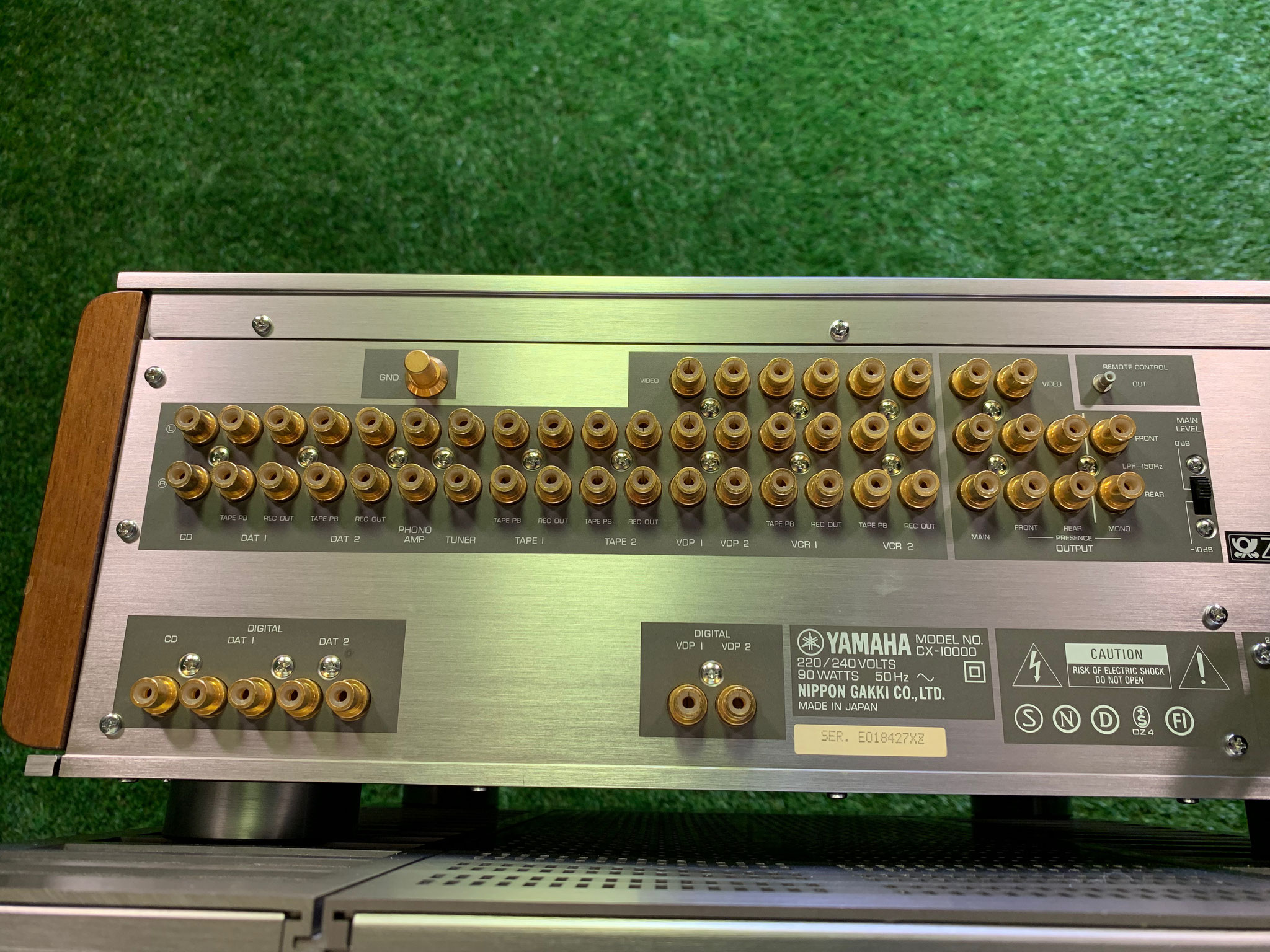

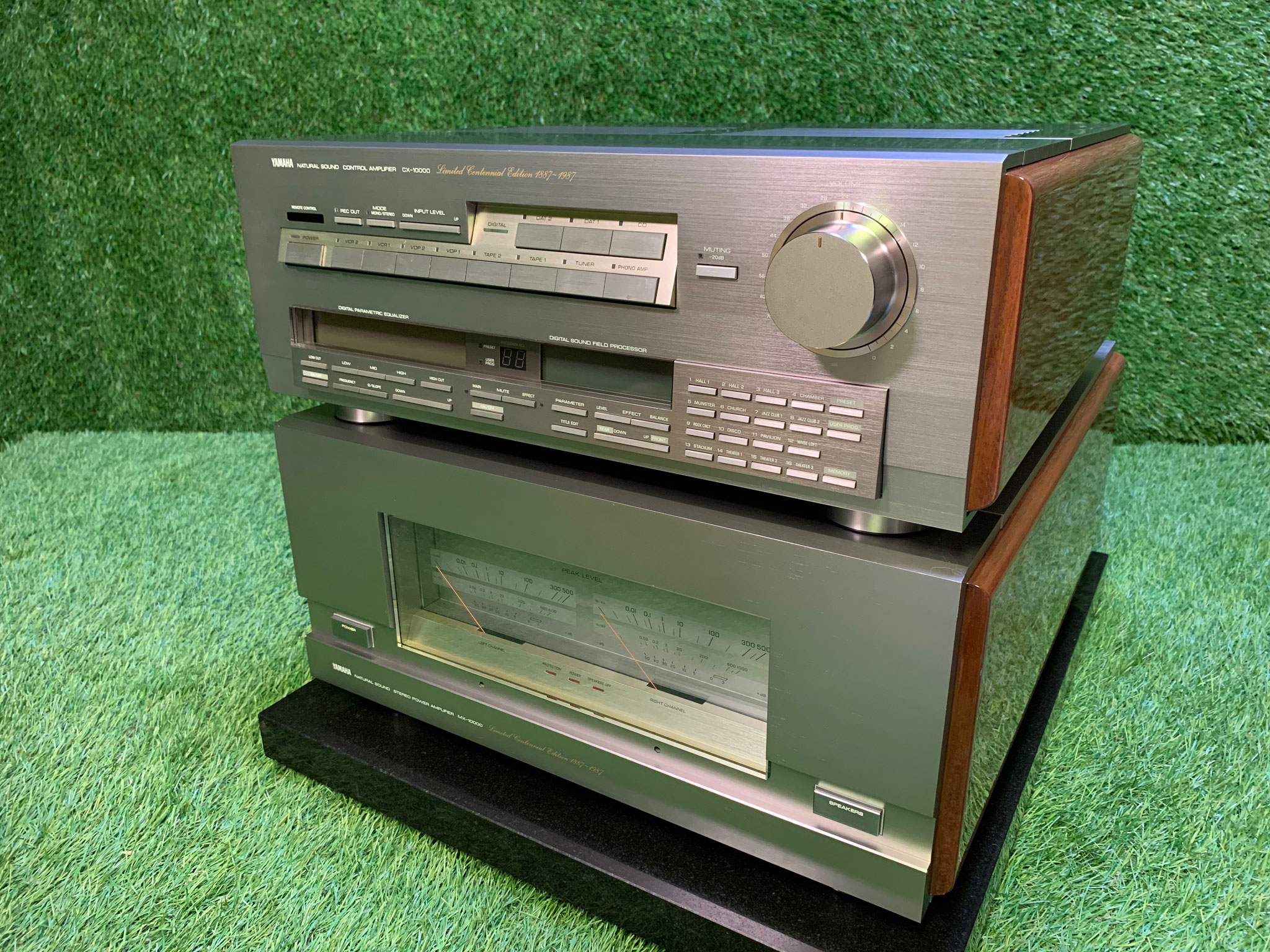

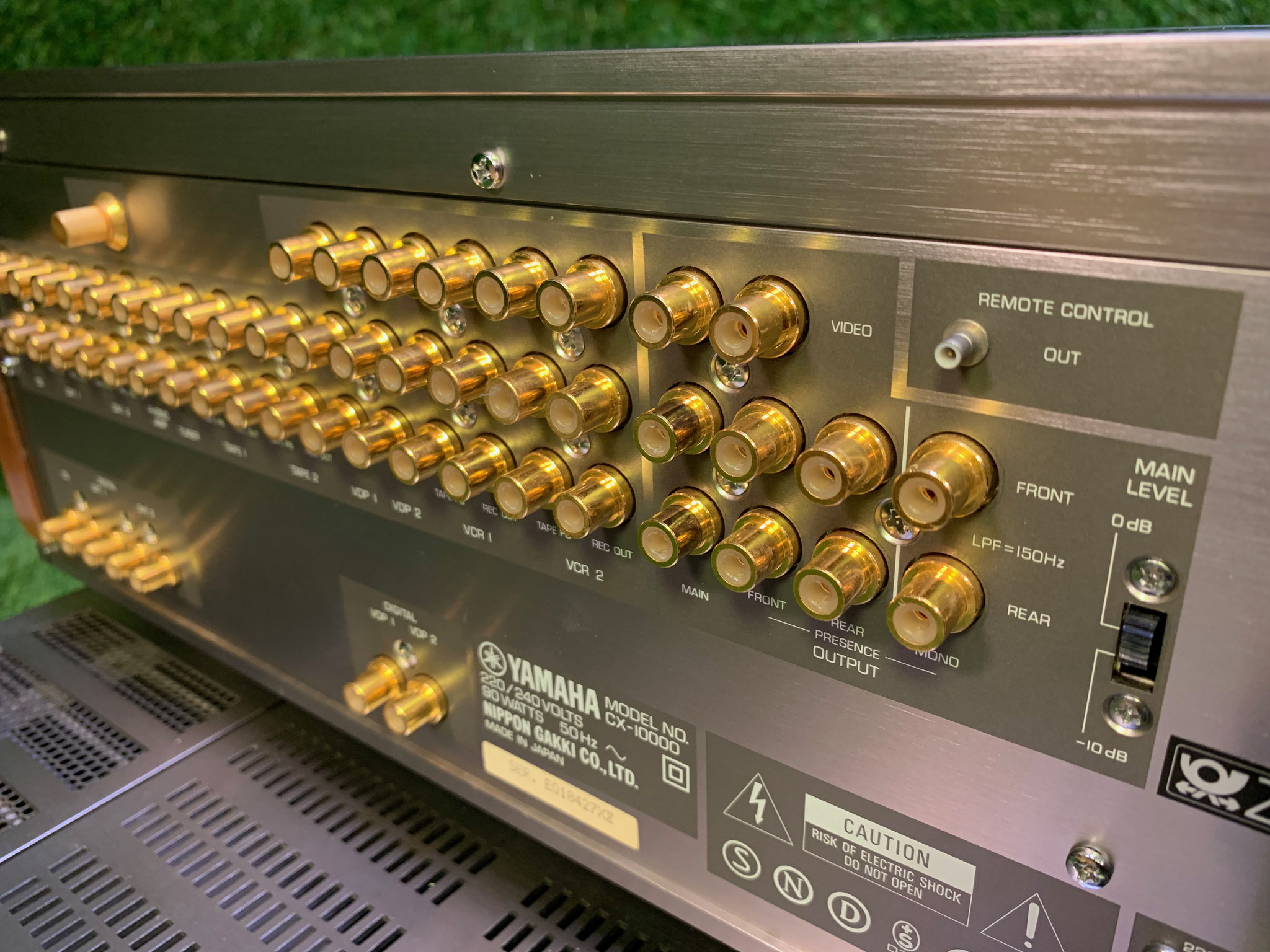

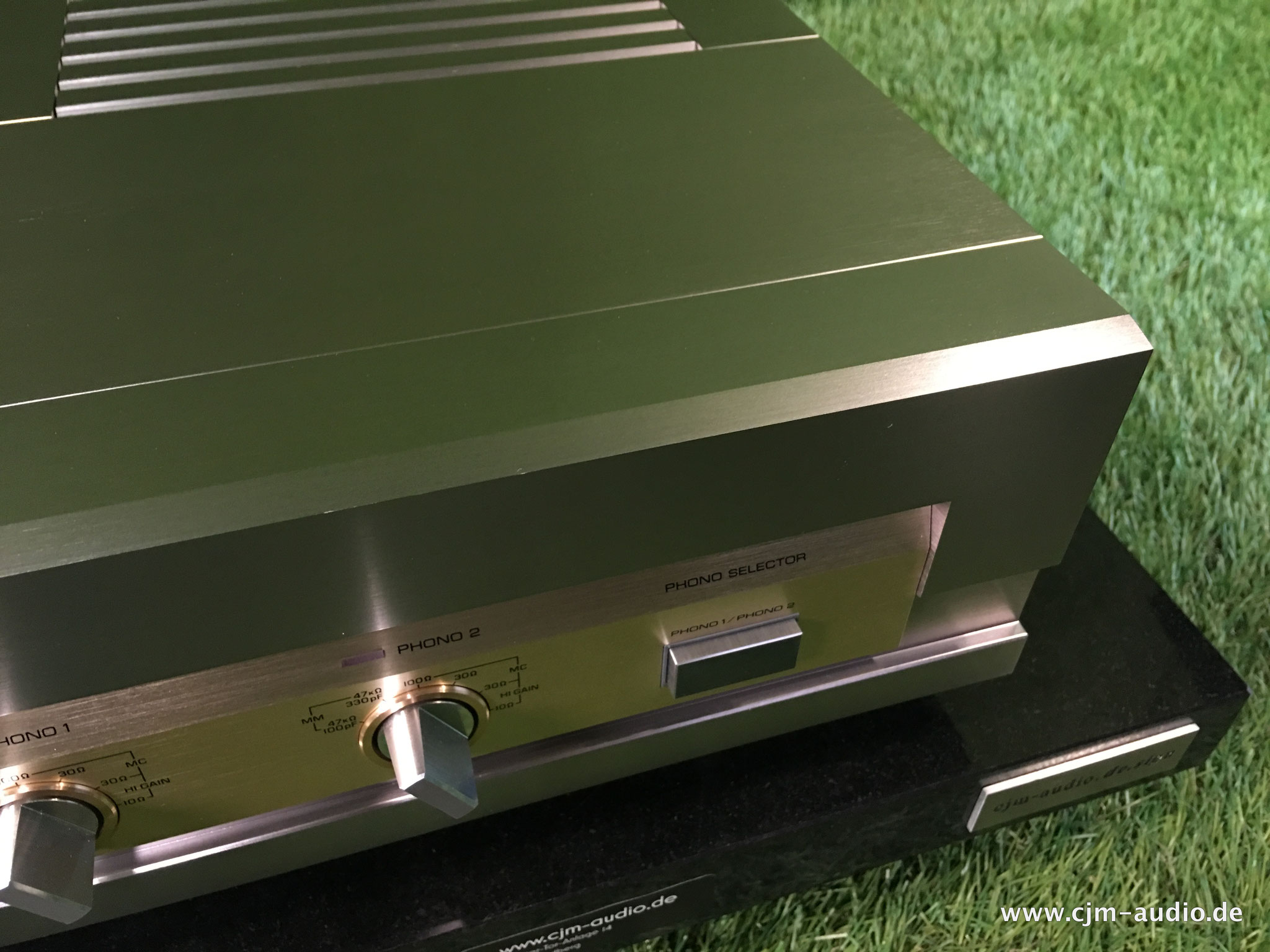

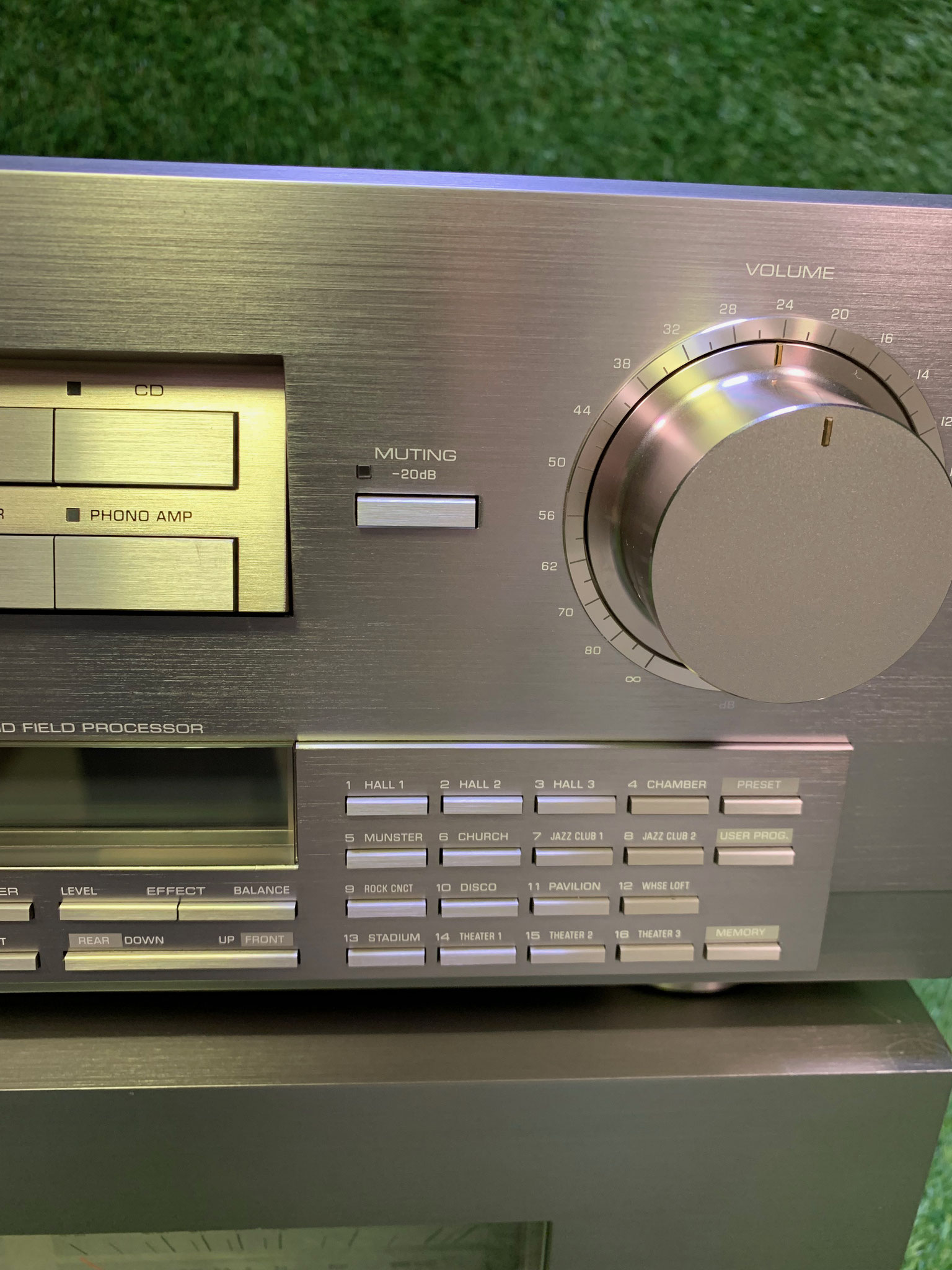

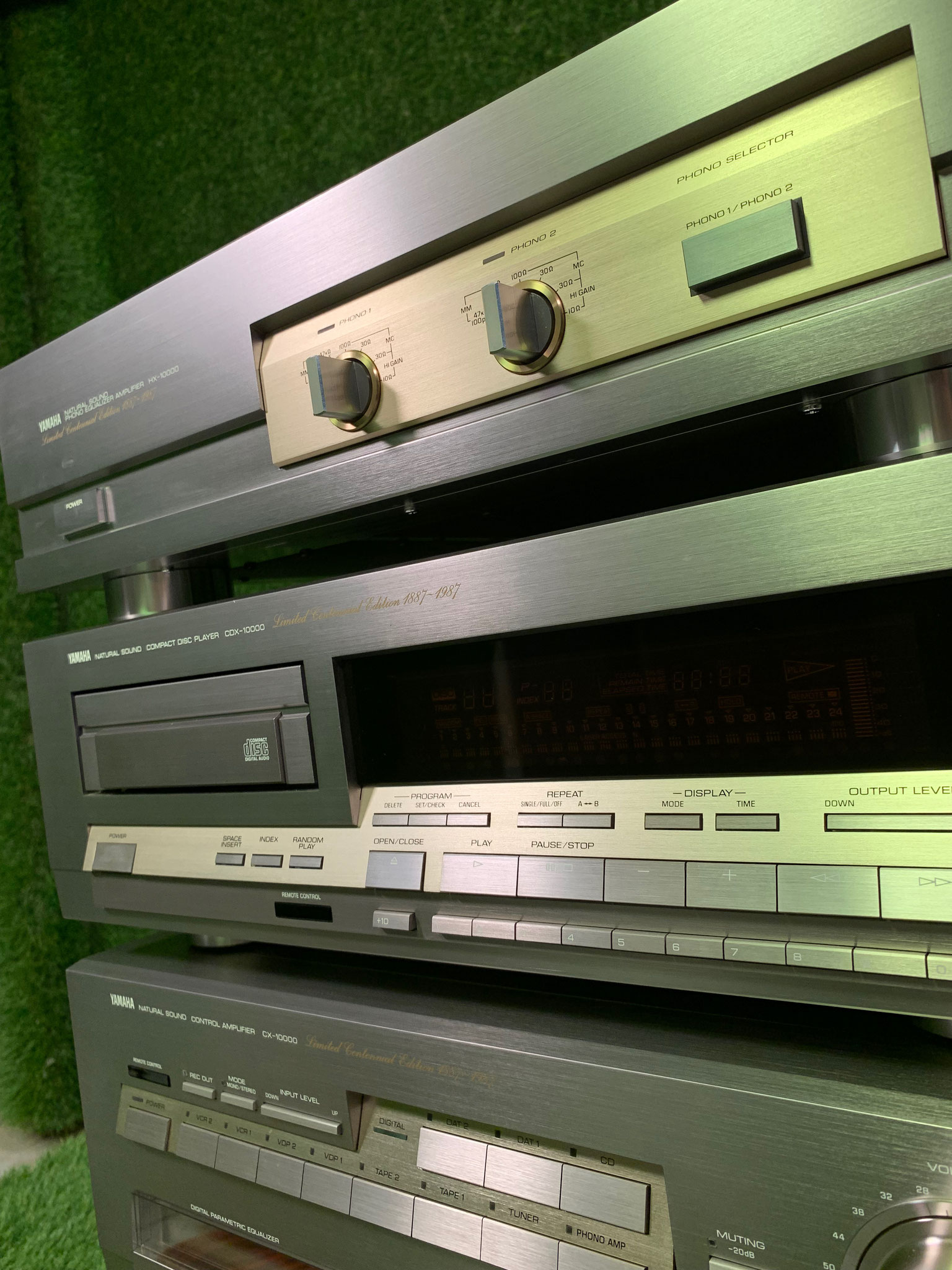

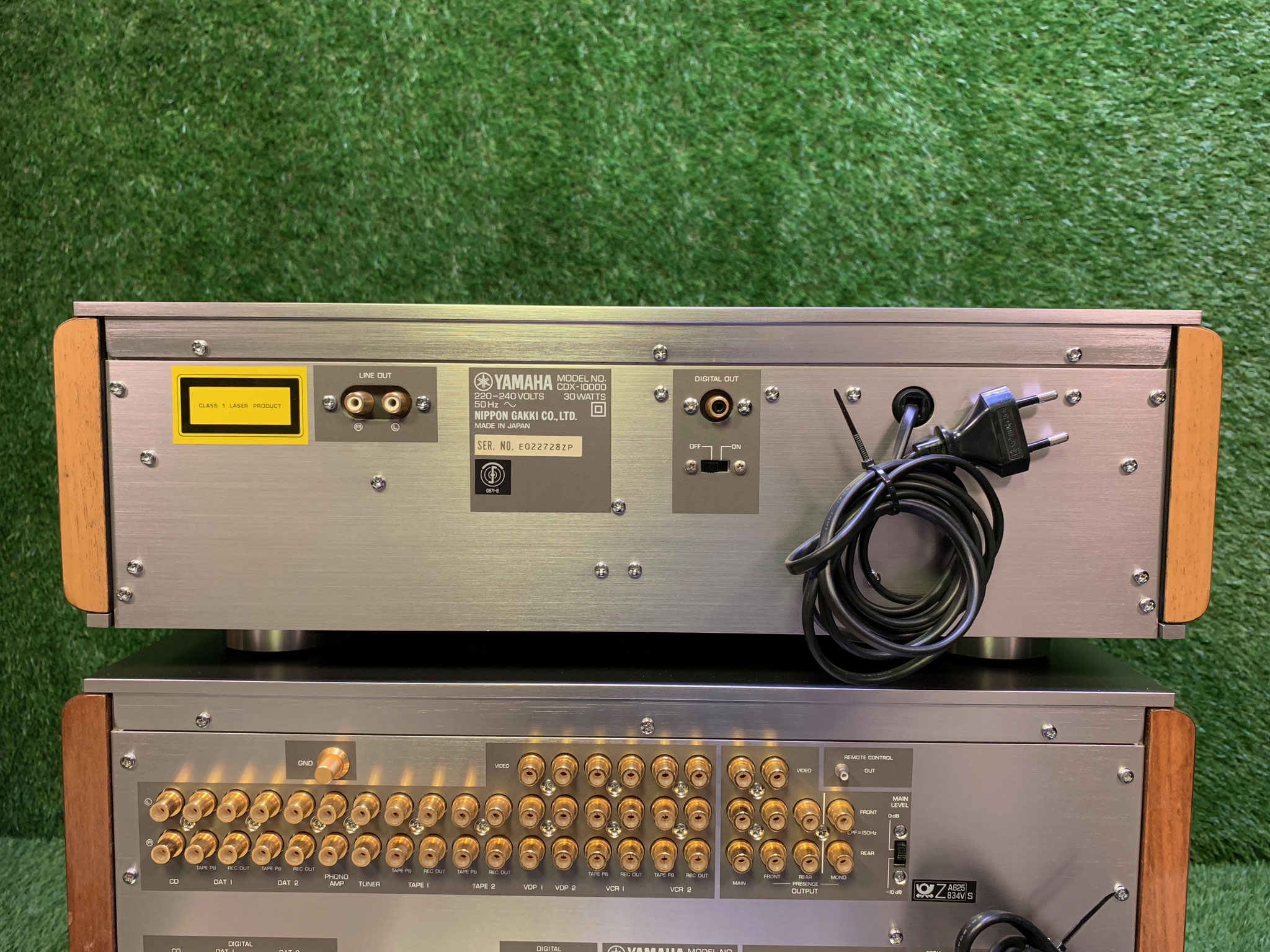

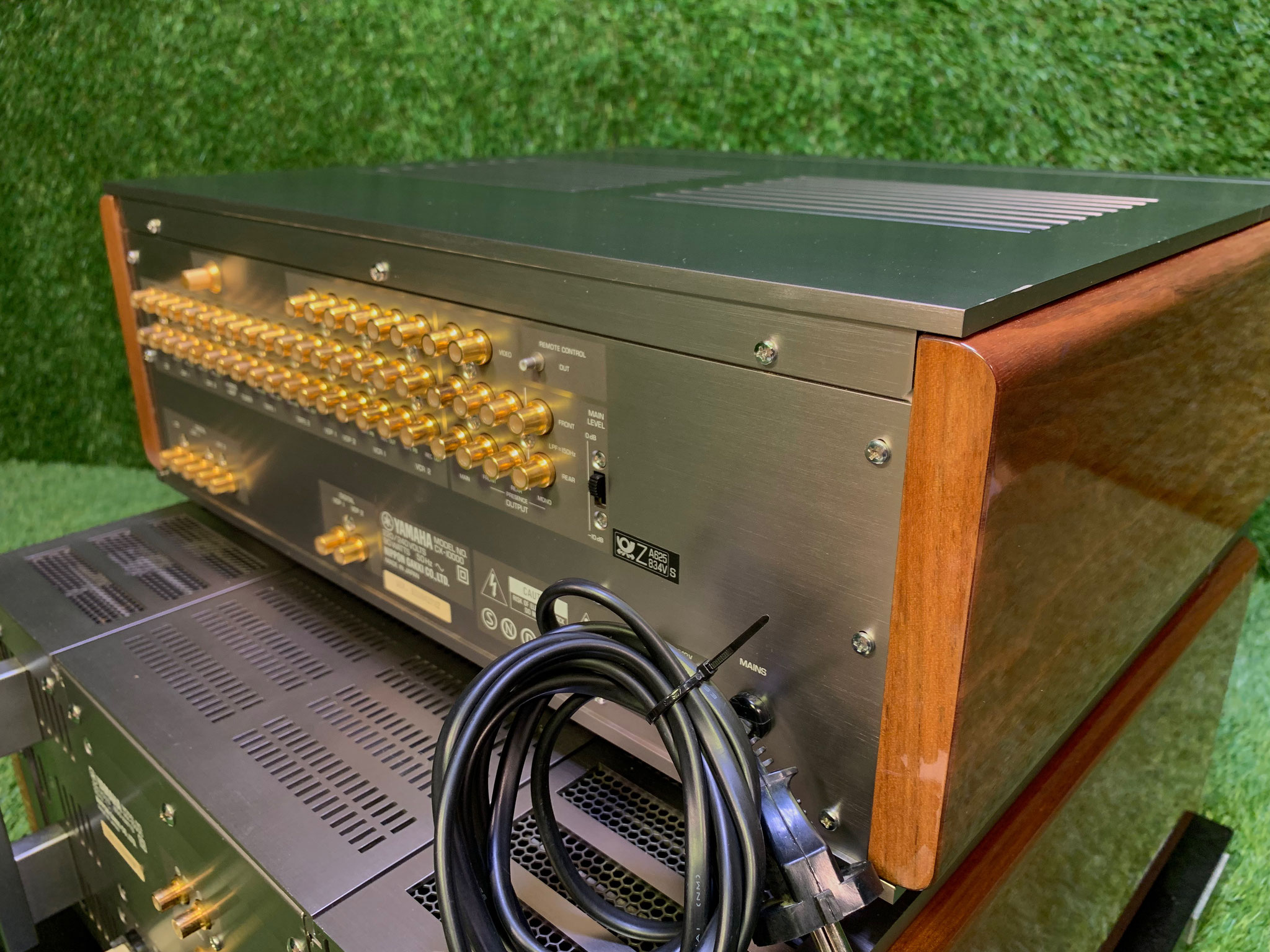

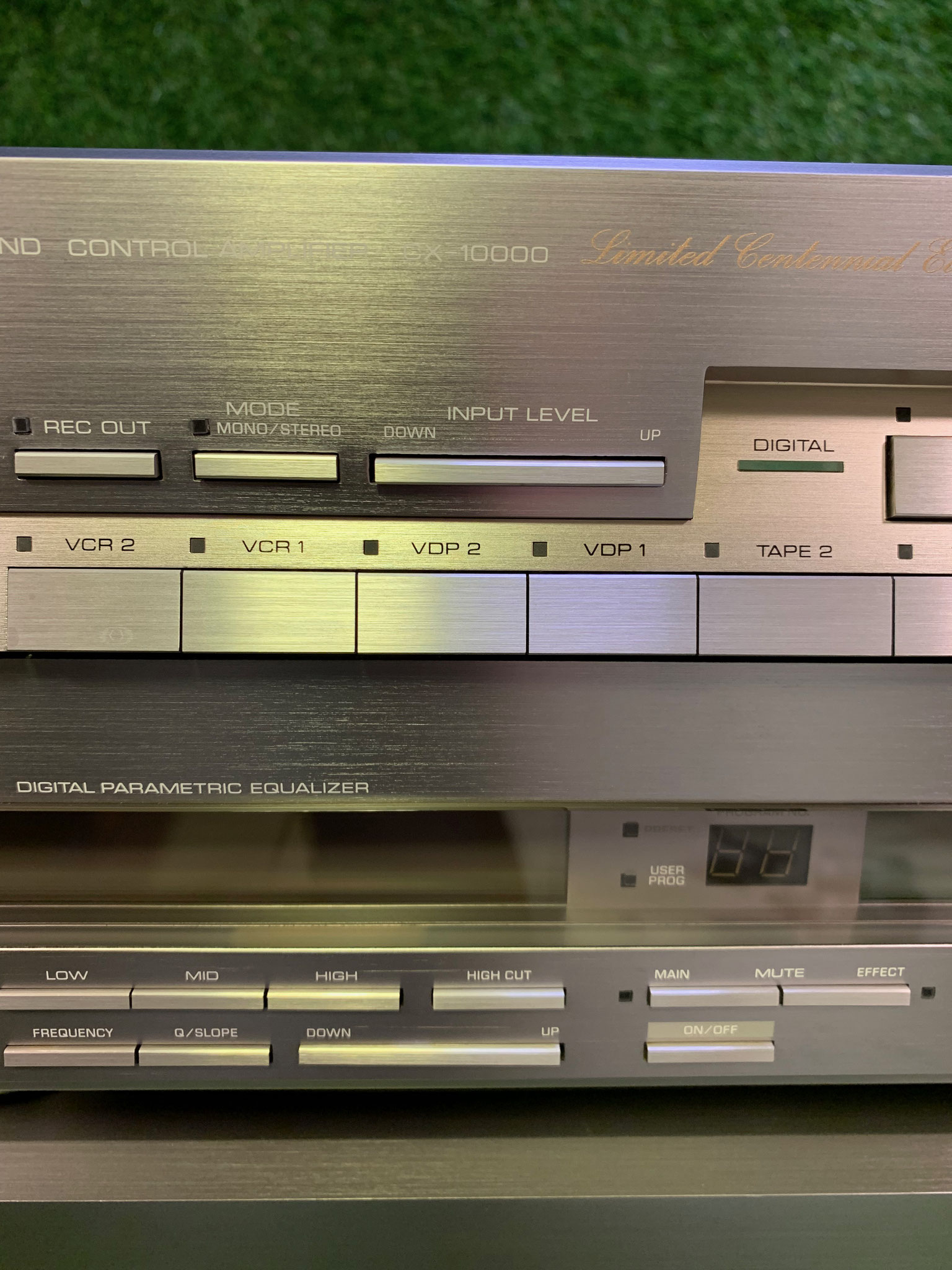

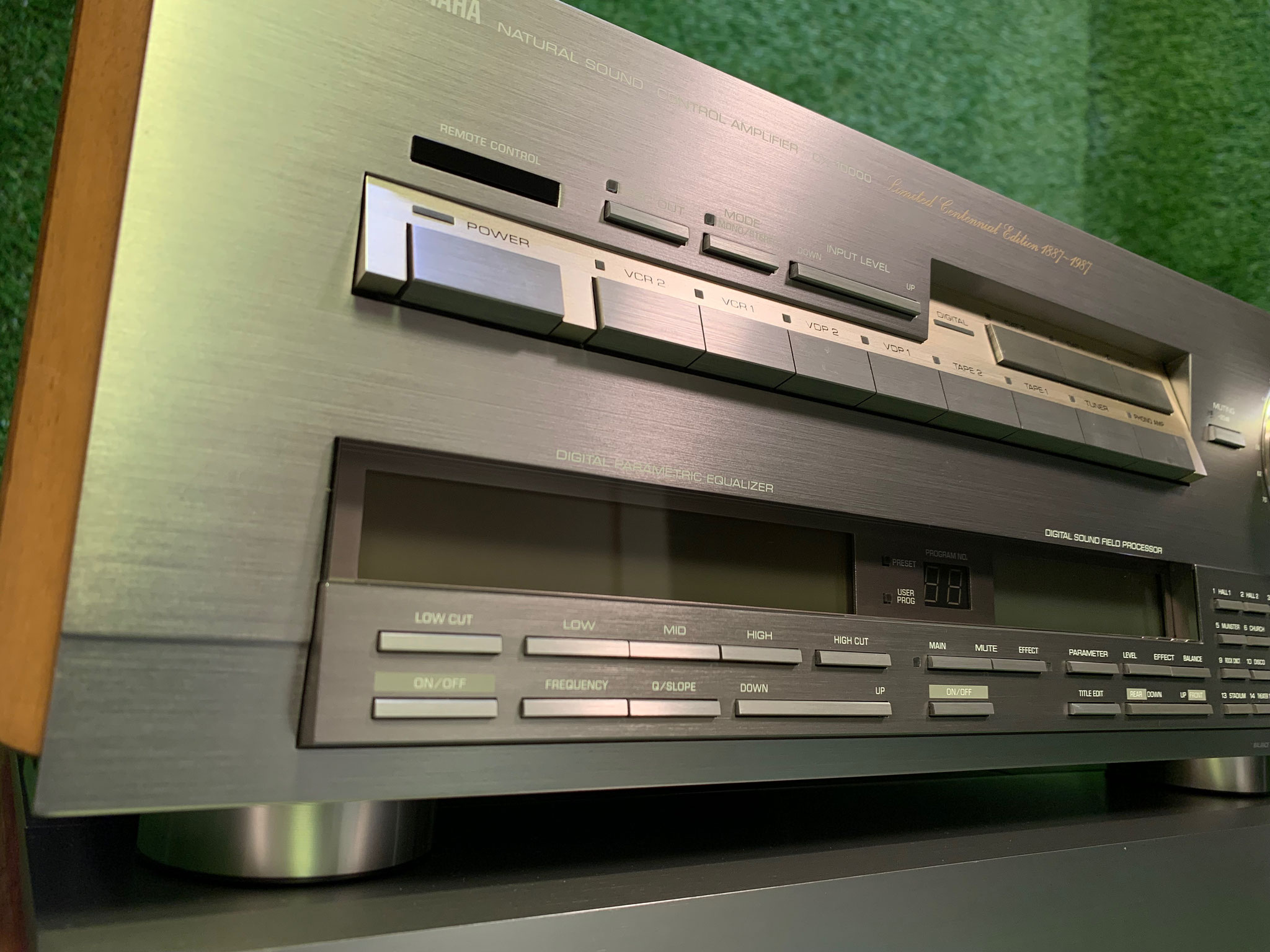

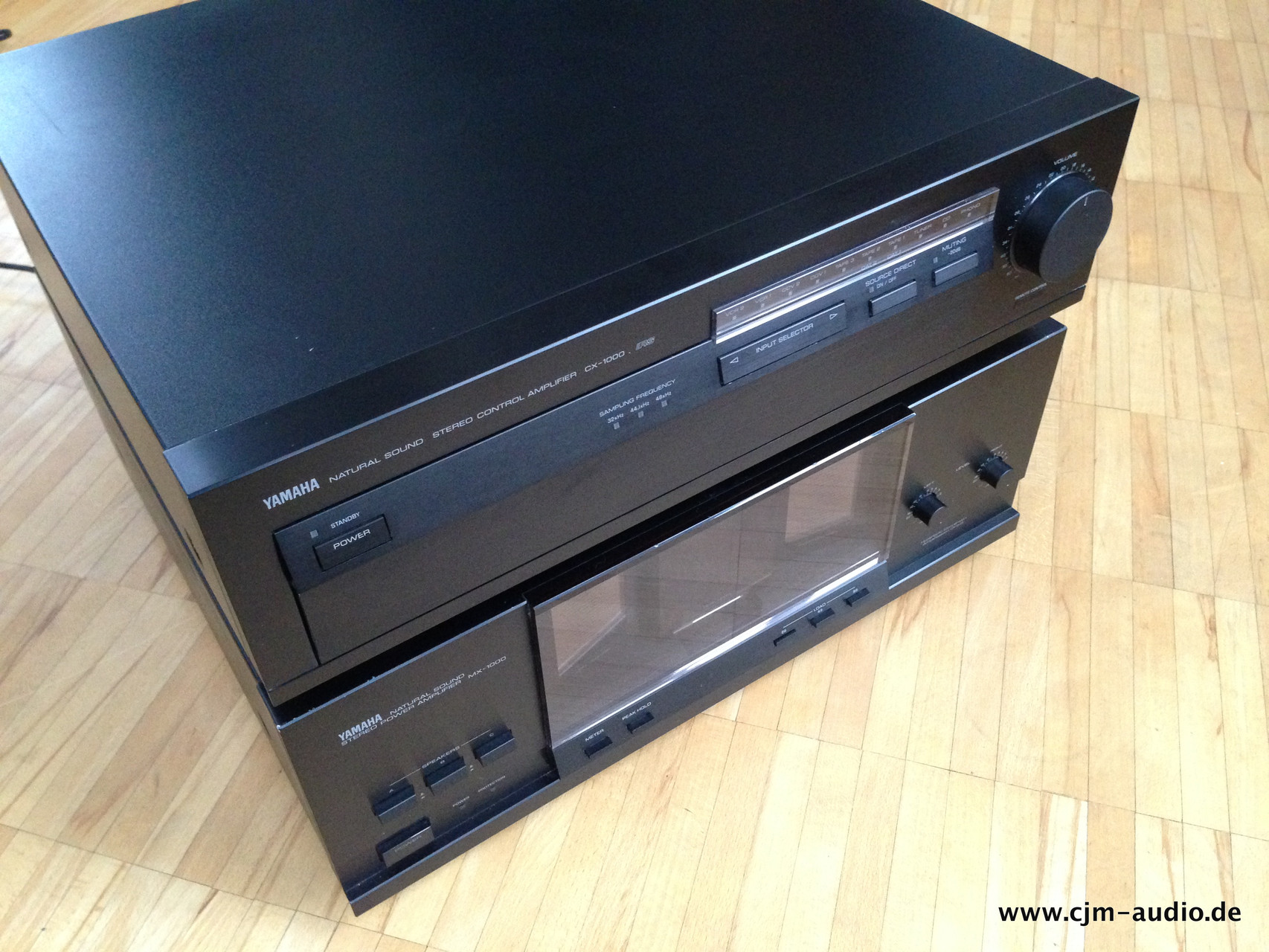

Yamaha CX-1000

Eingang (Empfindlichkeit/Impedanz)

Phono MM 2,5mV/1 KOhm/47 KOhm, MC 100µV/10 Ohm/100 Ohm/1 KOhm

Tape, Aux, Tuner 150 mV/47 KOhm

Ausgang (Pegel/Impedanz)

Rec-Out 150mV/1 KOhm

Pre-Out 1,5V/47 Ohm

Kopfhörer 4,5V/100 Ohm

Frequenzgang: 20 - 20.000 Hz (+0/-0,2 dB)

Klangregelung

Bass: ±10 dB bei 20 Hz

Mitten: ±10 dB bei 1000 Hz

Höhen: ±10 dB bei 20000 Hz

Loudness: regelbar

Subsonic: 15 Hz, 12 dB/Oktave, schaltbar

Mute: Ja

Direct/Line-Straight: Source Direct

Brummspannungsabstand (kurzgeschlossen): 106 dB

Stereokanaltrennung: 90 dB
