Weiterführende Informationen:

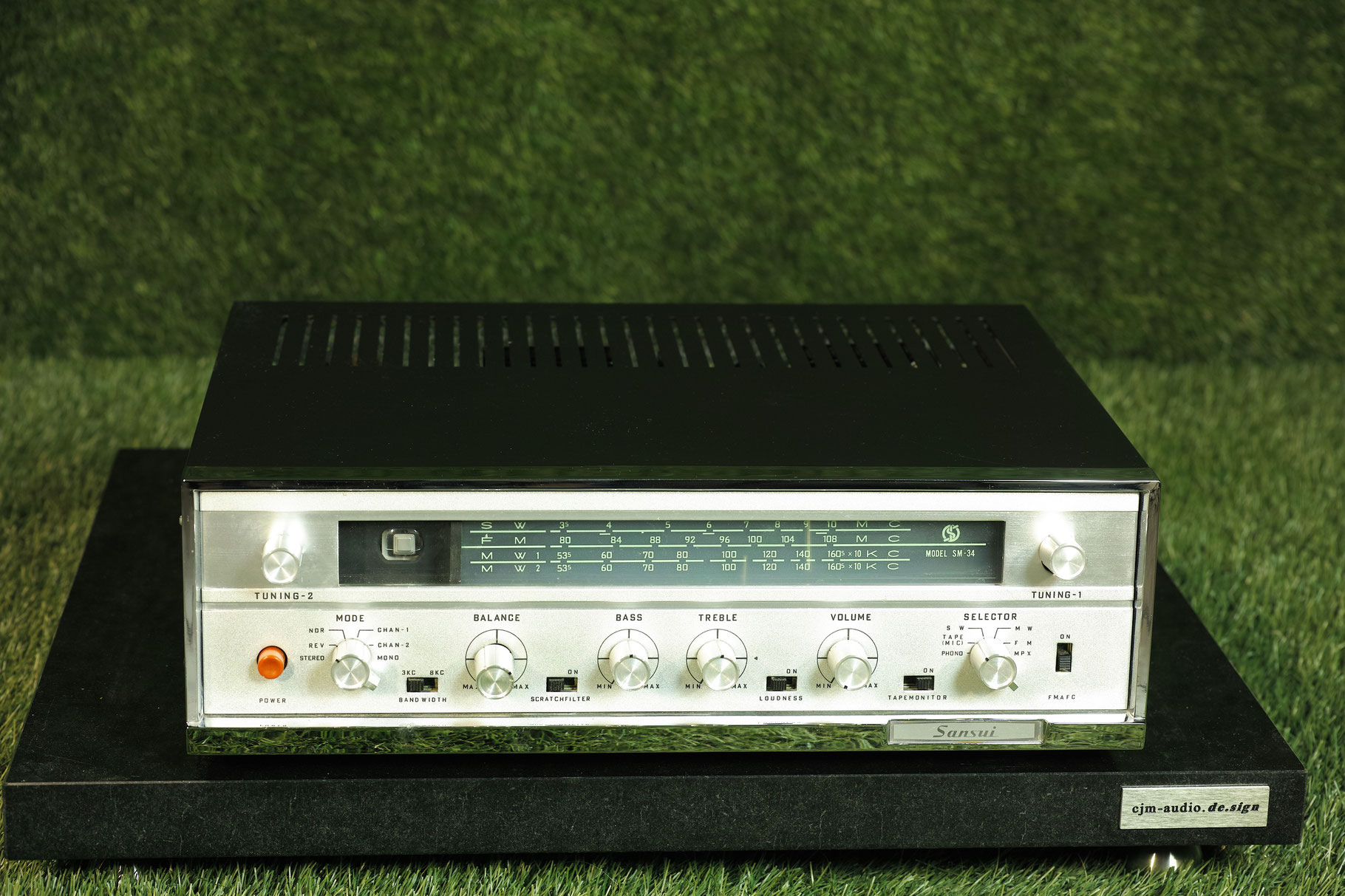

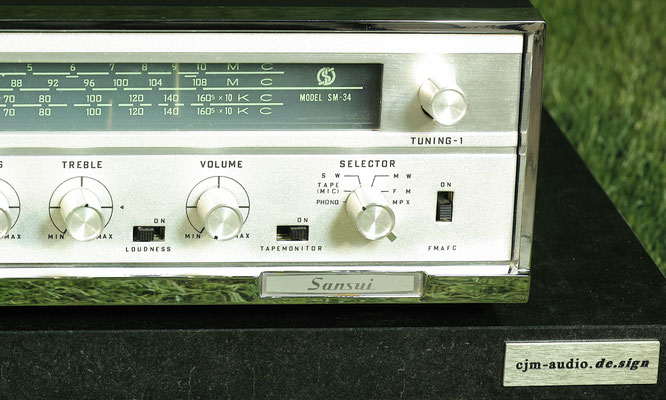

Type Stereo integrated amplifier

Maximum power output 16W+16W

Frequency characteristic 20 Hz ~ 80 kHz -2dB or less (8 Ω load)

Distortion factor 1% or Less (at Output 13W)

Gain (input required for output 12W) Phono MAG : 77 dB, 2 mV

Phono X-TAL : 49 dB, 50 mV

Tape, MIC : 82 dB, 1.1 mV

Tape mon out : 46 dB, 70 mV

Receiving frequency FM : 80 MHz ~ 108 MHz (CHAN-1)

AM : 535 kHz to 1605 kHz (CHAN-1, 2)

Short Wave Section : 3.5 MHz ~ 10 MHz (CHAN-1)

Synchronous display Using Magic Eye (for both AM and FM)

Accessory circuit Loudness control

Scratch filter

Tape monitor terminal (slide switch operation)

Used vacuum tubes, etc. Vacuum tube

6AQ8x4

6BE6x2

6BA6x4

6BM8x4

6GE12Ax1

Transistor

2SB51x4

Diode

OA-79x4 (Germanium)

SE-0. 5Ax2 (Silicon)

Selenium rectifier

TC-0.2P11/2

Power supply voltage 100 VAC / 117 V, 50Hz/60Hz

Power consumption 120VA

External dimensions Width 436x Height 147x Depth 343 mm

Weight 13.3kg
