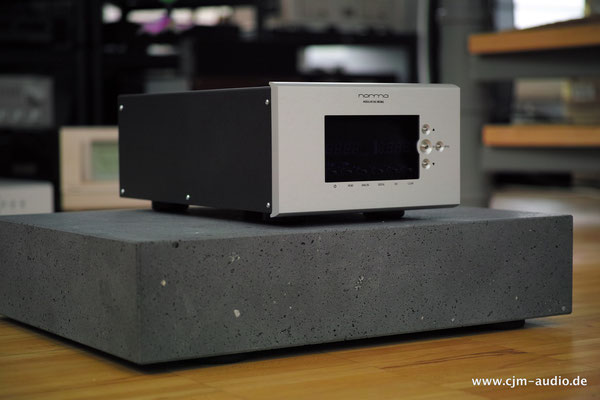

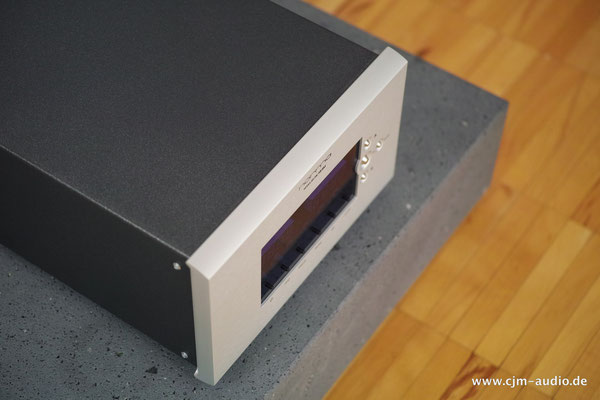

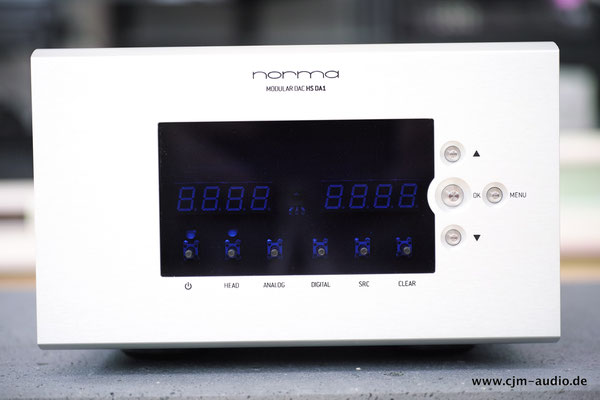

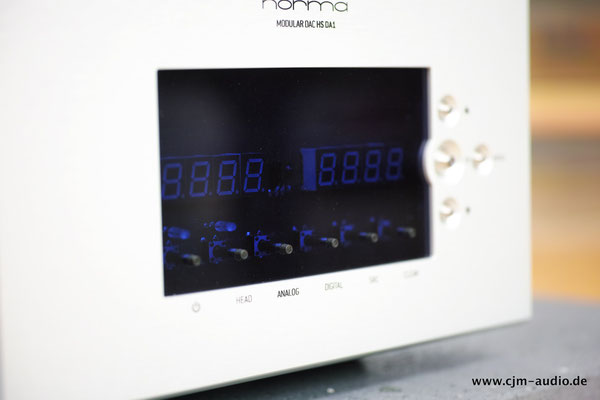

Norma HS DA1 Neuware!



Der Norma HS DA1 ist in drei verschiedenen Ausbaustufen erhältlich:



HS DA1: DAC, 5 Eingänge, RCA+XLR out / 2200,-€



HS DA1 VAR: wie oben + variable out, FB / 2600,-€



HS DA1 PRE: wie oben + 2 analoge inputs + var. out + ClassA Kopfhörer-Verstärker / 3500,-€



Weiterführende Informationen sowie einen aussagekräftigen Test finden Sie unter:



http://www.fairaudio.de/test/computer-und-festplatte/2014/norma-hs-da1-var-pre-dac-wandler-vorstufe-1.html





Technische Daten:

IN1 : USB, 2.0 High Speed

IN2 : SPDIF RCA, 75Ohms

IN3 : AES/EBU XLR, 110Ohms

IN4 : TOSLINK OPTICAL, 96 KHz, (192.0 KHz may be achieved, but not guaranteed)

IN5 : SPDIF RCA, 75Ohms (IN5 can be set as SPDIF Output by CD Mechanism)

Sampling Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz

UpSampler Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz, AUTO MODE

Based on TI SRC4392

Clock performances: +/- 2ppm typ. at 25°, +/- 10ppm at 60°

Digital Filter: Slow & Sharp mode, based on TI DF1706

De-emphasis: 44.1KHz, 48.0KHz, auto e manual mode

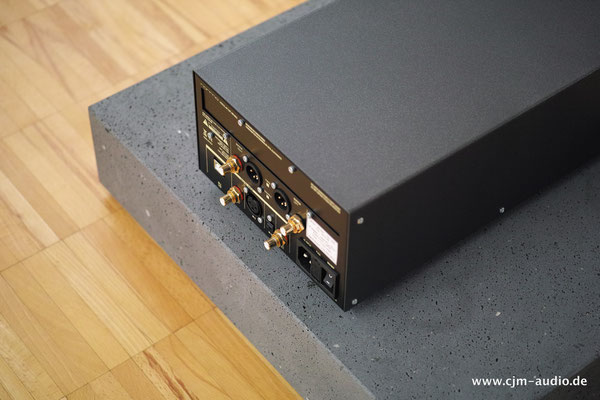

Connections Outputs: Line RCA output, XLR Balanced

Outputs Voltage: 3.0 V RMS (+10 dBV) RCA (at 0 dB), 6.0 V RMS (+16 dBV) XLR(at 0 dB)

Output Impedance: 200 ohm

Analogue Output Filter: 0,0 to 180 kHz +/- 3 dB

Analogue Stage Frequency Response: 0,0 to 2MHz +/- 3 dB

Configuration: Solid state

Oversampling: DF 1706 8 x Digital Filter

Oversampling Filter: User selectable Sharp & Slow Roll-off filter response.

D/A Converter: PCM 1704 Multibit 24 Bit D/A converter

I/V Conversion: I/V Conversion by proprietary topology with discrete component

Output Stage: Proprietary topology with discrete component, high linearity & low noise

Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)

Dimensions (HxWxD): 126 x 215 x 350 mm

Weight: 5 Kg

Note: DAC Source with full remote control on PRE Version

2.200,00 €

  • verfügbar
  • 3 - 5 Tage Lieferzeit1
